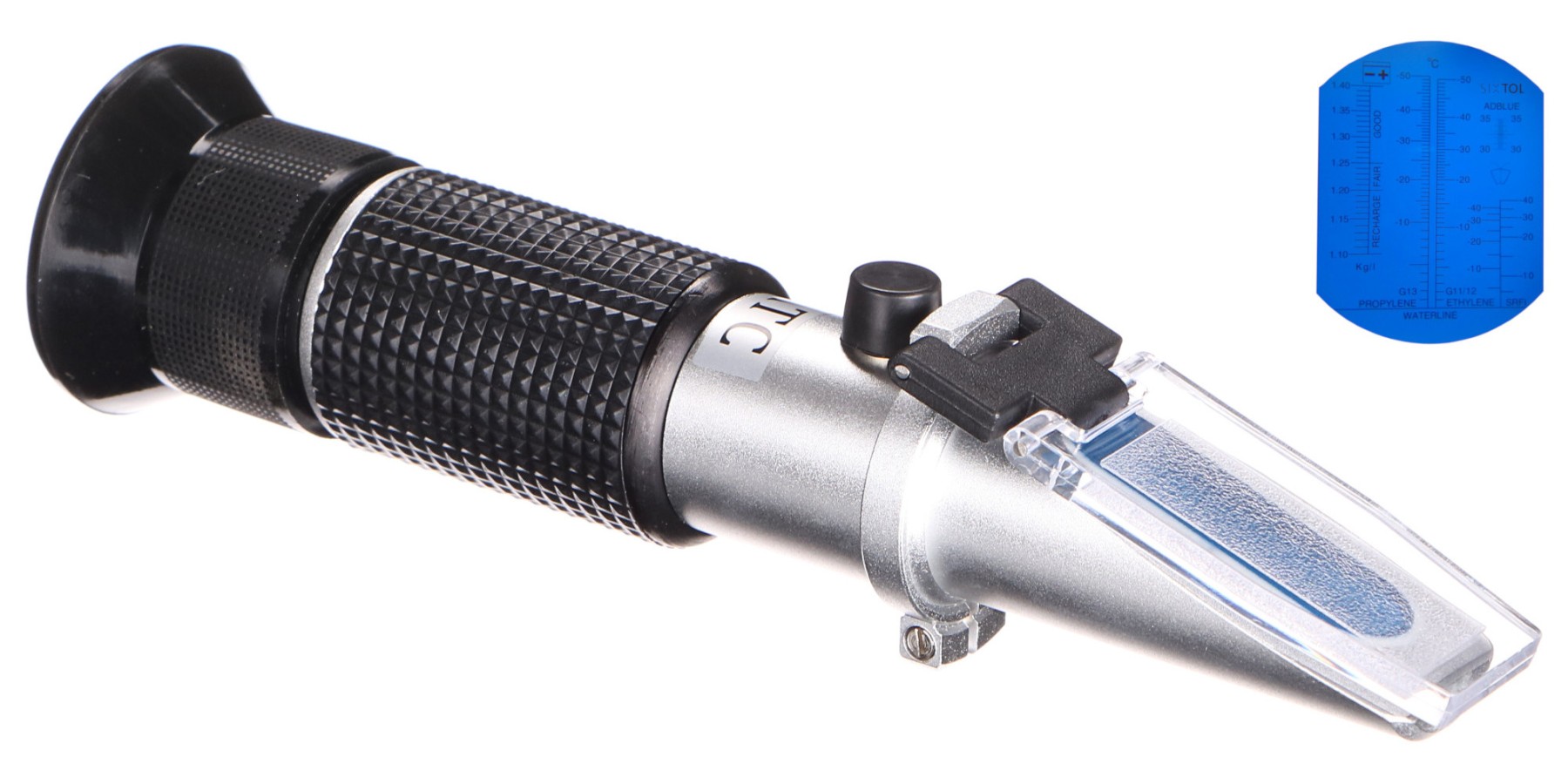

Refractometer for measuring car operating fluids + AdBlue, SIXTOL

Refractometer for measuring operating fluids and AdBlue

A refractometer is a device that allows to determine the physical properties of a liquid by measuring the refractive index at the boundary of the medium. With a refractometer it is possible to determine the degree of battery charge, the freezing point of coolants based on propylene glycol or ethylene glycol, the freezing point of windshield washer fluids, and also the concentration of the AdBlue additive.

Main advantages:

• Measures the concentration of the AdBlue additive
• Compact size of the device
• The device does not need any battery and does not require assembly
• High operational reliability and long service life
• Small deviation and high measurement accuracy
• The device body is made of light and durable special aluminum alloy
• Requires virtually no maintenance
• Part of the device is equipped with a soft, rubber cover

Measurement options:

• Battery charging
• Coolant freezing point
• Windscreen washer fluid freezing point
• AdBlue additive concentration in the range of 30 – 35 %
• The kit includes a pipette and a cleaning cloth

Liquid measurement:

• 1. Take a small amount of liquid with a pipette.
• 2. Lift the cover plate and apply 2-3 drops of liquid to the prism of the device.
• 3. Fold the cover plate back so that the measured liquid is evenly and bubble-free spread over the prism surface.
• 4. After 30 seconds, direct the cover plate to the light source and look into the eyepiece.
• 5. The image must be focused using the focusing ring. And read the position of the light/shadow transition on the appropriate scale indicating the properties of the given liquid.

Package contents:

• 1 pc refractometer for measuring car operating fluids + AdBlue
• 1 pc practical and mechanically resistant plastic case
• 1 pc pipette for sampling
• 1 pc screwdriver for calibrating the device
• 1 pc antistatic cleaning cloth for the optical prism

Note: Special calibration solution is not included in the package!
Technical parameters:

• Freezing point of ethylene glycol-based coolant - range: -50 – 0 °C, accuracy: +/- 5 °C
• Freezing point of propylene glycol-based coolant - range: -50 – 0 °C, accuracy: +/- 5 °C
• Electrolyte density in the battery - range: 1.10 - 1.40 g / cm3, accuracy: +/- 0.01 g / cm3
• Freezing point of antifreeze for washers - range: -40 – 10 °C, accuracy: +/- 5 °C
• Adblue additive concentration – range: 30 - 35%, accuracy: +/- 0.5%
• Dimensions: 5.5 x 7.5 x 20.5 cm
