Auto-darkening filter for welding helmet WELDING MASK PRO VIEW - spare part

Auto-Darkening Filter for Welding Helmet WELDING MASK PRO VIEW – Spare Part SIXTOL

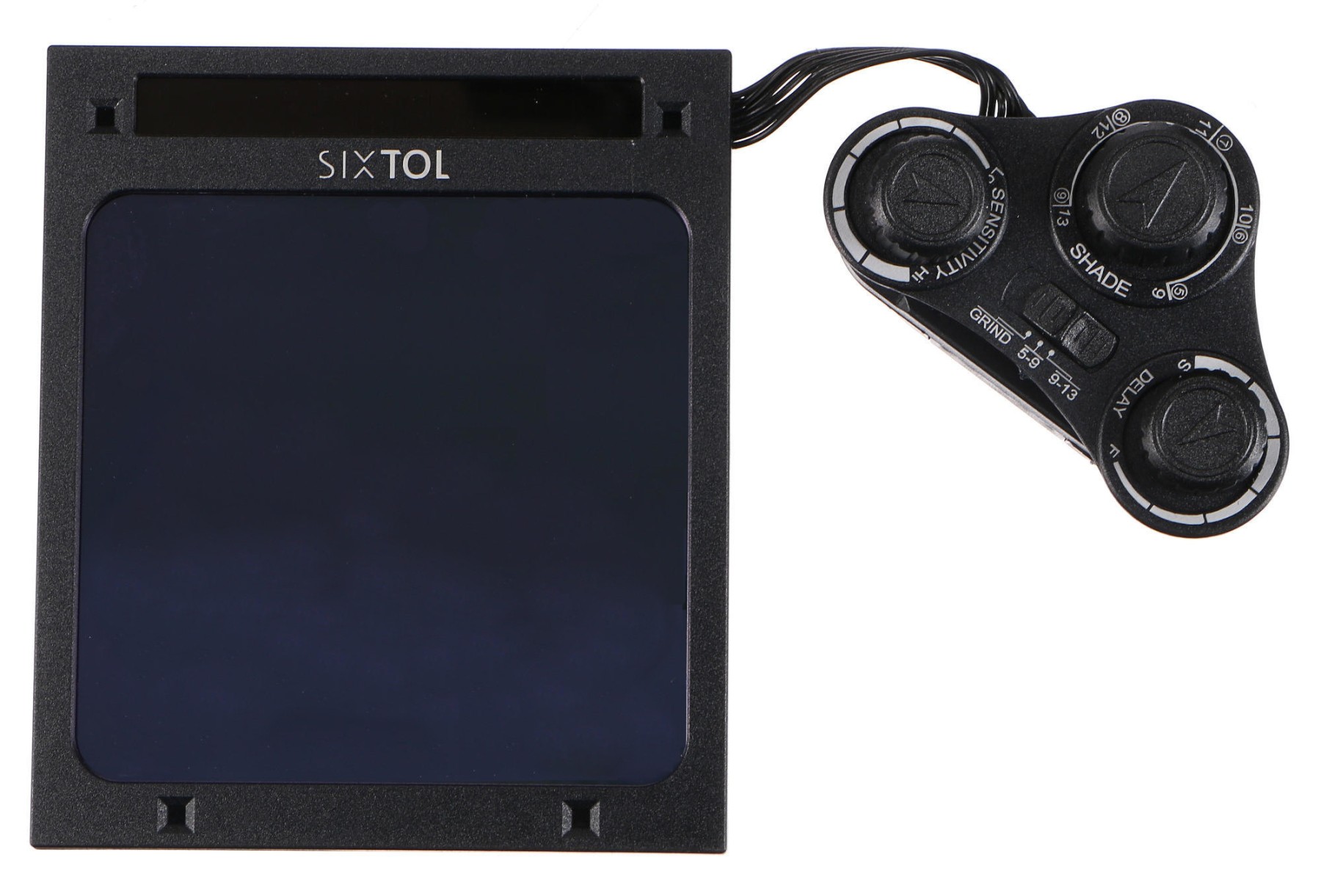

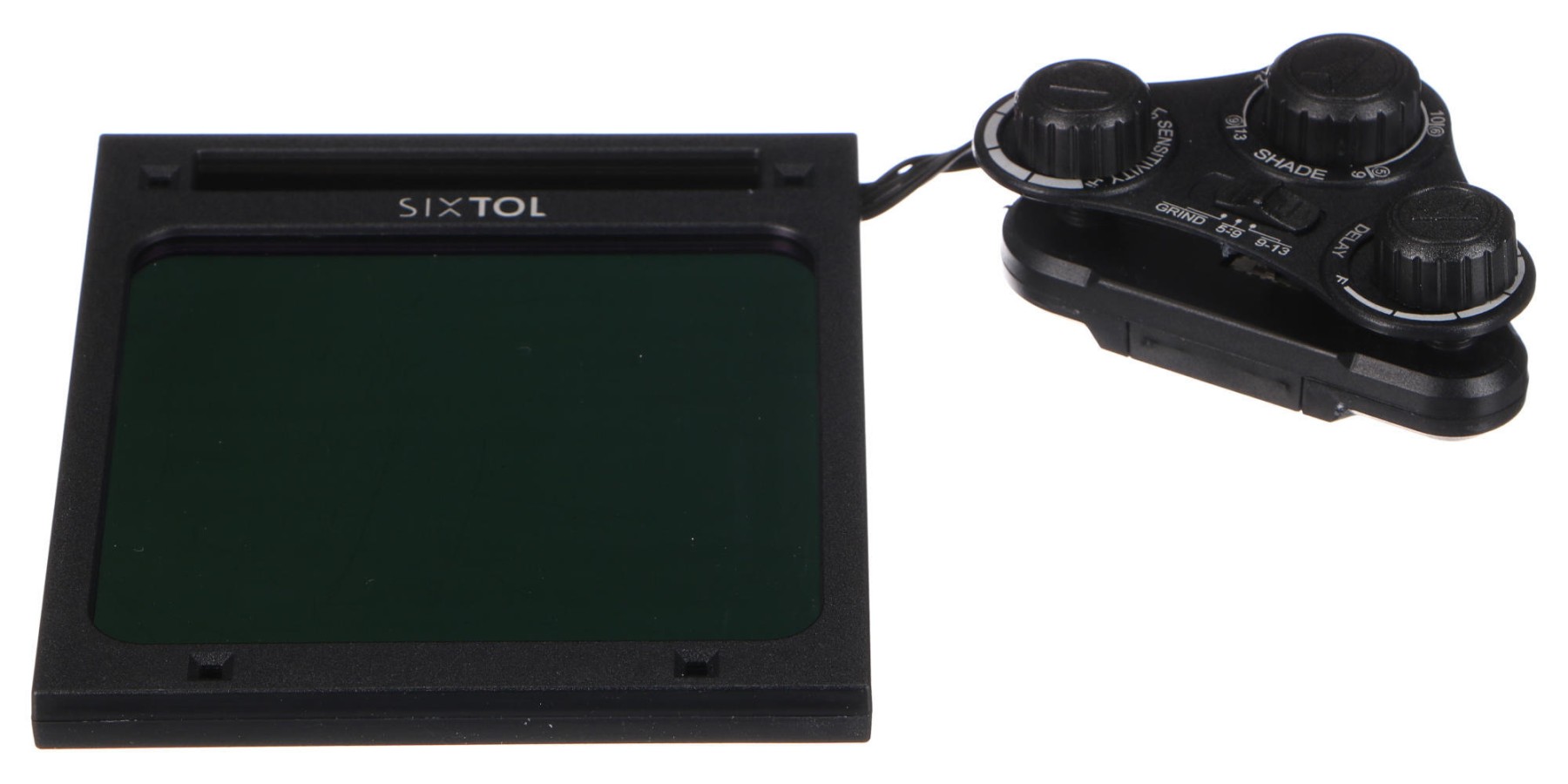

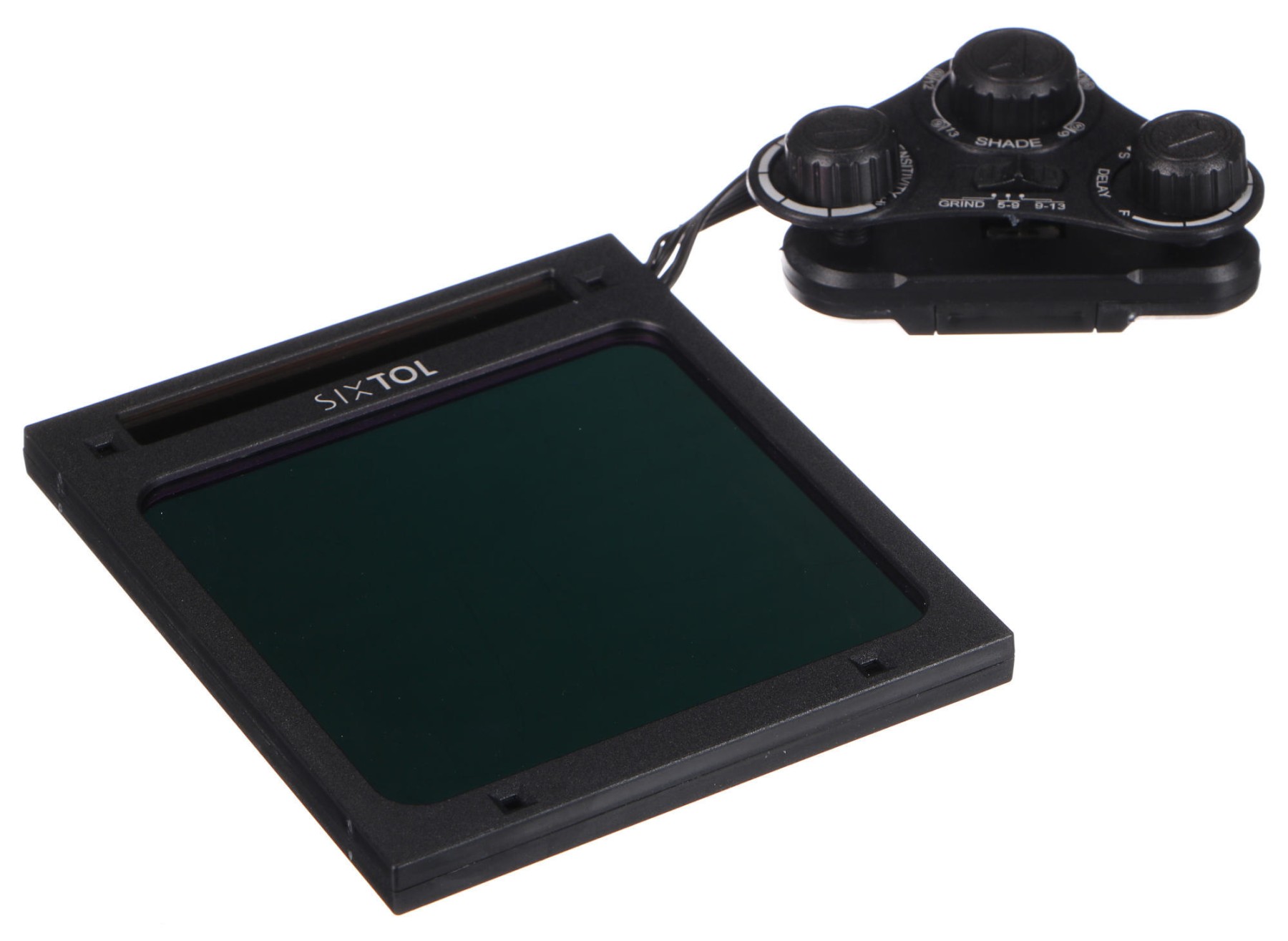

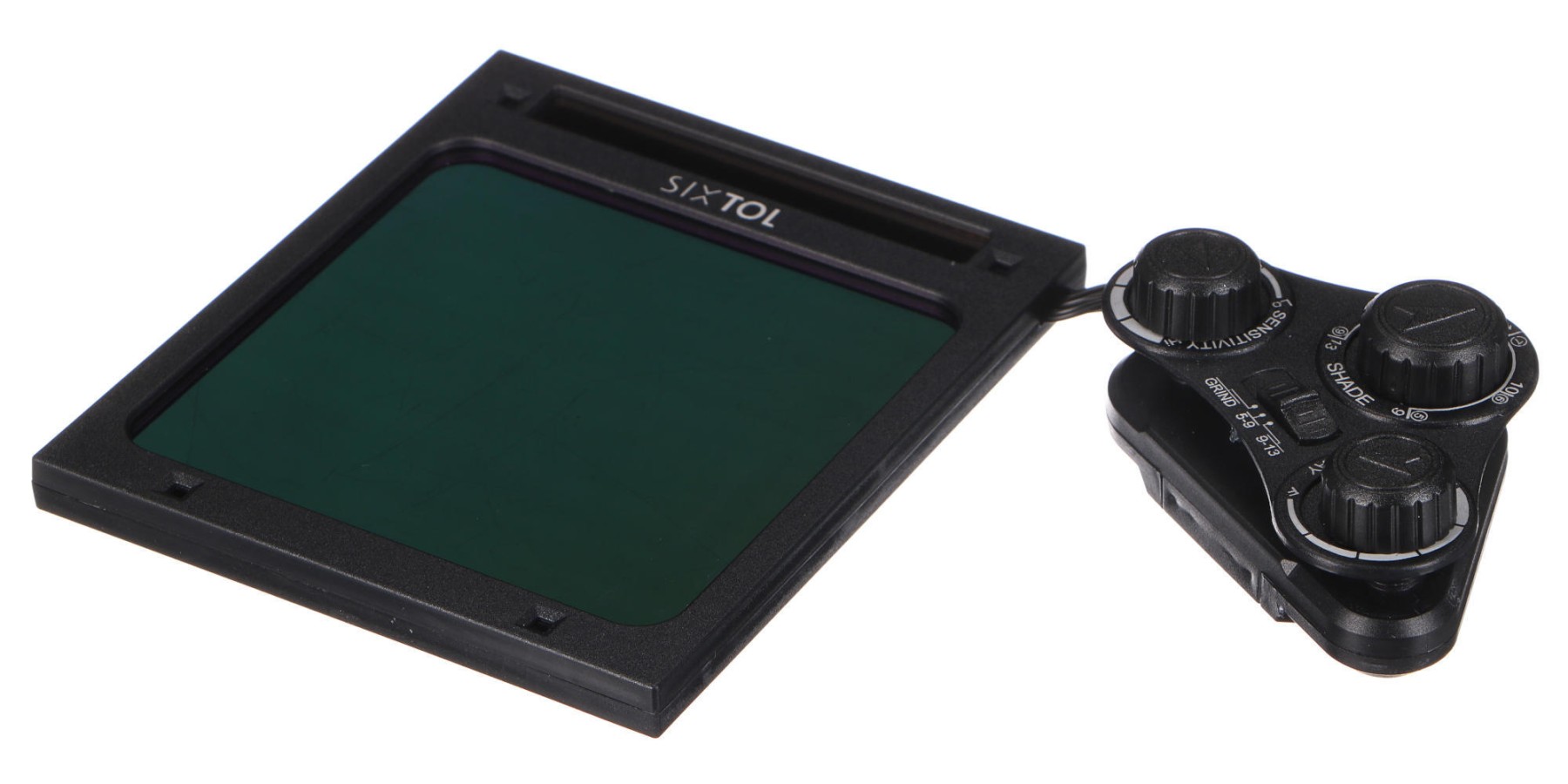

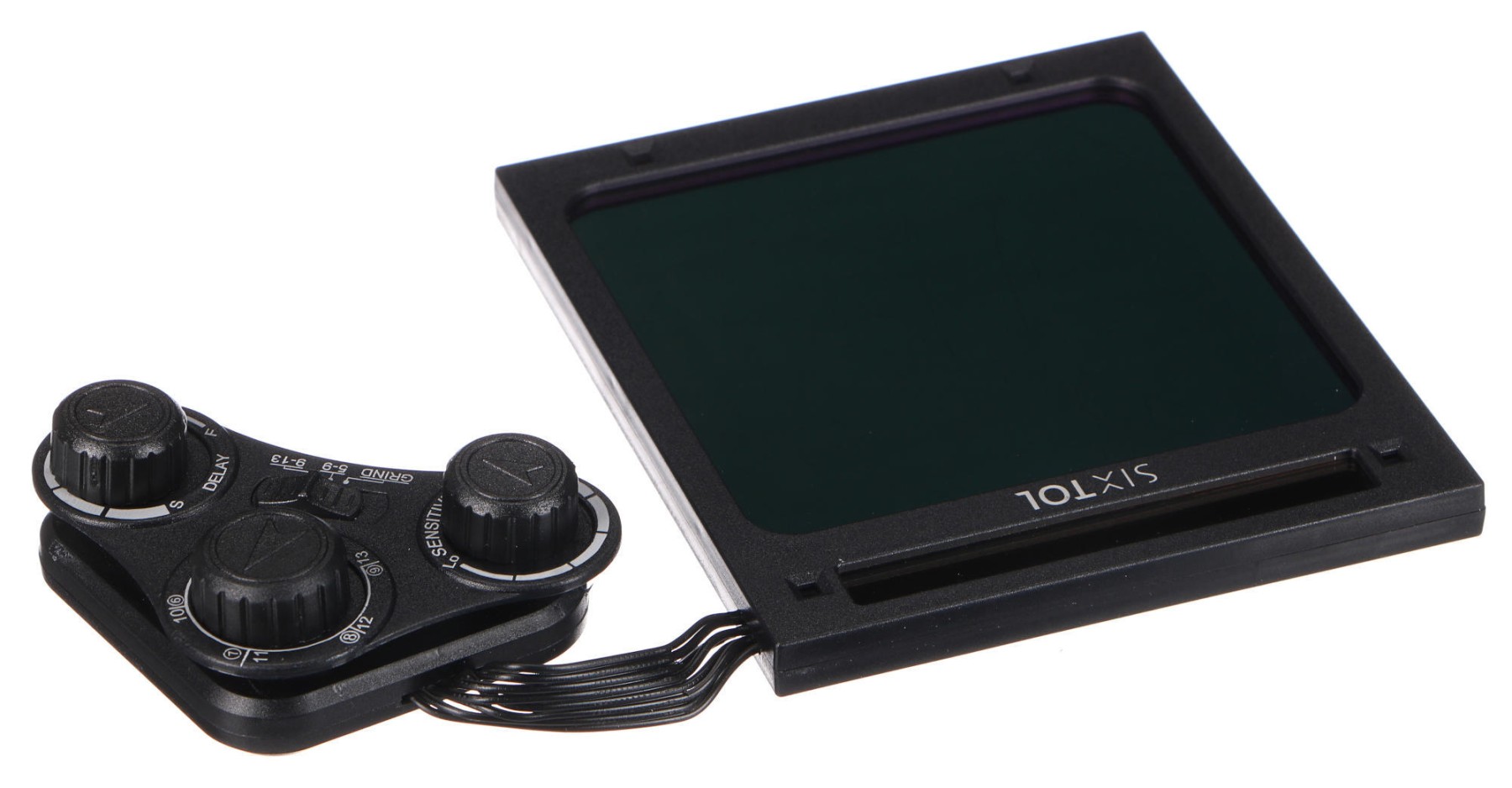

Replacement filter for the SIXTOL WELDING MASK PRO VIEW auto-darkening welding helmet. This is a certified auto-darkening filter designed to protect eyesight during work. The darkening intensity of the filter can be adjusted according to the type of work and radiation. After finishing the work, the filter returns to its original brightness. The filter includes an adjustment knob that allows you to darken or lighten the filter within the range of 9-13 (DIN9 to DIN13) or set the grinding mode (Grind). The filter is powered by solar cells and one backup replaceable 3V lithium battery CR2450, which is also included. The filter is suitable for these types of work: arc welding ARC, TIG, MIG, MMA, Spot, Micro, Wire, AC, DC, welding and plasma cutting.

Application:

• SX3048 – Auto-darkening Welding Helmet WELDING MASK PRO VIEW, black

Package contents:

• 1x Replacement filter for welding helmet

Technical parameters:

• Filter size: 115 x 135 × 10 mm
• Viewing area: 100 × 97 mm
• Light state: DIN 4
• Dark state: DIN 5-9 / 9-13
• Darkening time: 1/25000 s
• Delay time: 0.1 – 1.0 s (adjustable)
• Power supply: solar cells + one replaceable 3V lithium battery CR2450
• On/Off: Fully automatic
• Darkening: adjustable from outside
• Number of sensors: 2
• Sensitivity: adjustable 5-9 / 9-13 / grinding (Grinding)
• Operating temperature: -5 °C ~ 55 °C
• UV/IR protection: DIN16
• Optical class: 1/1/1/1
• Suitable for: arc welding ARC, TIG, MIG, MMA, Spot, Micro, Wire, AC, DC, welding and plasma cutting
• Certification: EN 166, EN 175, EN 379
