Freewheel AVM 432 - Isuzu / Ssangyong / Chevrolet

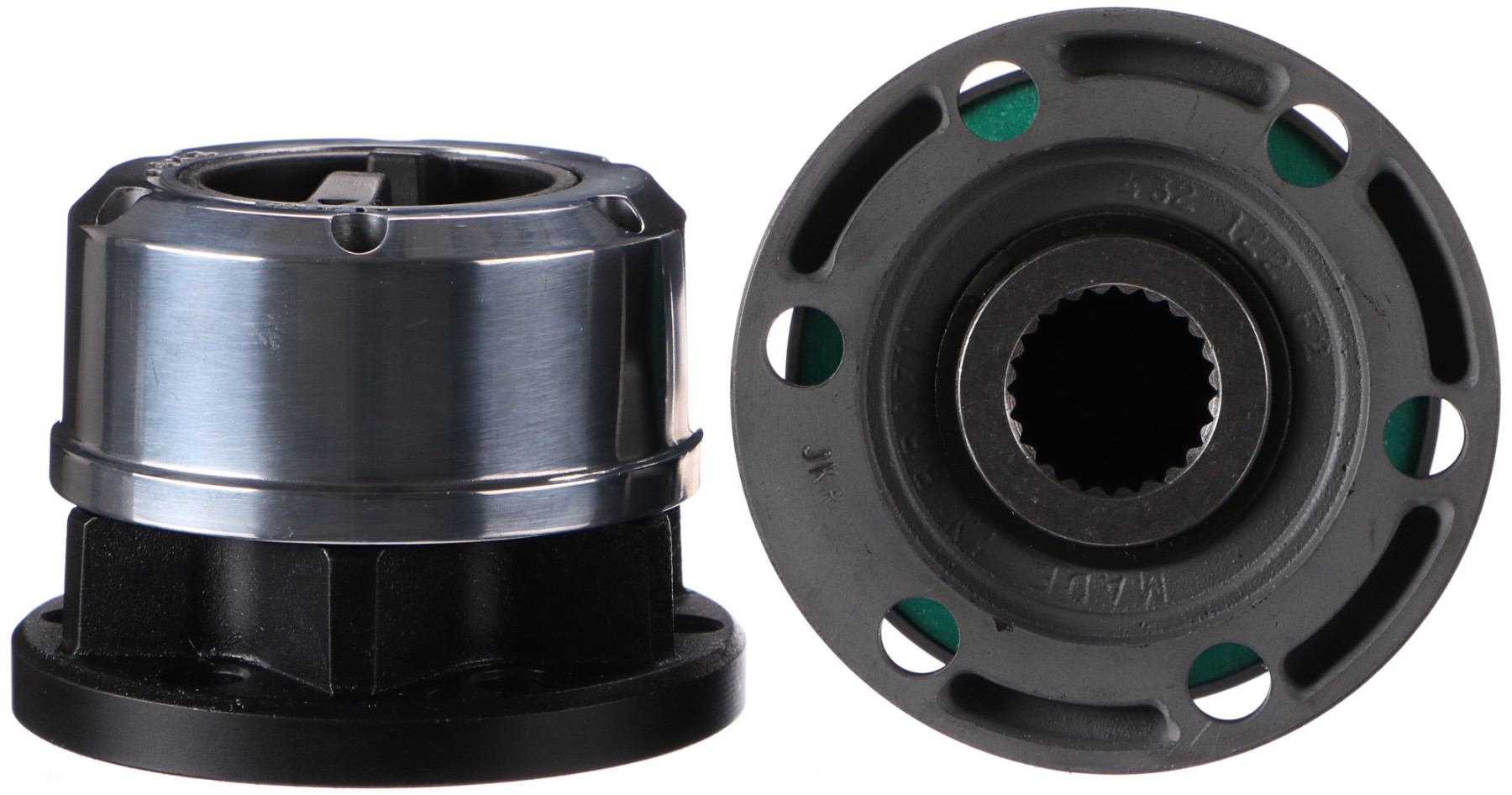

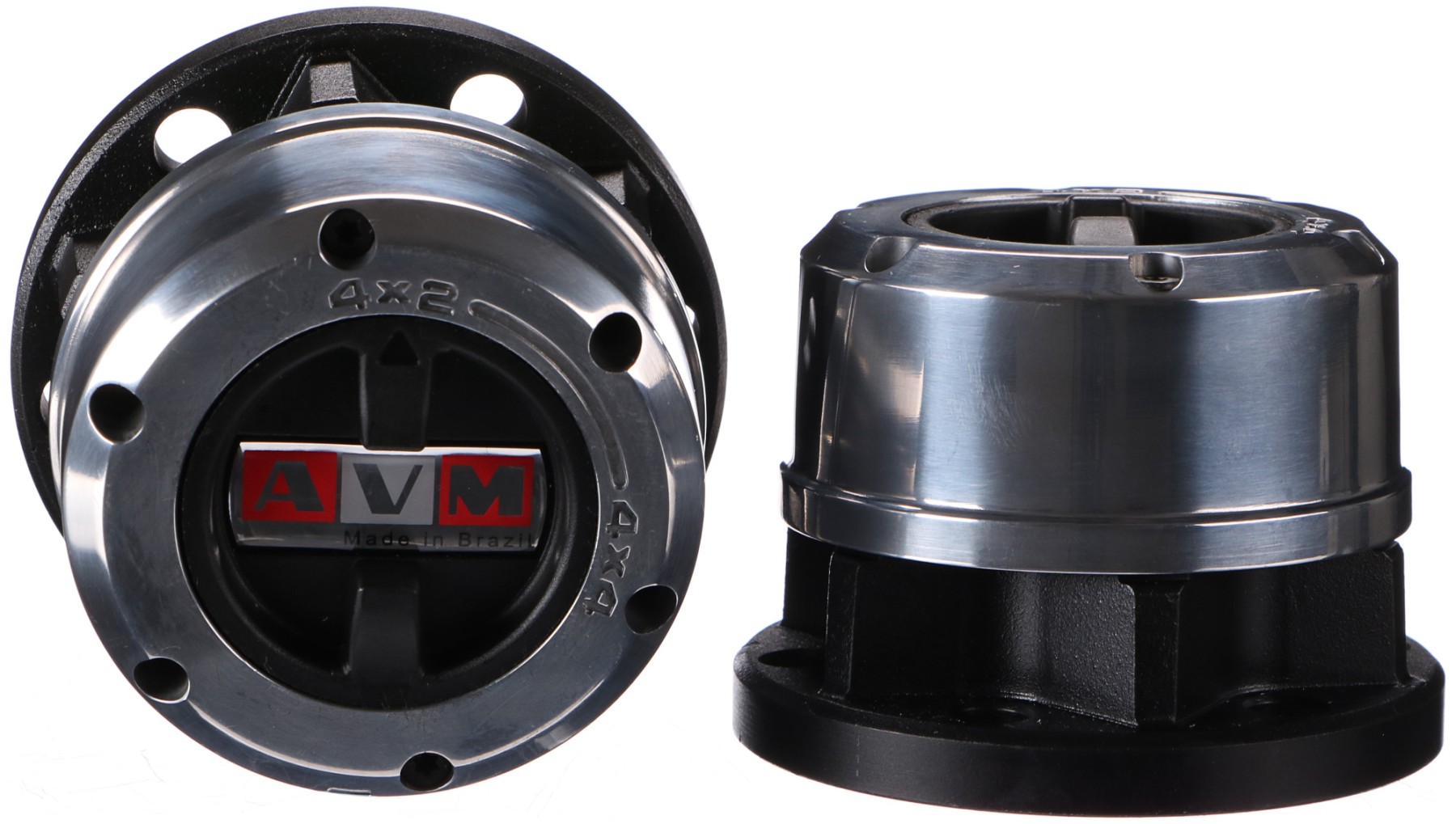

A set of 2 manual AVM 432 freewheels serves as detachable freewheel hubs for the front wheels of selected 4x4 and off-road vehicles. When engaged manually, they connect the wheel hub to the front axle half shaft, so that when four-wheel drive is engaged, driving force can also be transmitted to the front wheels. When disengaged, the front wheels rotate freely during 4x2 driving without unnecessary spinning of front-drive components, which helps reduce mechanical drag and wear. The freewheels complement the 4x4 drive control and do not replace its engagement in the vehicle. The heavy-duty steel construction protected by epoxy paint increases resistance to environmental influences, and precisely machined internal components support reliable operation in normal use and more demanding off-road conditions.
Suitable for models:Isuzu- Jackaroo
- Trooper I
- Trooper II (1983-1986)
Ssangyong- Family
- Korando I - manual front hub disconnectors (half shafts) (-1994)
Chevrolet- Luv 4x4 Pick Up (1981-1987)
Technical specifications:- Number of splines on the axle shaft: 24
- Number of bolts: 6
- Thread of mounting bolts: M10x1.5
- Pitch circle diameter (PCD): 80 mm
- AVM service kit: 4432
- Package contents: 2 pcs
- Package dimensions: 11 x 22 x 9 cm
- Package weight: 5 kg
