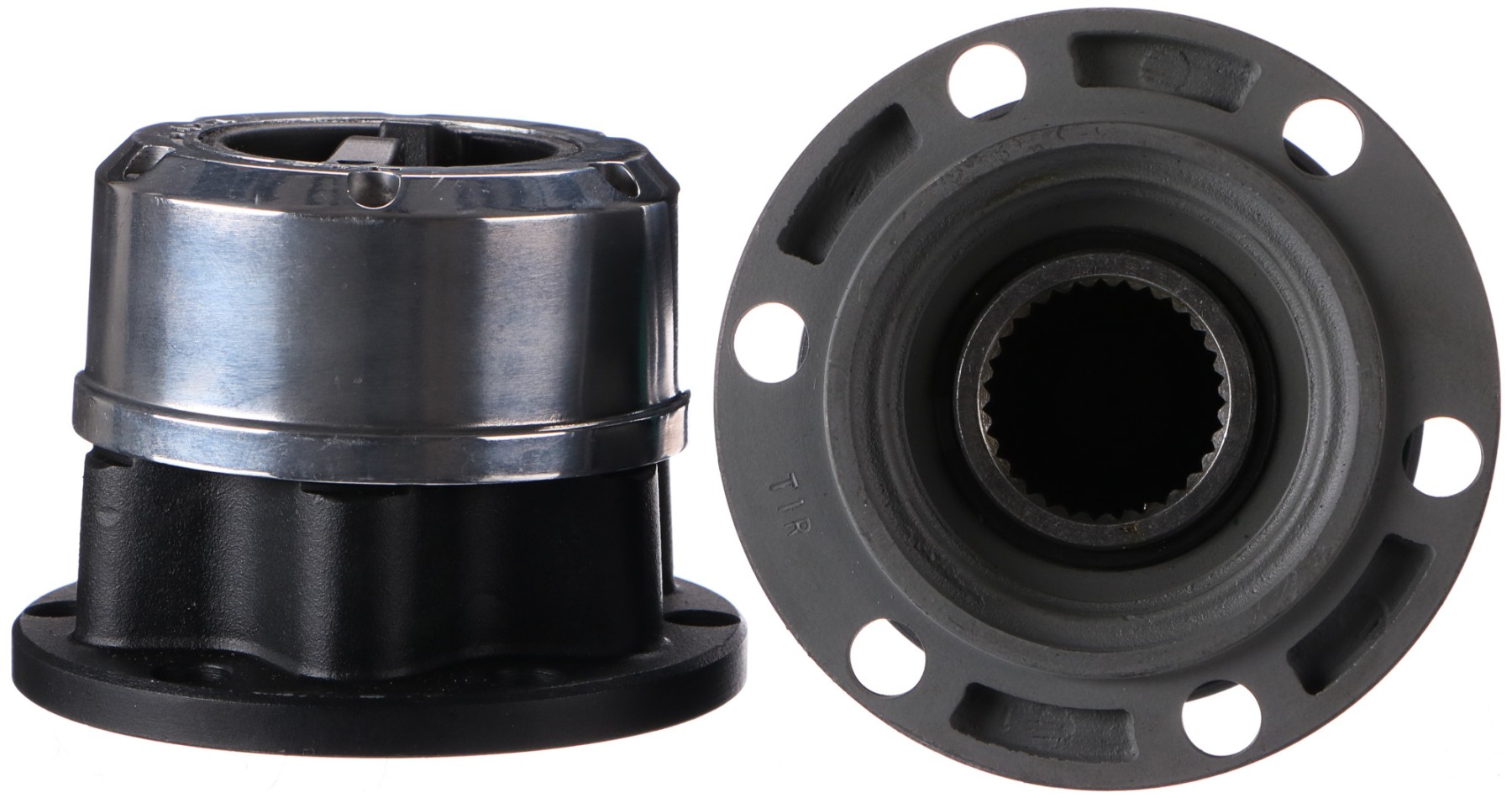

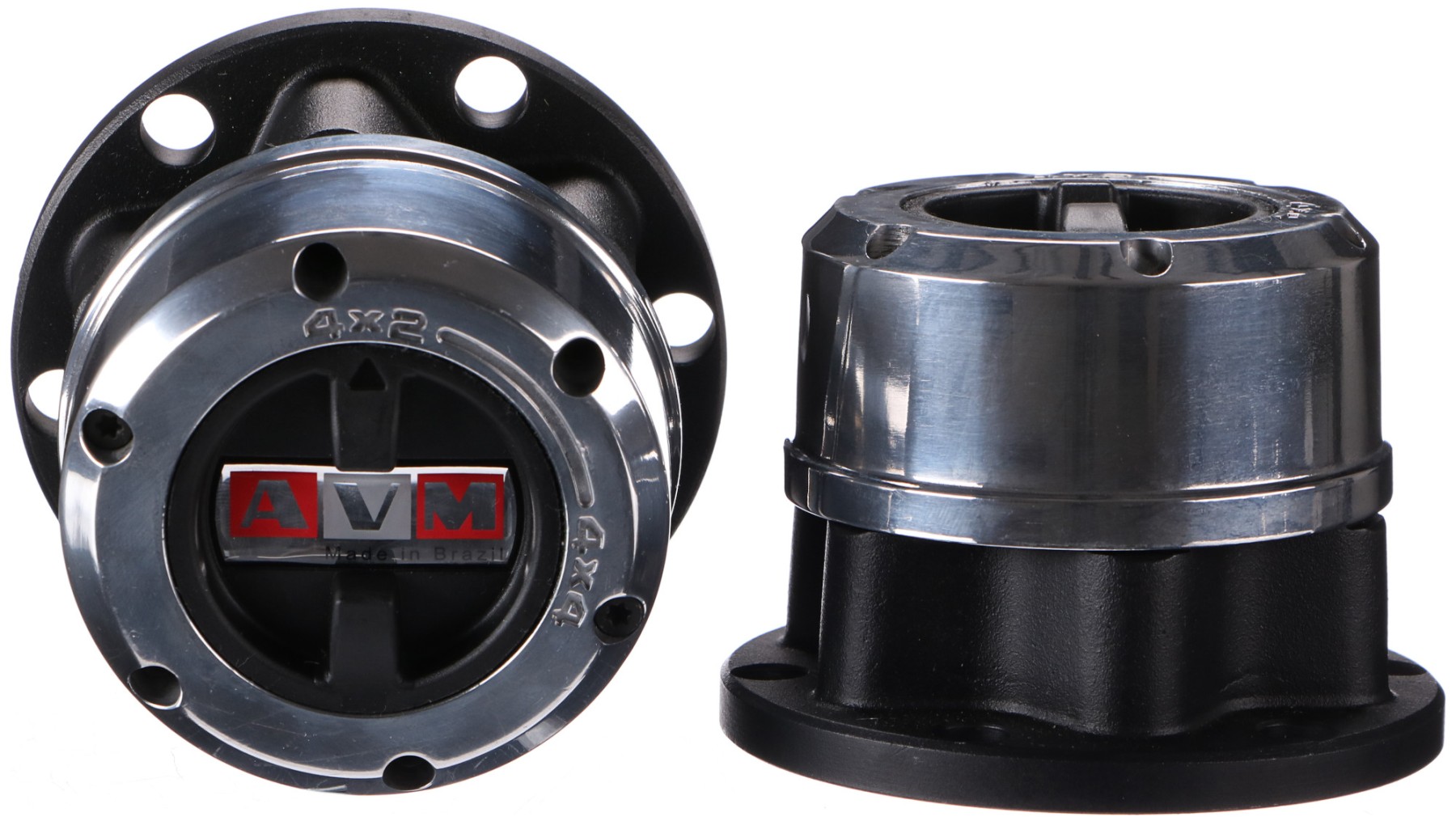

AVM 447 Freewheel Hub - Mahindra
A set of 2 manual AVM 447 freewheel hubs serves as detachable freewheeling front wheel hubs for selected 4x4 and off-road vehicles. When manually engaged, they connect the wheel hub to the front axle halfshaft, so when four-wheel drive is engaged the driving force can also be transmitted to the front wheels. When disengaged, the front wheels rotate freely during 4x2 driving without unnecessarily spinning parts of the front drive, which helps reduce mechanical resistance and wear. The freewheels complement the 4x4 drive control and do not replace engaging the drive in the vehicle. The robust steel construction protected with epoxy paint increases resistance to outdoor influences, and the precisely manufactured internal components support reliable operation in normal use as well as in more demanding off-road conditions.
Suitable for models:Mahindra- Scorpio
- Sk Silver Mount (1995-)
Technical specifications:- Number of splines on the halfshaft: 31
- Number of bolts: 6
- Mounting bolt thread: M10x1.5
- Pitch circle diameter (PCD): 90 mm
- AVM service kit: 4447
- Package contents: 2 pcs
- Package dimensions: 11 x 21.5 x 9 cm
- Package weight: 5 kg
