Manual freewheel AVM 456 - Toyota

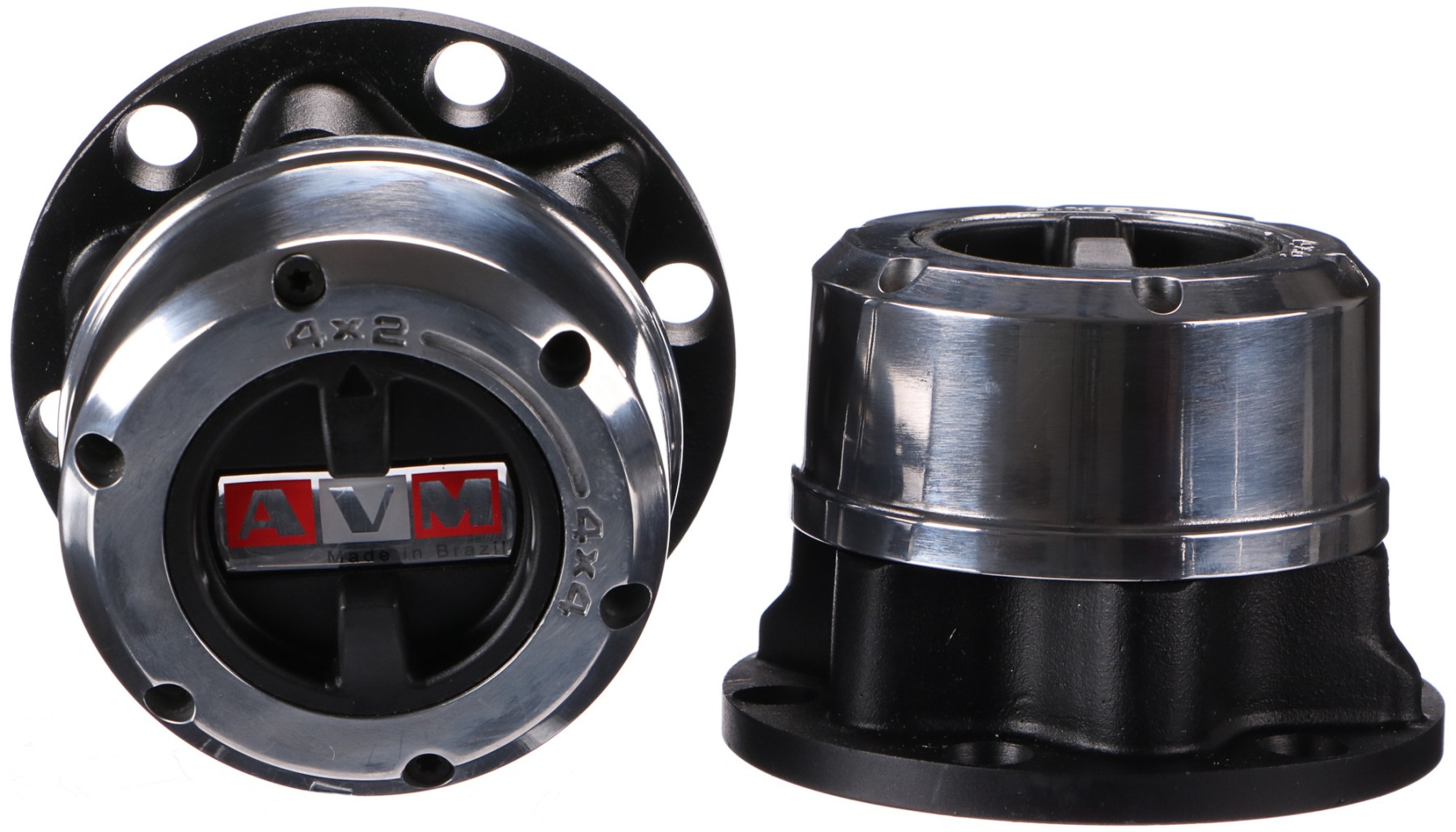

Set of 2 manual freewheel hubs AVM 456 serve as disconnectable freewheel wheel hubs for the front wheels of selected 4x4 and off-road vehicles. When manually engaged they connect the wheel hub to the front axle halfshaft, so when four-wheel drive is engaged the driving force can also be transmitted to the front wheels. When disengaged, the front wheels rotate freely while driving in 4x2 without unnecessarily turning parts of the front drivetrain, which helps reduce mechanical resistance and wear. The freewheels complement the 4x4 control and do not replace engaging four-wheel drive in the vehicle itself. The robust steel construction with epoxy coating increases resistance to environmental influences and the precisely machined internal components support reliable function in normal use as well as in more demanding off-road conditions.
Suitable for models:Toyota- HiLux LN 167, RZN 169 (August 1997-)
- HiLux LN 172 (November 1997-)

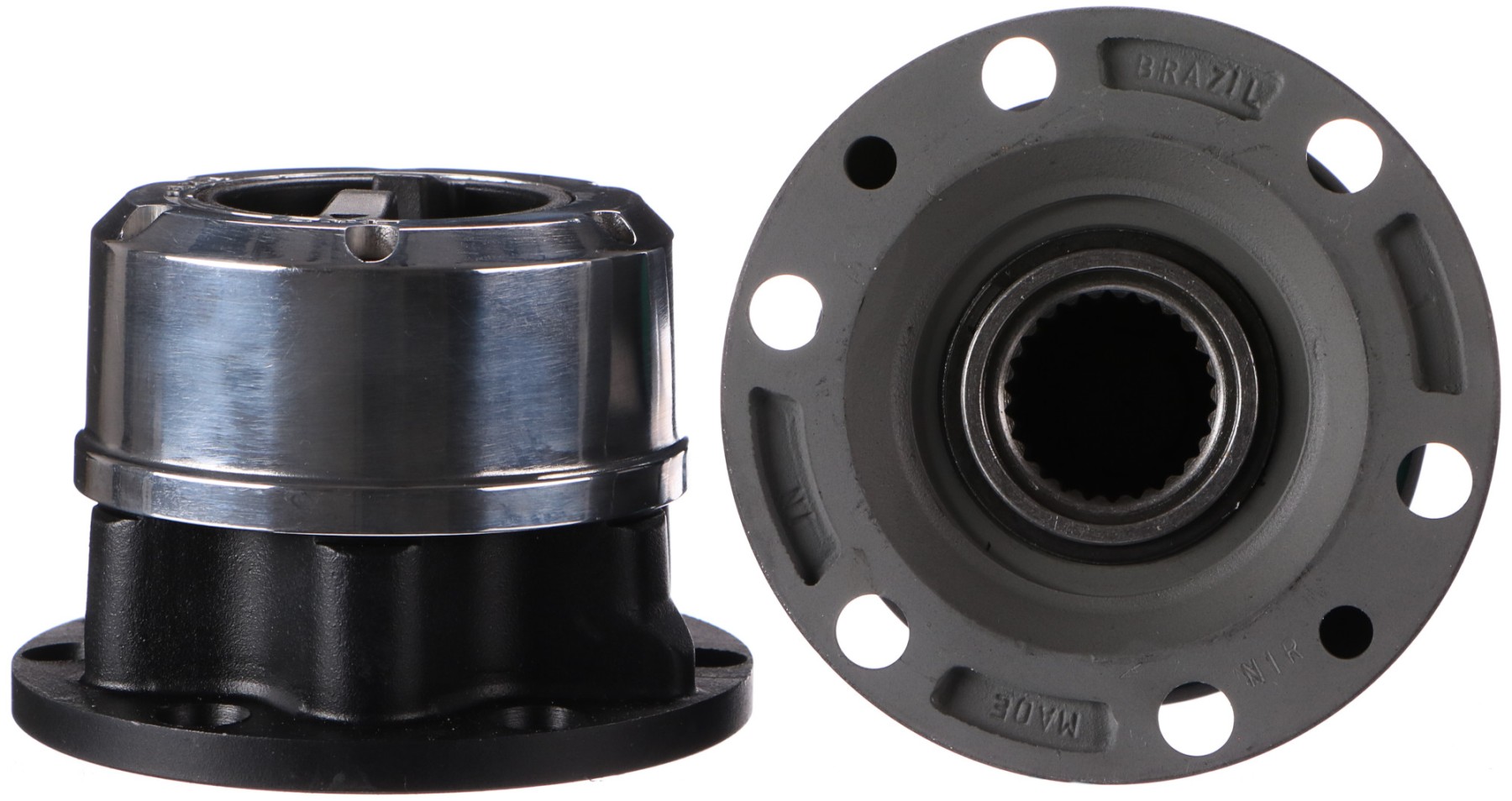

Technical specifications:- Number of splines on halfshaft: 26
- Number of bolts: 6
- Thread of mounting bolts: M8x1.25
- Pitch circle diameter (PCD): 90 mm
- Service kit AVM: 4456
- Package contents: 2 pcs
- Package dimensions: 11 x 21.5 x 9 cm
- Package weight: 5 kg
