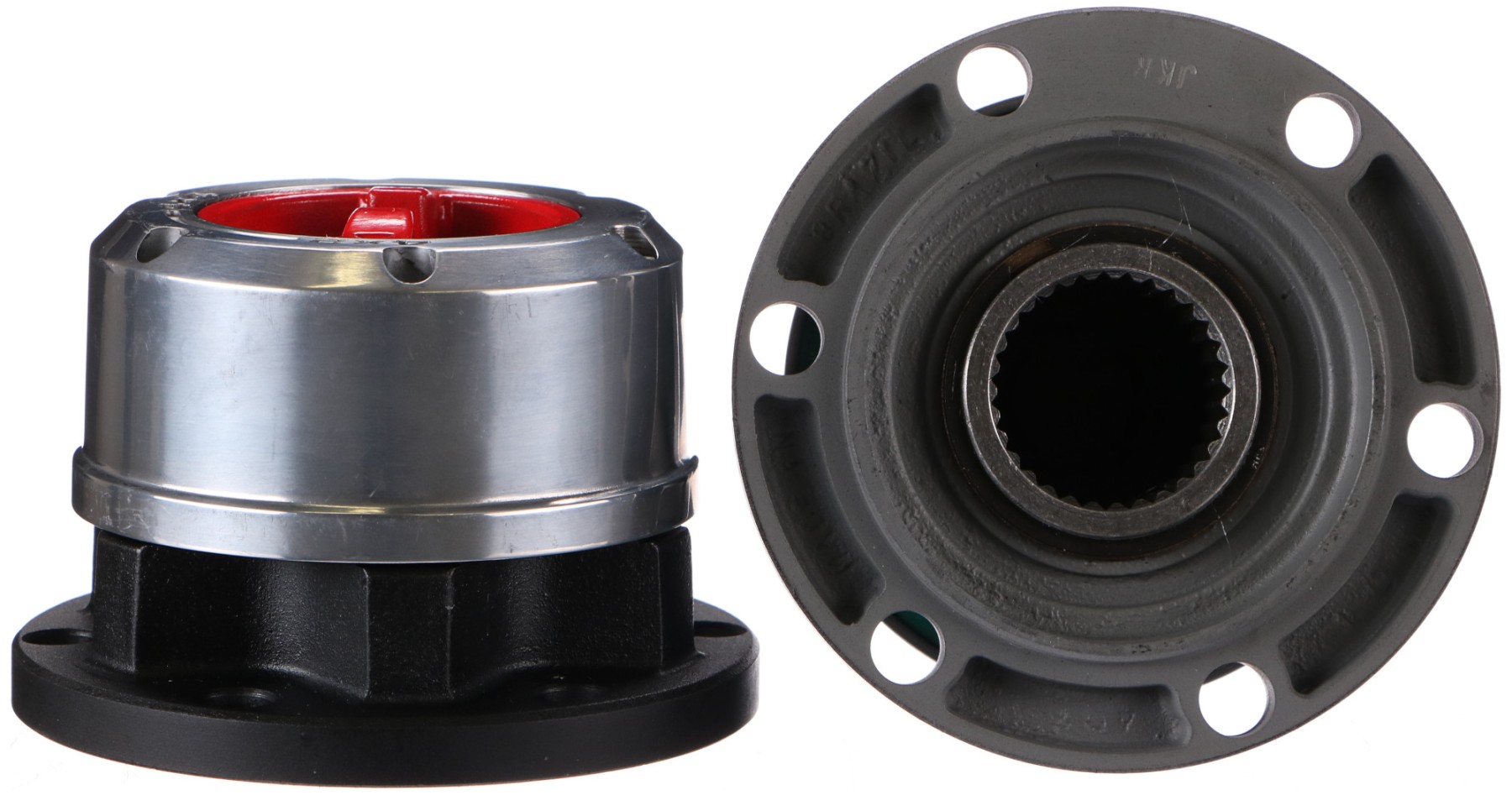

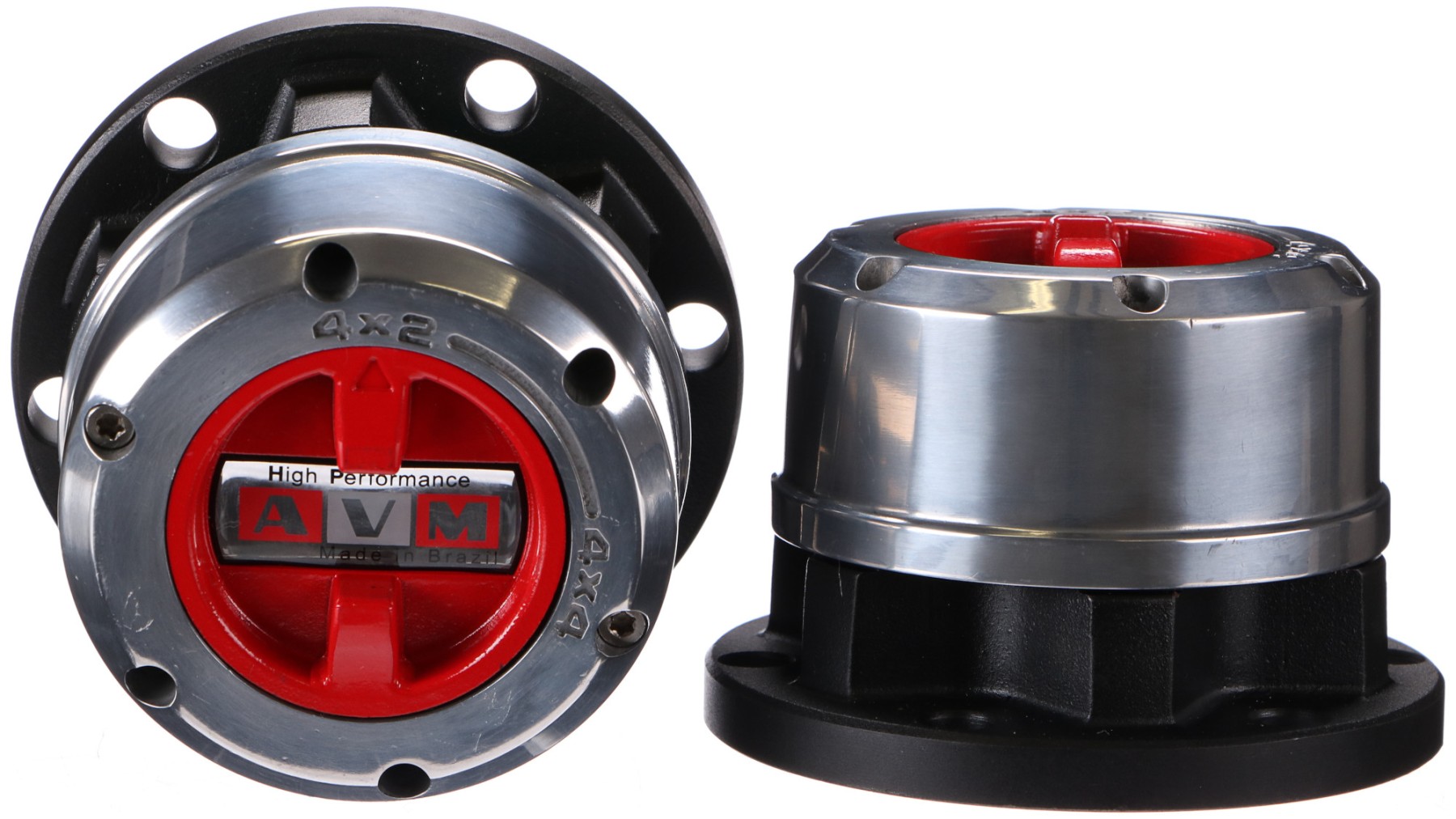

Freewheeling hub AVM 445HP - Nissan / Ford
Set of 2 manual freewheeling hubs AVM 445HP serves as detachable freewheeling wheel hubs for the front wheels on selected 4x4 and off-road vehicles. After manual engagement the hub connects the wheel to the front axle half-shaft so that when four-wheel drive is engaged driving force can also be transmitted to the front wheels. After disengagement the front wheels rotate freely in 4x2 driving without unnecessary spinning of front drive components, which helps reduce mechanical resistance and wear. The freewheeling hubs complement the 4x4 drive control and do not replace its engagement in the vehicle. The HP (High Performance) series is intended for high loads and demanding off-road use; robust steel construction with an epoxy coating is prepared for extreme outdoor conditions, and precisely manufactured internal components underline the durable construction. The set can also be used with wheels larger than 33 inches.
Suitable for models:Nissan- G Q
- 4x4 Pick Up IFS
- Patrol GR (1990-)
FordTechnical specifications:- Number of splines on the axle shaft: 31
- Number of bolts: 6
- Thread of mounting bolts: M8x1.25 (Nissan/Ford) / M10x1.5 (Tata Sumo)
- Bolt circle diameter (PCD): 90 mm
- AVM service kit: 4410HP (Nissan/Ford) / 4447HP (Tata Sumo)
- Package contents: 2 pcs
- Package dimensions: 11 x 22 x 9 cm
- Package weight: 5 kg
- Note: Also usable on all model years of the Tata Sumo.
