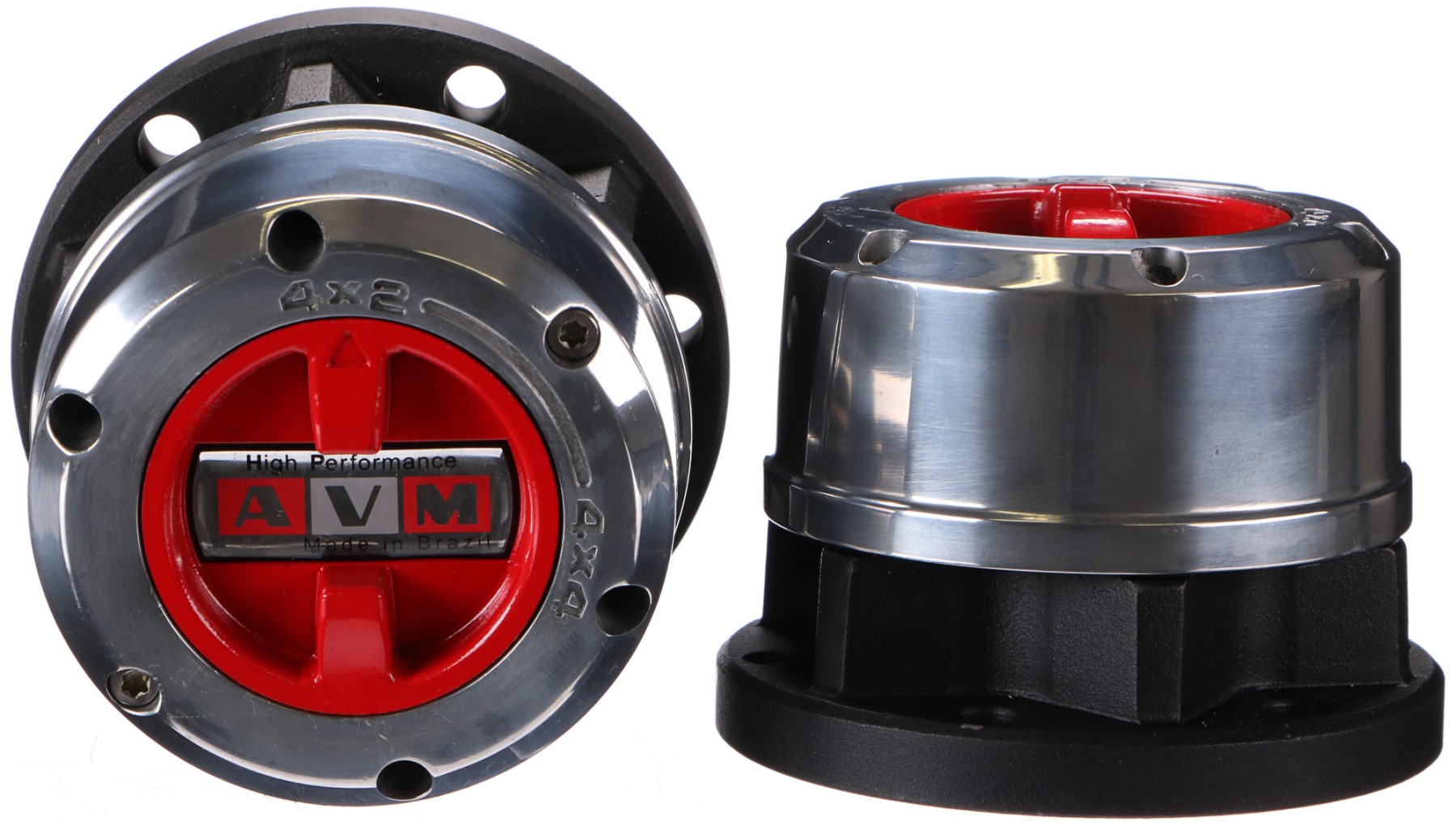

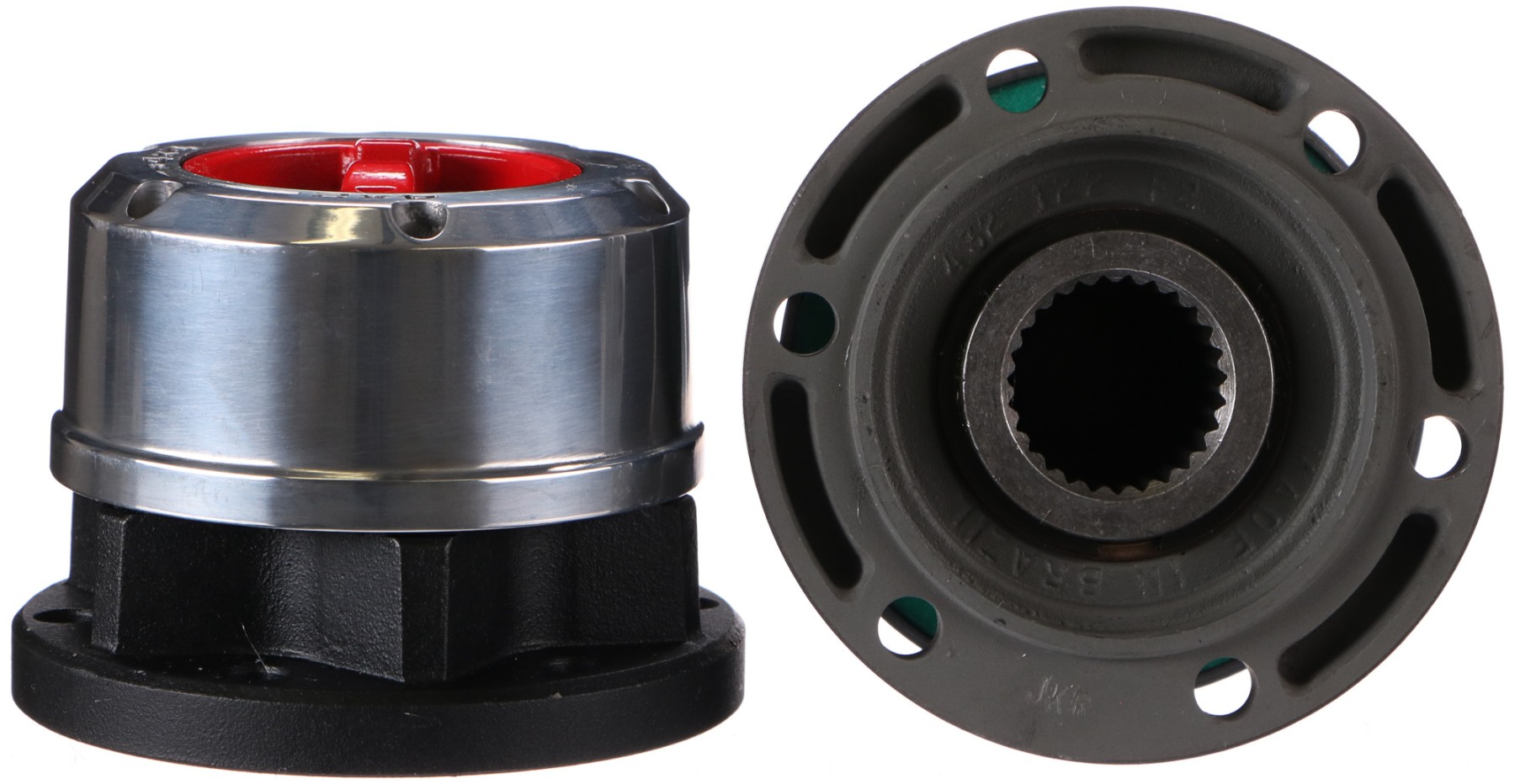

Freewheeling hub AVM 452HP - Nissan
A set of 2 manual freewheeling hubs AVM 452HP serves as detachable freewheeling front wheel hubs for selected 4x4 and off-road vehicles. When manually engaged, they connect the wheel hub to the front axle shaft so that, when four-wheel drive is engaged, driving force can also be transmitted to the front wheels. When disengaged, the front wheels rotate freely during 4x2 driving without unnecessarily turning parts of the front drivetrain, which helps reduce mechanical resistance and wear. The freewheels complement the 4x4 drive control and do not replace its activation in the vehicle. The HP (High Performance) series is designed for high loads and demanding off-road use; the heavy-duty steel construction with epoxy coating is prepared for extreme outdoor conditions, precisely machined internal components underline the robust design, and the set can also be used on wheels larger than 33 inches.
Suitable for models:Nissan- Mistral
- D21
- Terano II (1991-)
Technical specifications:- Number of splines on the axle shaft: 27
- Number of bolts: 6
- Mounting bolt thread: M8x1.25
- Pitch circle diameter (PCD): 83 mm
- AVM service kit: 4444HP
- Package contents: 2 pcs
- Package dimensions: 11 x 22 x 9 cm
- Package weight: 5 kg
