Freewheeling hub AVM 901D - Jeep (Willys) / Mahindra

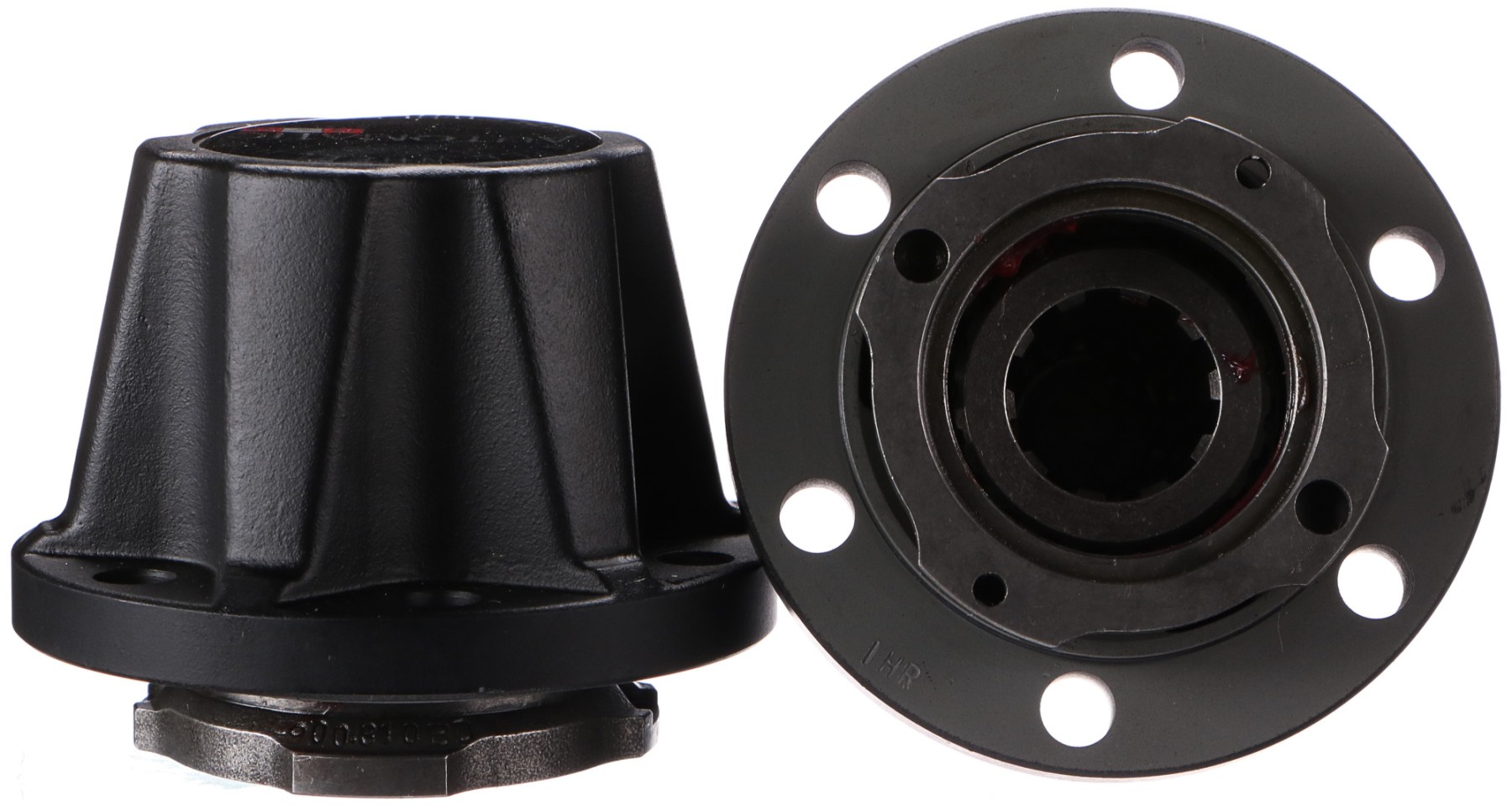

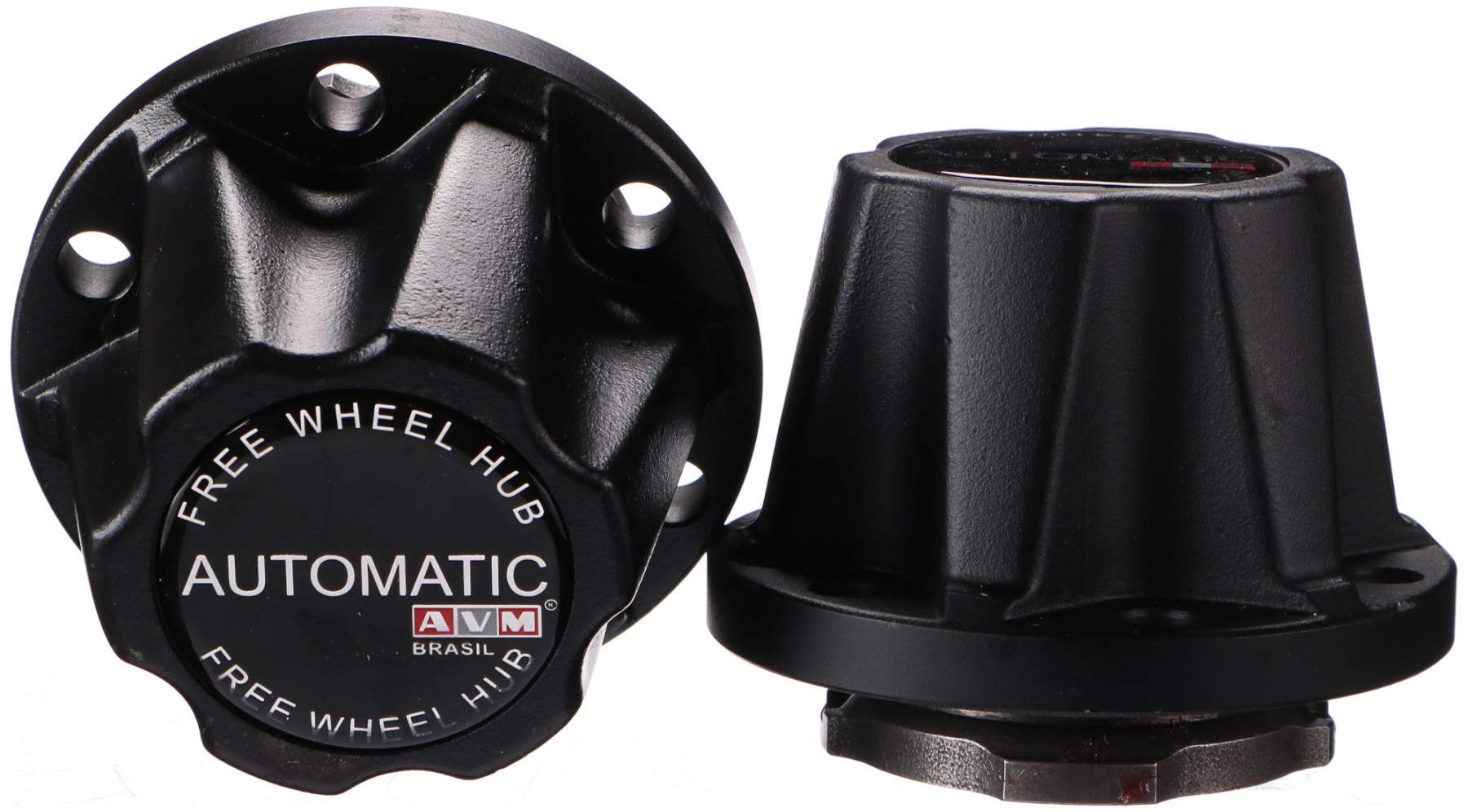

Set of 2 automatic freewheeling hubs AVM 901D serves as automatic disconnecting hubs for the front wheels on selected 4x4 and off-road vehicles. When four-wheel drive is used they ensure connection of the wheel hub to the front axle half-shaft so that driving force can also be transmitted to the front wheels; after disengagement they allow the front wheels free rotation when the front axle is not driven. The automatic design simplifies operation because it is not necessary to manually operate a control directly on the hub; the specific procedure for engagement and disengagement is governed by the design and manual of the given vehicle. Robust steel construction protected by an epoxy coating increases resistance to external influences and precisely manufactured internal components support reliable function in normal operation as well as in more demanding off-road conditions.
Suitable for models:Jeep- J 4800 pick up, Camper SPL (1969-1974)
- CJ Universal, M38A1, Willys (1942-1971)
- Station Pick Up (-1965)
- Jeepster C101 Commando (1966-1971)
- Gladiator, Wagoneer, Pick Up, Cherokee (-1973)
- Scout (1961-1970)
MahindraTechnical specifications:- Number of splines on the axle shaft: 10
- Number of bolts: 6
- Thread of mounting bolts: 3/8"-16 UNRC
- Bolt circle diameter (PCD): 87.3 mm
- AVM service kit: 4901
- Package contents: 2 pcs
- Package dimensions: 11 x 22 x 9 cm
- Package weight: 5 kg
