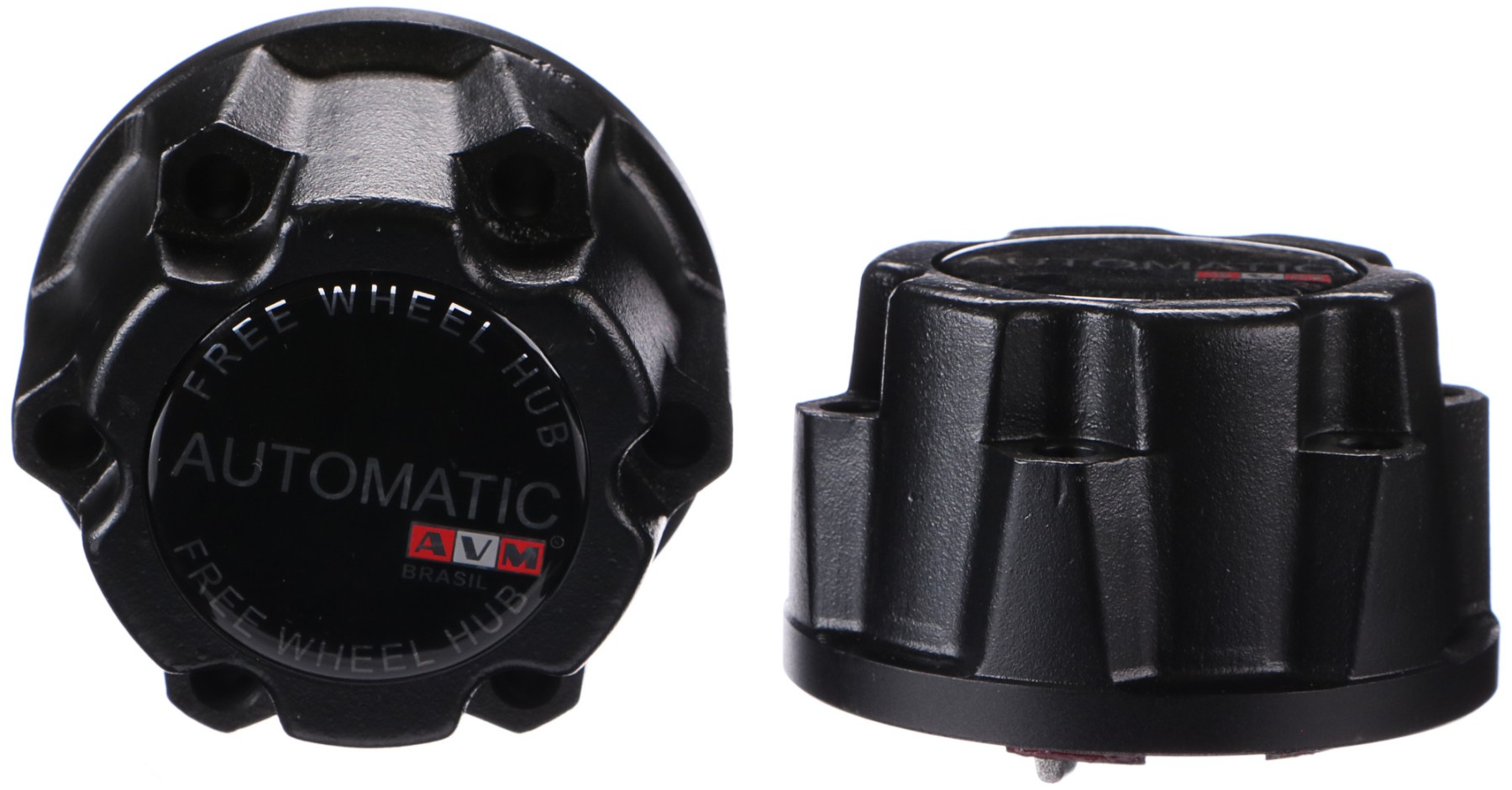

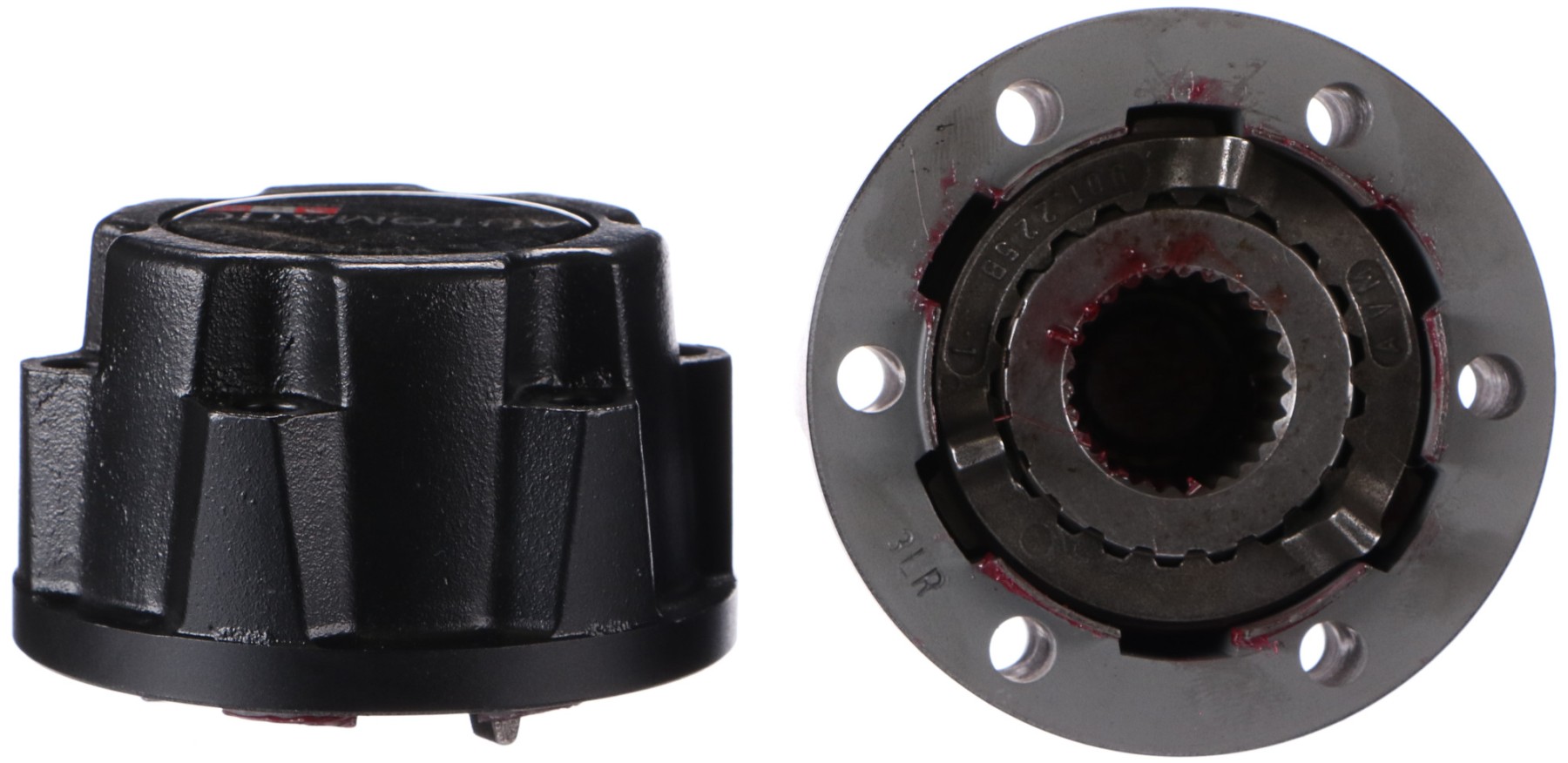

Freewheel hub AVM 960D - Kia
A set of 2 automatic freewheel hubs AVM 960D serve as automatic disconnects for the front wheel hubs on selected 4x4 and off-road vehicles. When four-wheel drive is engaged, they connect the wheel hub to the front axle shaft so that drive torque can also be transmitted to the front wheels; when disconnected they allow the front wheels to freewheel when the front drive is not engaged. The automatic design simplifies operation because it is not necessary to switch the hub manually; the exact engagement and disengagement procedure depends on the vehicle's design and manual. Heavy-duty steel construction protected by an epoxy coating increases resistance to the elements, and precisely machined internal components support reliable operation in everyday use as well as in more demanding off-road conditions.
Suitable for models:Kia- Sportage, Sportage Grand, Retona and Besta 4x4 (1997-2005)
Technical specifications:- Number of splines on axle shaft: 26
- Number of bolts: 6
- Thread of mounting bolts: M8x1.25
- Pitch circle diameter (PCD): 76 mm
- AVM service kit: 4960
- Package contents: 2 pcs
- Package dimensions: 11 x 22 x 9 cm
- Package weight: 5 kg
