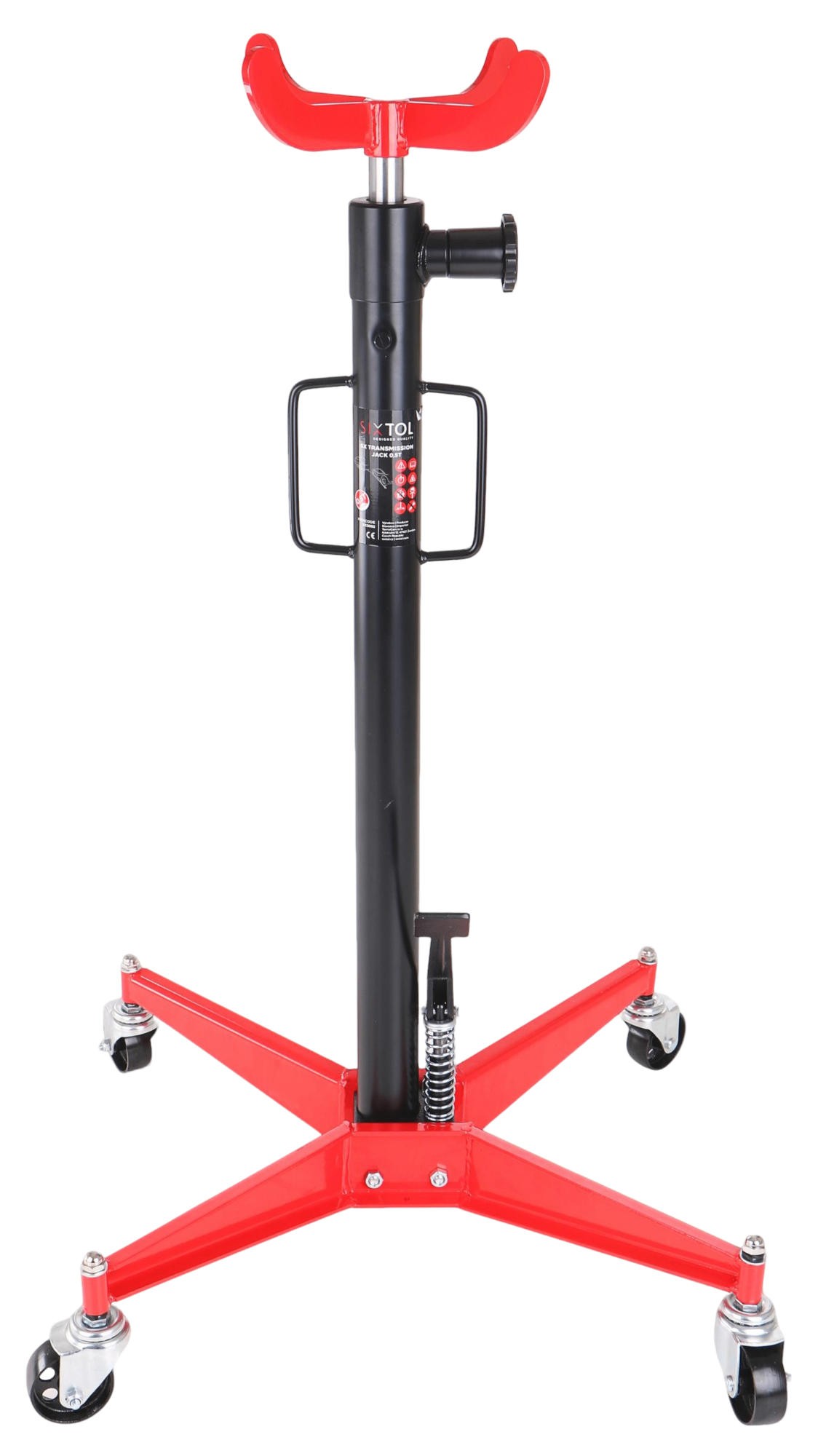

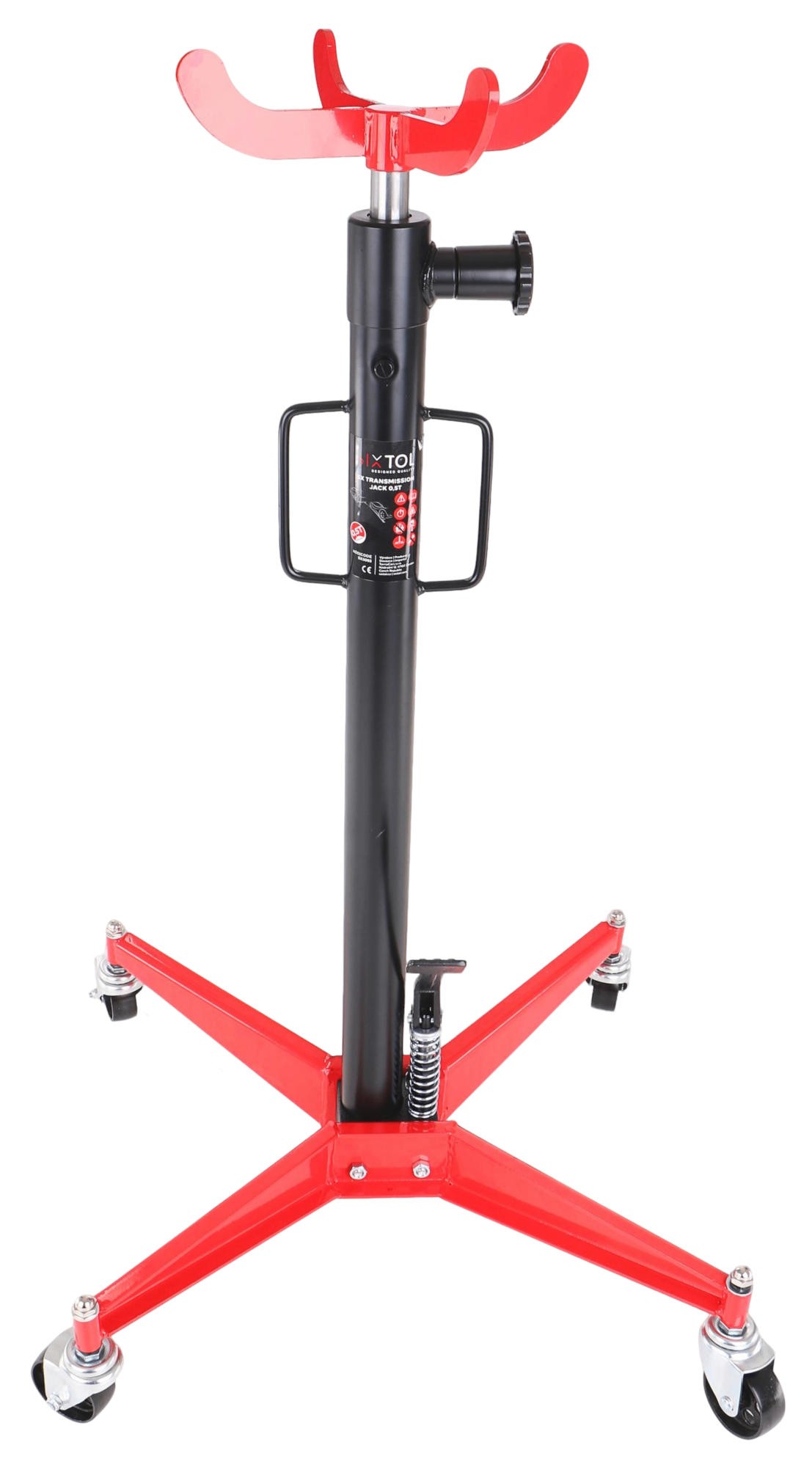

Hydraulic transmission jack SX TRANSMISSION JACK 0.5T, 109 - 189 cm, automatic valve

The transmission jack SX TRANSMISSION JACK 0.5T is a robust hydraulic helper with a load capacity of up to 500 kg and a lifting range of 109–189 cm, ideal for mounting and dismounting transmissions and engines.

Full description
  • Code: SX3093
  • EAN: 8595697704840
SixtolYou can purchase the goods from the seller Sixtol
In stock
126,00 Eur including VAT

Hydraulic transmission jack SX TRANSMISSION JACK 0.5T, 109 - 189 cm SIXTOL

The professional SX TRANSMISSION JACK 0.5T transmission jack is an indispensable tool in car workshops, garages and service shops. Its solid all-metal construction combined with a hydraulic mechanism allows easy, stable and safe lifting of loads up to 500 kg. Foot-pedal control ensures precise and comfortable height adjustment without the need to use hands, while four swivel casters enable easy maneuvering even in confined spaces. The top X-shaped support cross provides excellent load stability and prevents unwanted movement. With a height range from 109 to 189 cm and a compact design, the jack is an ideal solution for work under vehicles positioned on lifts.

Main advantages:

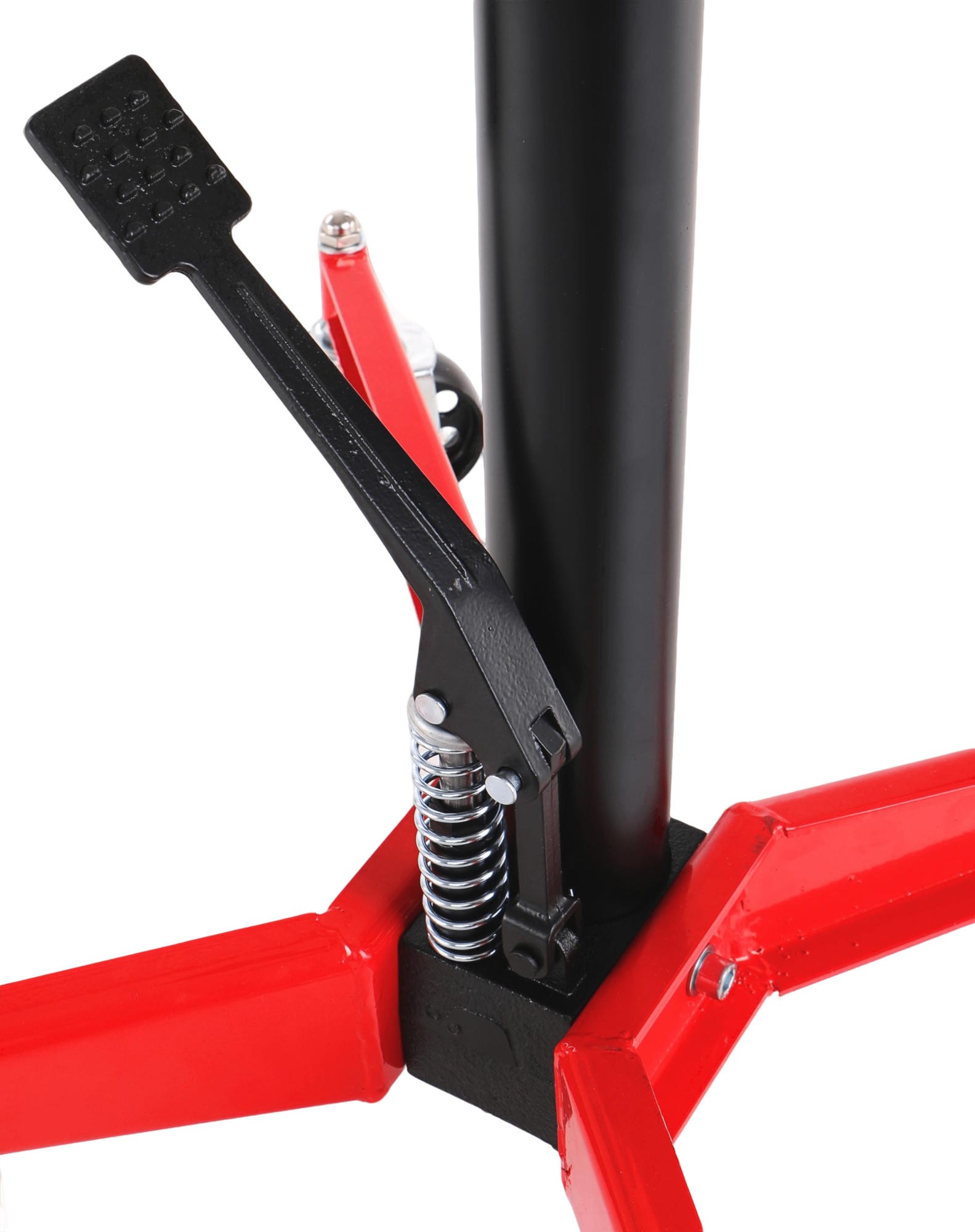

  • Hydraulic system with foot pedal for convenient operation
  • Maximum capacity 500 kg – ideal for transmissions, engines and other heavy parts
  • Smooth lift in the 109–189 cm range

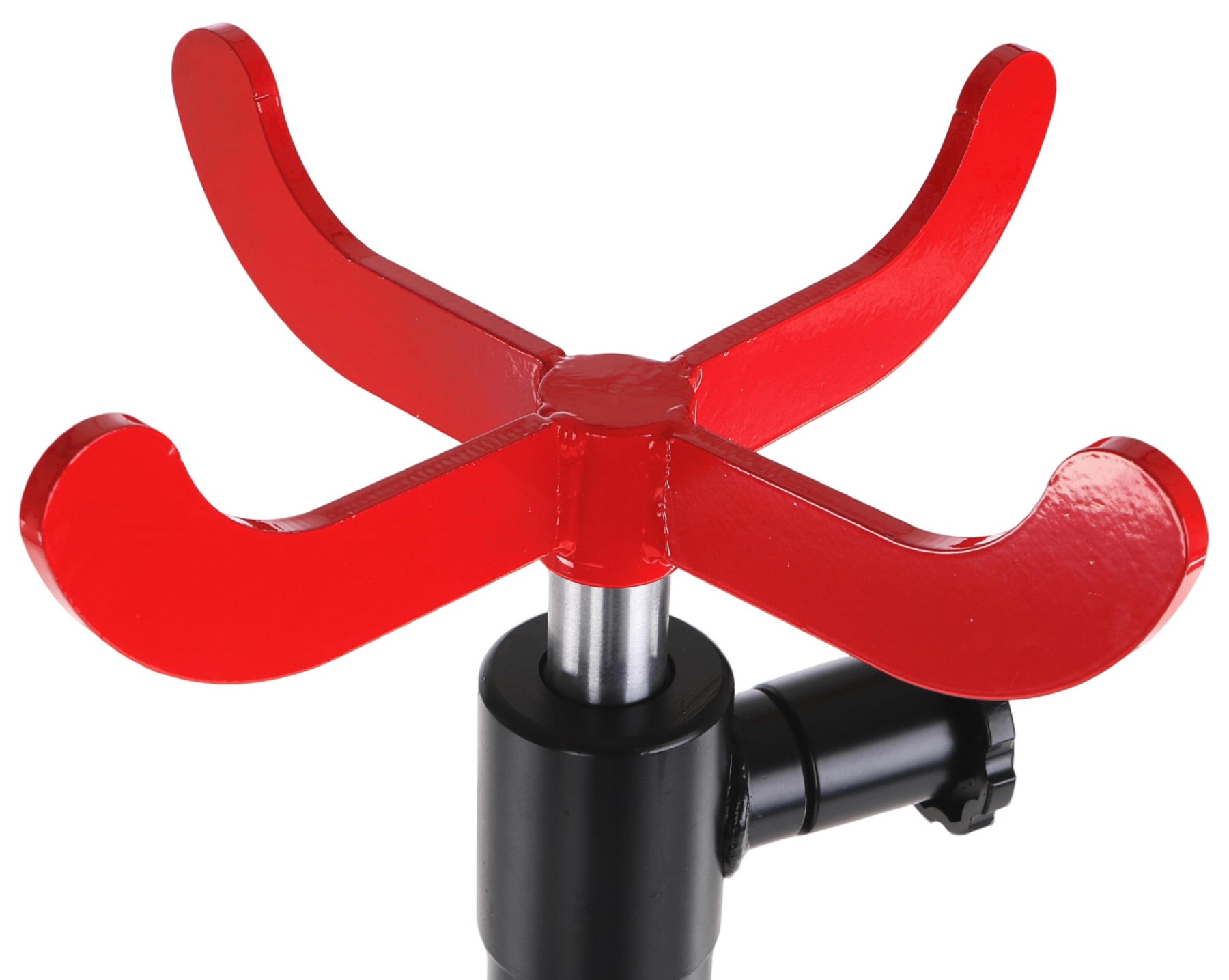

  • Top cross holder for secure load attachment

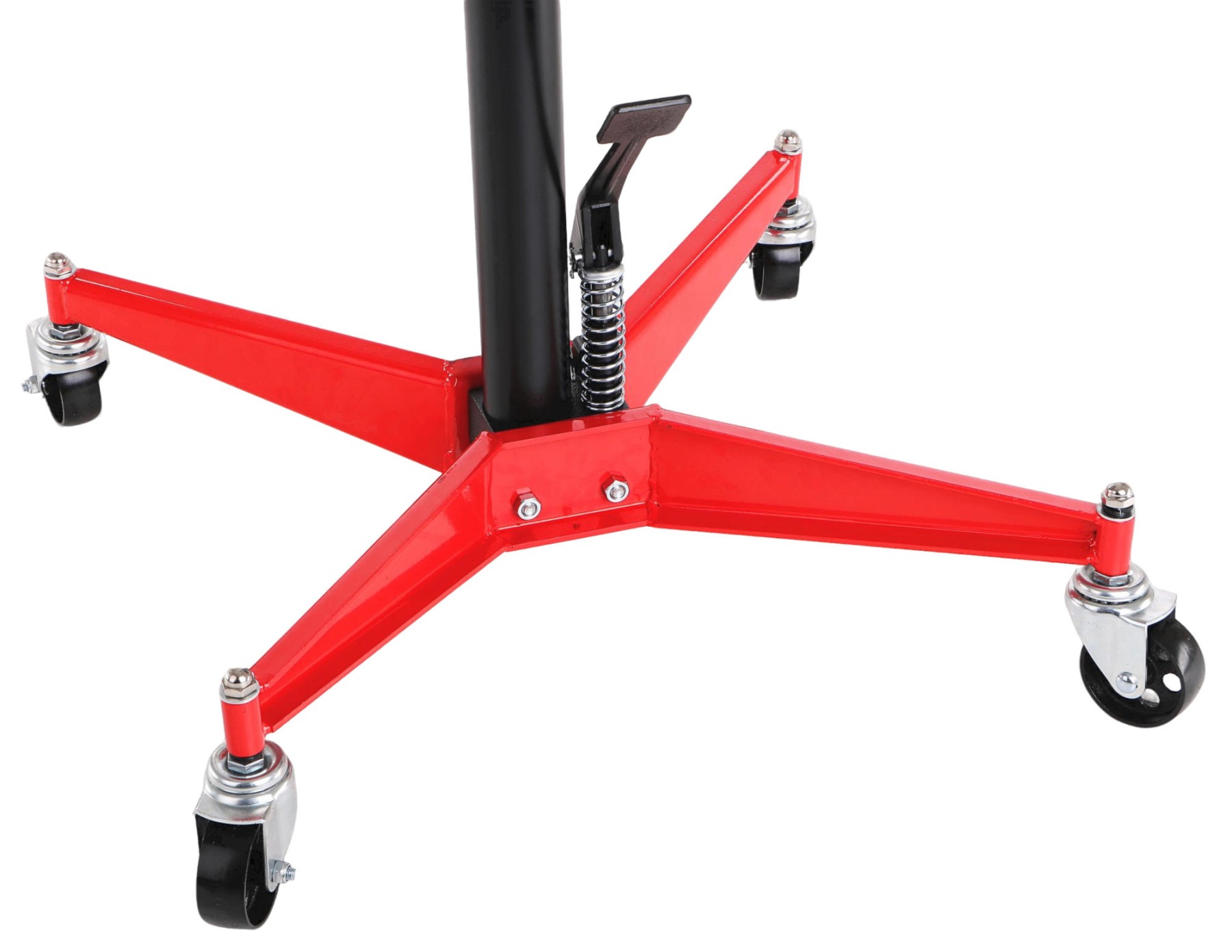

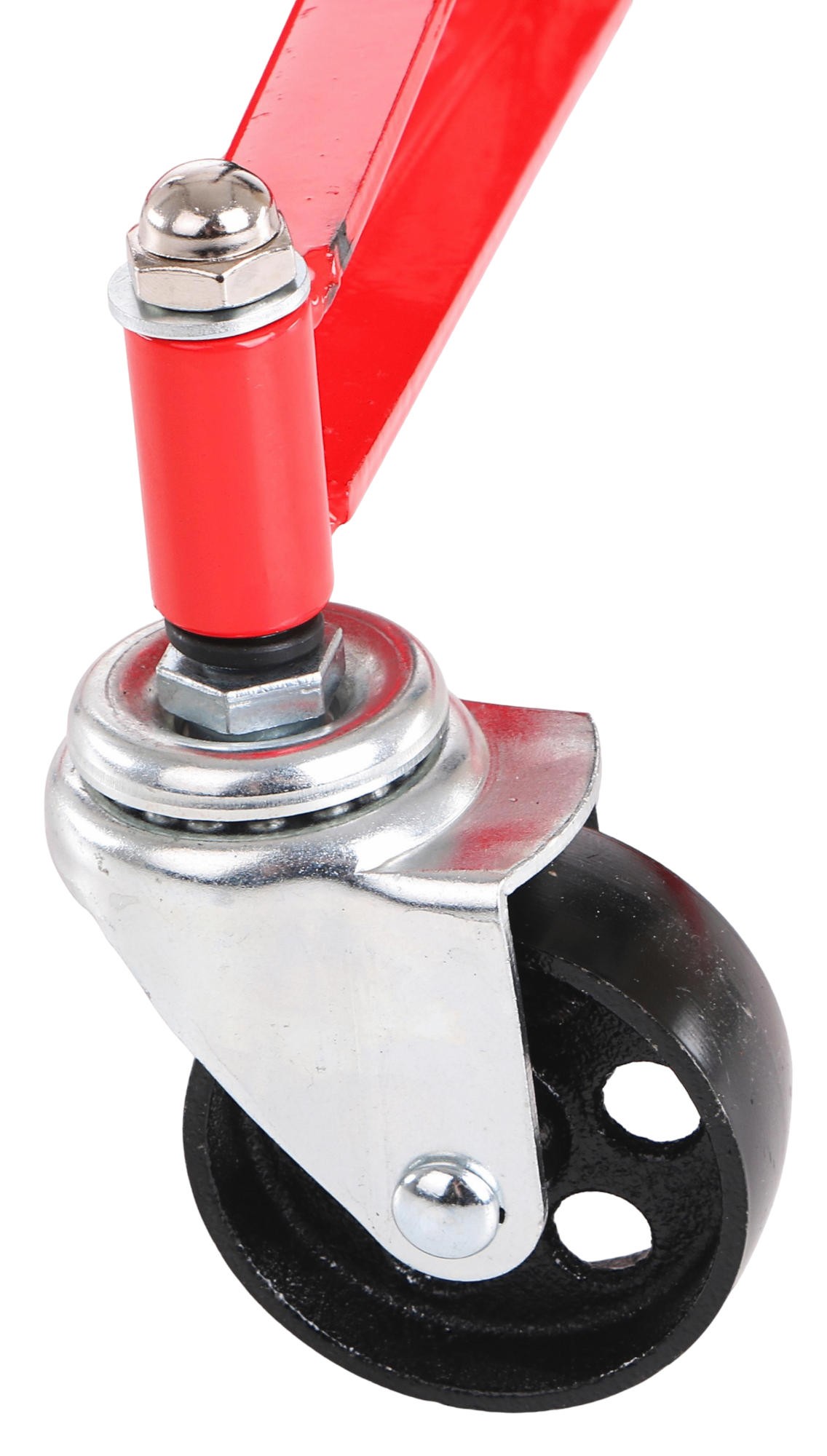

  • Swivel casters for easy movement in the workshop

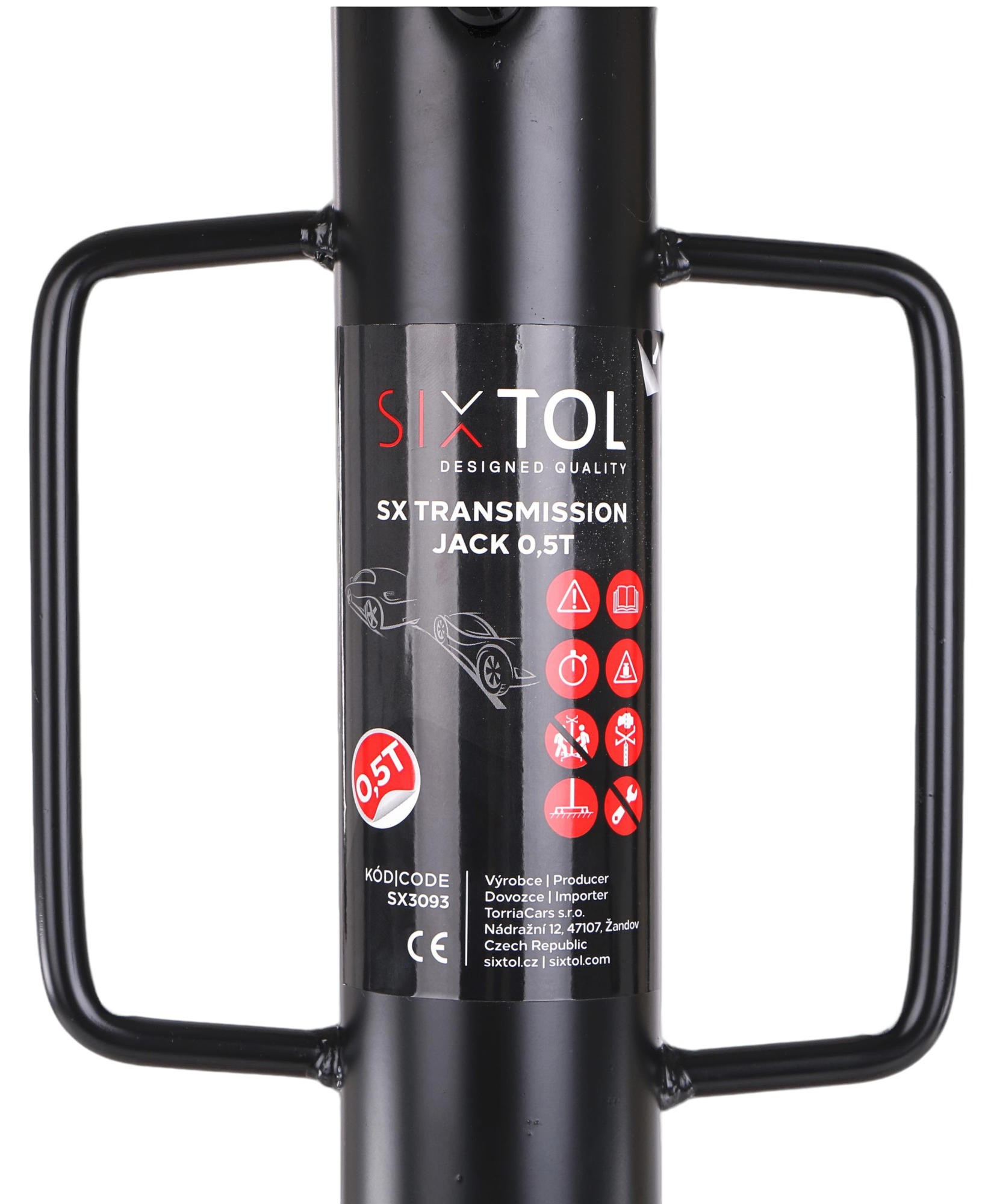

  • Side handles for better handling and precise guidance
Usage:
  • Mounting and dismounting transmissions of passenger and light commercial vehicles
  • Supporting and handling engines during installation or replacement
  • Professional and hobby use in auto repair shops, garages and services
  • Work under a lifted vehicle during powertrain repairs
  • Handling other heavy components that require precise height adjustment
Package contents:
  • 1× Hydraulic transmission jack SX TRANSMISSION JACK 0.5T
Technical parameters:
  • Capacity: 500 kg
  • Stroke: 800 mm (109–189 cm)
  • Support cross dimension: 32.5 × 32.5 cm
  • Packaging dimensions: 105 × 28 × 16 cm
  • Material: steel
  • Weight: 29 kg

Main parameters

  • EAN8595697704840
  • CodeSX3093
  • Package weight29,00 kg
  • Package height16 cm
  • Package length105 cm
  • Package width28 cm
Full description and parameters Hide description and parameters
