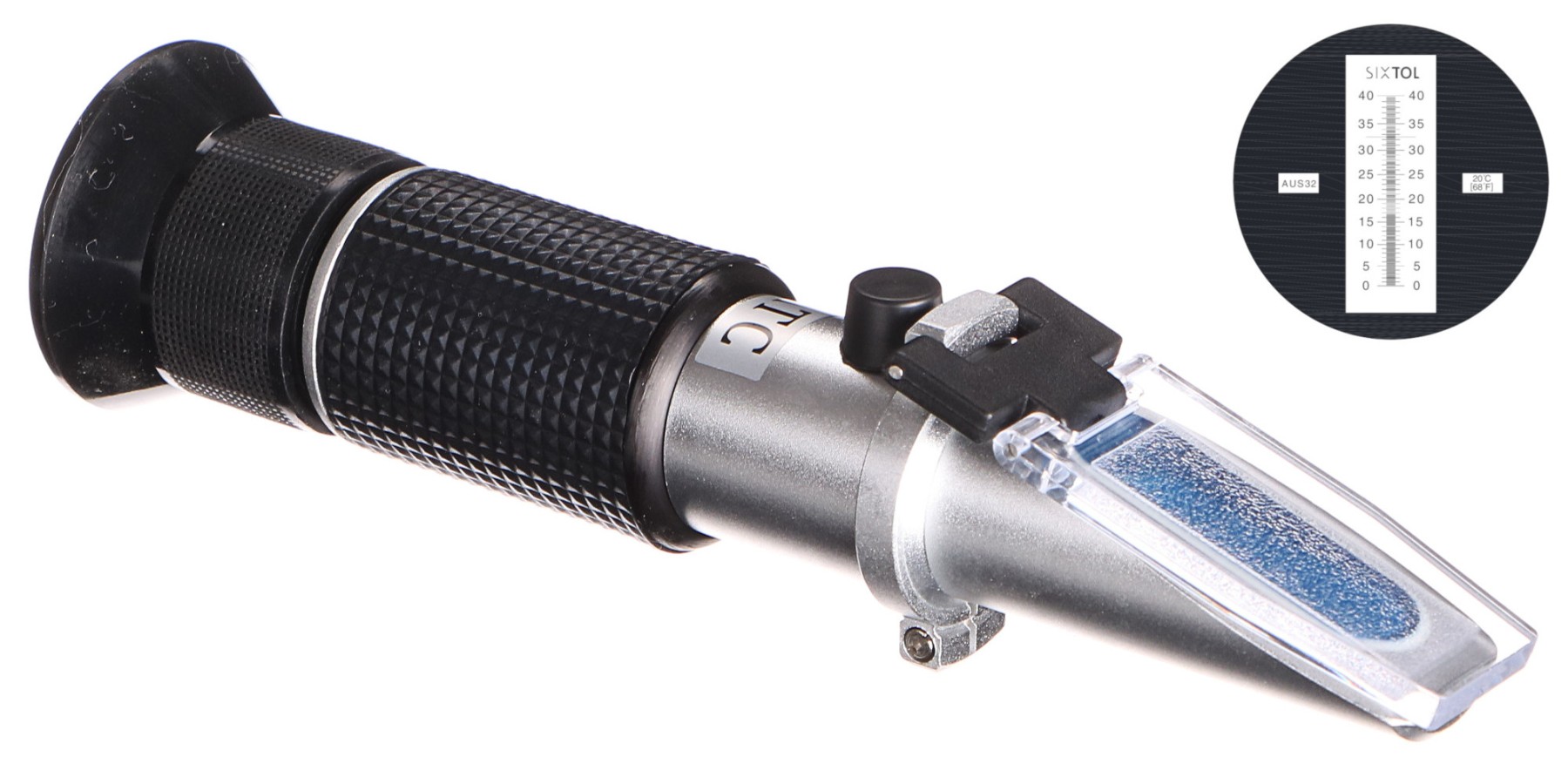

Refractometer for measuring AdBlue 0-40%, SIXTOL

Refractometer for measuring the concentration of the AdBlue additive

A refractometer is a device that enables the determination of the physical properties of a liquid by measuring the refractive index at the medium boundary. With the refractometer it is possible to determine the concentration of the AdBlue additive.

Main advantages:

• Measures the concentration of the AdBlue additive
• Compact device size
• The device requires no batteries and needs no assembly
• High operational reliability and long service life
• Small deviation and high measurement accuracy
• The device body is made of a lightweight and durable special aluminum alloy
• Requires virtually no maintenance
• Part of the device is covered with a soft rubber sleeve

Measurement options:

• Concentration of the AdBlue additive in the range 0 - 40 %

How to measure:

• 1. Use the pipette to take a small amount of liquid.
• 2. Lift the cover plate and place 2–3 drops of liquid on the device prism.
• 3. Close the cover plate so that the measured liquid spreads evenly and without bubbles across the prism surface.
• 4. After 30 seconds, point the cover plate toward a light source and look into the eyepiece.

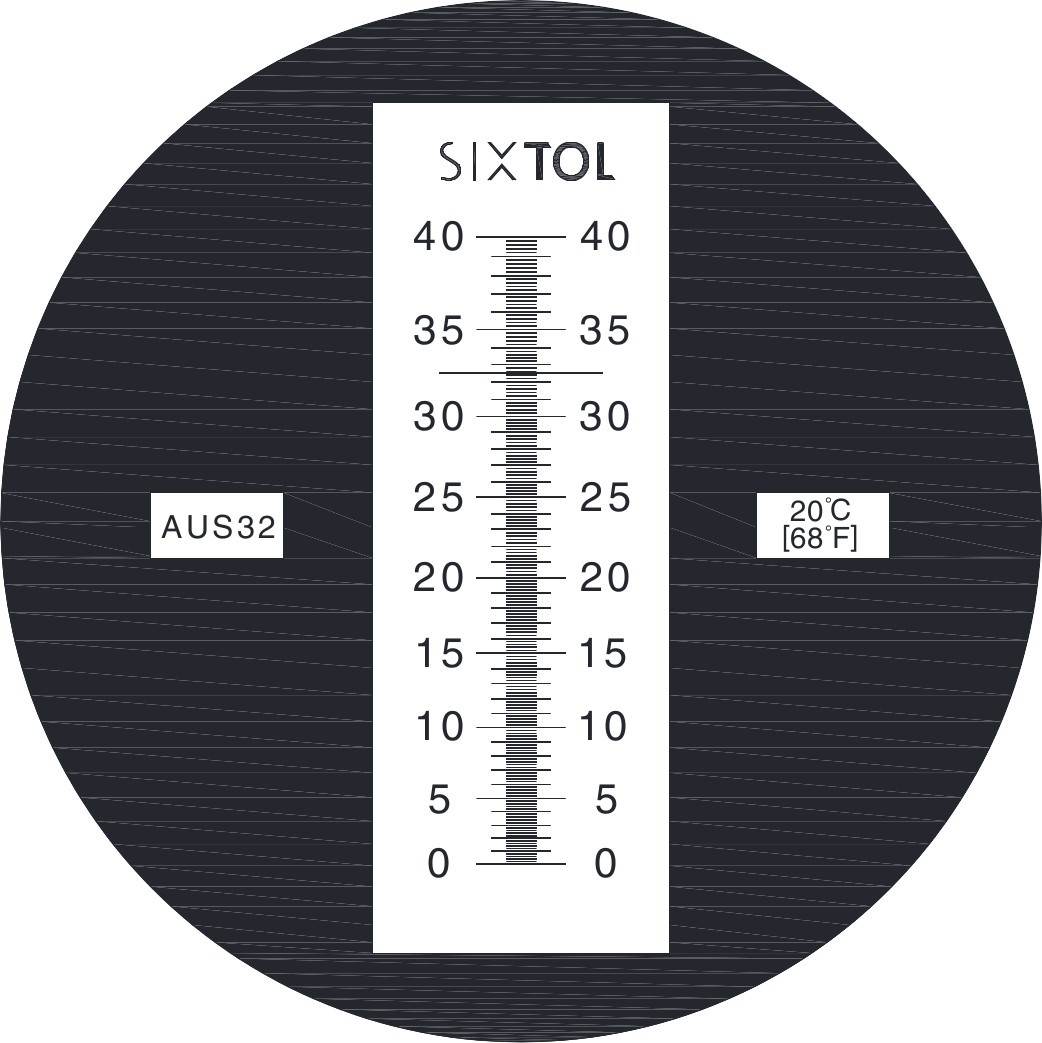

• 5. The image should be focused using the focusing ring, and read the position of the light/shadow boundary on the appropriate scale indicating the properties of the liquid.

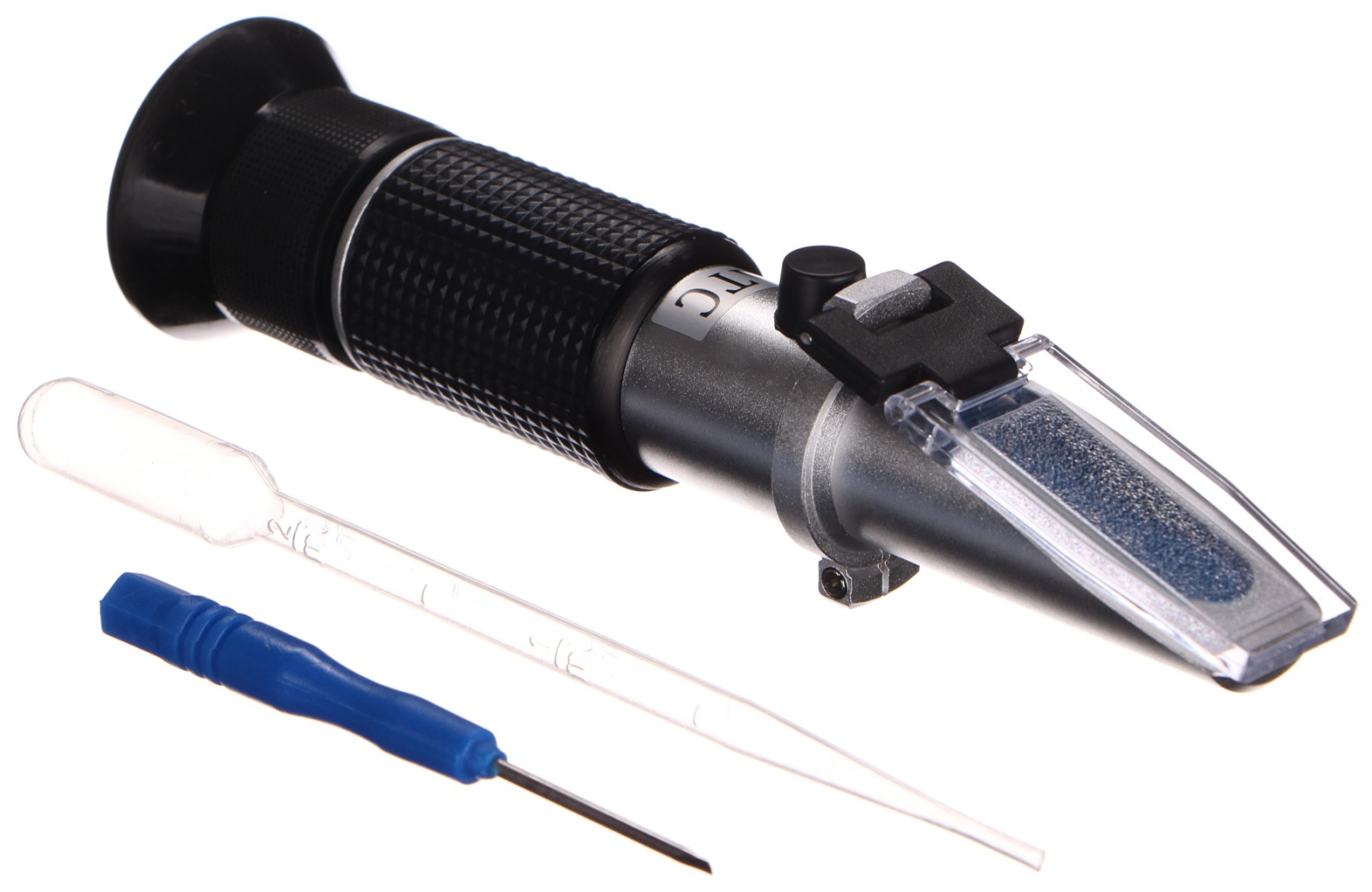

Package contents:

• 1 pc refractometer for AdBlue additives
• 1 pc practical and mechanically durable plastic case
• 1 pc pipette for sample collection
• 1 pc screwdriver for device calibration
• 1 pc antistatic cleaning cloth for the optical prism

Note: Special calibration solution is not included in the package!
Technical specifications:

• AdBlue additive concentration – range: 0 to 40 %, accuracy: +/- 0.2 %
• Dimensions: 5.5 x 7.5 x 20.5 cm
