Refractometer for measuring operating fluids and AdBlue

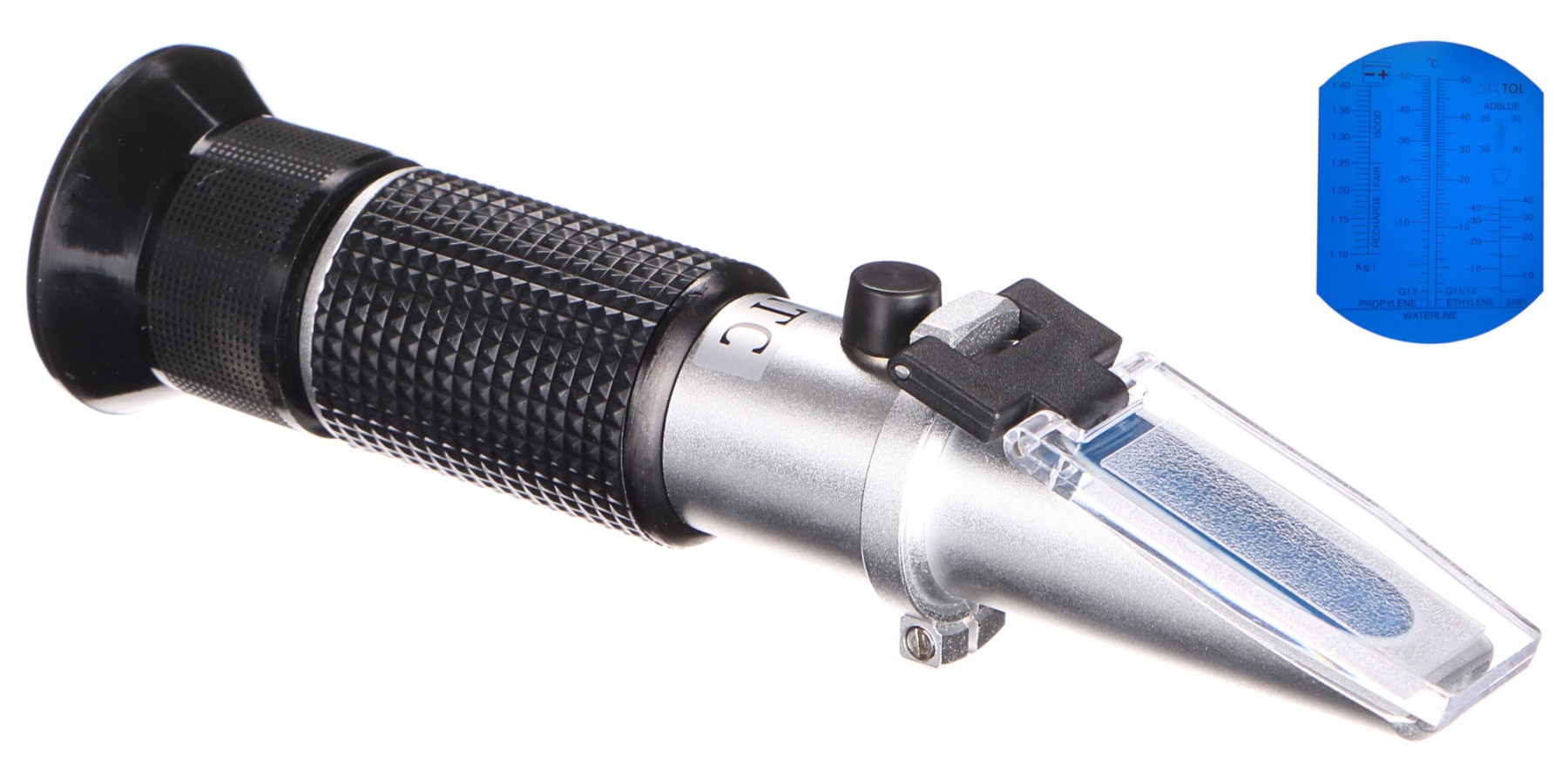

A refractometer is a device that enables the determination of the physical properties of a liquid by measuring the refractive index at the medium boundary. With the refractometer it is possible to determine the state of battery charge, the freezing point of cooling liquids based on propylene glycol or ethylene glycol, the freezing point of windshield washer fluids and also the concentration of the AdBlue additive.

Main advantages:

• Measures the concentration of AdBlue additive
• Compact device size
• The device requires no batteries and needs no assembly
• High operational reliability and long service life
• Small deviation and high measurement accuracy
• The device body is made of a lightweight and durable special aluminum alloy
• Requires virtually no maintenance
• Part of the device is covered with a soft rubber sleeve

Measurement options:

• Battery charge
• Freezing point of coolant
• Freezing point of windshield washer fluid
• Concentration of AdBlue additive in the range 30 – 35 %
• The set includes a pipette and a cleaning cloth

How to measure the liquid:

• 1. Use the pipette to take a small amount of liquid.
• 2. Lift the cover plate and place 2–3 drops of liquid on the device prism.
• 3. Close the cover plate so that the measured liquid spreads evenly and without bubbles across the prism surface.
• 4. After 30 seconds, point the cover plate toward a light source and look into the eyepiece.

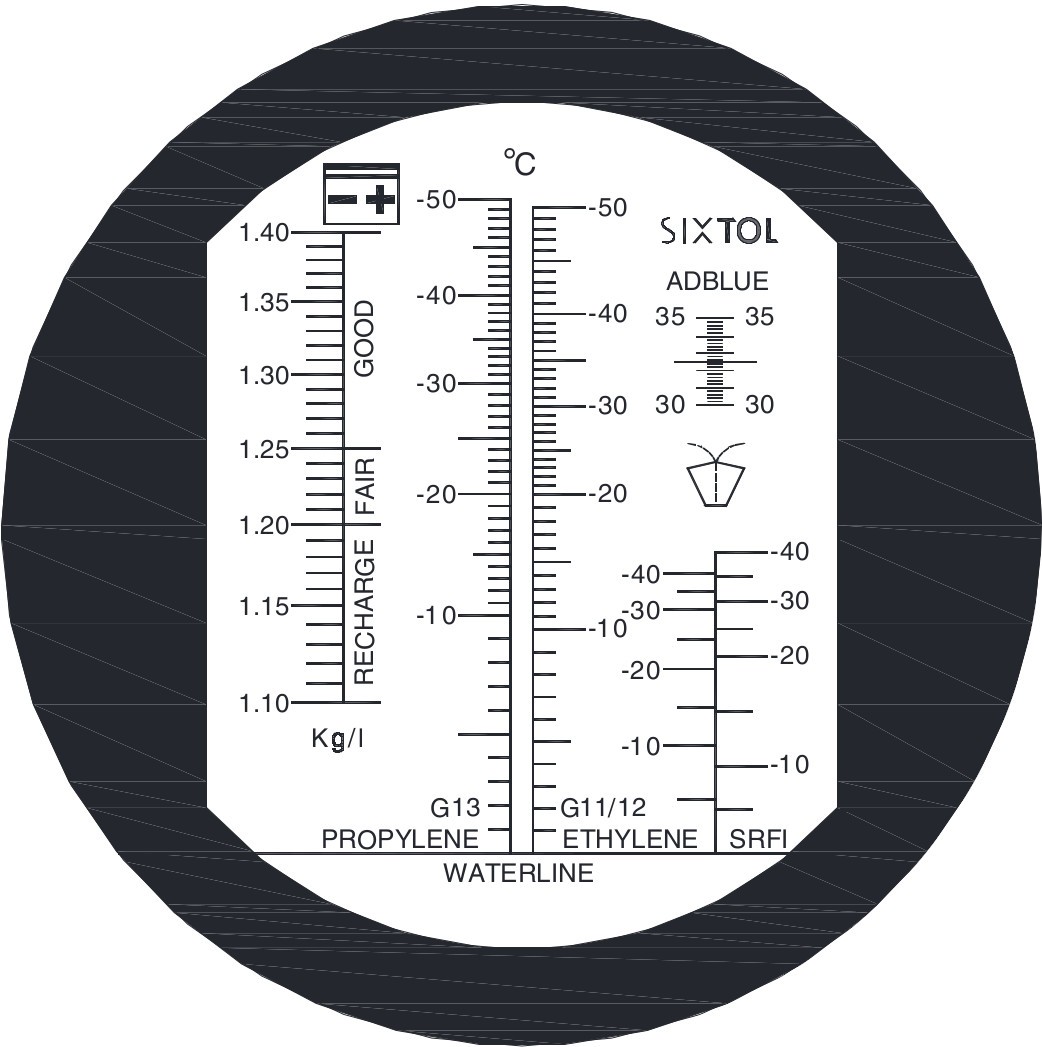

• 5. The image should be focused using the focusing ring, and read the position of the light/shadow boundary on the appropriate scale indicating the properties of the liquid.

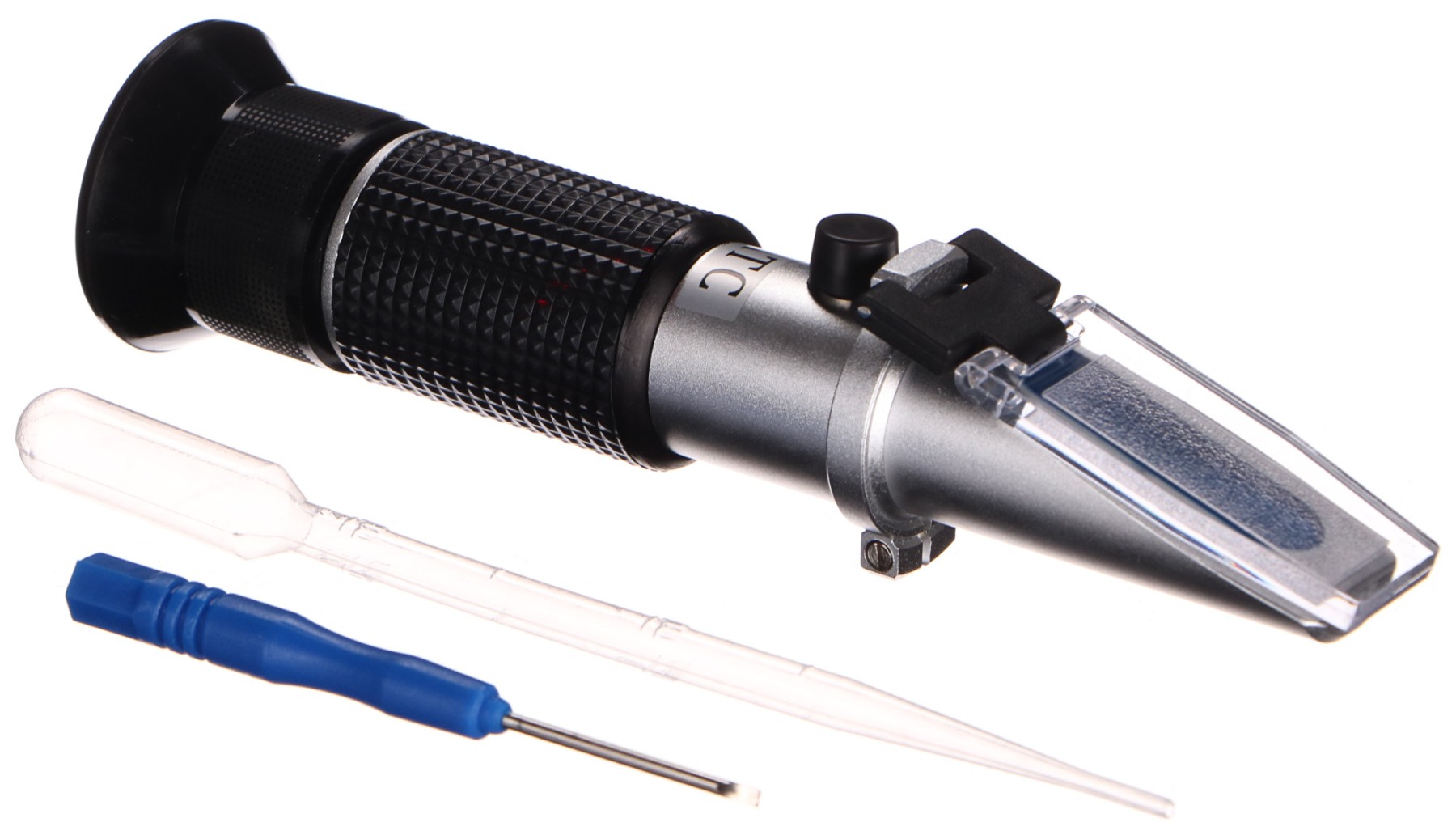

Package contents:

• 1 pc refractometer for measuring automotive operating fluids + AdBlue
• 1 pc practical and mechanically durable plastic case
• 1 pc pipette for sample collection
• 1 pc screwdriver for device calibration
• 1 pc antistatic cleaning cloth for the optical prism

Note: Special calibration solution is not included in the package!
Technical specifications:

• Freezing point of ethylene glycol-based coolant - range: -50 – 0 °C, accuracy: +/- 5 °C
• Freezing point of propylene glycol-based coolant - range: -50 – 0 °C, accuracy: +/- 5 °C
• Battery electrolyte density - range: 1.10 - 1.40 g/cm3, accuracy: +/- 0.01 g/cm3
• Freezing point of antifreeze mixture for windshield washers - range: -40 – 10 °C, accuracy: +/- 5 °C
• AdBlue additive concentration – range: 30 - 35 %, accuracy: +/- 0.5 %
• Dimensions: 5.5 x 7.5 x 20.5 cm
