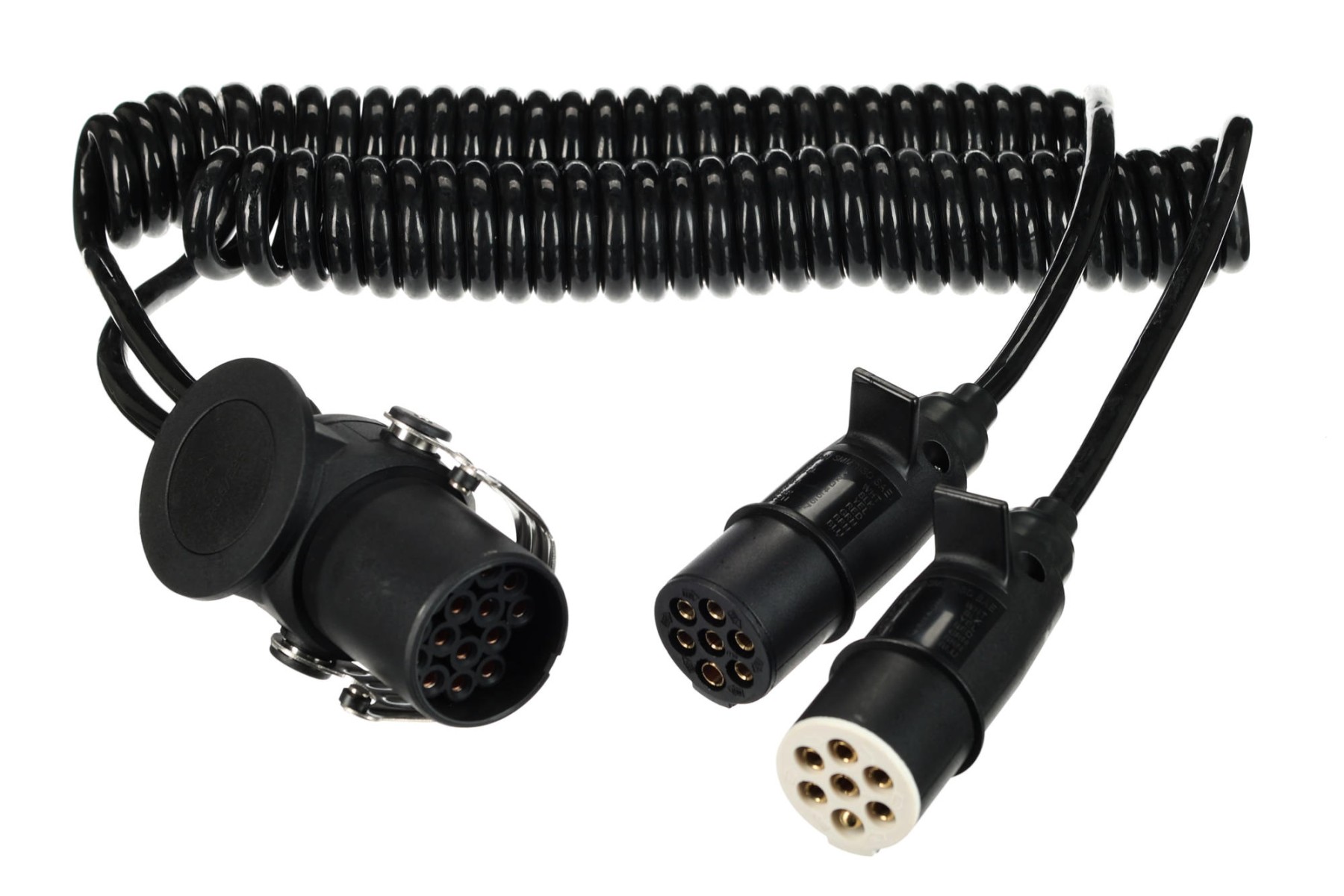

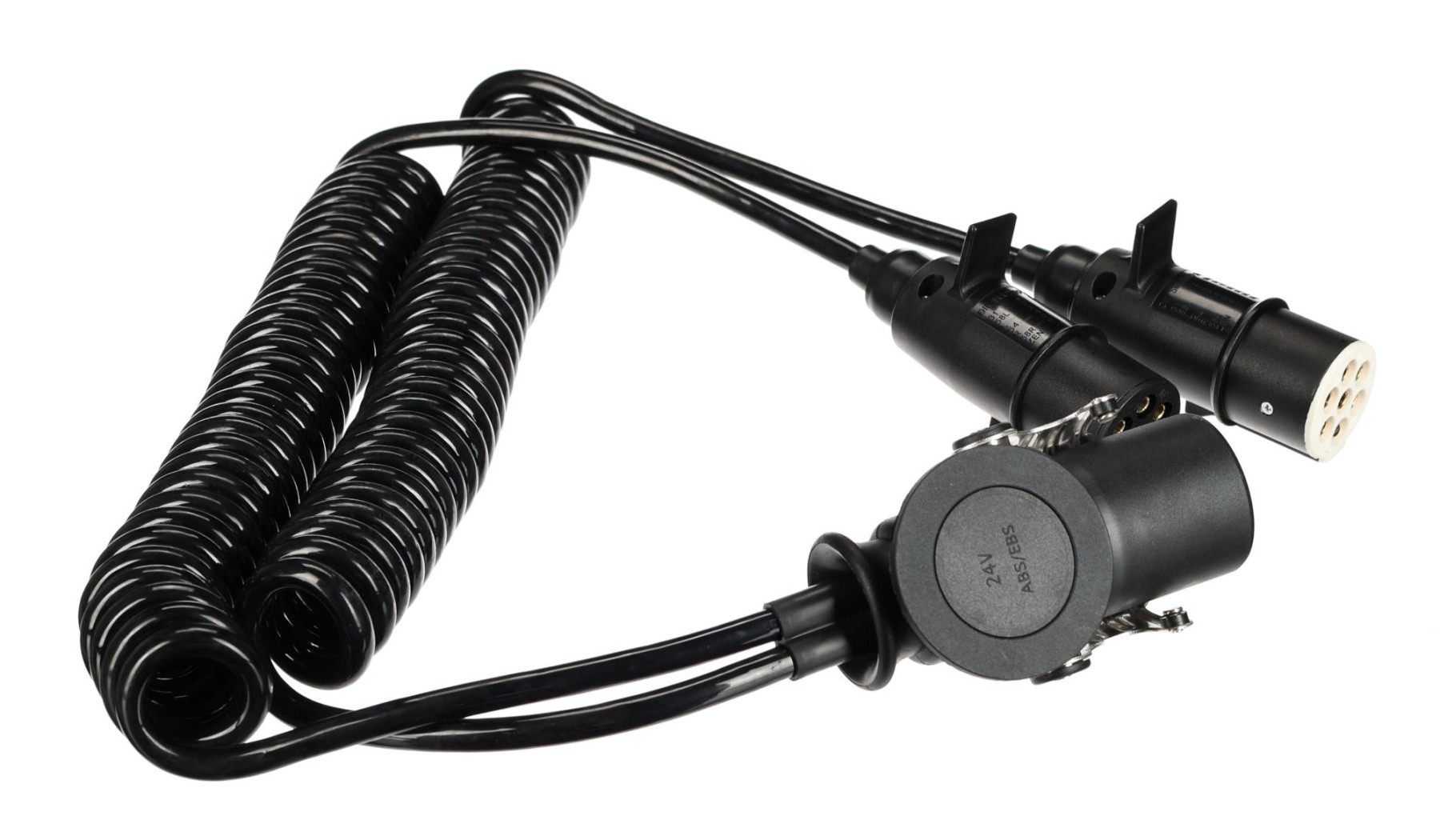

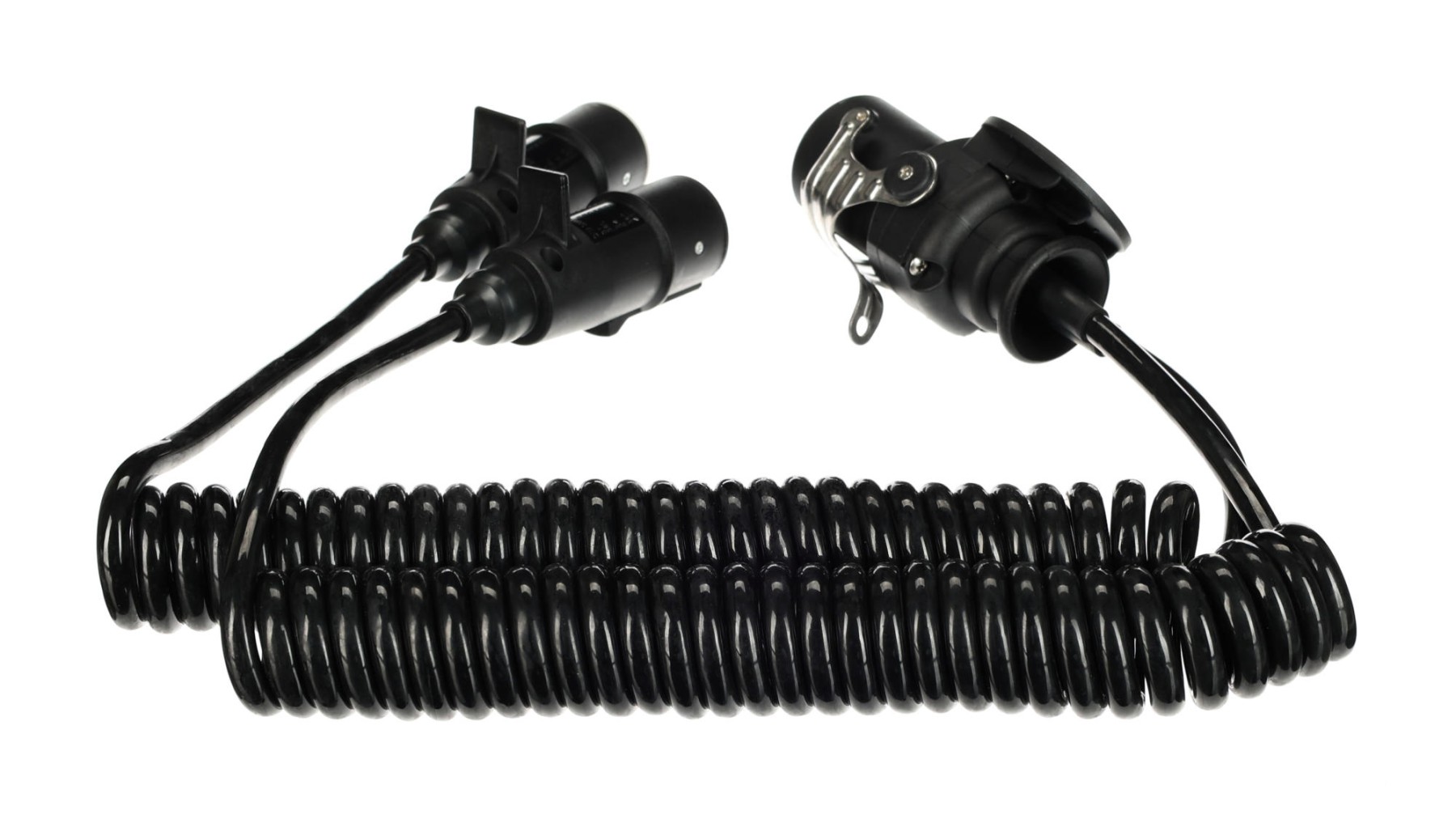

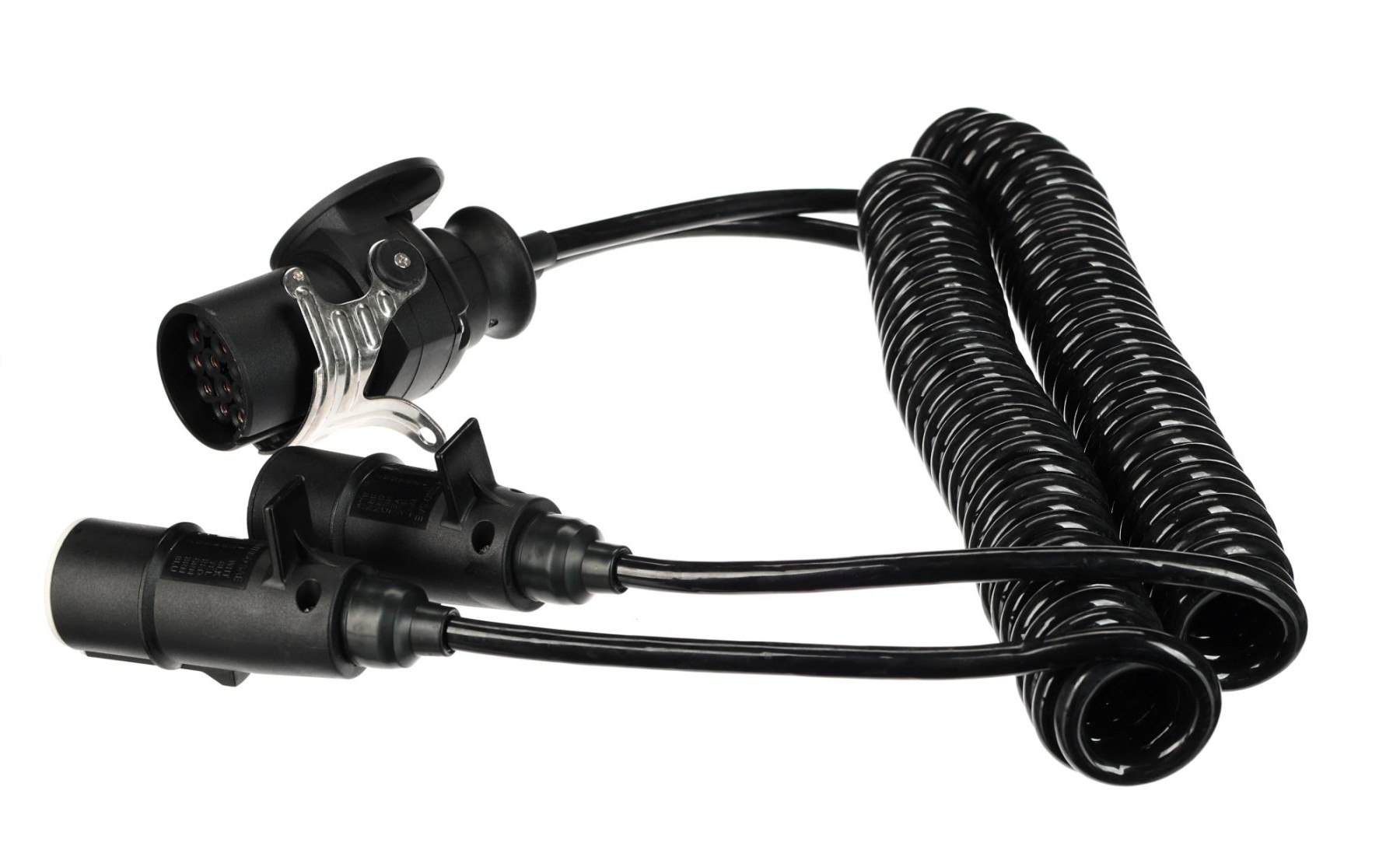

Spiral connecting adapter from 15-pin to 2×7-pin plug (S+N) TRAILER CABLE 9, 24V, 3.5 m SIXTOL
The SIXTOL TRAILER CABLE 9 spiral connecting adapter allows an easy and reliable connection between a 15-pin socket and two 7-pin plugs (S+N) on trucks and trailers. The adapter is designed for 24 V systems and ensures transmission of all required lighting and other electrical functions. The spiral cable design provides flexibility during handling, reduces sagging and helps protect the cable from damage during operation. The connectors are designed for a secure fit and stable contact, which is especially important with frequent connecting and disconnecting. Protective elements of the connectors help guard against dirt and moisture, increasing the adapter's reliability and service life.
Main advantages:- Conversion from 15-pin to 2×7-pin (S+N)
- Designed for 24 V systems
- Spiral cable for greater flexibility
- Stable and reliable connection
- Connector protection against dirt
Usage:- Connection between tractor unit and trailer
- Transmission of light signals
- Connection of electrical systems of truck combinations
- Use in transport and logistics
Package contents:- 1× spiral connecting adapter 15-pin to 2×7-pin
Technical parameters:- Type: 15-pin › 2×7-pin (S+N)
- • Socket:
- - Connector length: 14 cm
- - Internal diameter: 42 mm
- - Number of pins: 15
- • 2× Plugs:
- - Connector length: 12 cm
- - External diameter: 38 mm
- - Number of pins: 2×7-pin (S+N)
- Voltage: 24 V
- Length: 3.5 m
- Weight: 1.5 kg
- Package dimensions: 25 x 8 x 30 cm
