Thread repair kit MECHANIC THREAD SET 261, M5 - M12, 1/4UNC-1/2UNC, 261 pcs

Professional SIXTOL MECHANIC THREAD SET 261 containing taps, drills and thread inserts for repairing metric and inch threads.

Full description

Description and parameters
Videos and images
Questions

Thread repair kit MECHANIC THREAD SET 261, M5 - M12, 1/4UNC-1/2UNC, 261pcs SIXTOL

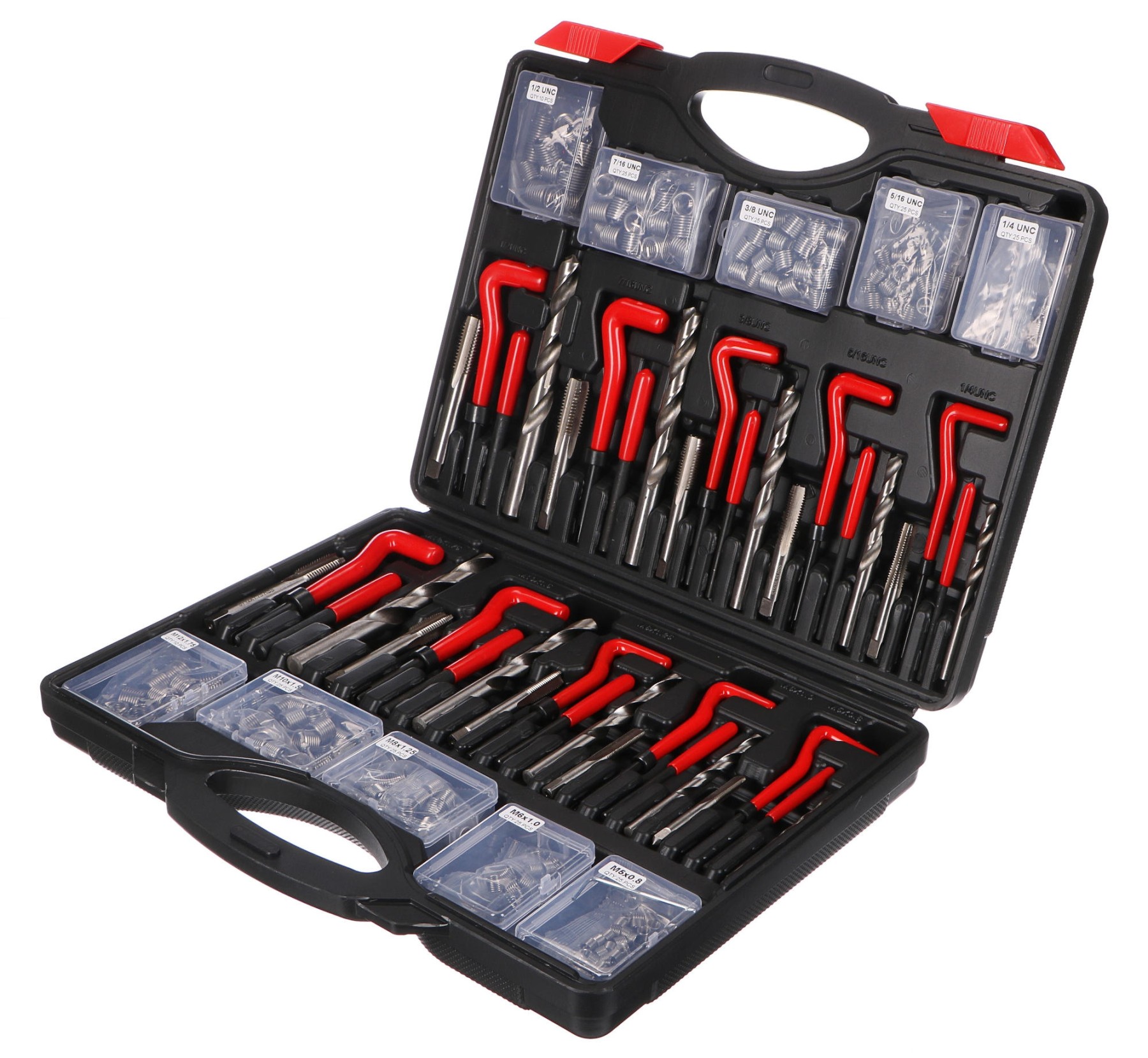

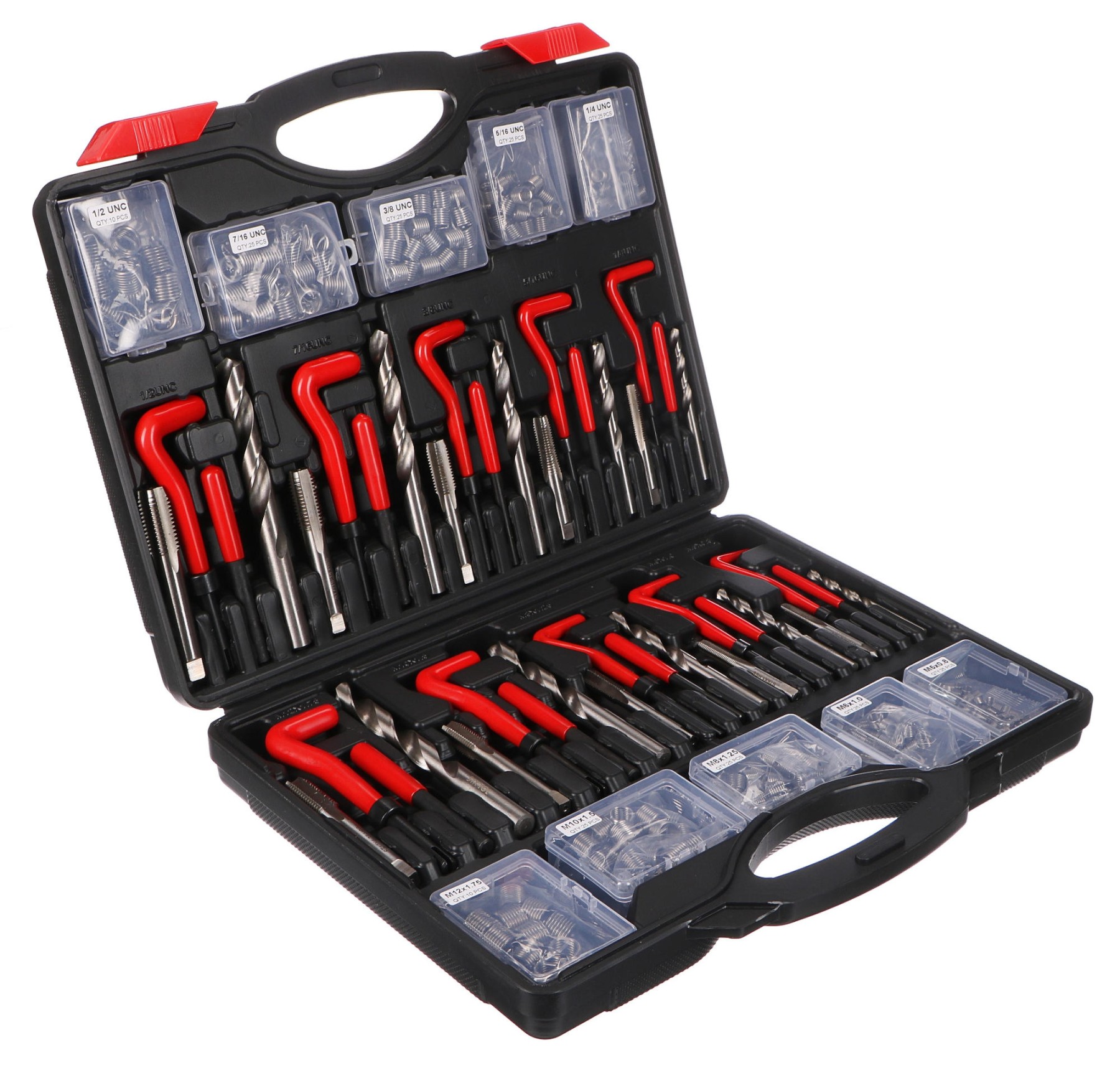

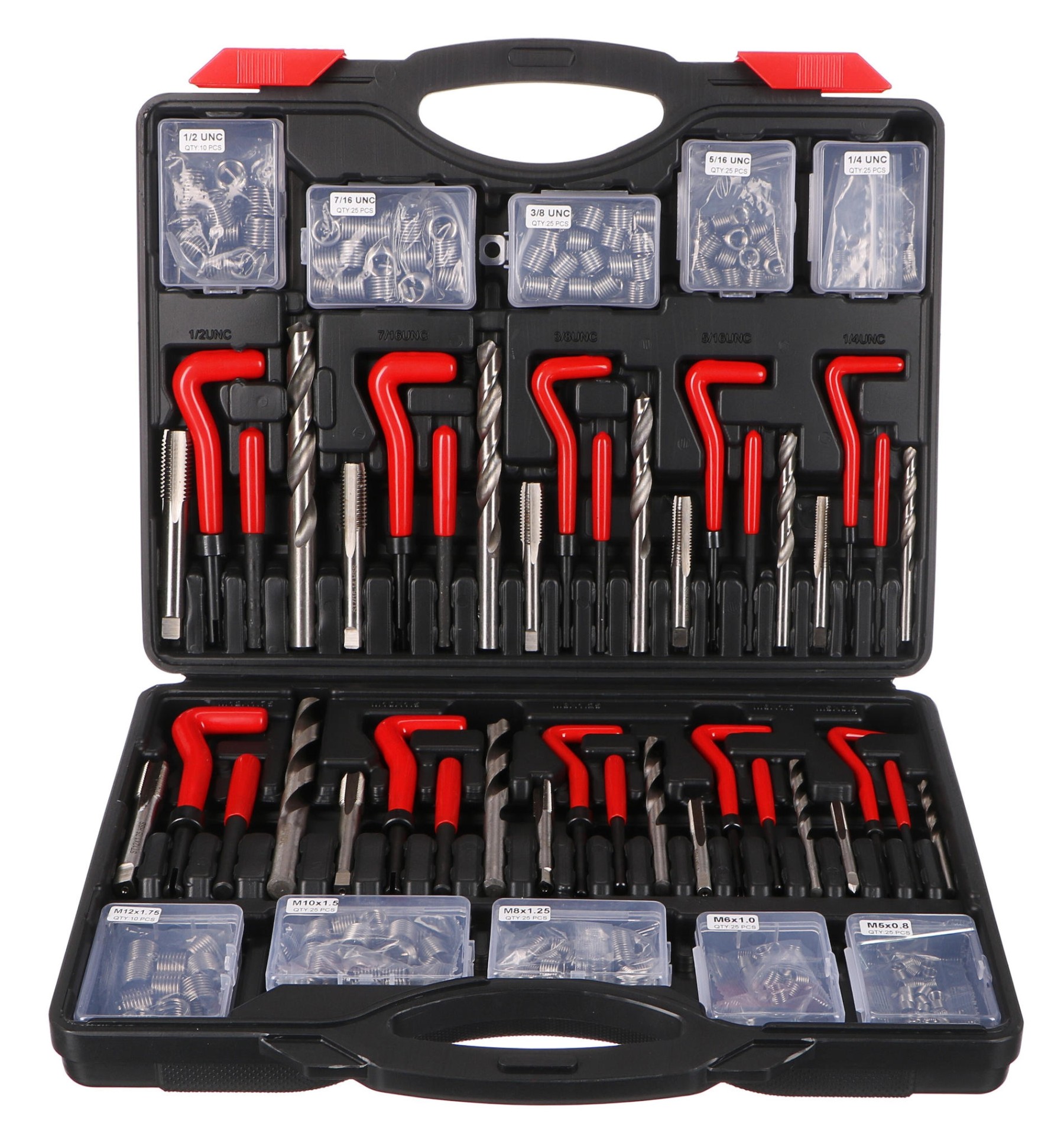

The MECHANIC THREAD SET 261 is designed for repairing damaged threads and reinforcing threads in lower-strength materials. It contains a wide selection of metric (M5-M12) and inch (1/4UNC-1/2UNC) taps, drills, insertion tools and other accessories. High-quality materials, such as HSS 4241 steel, ensure long tool life even with frequent use. The set is conveniently stored in a durable metal case, which simplifies storage and transport.

Main advantages:

High quality HSS tools (HRC58-60)
Metric and inch specifications in one set
Practical packaging in a sturdy metal case
Wide compatibility with various thread types

Use:

Repair of damaged threads
Reinforcement of threads in aluminum, magnesium alloys and other soft materials

Set contents:

1x tap STI M5 x 0.8 HSS
1x tap STI M6 x 1.0 HSS
1x tap STI M8 x 1.25 HSS
1x tap STI M10 x 1.5 HSS
1x tap STI M12 x 1.75 HSS
1x tap STI 1/4UNC HSS
1x tap STI 5/16UNC HSS
1x tap STI 3/8UNC HSS
1x tap STI 7/16UNC HSS
1x tap STI 1/2UNC HSS
1x HSS drill 5.2 mm
1x HSS drill 6.3 mm
1x HSS drill 8.3 mm
1x HSS drill 10.5 mm
1x HSS drill 12.5 mm
1x HSS drill for 1/4UNC
1x HSS drill for 5/16UNC
1x HSS drill for 3/8UNC
1x HSS drill for 7/16UNC
1x HSS drill for 1/2UNC
10x insertion tools
10x punch pins
25x thread inserts M5
25x thread inserts M6
25x thread inserts M8
25x thread inserts M10
10x thread inserts M12
10x thread inserts 1/4UNC
25x thread inserts 5/16UNC
25x thread inserts 3/8UNC
25x thread inserts 7/16UNC
10x thread inserts 1/2UNC
1x small Allen key
1x durable metal case

Technical parameters:

Material: HSS steel 4241, thread inserts made of stainless steel 304
Metric specifications: M5 x 0.8, M6 x 1.0, M8 x 1.25, M10 x 1.5, M12 x 1.75
Inch specifications: 1/4UNC, 5/16UNC, 3/8UNC, 7/16UNC, 1/2UNC
Number of parts in set: 261
Set dimensions: 29 x 36 x 6.5 cm
Weight: 3.2 kg

Main parameters

EAN8595697704949
CodeSX1274
Weight3,20 kg
Height6,5 cm
Length29 cm
Width36 cm

Full description and parameters Hide description and parameters
