Towbar bike carrier BIKE 3 - 3 bikes

Towbar bike carrier BIKE 3 - 3 bikes SIXTOL

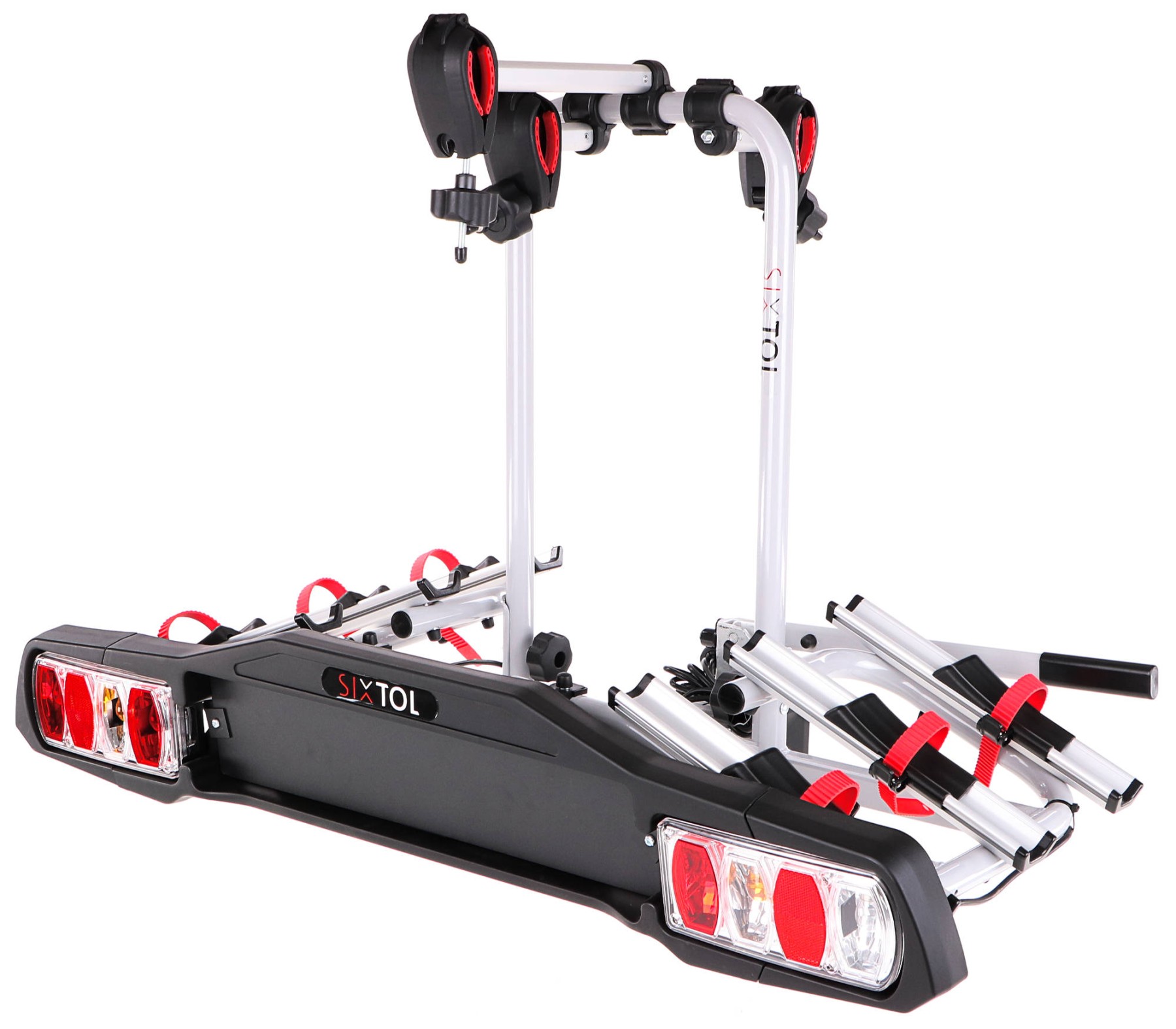

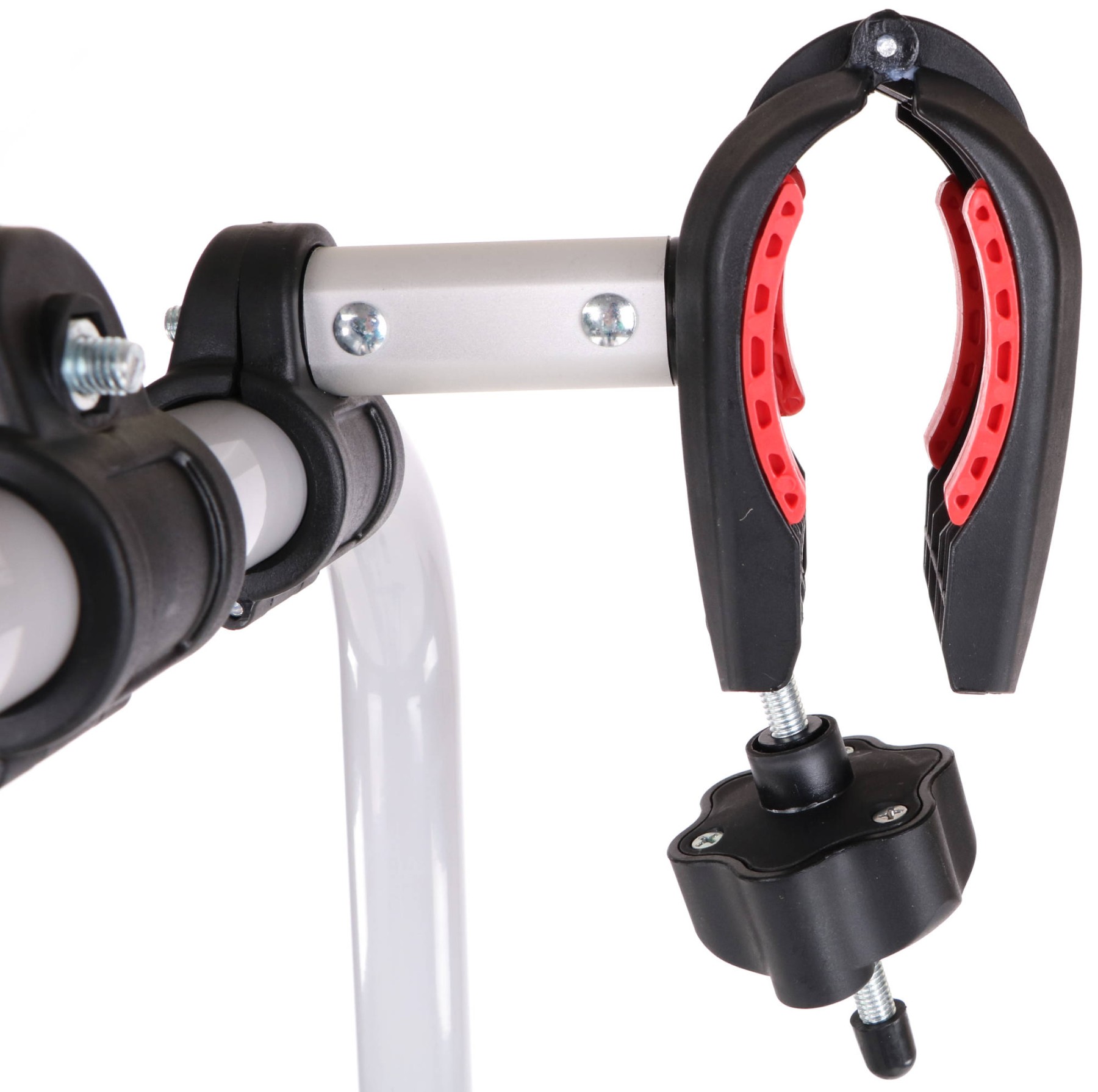

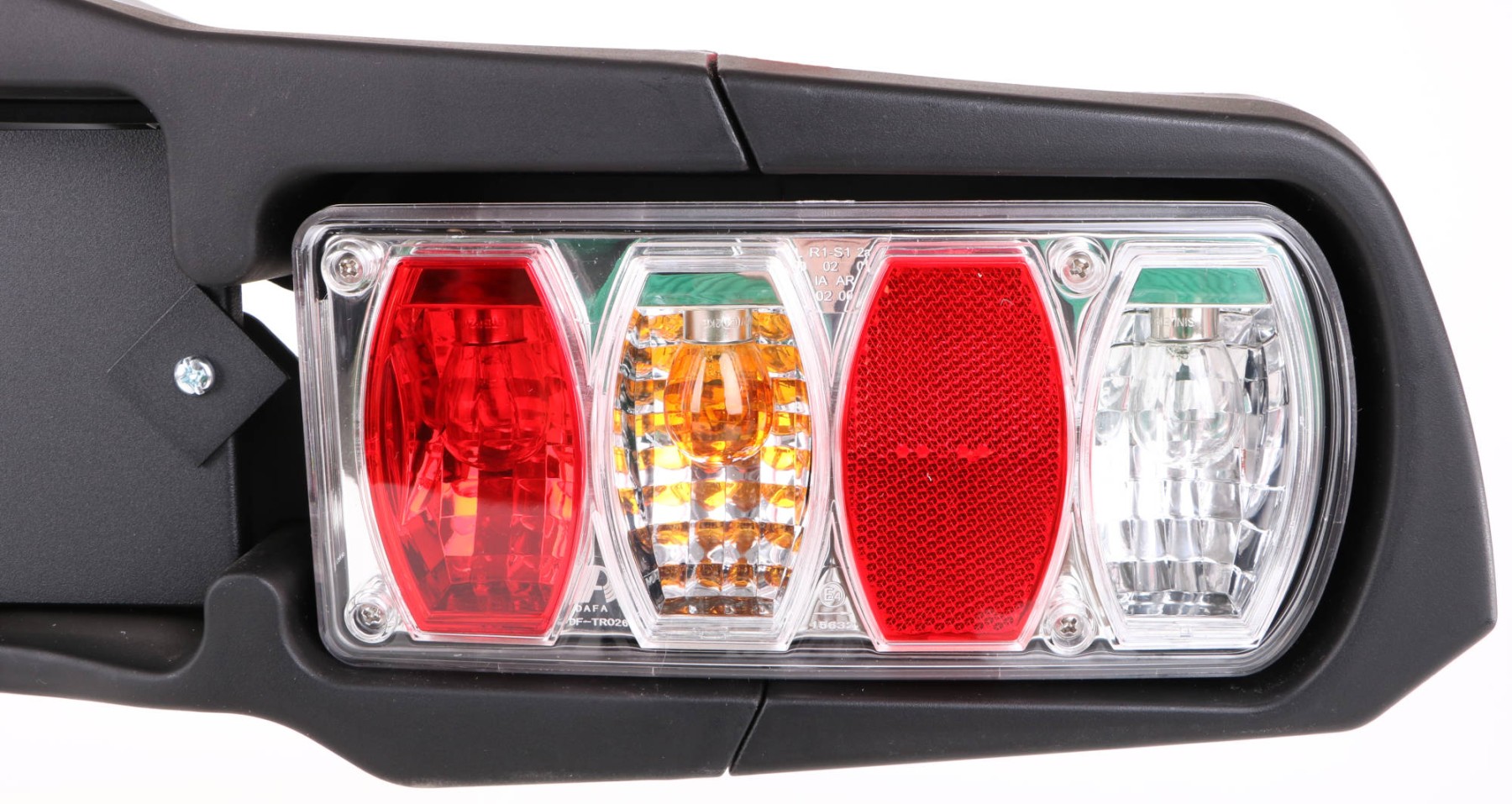

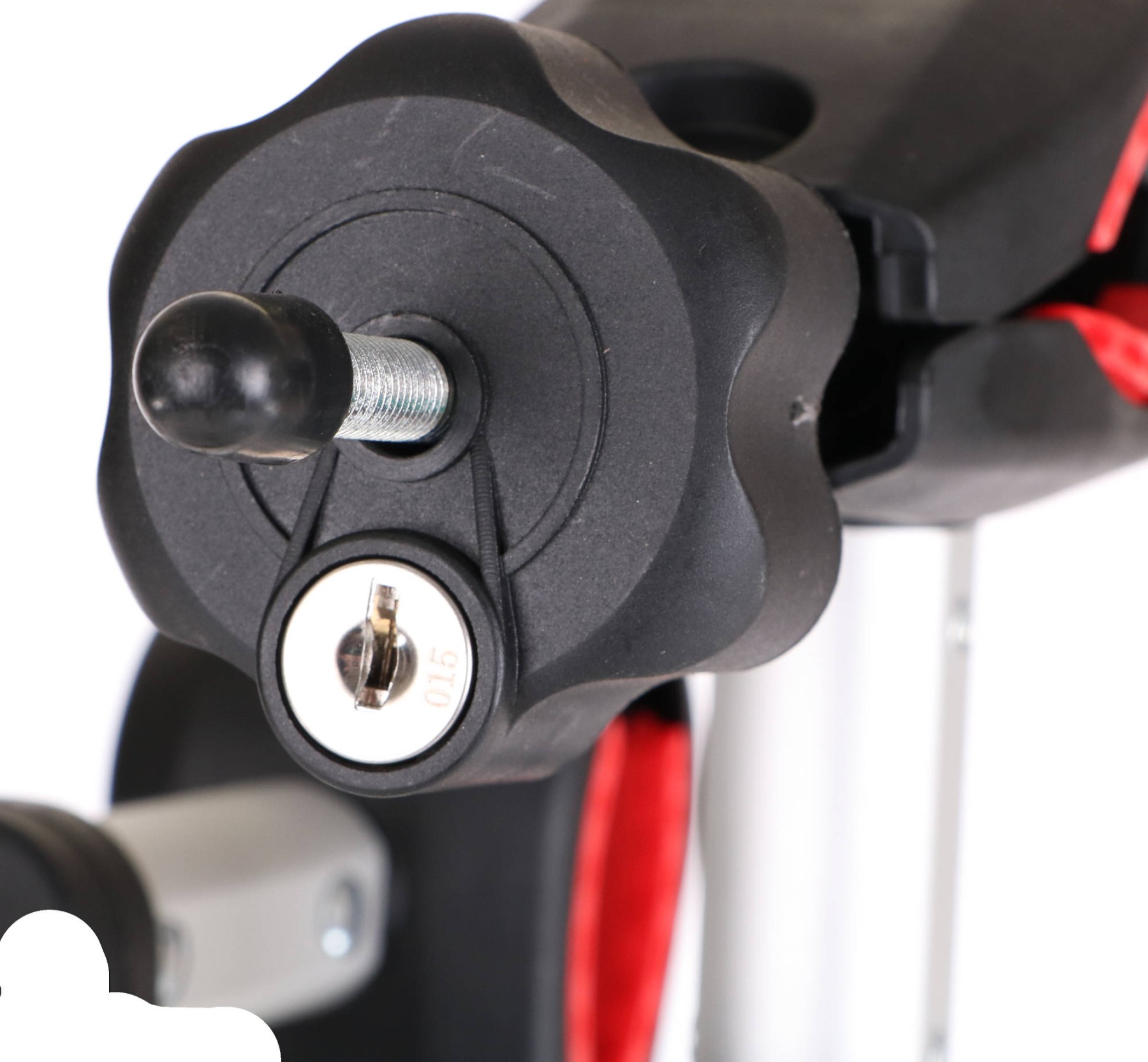

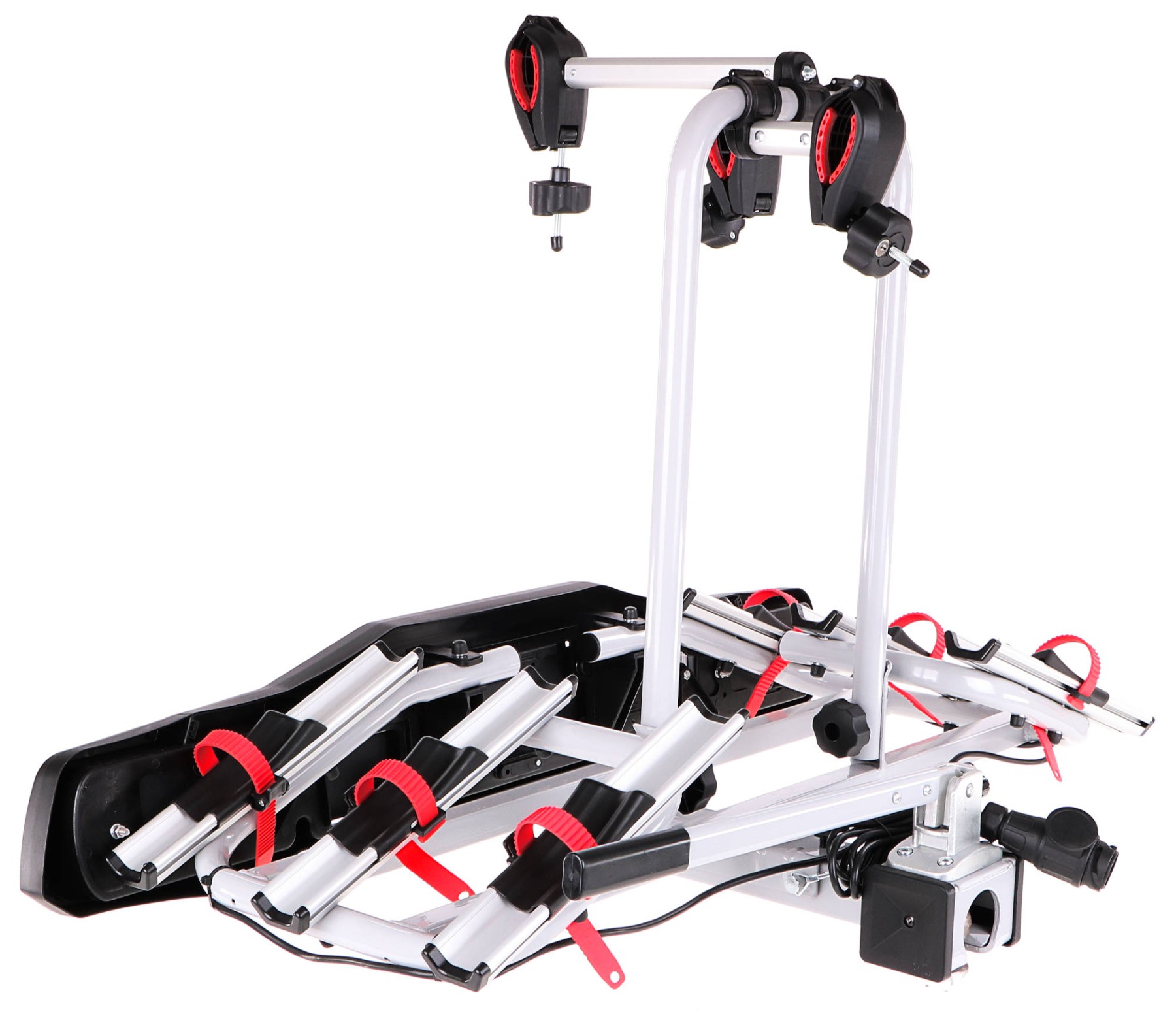

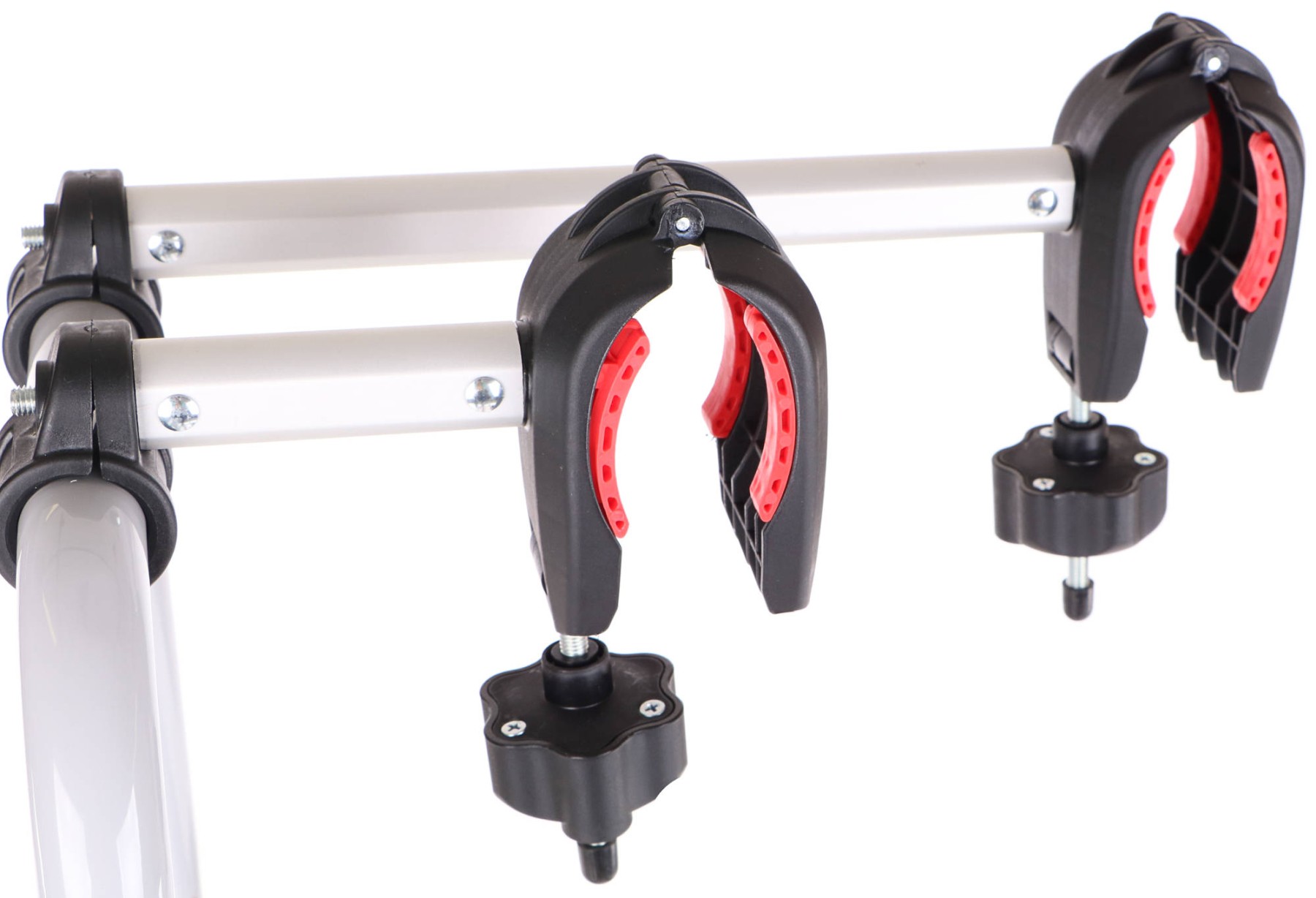

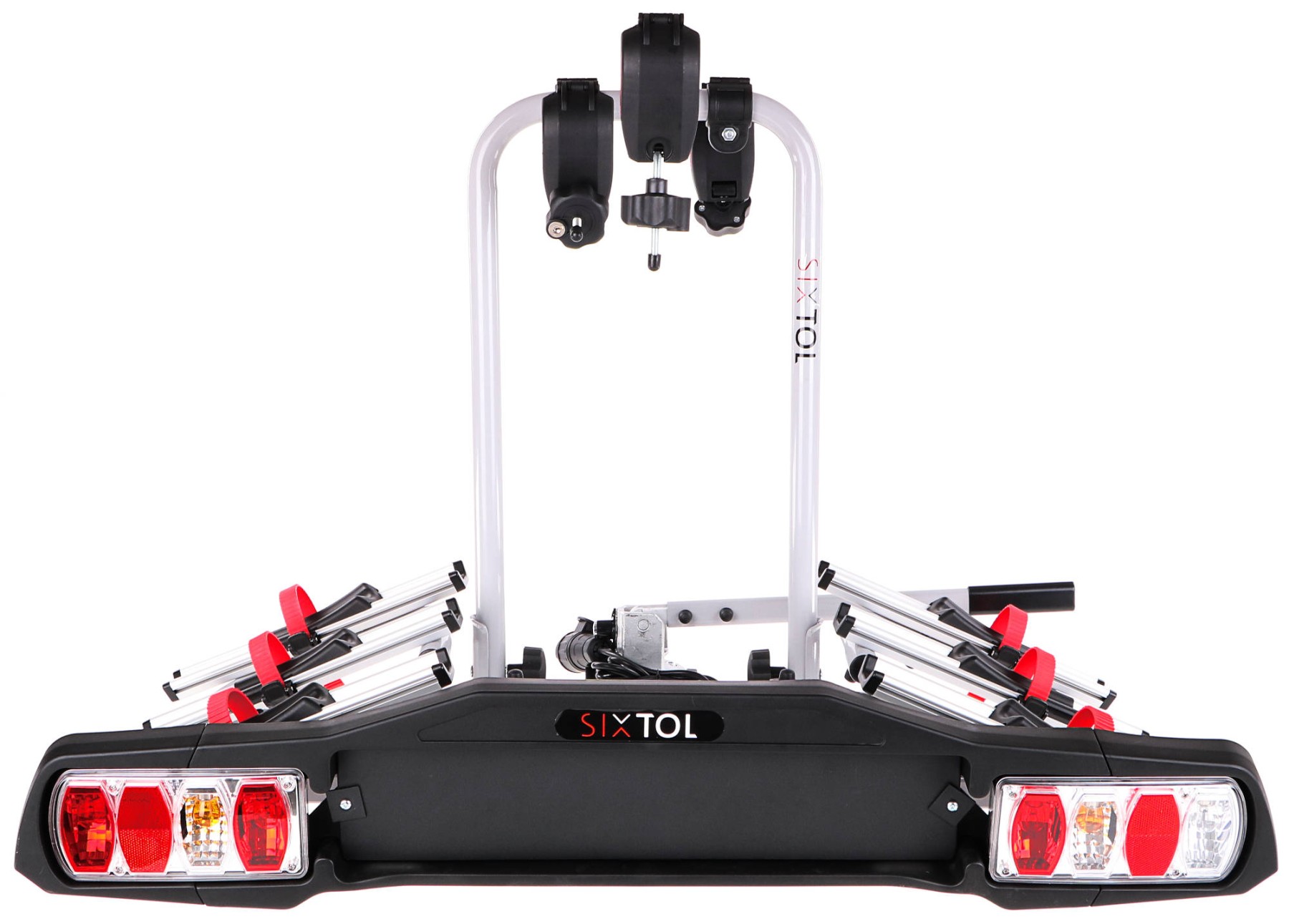

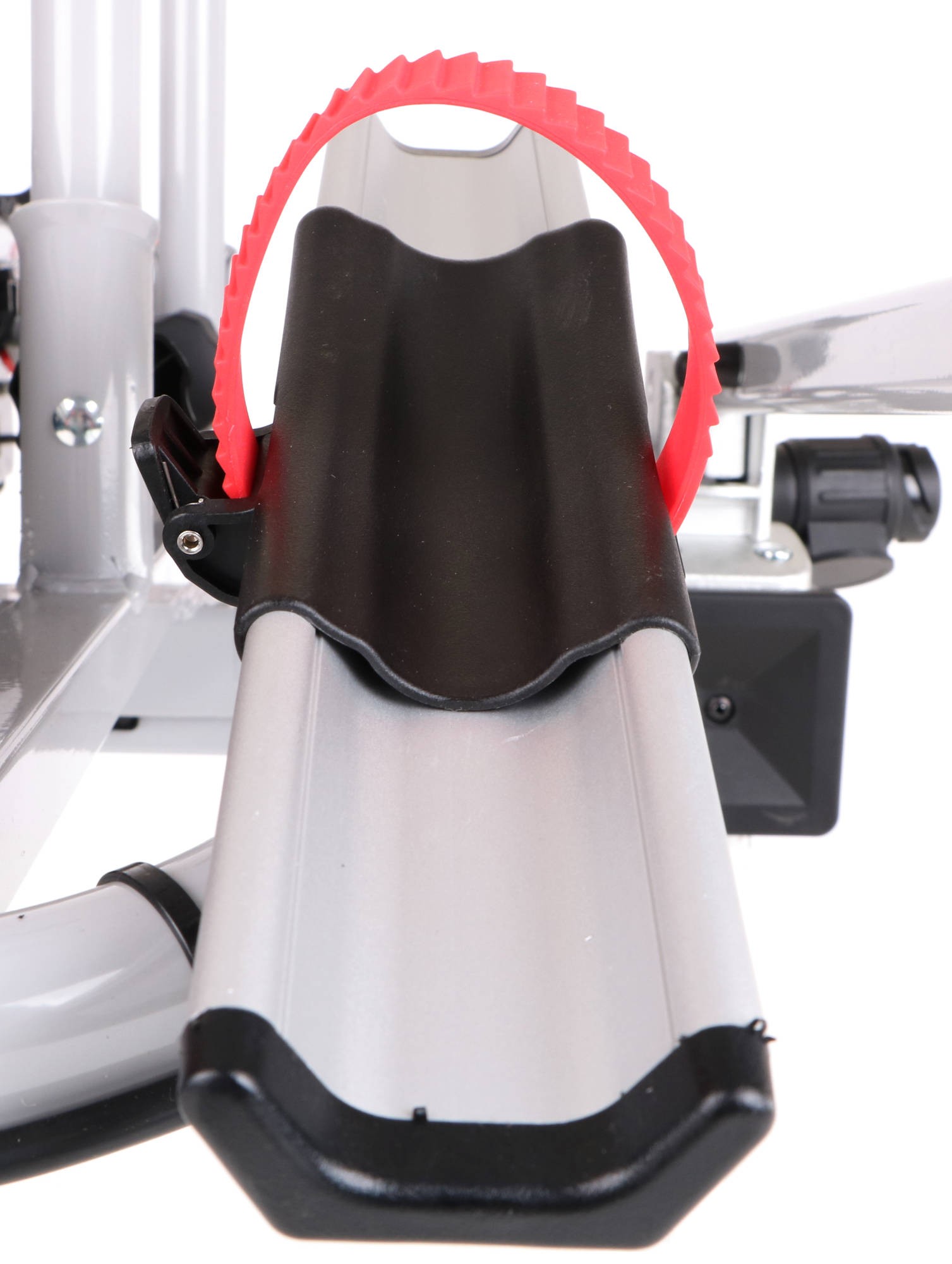

Reliable bike carrier for mounting on the tow ball of the towbar BIKE 3 for 3 bicycles. The carrier is made of steel and aluminium. The carrier features a simple fastening system, with tilting for access to the trunk, a fully illuminated panel and a place for the vehicle registration plate. Attaching a bike to the carrier requires no tools; it is done by attaching the frame holder and tightening the straps on the wheels placed on the base. The mechanism is lockable, preventing bike theft. The securing knob for fastening the bicycle must be tightened thoroughly to overcome the slipping resistance in the locked position. The carrier is made of steel and each of the bicycle bases is made of aluminium. The carrier is equipped with a panel with lighting and a place for attaching the registration plate (SPZ). The light panel is connected to the vehicle's towbar socket using a 13-pin connector and is equipped with complete rear lights, including license plate lighting (SPZ). Despite the large dimensions of the carrier, access to the trunk is still possible thanks to the ingenious design and the ability to tilt the entire carrier.

Main advantages:

• Robust construction

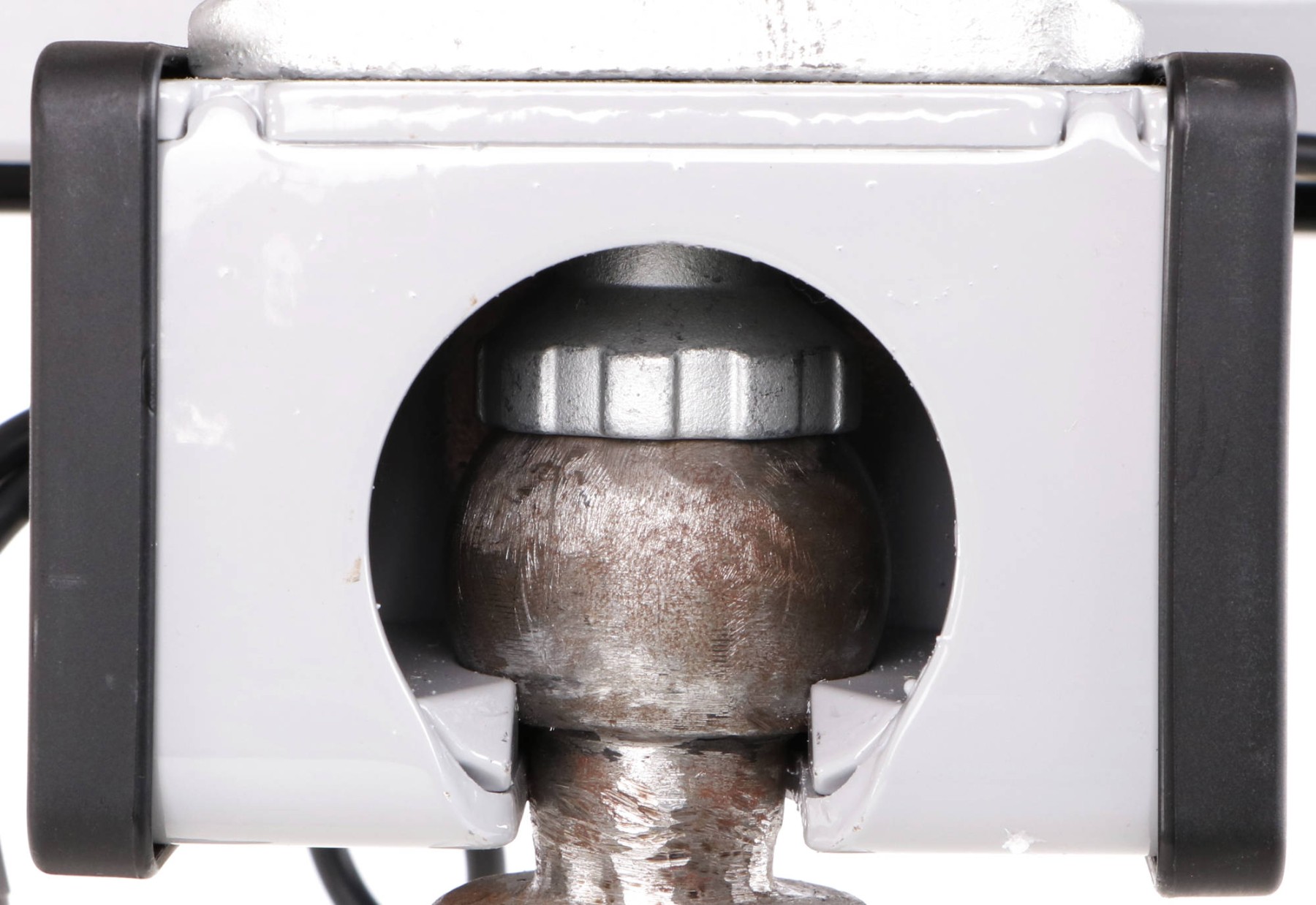

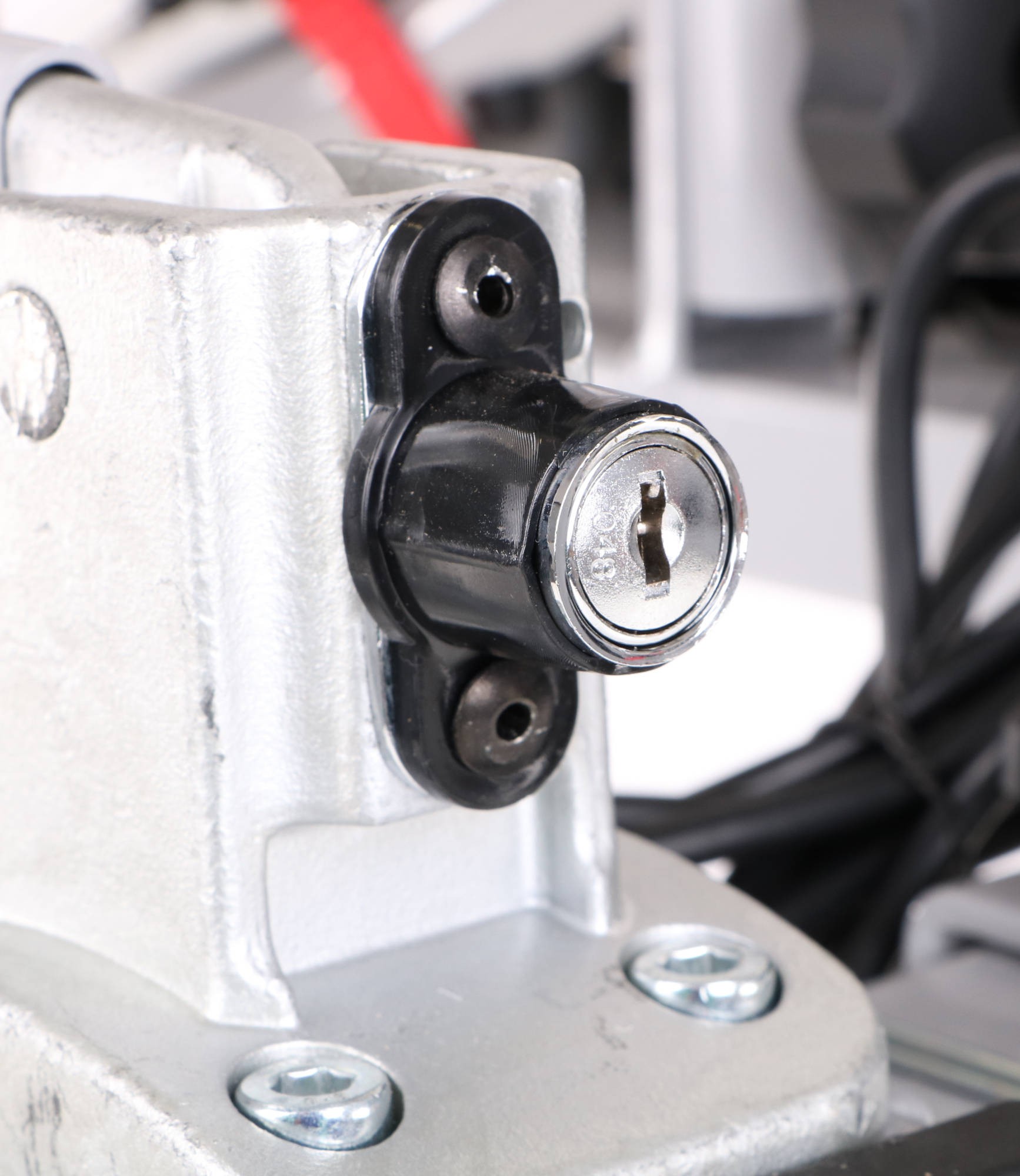

• Tool-free tow ball mounting with theft protection (lock on the tow ball)
• Quick and easy fitting and removal of bikes using a quick-release system

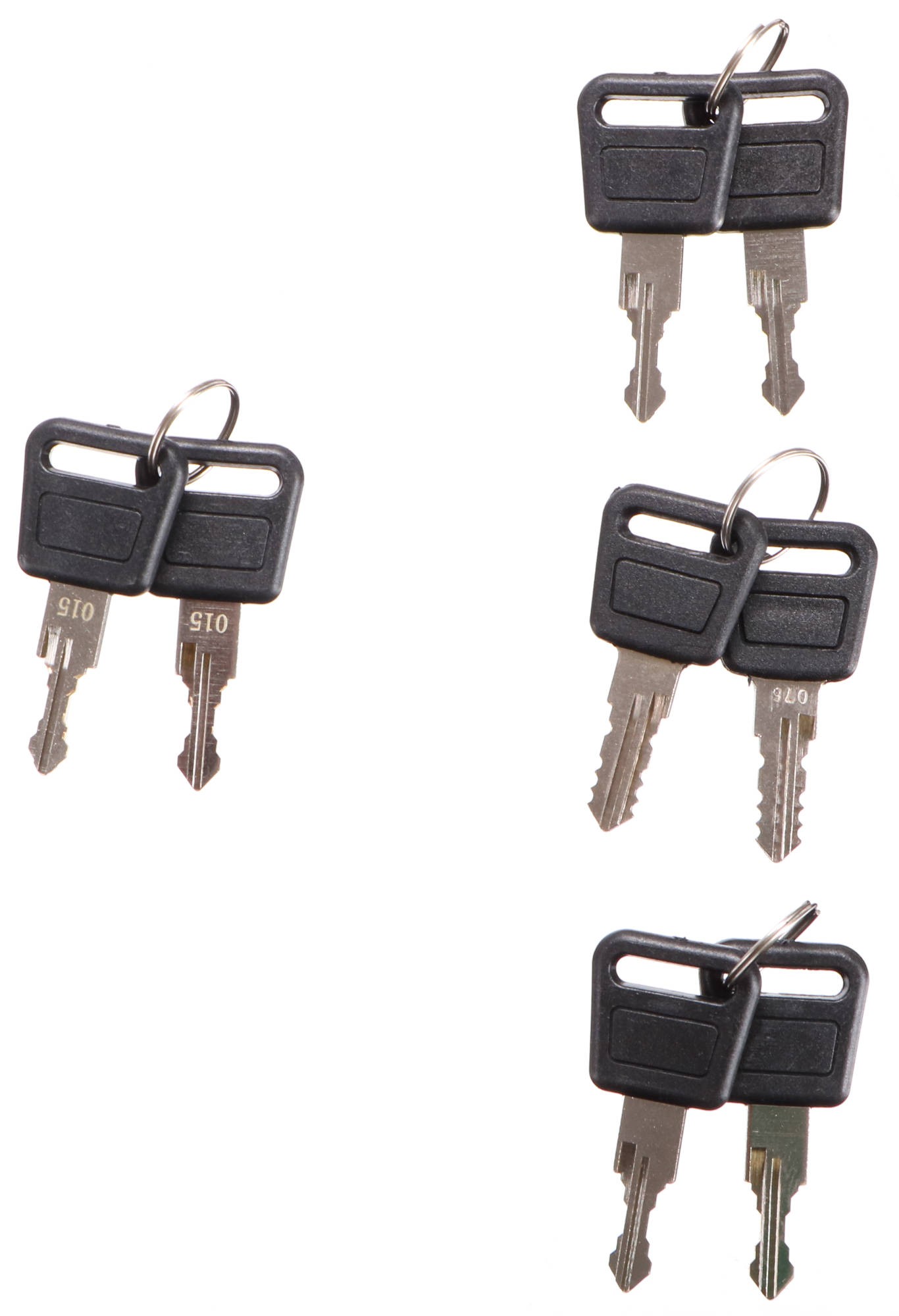

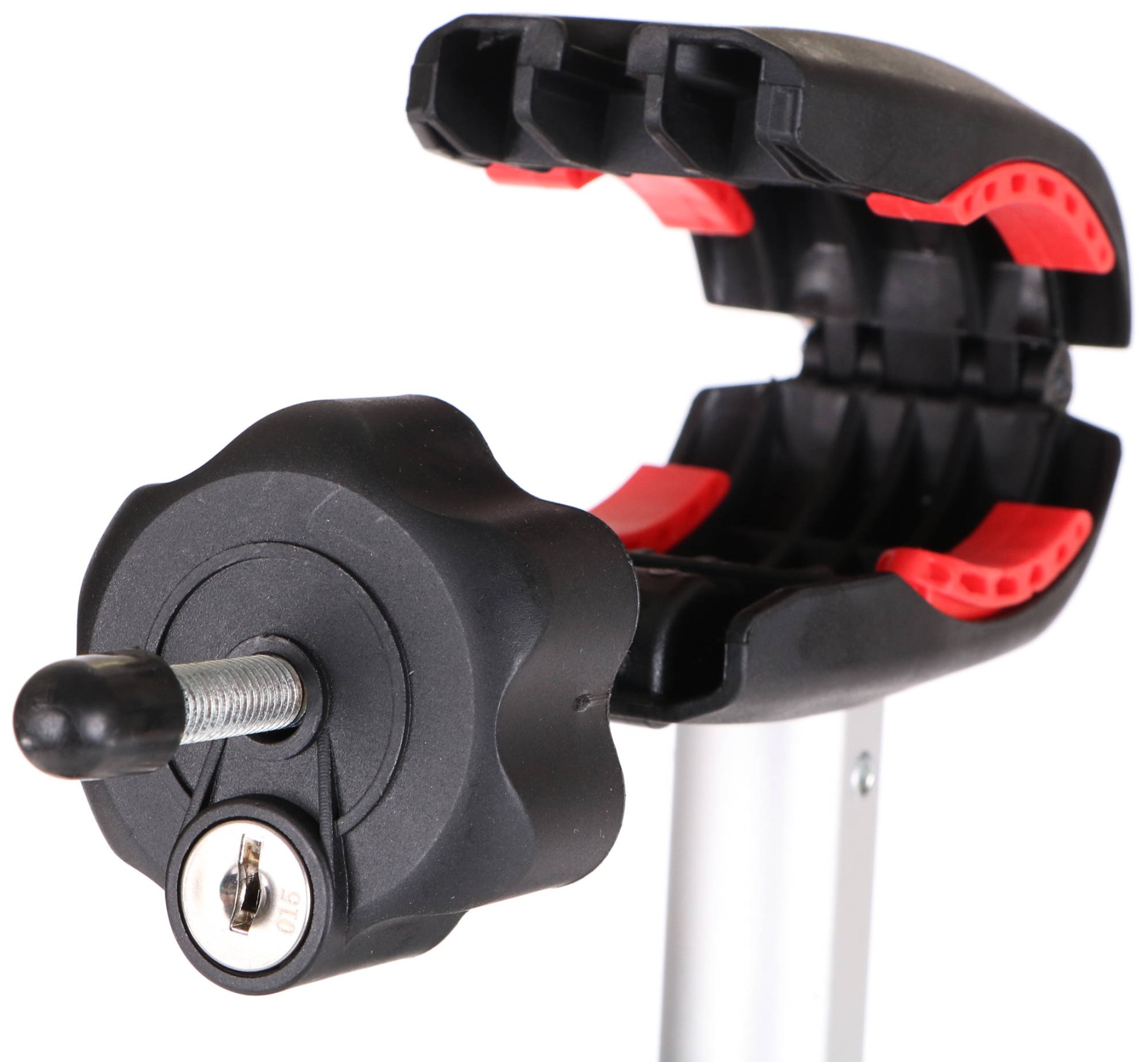

• Ability to lock bikes to the carrier – protection against theft
• Ingenious tilt system of the carrier – access to the trunk
• Folding vertical frame of the carrier for trouble-free storage

Package contents:

• The carrier and all its components
• Czech assembly and user manual

Note:

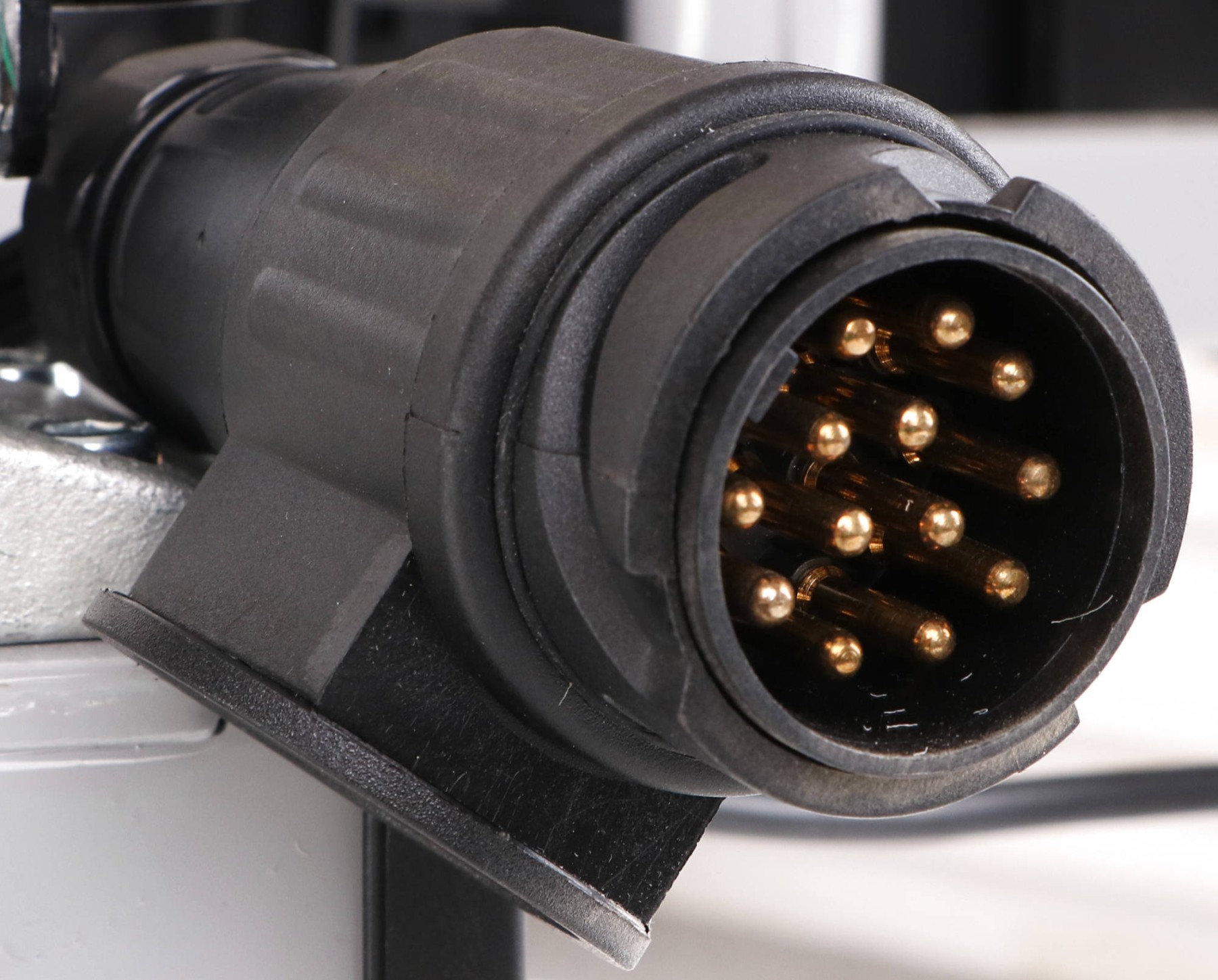

• The carrier is equipped with a 13-pin plug. If your car has a 7-pin socket, you must obtain a 7-to-13 pin adapter.

The carrier is suitable for these types of bikes:

• Mountain bikes
• Cross bikes
• Trekking bikes
• Road bikes
• BMX and freestyle bikes
• Downhill bikes
• Electric bikes
• Children's bikes

Technical specifications:

• Carrier for 3 bikes mounted on a 50 mm tow ball
• Maximum carrier load: 45 kg
• Carrier dimensions: 980 x 580 x 210 mm
• Bike locking: yes
• Carrier locking: yes
• Bike fixation: front, rear wheel and frame
• Carrier lights connected to an E4 13-pin type socket
• Max. tire width: 60 mm
• Max. wheelbase: 100 cm
• Bike frame tube diameter: up to 39 x 50 mm (w x h)
• Carrier frame material: steel
• Carrier rail material: aluminium
• Plastic parts material: durable plastic
• Certification: ATEST 8SD – approved by the Czech Ministry of Transport
• Carrier weight: 20 kg

Tip:

• This carrier can also be used to transport electric bikes, provided the maximum load capacity of the carrier is not exceeded. The weight of the electric bike can be reduced by removing the battery and storing it in the car.
