Auto-darkening filter for WELDING welding helmet - spare part
Replacement auto-darkening filter for SIXTOL WELDING MASK welding helmet.
Full description
Auto-darkening filter for welding helmet - SIXTOL replacement part

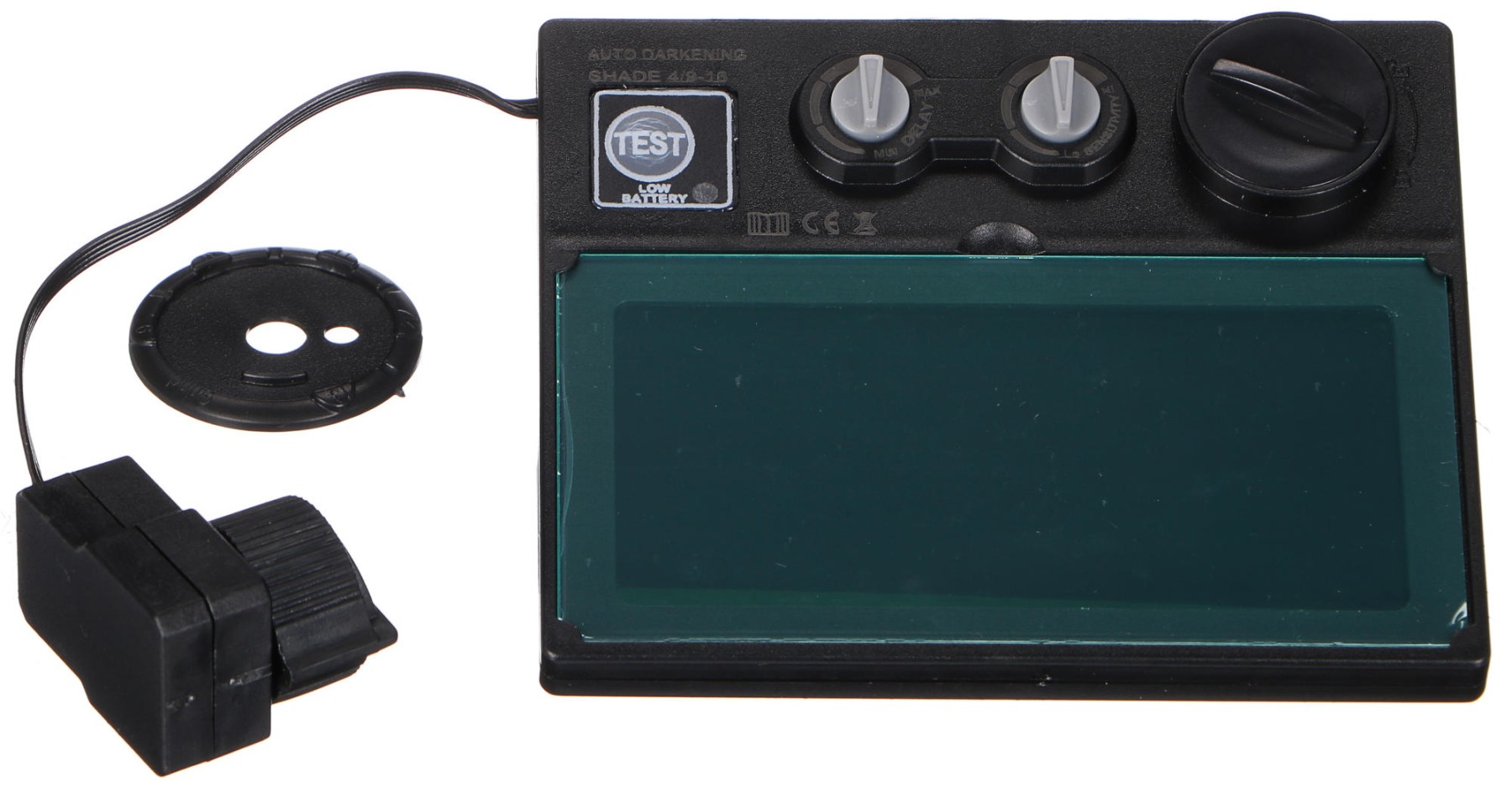

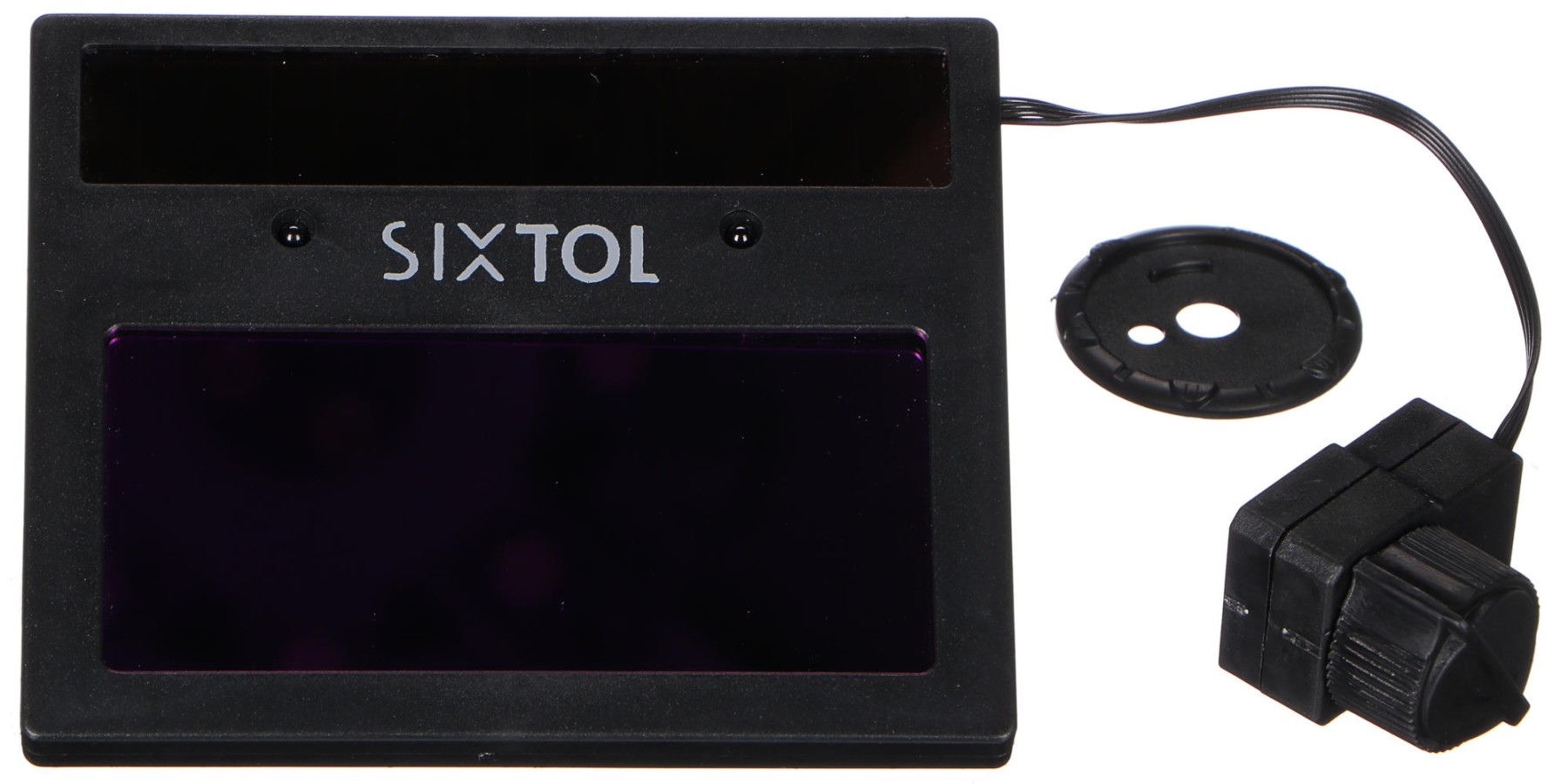

Replacement filter for the auto-darkening welding helmet SIXTOL WELDING MASK. This is a certified auto-darkening filter to protect vision while working. The filter's darkening intensity can be adjusted according to the type of work and exposure. After finishing work the filter returns to its original brightness. The filter includes an adjustment knob that allows you to darken or lighten the filter in the range 9-13 (DIN9 to DIN13) or set grinding mode (Grind). The filter is powered by solar cells and two backup replaceable 3V lithium CR2032 batteries, which are also included in the package. The filter is suitable for the following types of work: arc welding ARC, TIG, MIG, MMA, Spot, Micro, Wire, AC, DC, plasma welding and cutting.Use:
- SX3043 - Auto-darkening welding helmet WELDING MASK 1, black
- SX3044 - Auto-darkening welding helmet WELDING MASK 2, red
- SX3045 - Auto-darkening welding helmet WELDING MASK 3, blue
- 1x Replacement filter for welding helmet
- Filter size: 110 × 90 × 9 mm
- Viewing window size: 92 × 42 mm
- Light state: DIN 4
- Dark state: DIN 9 - 13
- Darkening time: 1/25000 s
- Brightening delay: 0.2 - 0.8 s (adjustable)
- Power source: solar cells + two replaceable 3V lithium CR2032 batteries
- On/off: Fully automatic
- Darkening: adjustable from outside
- Number of sensors: 2
- Sensitivity: adjustable 9-13 / grinding (Grinding)
- Weight of welding helmet: 450 g
- Operating temperature: -5 °C to 55 °C
- UV/IR protection: DIN16
- Optical class: 1/1/1/2
- Suitable for: arc welding ARC, TIG, MIG, MMA, Spot, Micro, Wire, AC, DC, plasma welding and cutting
- Certification: EN 166, EN 175, EN 379
