Tool trolley with tools MECHANIC TROLLEY TITAN 1559, 13 drawers, 1559 pcs of tools

Dílenský vozík s nářadím MECHANIC TROLLEY TITAN 1559, 13 šuplíků, 1559 ks nářadí SIXTOL

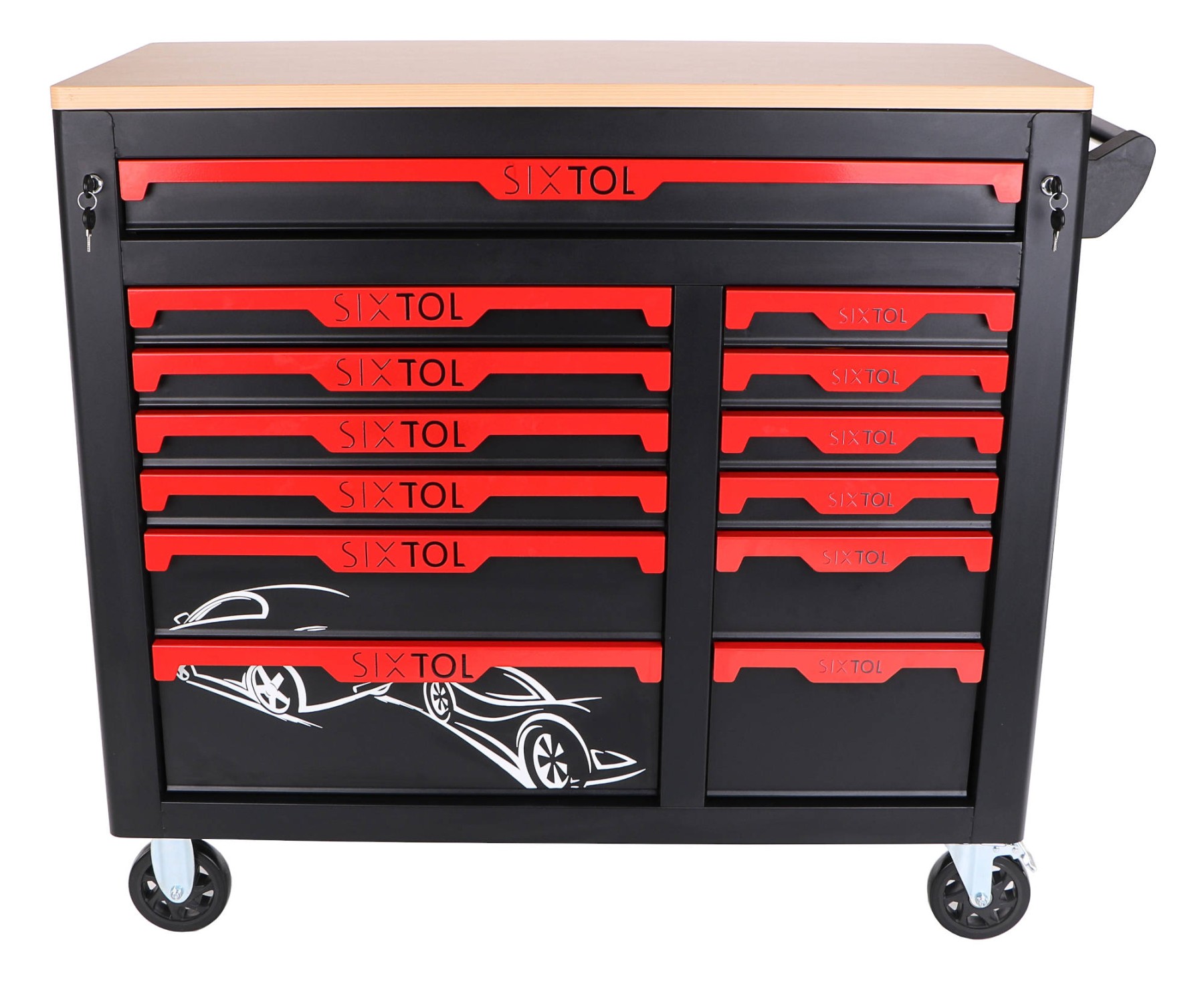

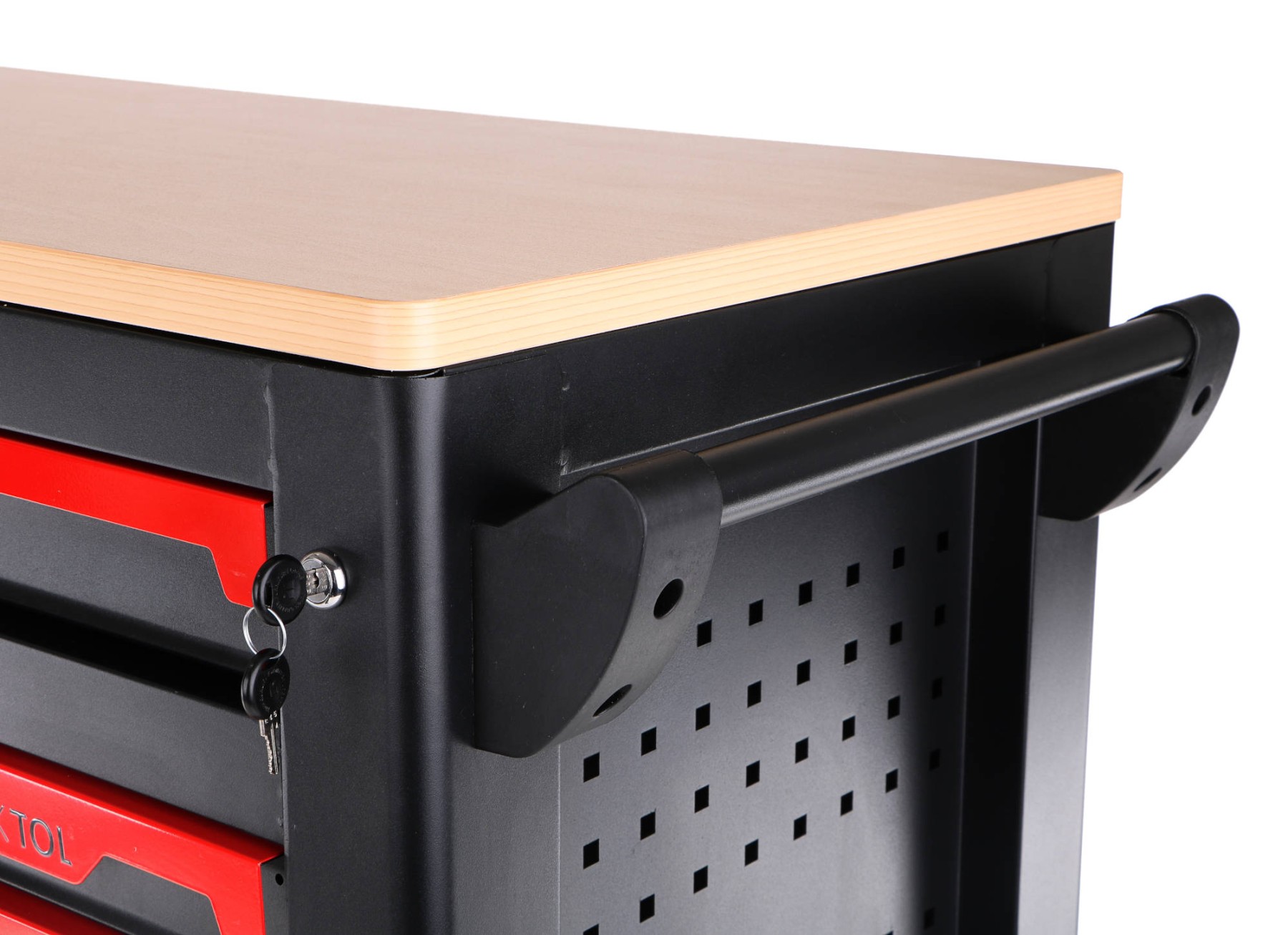

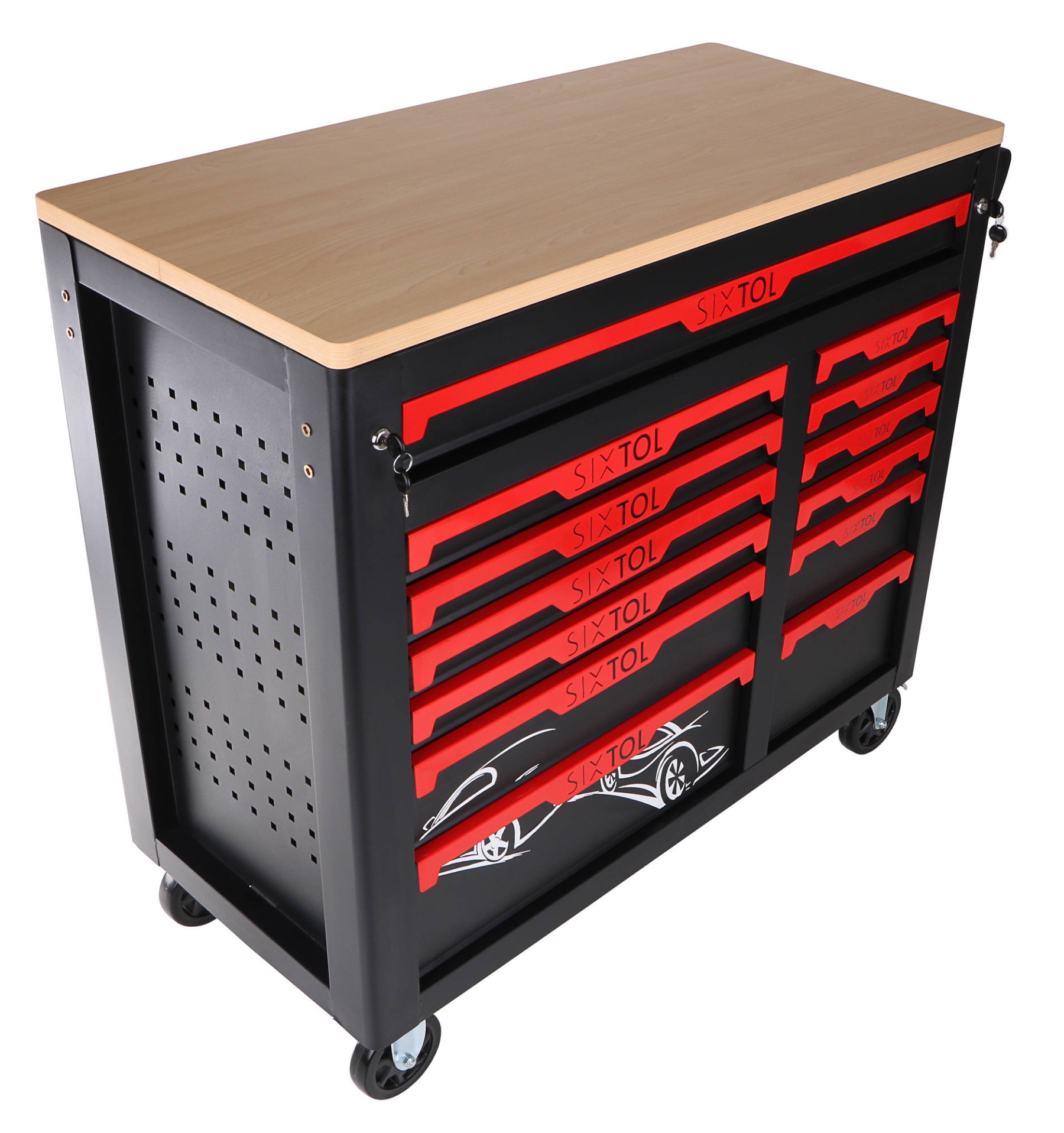

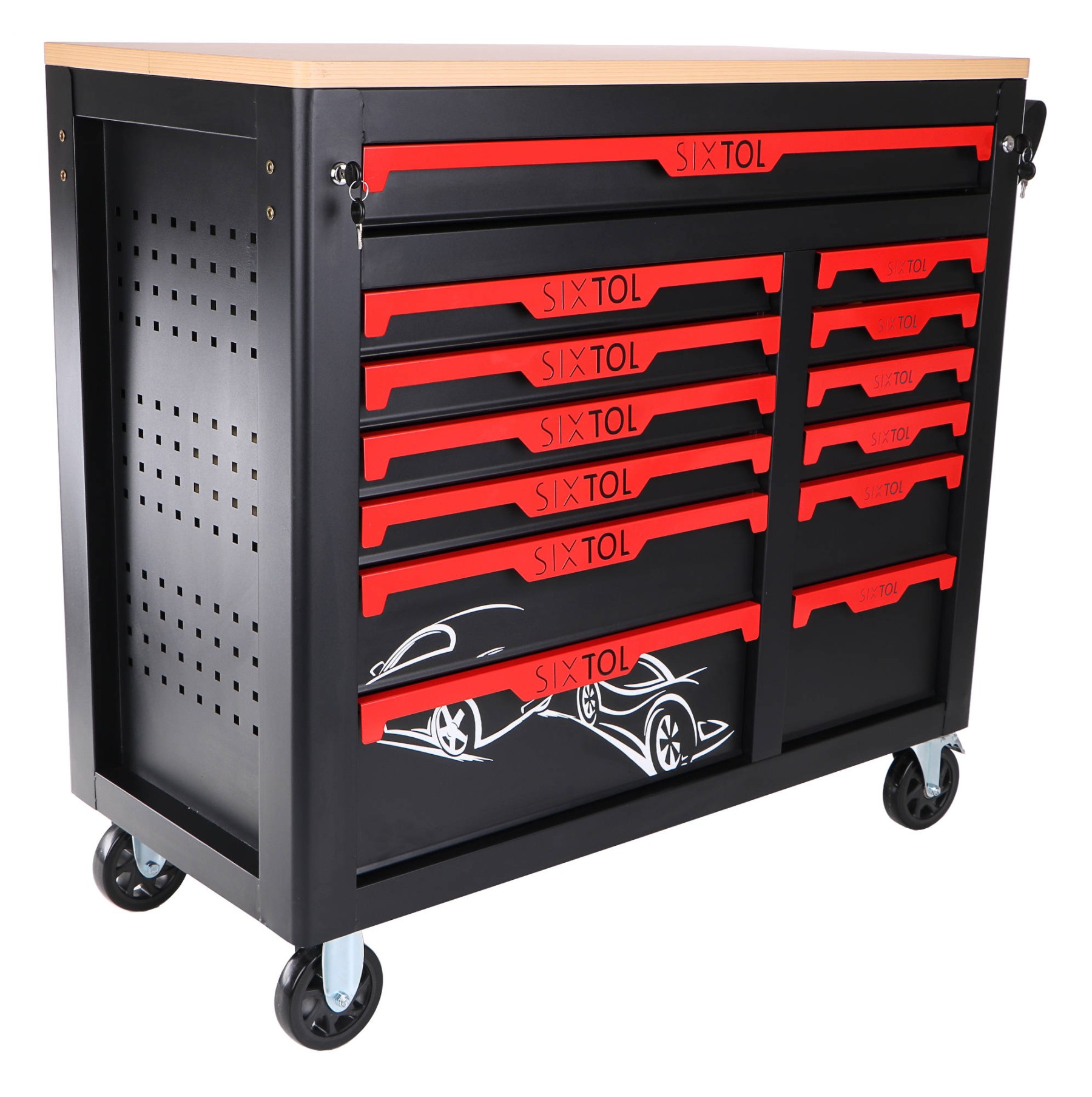

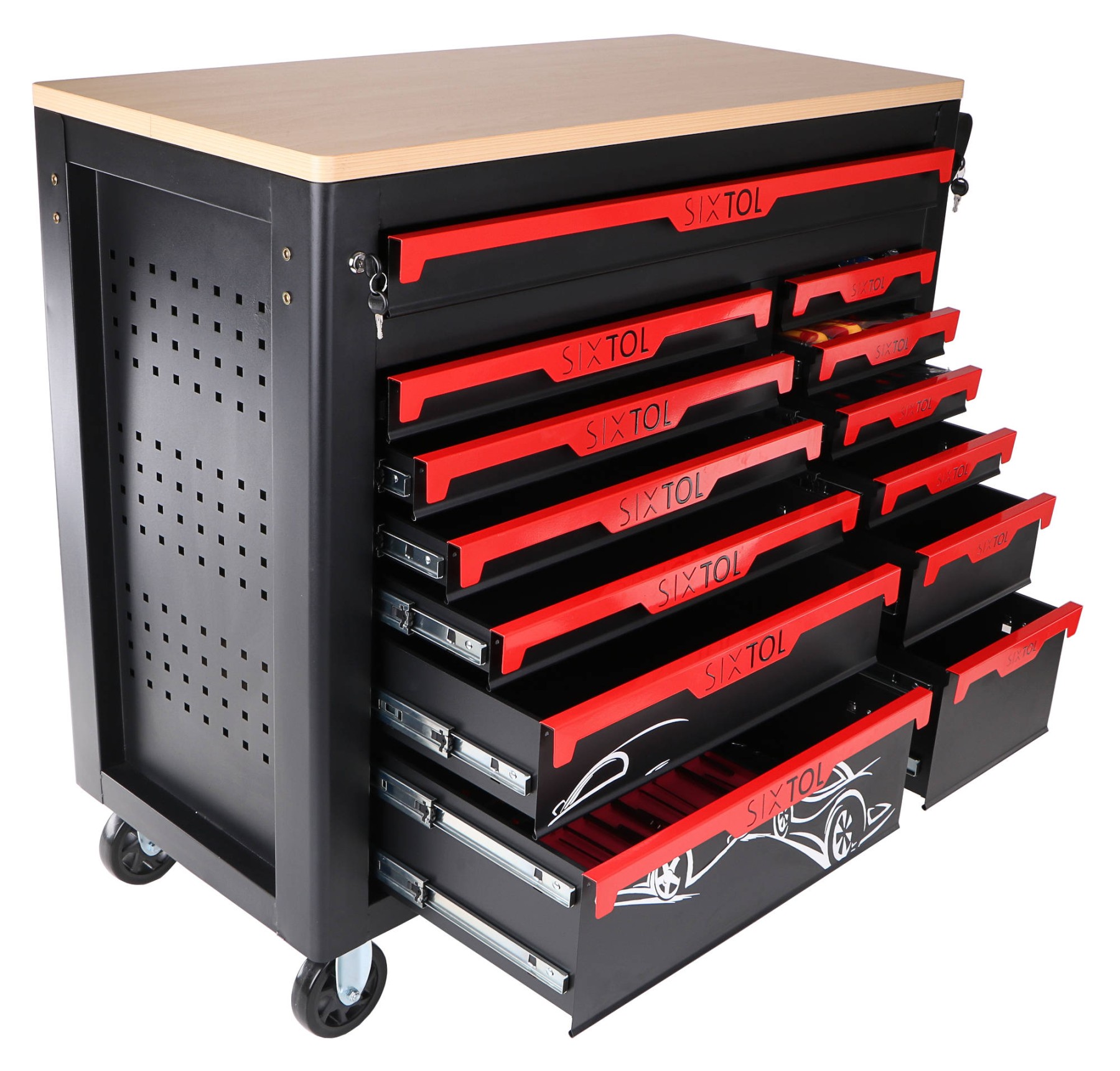

MECHANIC TROLLEY TITAN 1559 is a robust workshop trolley designed for demanding professionals who require maximum clarity, organization and immediate access to all types of tools. The body made of sturdy SPCC steel with a thickness of 0.8 mm, 13 separately guided drawers with smooth slides, central locking and an MDF worktop form an ideal base for daily operations in car workshops, production facilities and home garages. The trolley is equipped with a total of 1559 pieces of high-quality tools stored in EVA foam organizers – from sockets, bits, ratchets and a torque wrench to pliers, hammers, open-end wrenches, T-keys and special bits extended up to 300 mm. Large 5" wheels allow easy movement even when fully loaded and brakes on two wheels ensure stability during work. TITAN 1559 is a complete professional solution that immediately prepares your workstation for any task.

Main advantages:

• Professional trolley with 13 drawers and massive SPCC construction
• Contains 1559 pcs of tools in precise EVA organizers
• High load capacity, smooth slides, secure central locking
• Clear storage – every tool has its place
• 5" wheels for easy movement even under load
• Ideal for car workshops, garages, industrial operations and hobby use

Applications:

• Tool organization in auto repair shops, service centers and home garages
• Mobile workstation in industrial operations
• Secure storage and easy handling of heavy tools
• Suitable for professionals and demanding hobby users
• Machine and equipment maintenance
• Tool and equipment organization

Contents of the trolley:

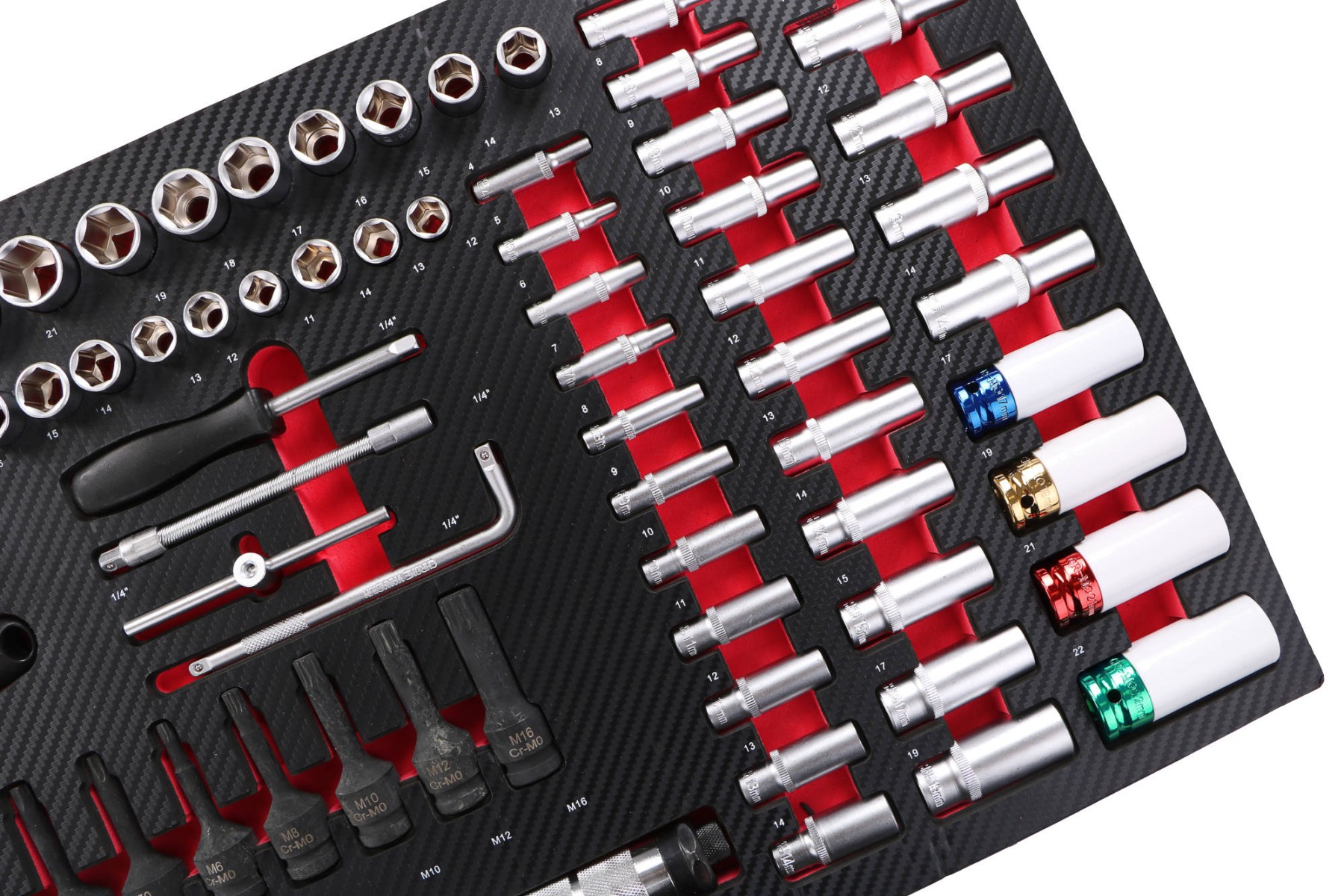

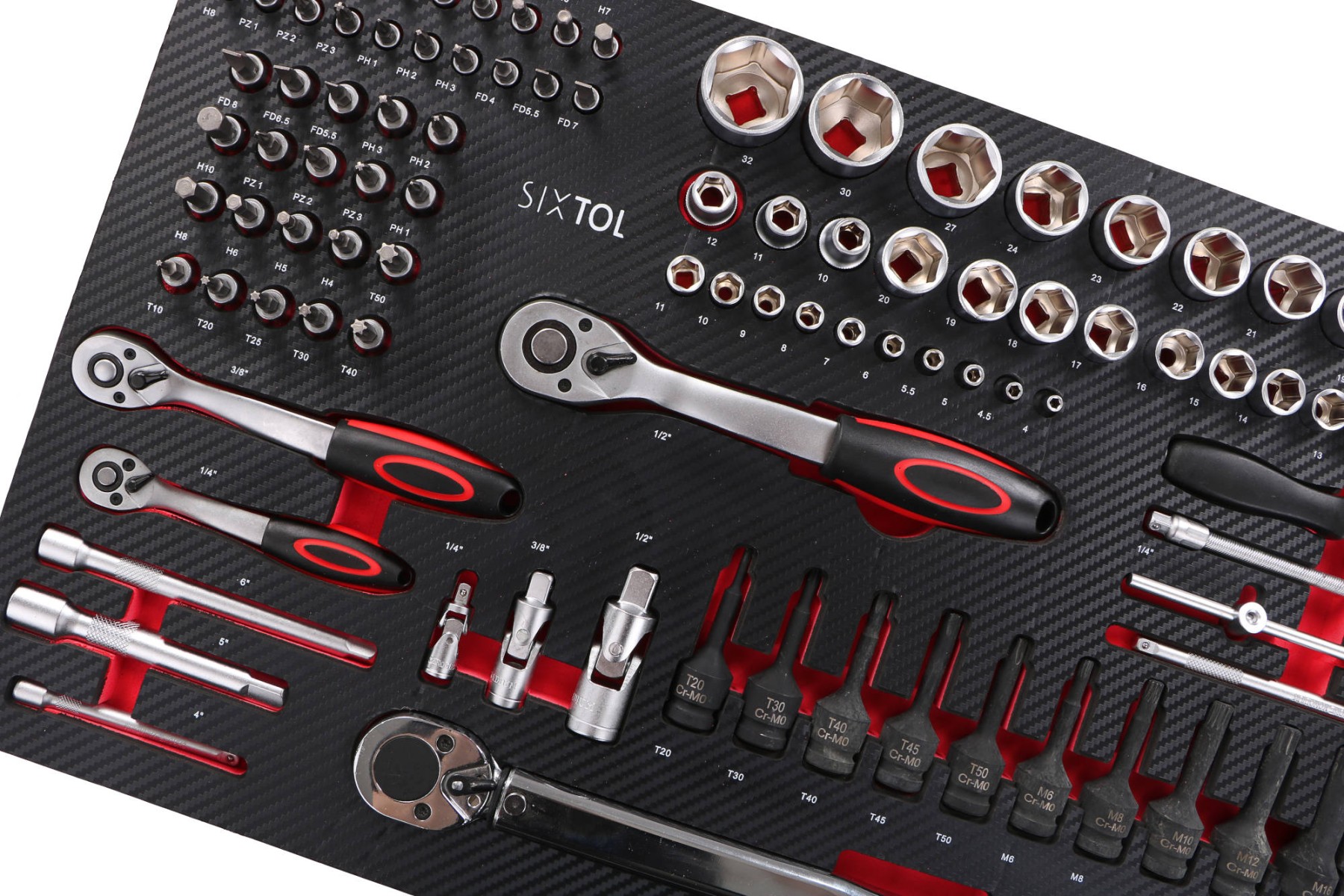

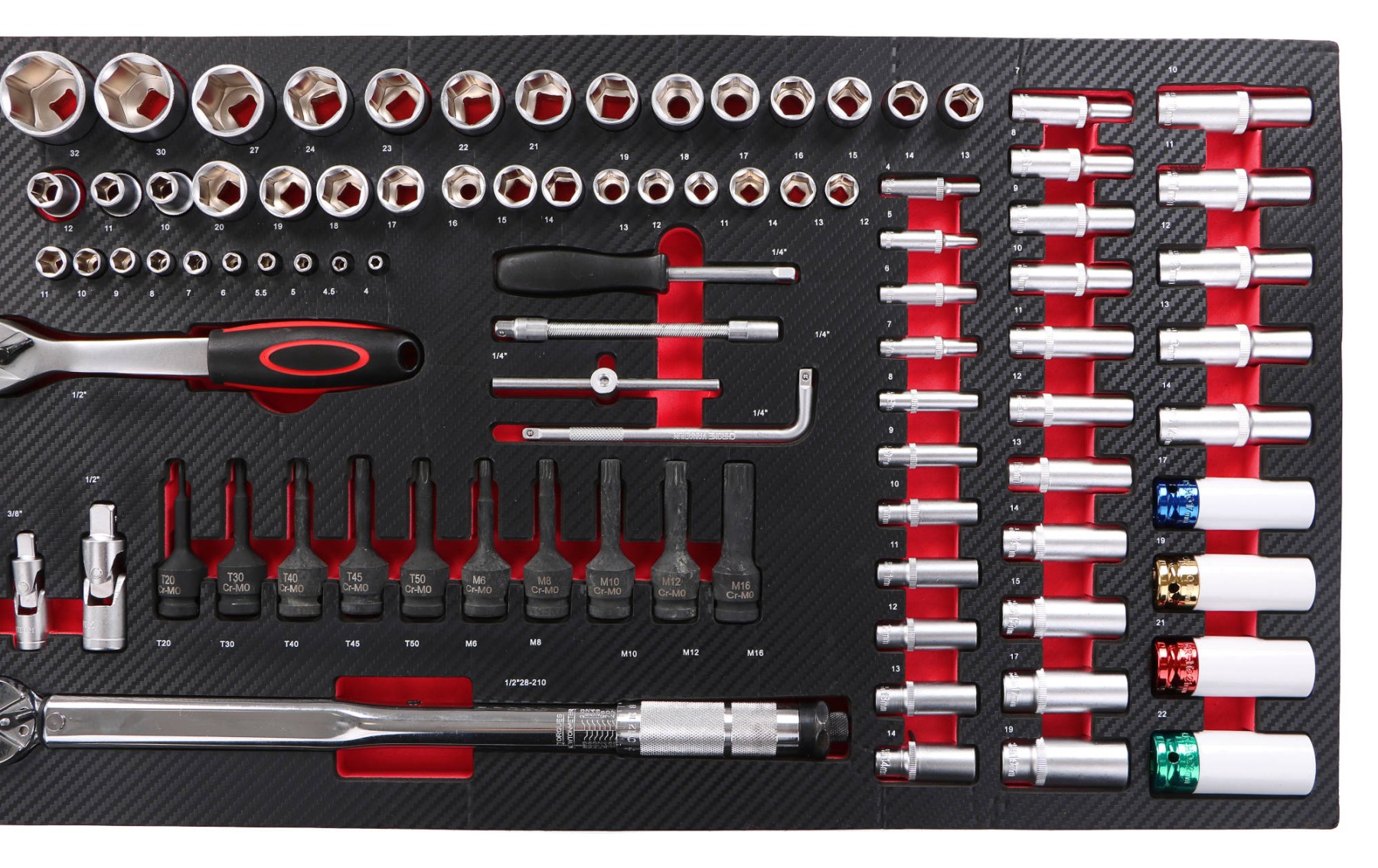

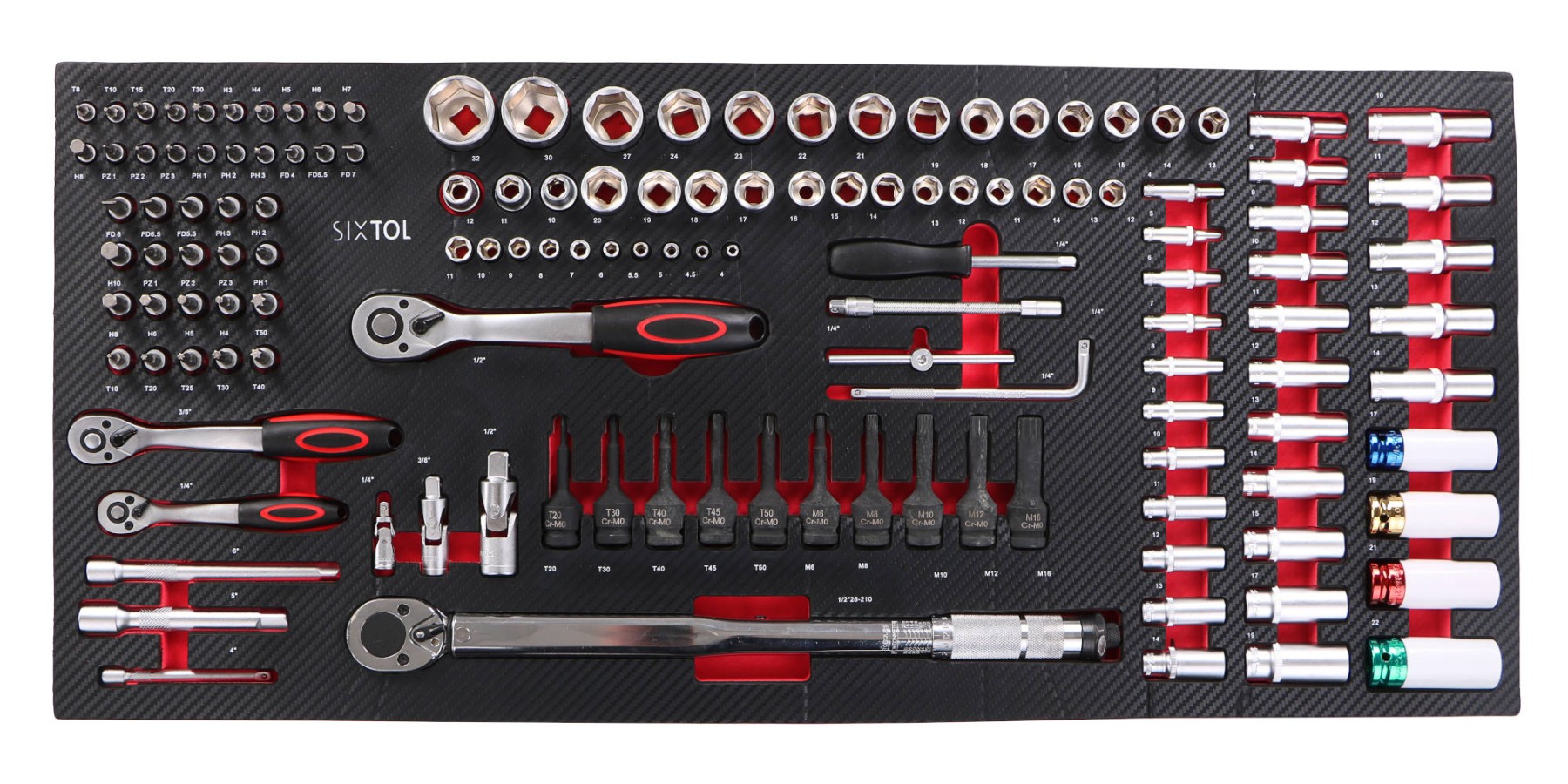

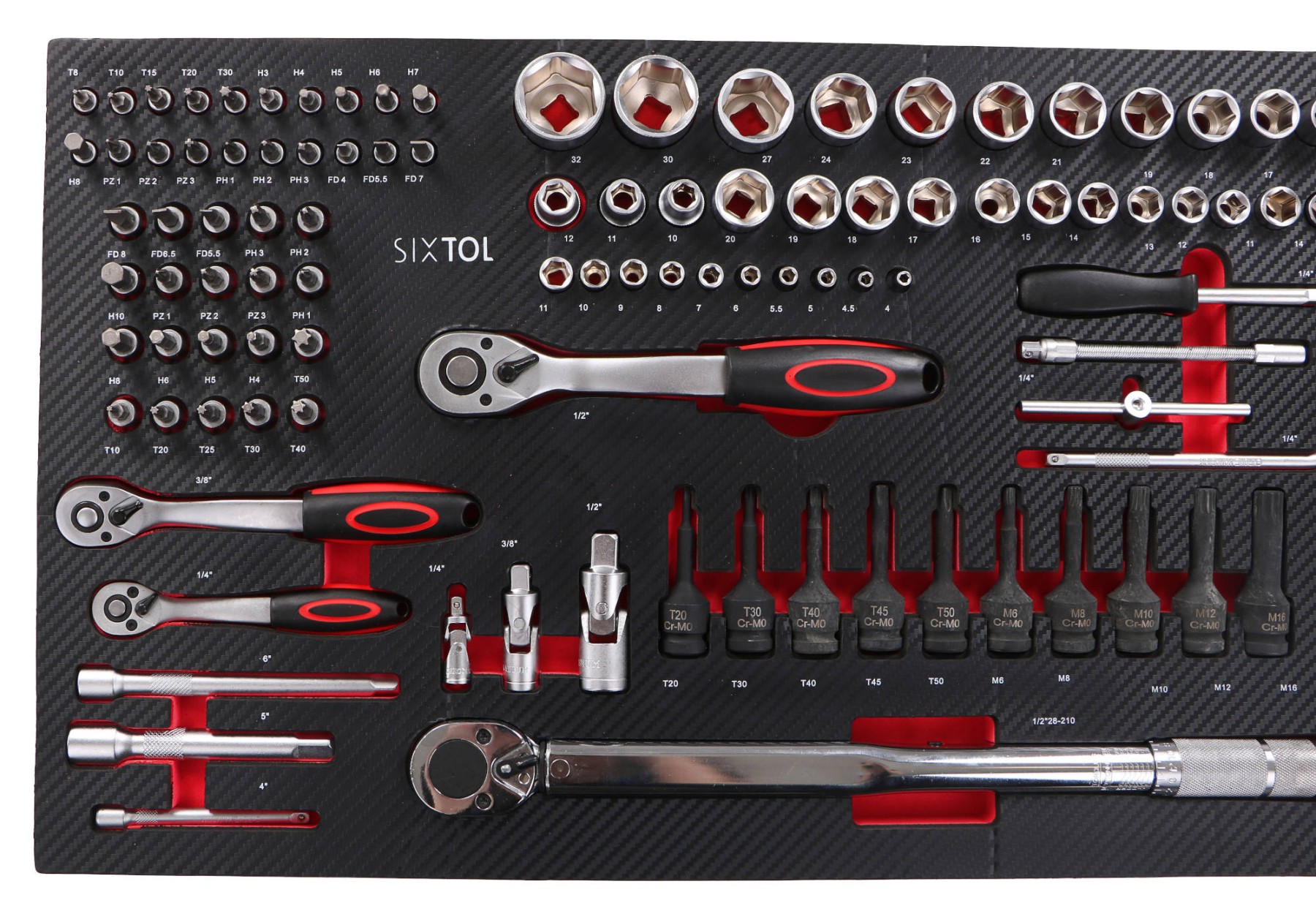

• 1. Drawer – 136x Sockets, bits, ratchets, extensions and torque wrench
- 4x Colored 1/2" sockets: 17; 19; 21; 22 mm
- 3x Universal joints: 1/2", 1/4", 3/8"
- 13x Short 1/4" hex sockets: 4; 4.5; 5; 5.5; 6; 7; 8; 9; 10; 11; 12; 13; 14 mm
- 11x Long 1/4" hex sockets: 4; 5; 6; 7; 8; 9; 10; 11; 12; 13; 14 mm
- 10x Short 3/8" hex sockets: 11; 12; 13; 14; 15; 16; 17; 18; 19; 20 mm
- 11x Long 3/8" hex sockets: 7; 8; 9; 10; 11; 12; 13; 14; 15; 17; 19 mm
- 17x Short 1/2" hex sockets: M10, M11, M12, M13, M14, M15, M16, M17, M18, M19, M21, M22, M23, M24, M27, M30, M32
- 5x Long 1/2" hex sockets: M10, M11, M12, M13, M14
- 4x Extensions and adapters:1× 3/8" extension – 6" (15.24 cm); 1× 1/2" extension – 5" (12.7 cm); 1× 1/4" extension – 4" (10.16 cm); 1× 1/4" small connector adapter
- 20x 3/8" bit sockets, length 48 mm, material S2: T10, T20, T25, T30, T40, T50; H4, H5, H6, H8, H10; PZ1, PZ2, PZ3; PH1, PH2, PH3; FD5.5, FD6.5, FD8
- 20x 1/4" bit sockets, length 37 mm, material S2: T8, T10, T15, T20, T30; H3, H4, H5, H6, H7, H8; PZ1, PZ2, PZ3; PH1, PH2, PH3; FD4, FD5.5, FD7
- 3x Other 1/4" tools: Sliding T-handle; Flexible adapter; Curved/bending adapter
- 3x 72-tooth ratchets: 1/2"; 3/8"; 1/4"
- 10x Common 1/2" Cr-Mo bits: T20, T30, T40, T45, T50; M6, M8, M10, M12, M16
- 1x 1/2" torque wrench: Range: 28–210 N·m

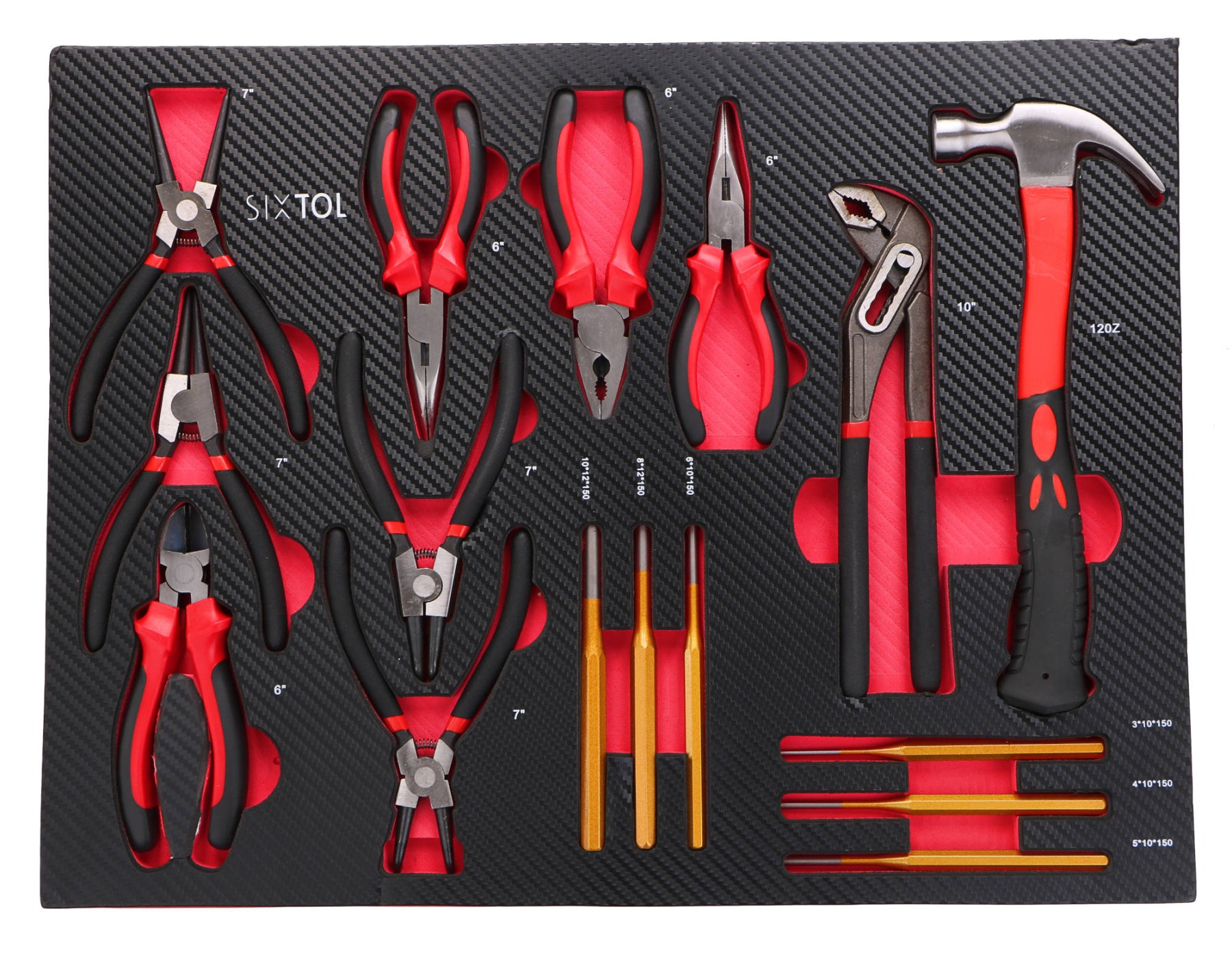

• 2. Drawer – 16x pliers and other tools
- 1x Hammer 340 g
- 9x Pliers:
- Sika pliers – 25.4 cm (10")
- Diagonal cutters - 15.24 cm (6")
- Combination pliers - 15.24 cm (6")
- Straight needle-nose pliers - 15.24 cm (6")
- Bent needle-nose pliers - 15.24 cm (6")
- 4x Circlip pliers - 17.78 cm (7") - internal / external, straight / bent
- 6x Punches – center punches: Diameters: 3; 4; 5; 6; 8; 10 mm

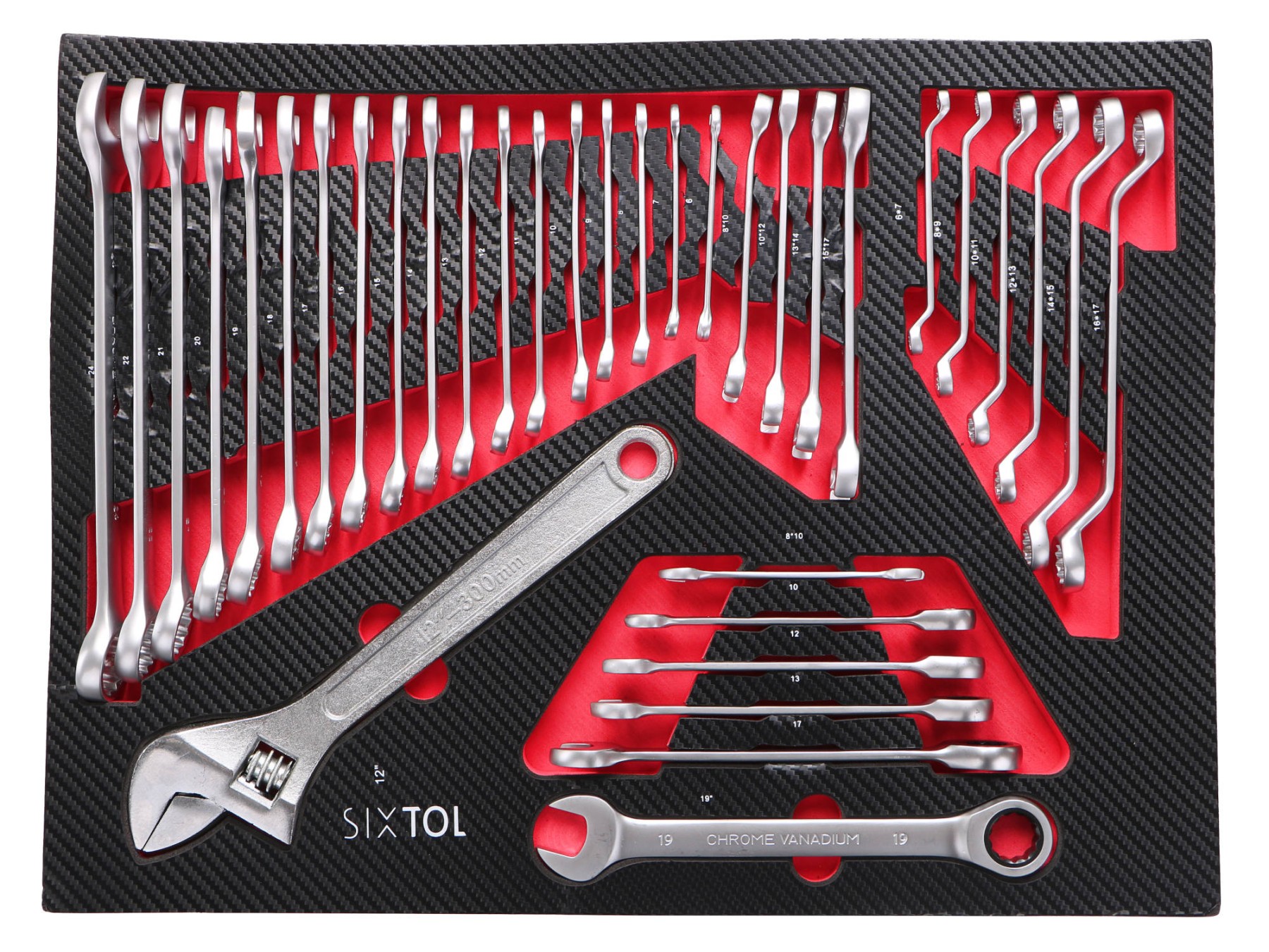

• 3. Drawer – 35x combination wrenches
- 18x Torx combination wrenches: 6; 7; 8; 9; 10; 11; 12; 13; 14; 15; 16; 17; 18; 19; 20; 21; 22; 24 mm
- 6x Double-ended Torx wrenches: 6×7mm, 8×9mm, 10×11mm, 12×13mm, 14×15mm, 16×17mm
- 5x Ratcheting box wrenches: 10; 12; 13; 17; 19 mm
- 1x Double open-end wrench: 8×10 mm
- 4x Flare nut wrenches: 8×10 mm, 10×12 mm, 13×14 mm, 15×17 mm
- 1x Adjustable wrench 30.48 cm (12")

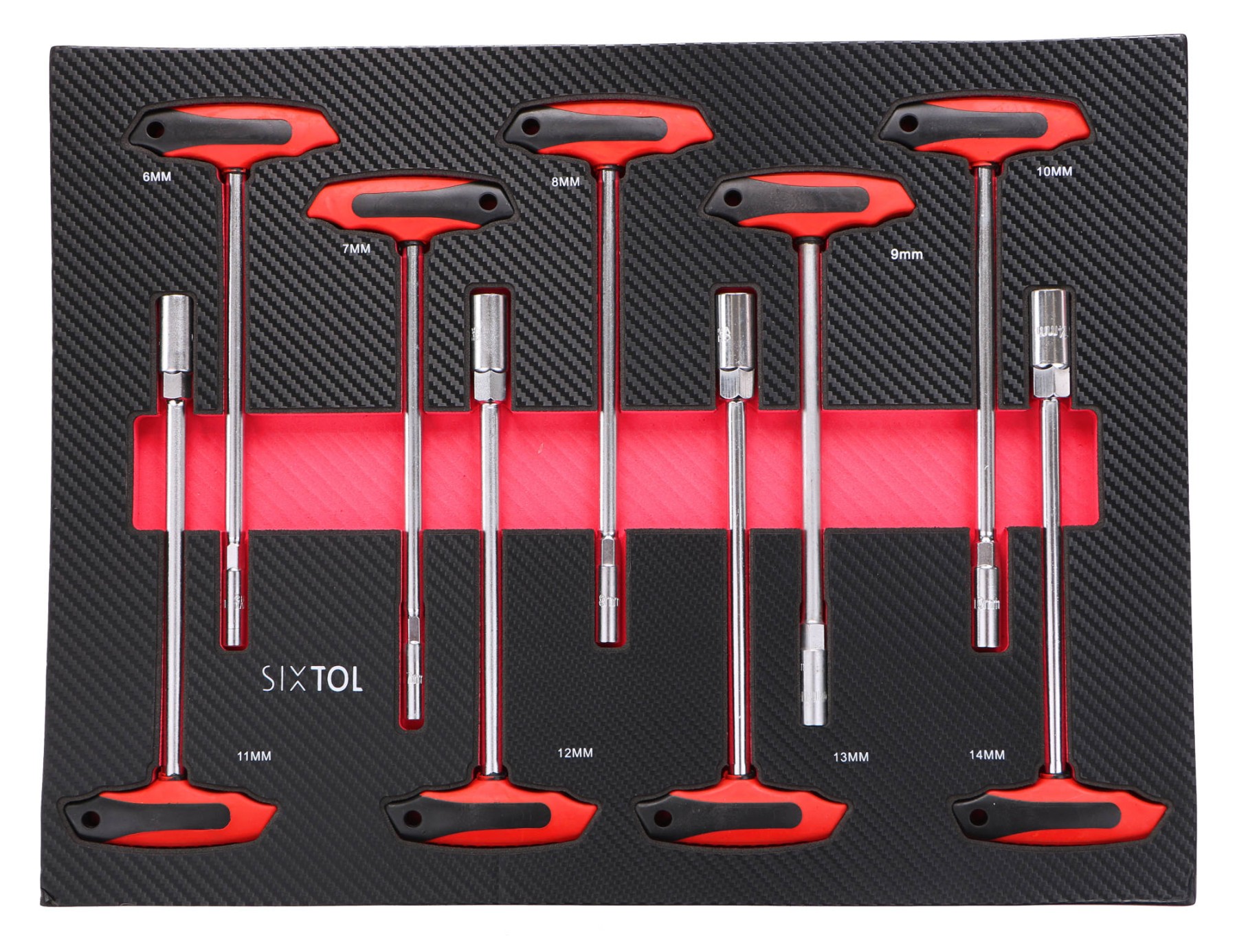

• 4. Drawer – 9x T-bar socket set
- Sizes: 6; 7; 8; 9; 10; 11; 12; 13; 14 mm

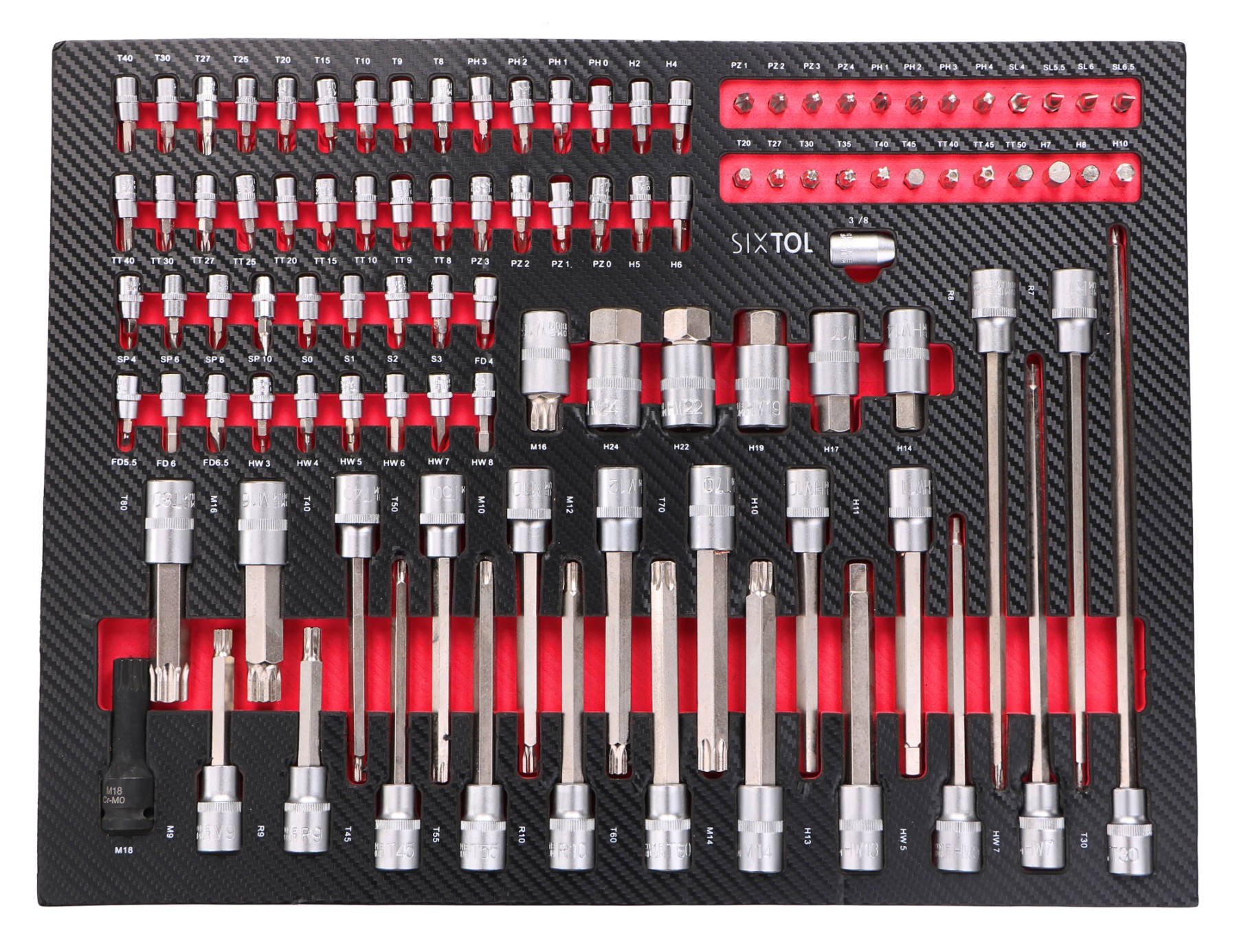

• 5. Drawer – 102x bit sockets
- 48x 1/4" bit sockets 36 mm (material 35K)
Torx: T8, T9, T10, T15, T20, T25, T27, T30, T40
Tamper-Torx (TT): TT8, TT9, TT10, TT15, TT20, TT25, TT27, TT30, TT40
Hex (H): H2, H4, H5, H6
PZ: PZ0, PZ1, PZ2, PZ3
FH (Phillips Flat): FH0, FH1, FH2, FH3
FD (flat): FD4, FD5.5, FD6.5, FD7
SP (Spline): SP4, SP6, SP8, SP10
S (Square): S0, S1, S2, S3
HW (Hex long): HW3, HW4, HW5, HW6, HW7, HW8
- 6x 1/2" bit sockets 55 mm: H14, H17, H19, H22, H24; M16
- 4x 1/2" bit sockets 100 mm: R9, R49, M16, T80
- 13x 1/2" bit sockets 140 mm: Torx: T40, T45, T50, T55, T60, T70; Spline: M10, M12, M14; Hex: H10, H11, H13; R10
- 5x Extra long sockets: 160 mm: HW5; 230 mm: HW7; 240 mm: R7, R8; 300 mm: T30
- 1x Impact socket 1/2", Cr-Mo: M18
- 24x Bit adapters 8×30 mm: PZ1, PZ2, PZ3, PZ4; PH1, PH2, PH3, PH4; SL4, SL5.5, SL6, SL6.5; T20, T27, T30, T35, T40, T45; TT40, TT45, TT50; H7, H8, H10
- 1x 3/8" coupling

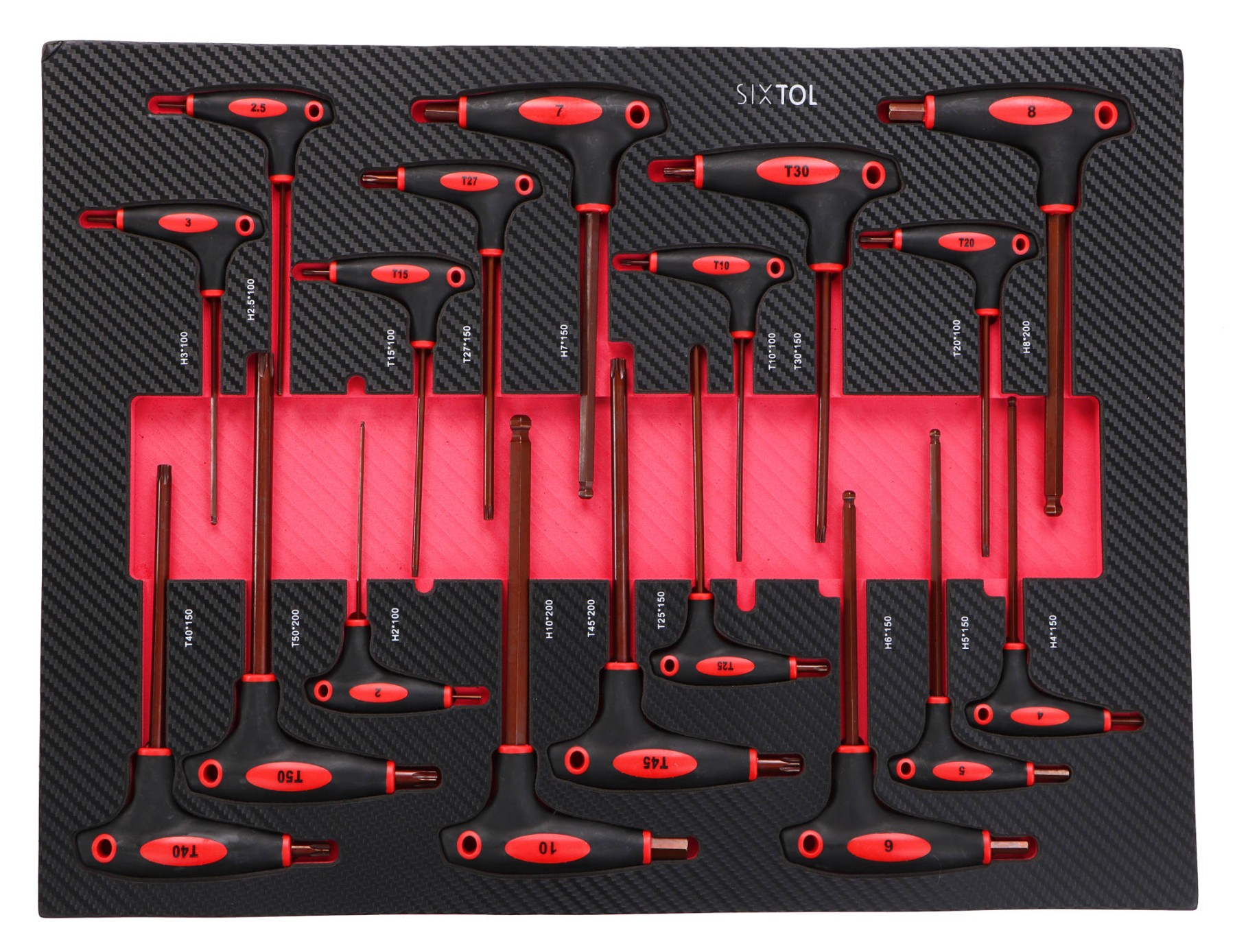

• 6. Drawer – 18x T-handle wrenches (material S2)
- TORX T-handles: T40 × 150 mm; T45 × 200 mm; T30 × 150 mm; T50 × 200 mm; T10 × 100 mm; T27 × 150 mm; T15 × 100 mm; T20 × 100 mm; T25 × 150 mm
- HEX T-handles: H2 × 100 mm; H2.5 × 100 mm; H3 × 100 mm; H4 × 150 mm; H5 × 150 mm; H6 × 150 mm; H7 × 150 mm; H8 × 200 mm; H10 × 200 mm

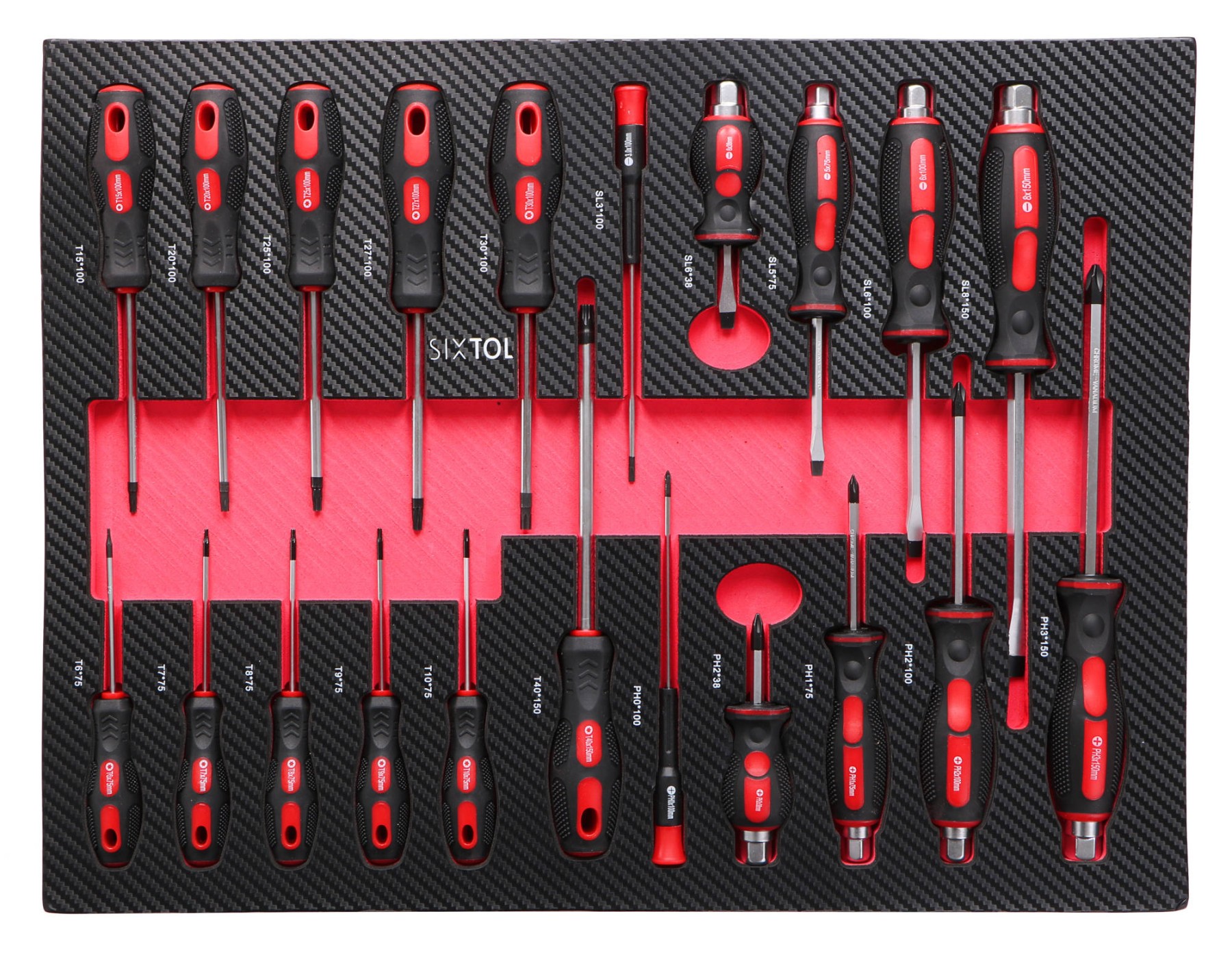

• 7. Drawer – 21x through screwdrivers (material 40Cr)
- Through screwdrivers:
- 4x Phillips (+): PH2 × 38 mm; PH1 × 75 mm; PH2 × 100 mm; PH3 × 150 mm
- 4x Flat (–): SL6 × 38 mm; SL5 × 75 mm; SL6 × 100 mm; SL8 × 150 mm
- 11x Classic screwdrivers: T6 × 75 mm; T7 × 75 mm; T8 × 75 mm; T9 × 75 mm; T10 × 75 mm; T15 × 100 mm; T20 × 100 mm; T25 × 100 mm; T27 × 100 mm; T30 × 100 mm; T40 × 150 mm
- 2x Precision screwdrivers: SL3 × 100 mm (flat); PH0 × 100 mm (cross)

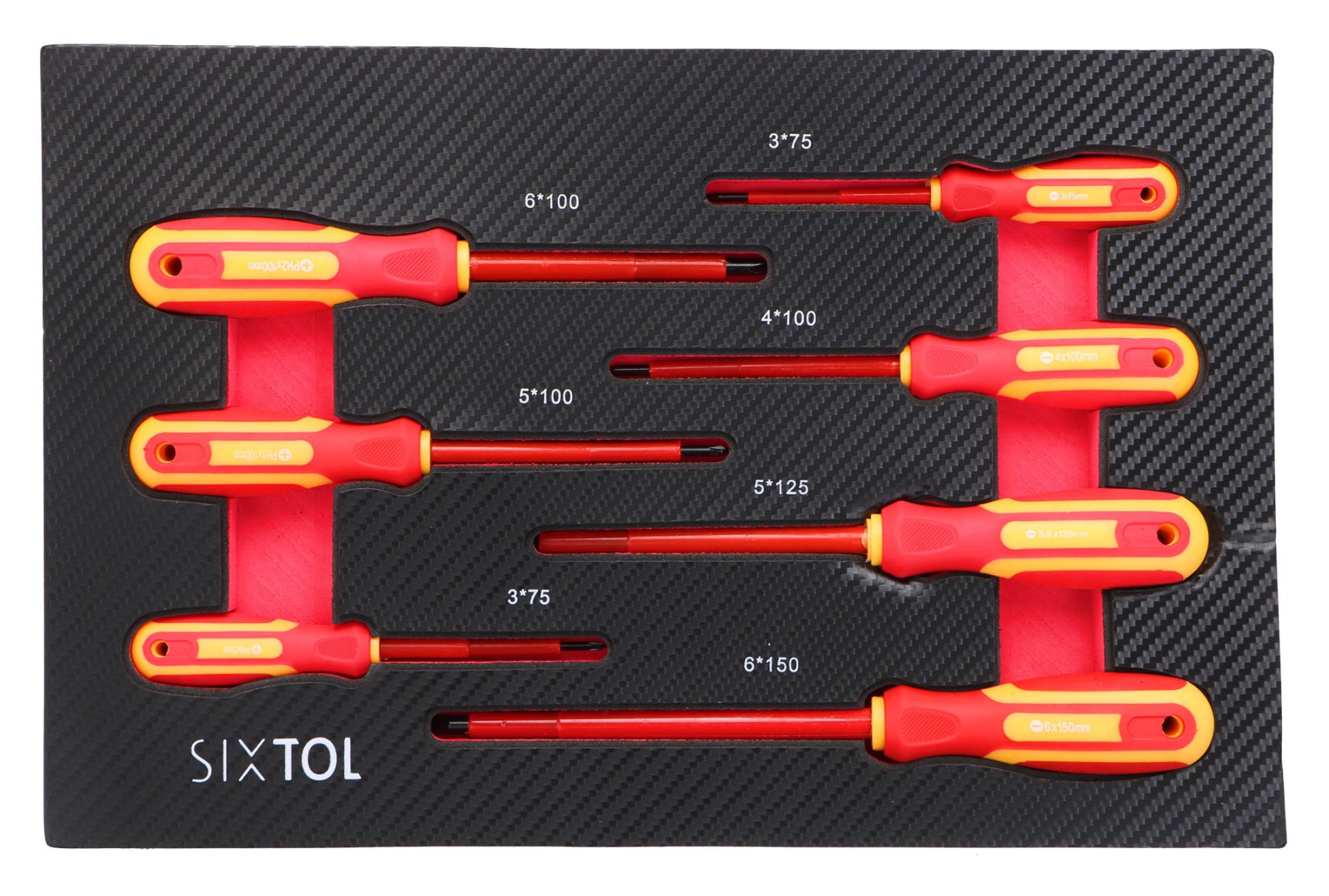

• 8. Drawer – 7x insulated (electrician) screwdrivers
- 3x Phillips: 3 × 75 mm; 5 × 100 mm; 6 × 100 mm
- 4x Flat: 3 × 75 mm; 4 × 100 mm; 5 × 125 mm; 6 × 150 mm

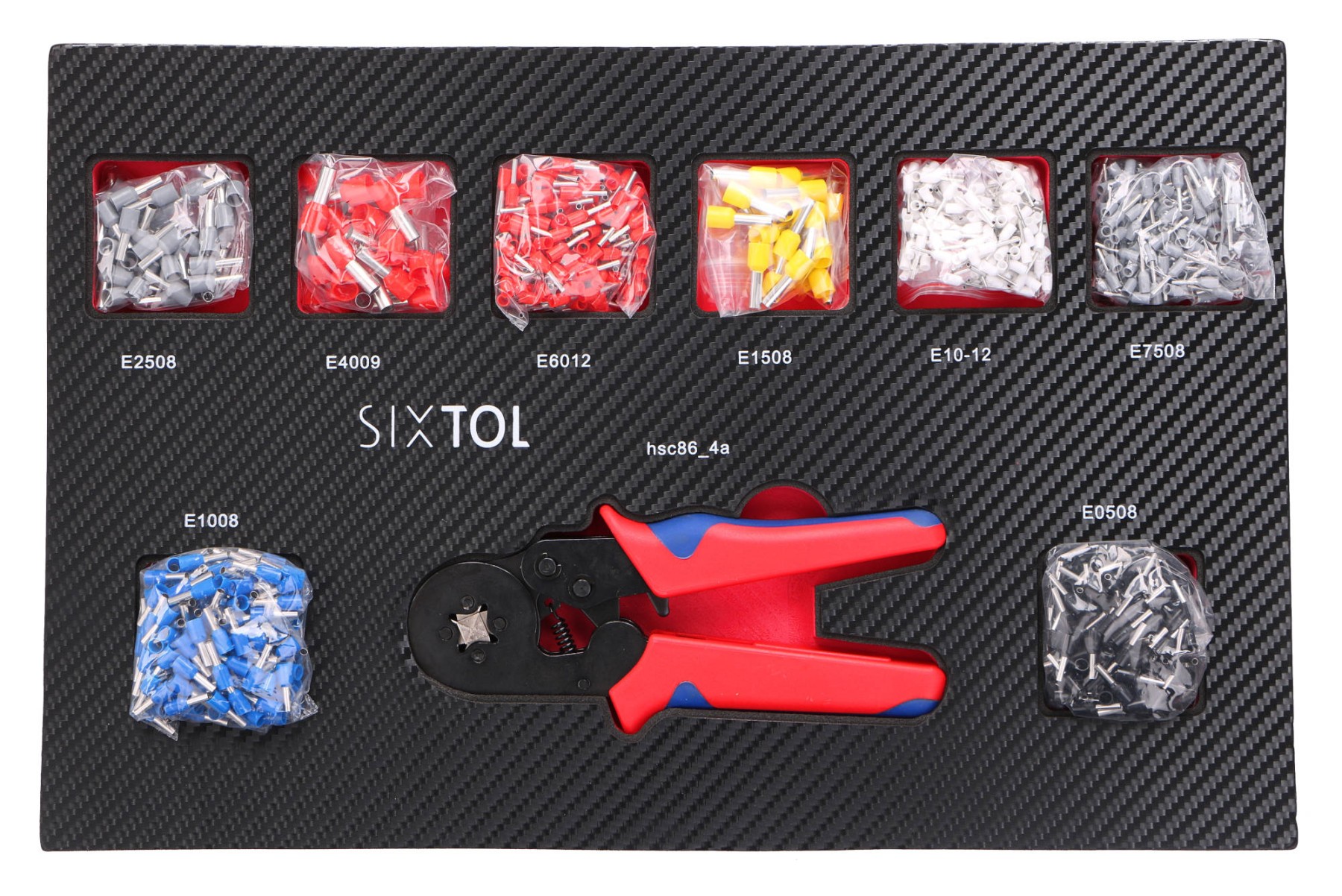

• 9. Drawer – 1202x Cable end ferrules:
- 200x E0508 – white
- 200x E7508 – gray
- 200x E1008 – blue
- 250x E1508 – black
- 250x E2508 – blue
- 50x E4009 – gray
- 25x E6012 – yellow
- 25x E10-12 – red
- 1× crimping pliers for ferrules, length 17.78 cm (7")

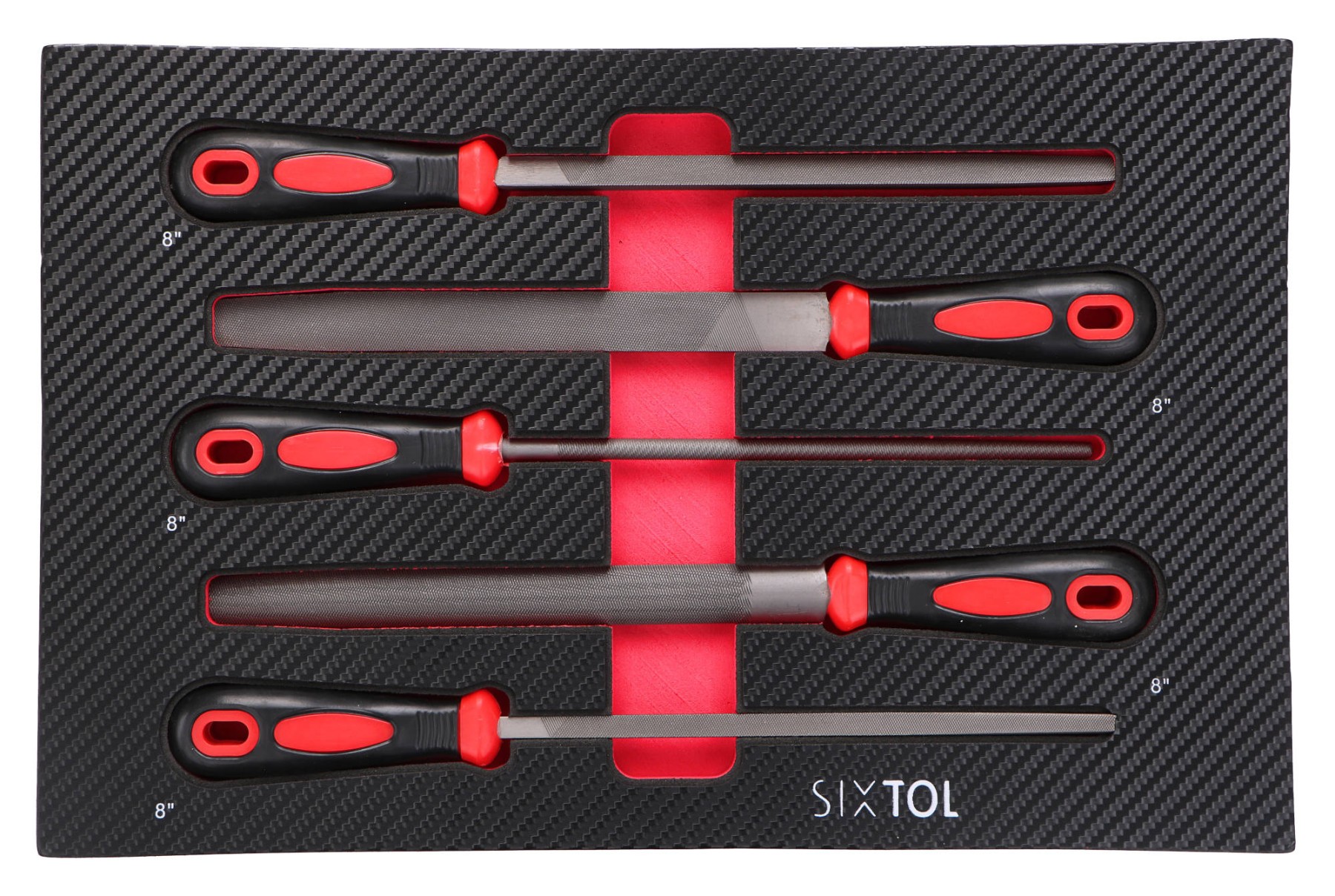

• 10. Drawer – 5x files 20.32 cm (8")
- Flat file – 20.32 cm
- Half-round file – 20.32 cm
- Triangular file – 20.32 cm
- Round file – 20.32 cm
- Square file – 20.32 cm

Technical specifications:

• Number of drawers: 13
• 1x drawer: 90 x 40 x 6.8 cm with load capacity 35 kg
• 4x drawer: 53.5 x 40 x 6.8 cm with load capacity 35 kg
• 1x drawer: 53.5 x 40 x 12.4 cm with load capacity 35 kg
• 1x drawer: 53.5 x 40 x 19 cm with load capacity 50 kg
• 4x drawer: 26.5 x 40 x 6.8 cm with load capacity 35 kg
• 1x drawer: 26.5 x 40 x 12.4 cm with load capacity 35 kg
• 1x drawer: 26.5 x 40 x 19 cm with load capacity 50 kg
• Total load capacity of the trolley: 600 kg
• Body material: SPCC steel sheet, thickness 0.8 mm
• Drawer material: SPCC, thickness 0.6 mm

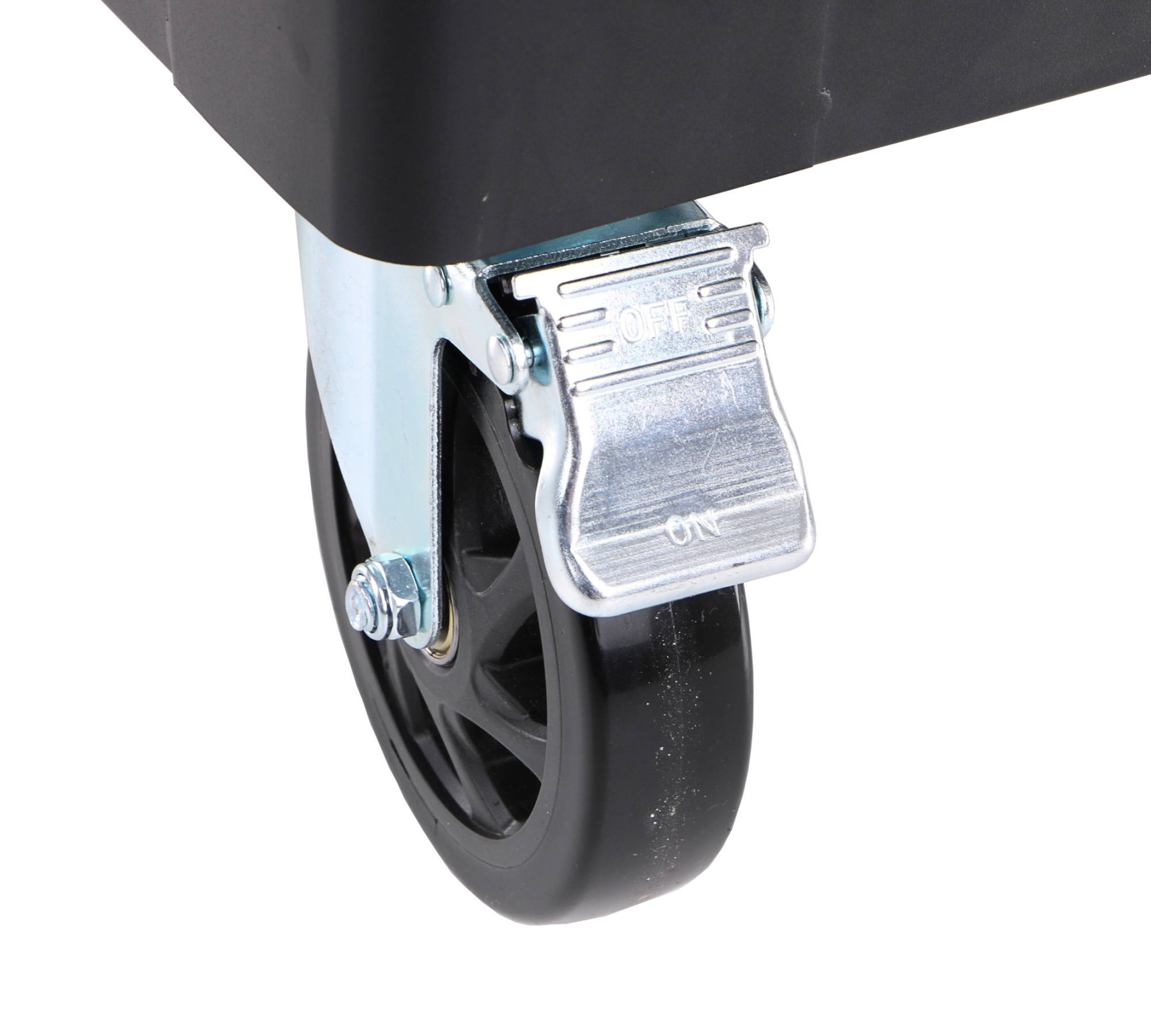

• Wheel diameter: 5" (approx. 12.7 cm)
• External dimensions of the trolley (incl. wheels and handle): 116 x 51 x 102.5 cm
• Package dimensions: 112 × 54 × 90 cm (L × W × H)
• Weight of trolley with tools: 125 kg
• Color: black/red
