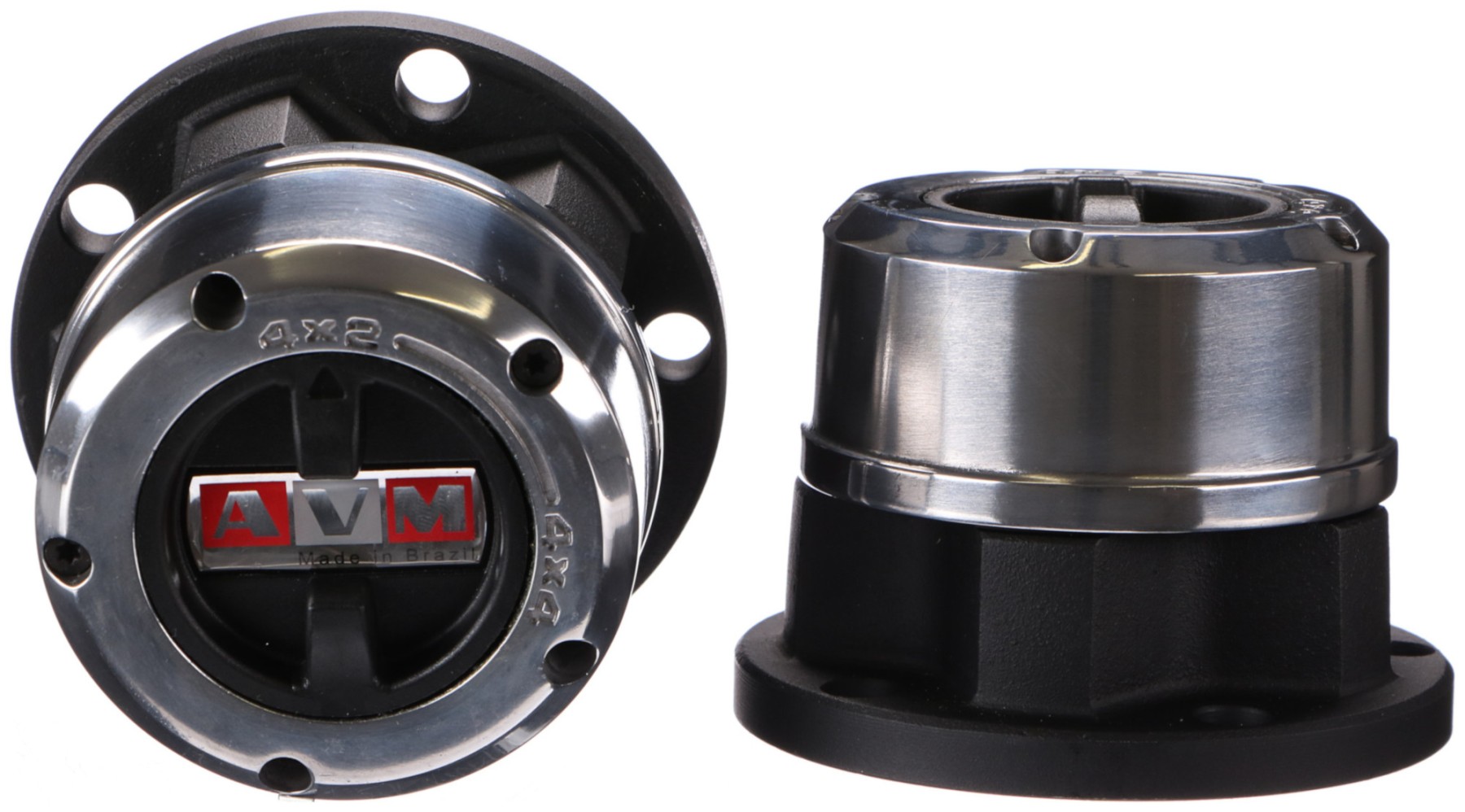

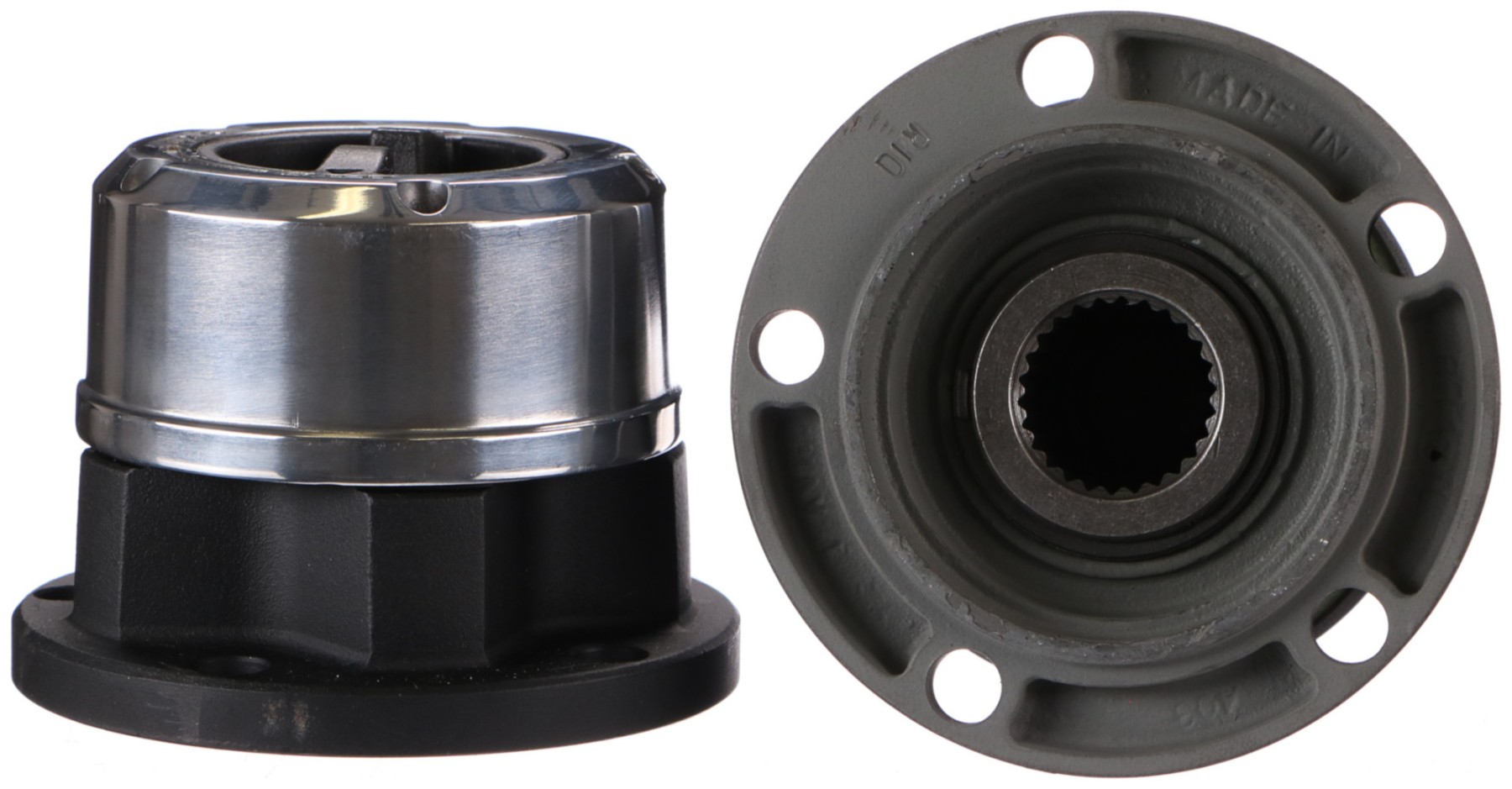

Freewheel hub AVM 403 - Daihatsu
A set of 2 manual freewheel hubs AVM 403 serve as removable freewheeling front wheel hubs on selected 4x4 and off-road vehicles. When manually engaged they connect the wheel hub to the front axle shaft so that drive torque can also be transmitted to the front wheels when four-wheel drive is engaged. When disengaged the front wheels rotate freely in 4x2 driving without unnecessary rotation of front driveline components, which helps reduce mechanical drag and wear. These freewheeling hubs complement the vehicle's 4x4 controls and do not replace the vehicle's 4x4 engagement. Heavy-duty steel construction protected by an epoxy coating increases resistance to the elements, and precisely machined internal components support reliable operation in everyday use as well as in more demanding off-road conditions.
Suitable for models:DaihatsuTechnical specifications:- Number of splines on axle shaft: 26
- Number of bolts: 5
- Thread of mounting bolts: M10x1.25
- Pitch circle diameter (PCD): 90 mm
- AVM service kit: 4403
- Package contents: 2 pcs
- Package dimensions: 11 x 22 x 9 cm
- Package weight: 5 kg
