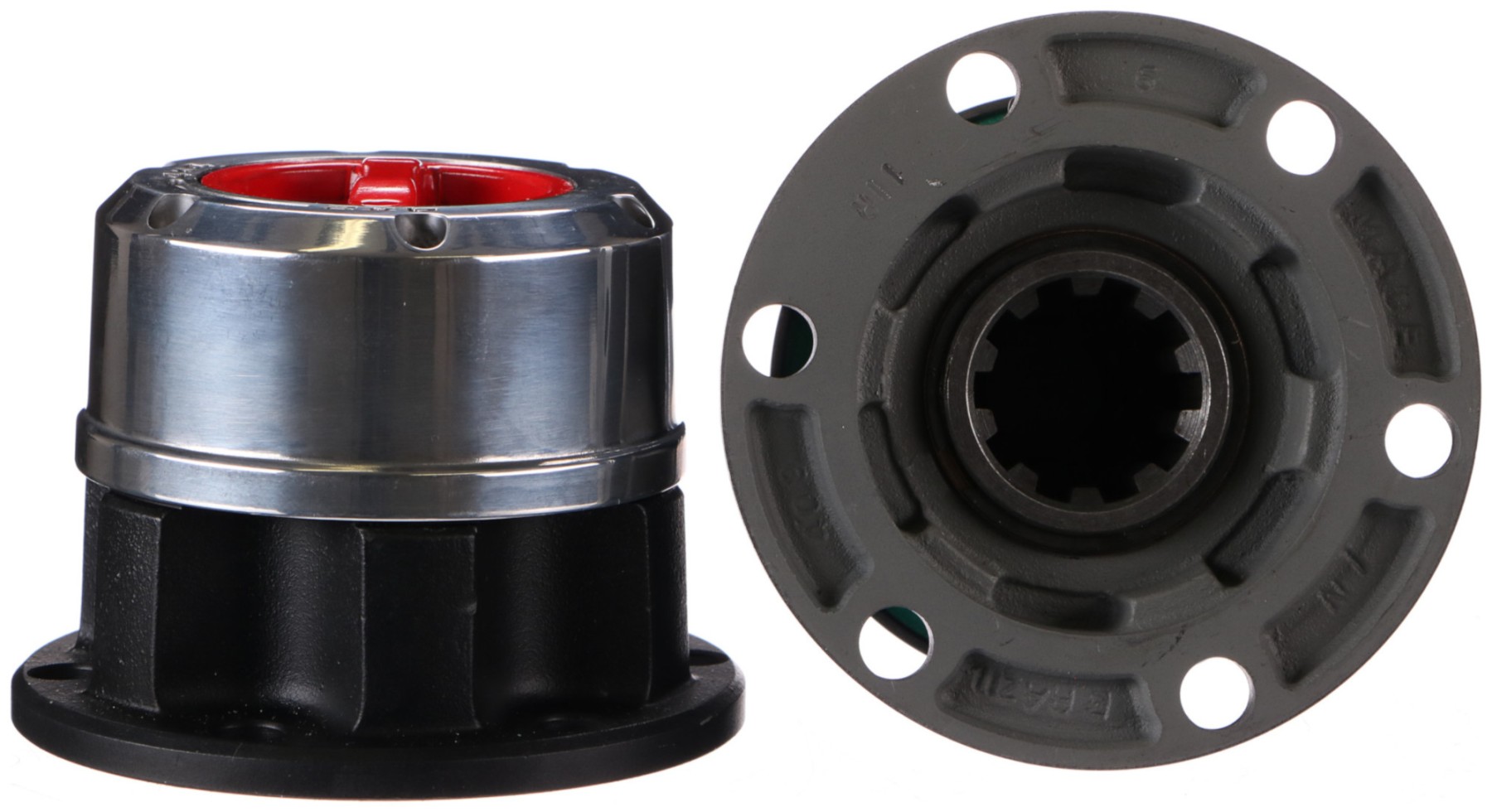

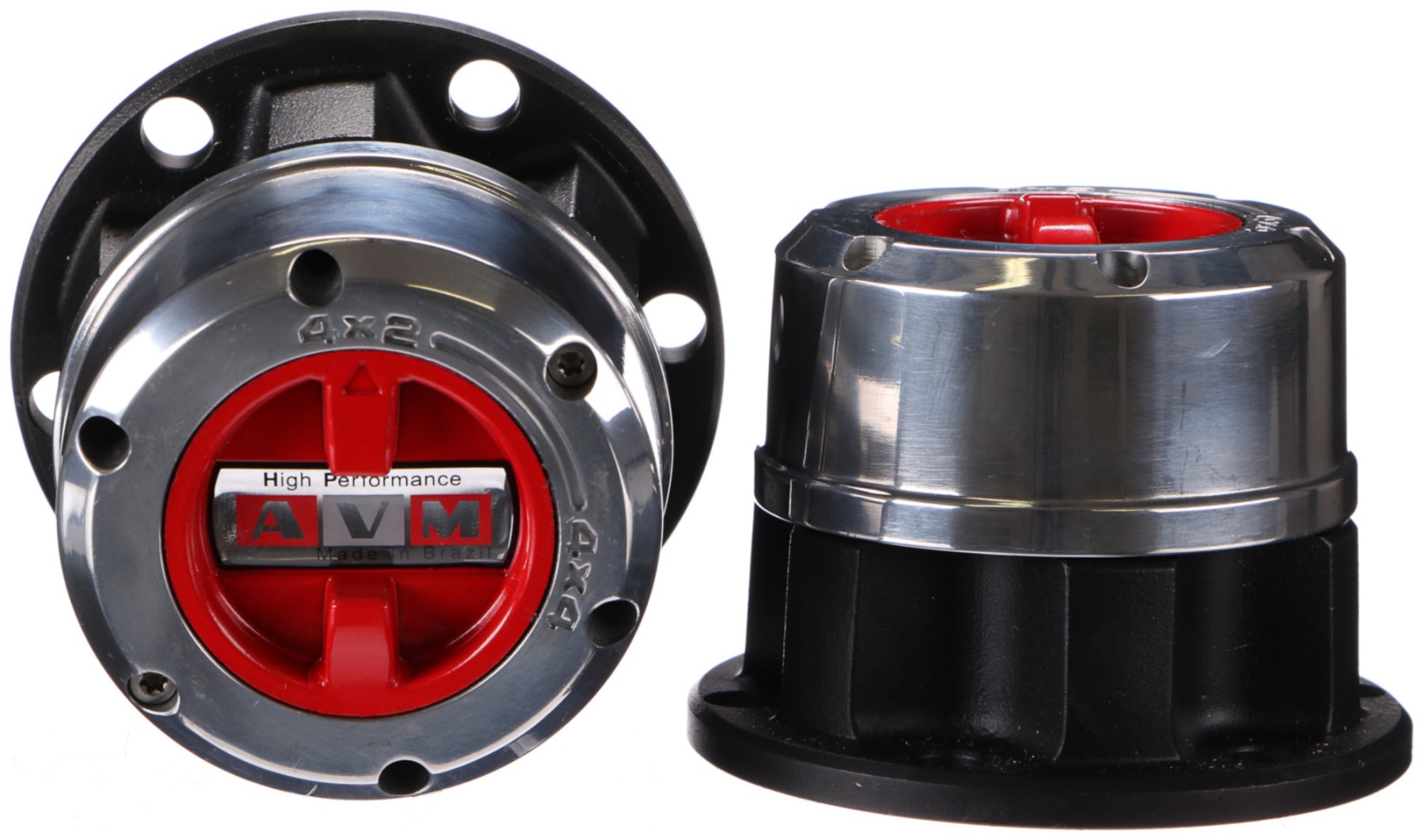

Manual freewheel AVM 410HP - UAZ / Beijing
Set of 2 manual freewheel hubs AVM 410HP serve as disconnectable freewheel wheel hubs for the front wheels of selected 4x4 and off-road vehicles. When manually engaged they connect the wheel hub to the front axle halfshaft, so when four-wheel drive is engaged the driving force can also be transmitted to the front wheels. When disengaged, the front wheels rotate freely while driving in 4x2 without unnecessarily turning parts of the front drivetrain, which helps reduce mechanical resistance and wear. The HP (High Performance) series is intended for high loads and demanding off-road use; the robust steel construction with epoxy coating is prepared for extreme outdoor conditions, the precisely machined internal components underline the durable construction and the set can also be used with wheels larger than 33 inches.
Suitable for models:UAZ / BeijingTechnical specifications:- Number of splines on halfshaft: 10
- Number of bolts: 6
- Thread of mounting bolts: 3/8"-16 UNRC
- Pitch circle diameter (PCD): 89.8 mm
- Service kit AVM: 4410HP
- Package contents: 2 pcs
- Package dimensions: 11 x 22 x 9 cm
- Package weight: 5 kg
