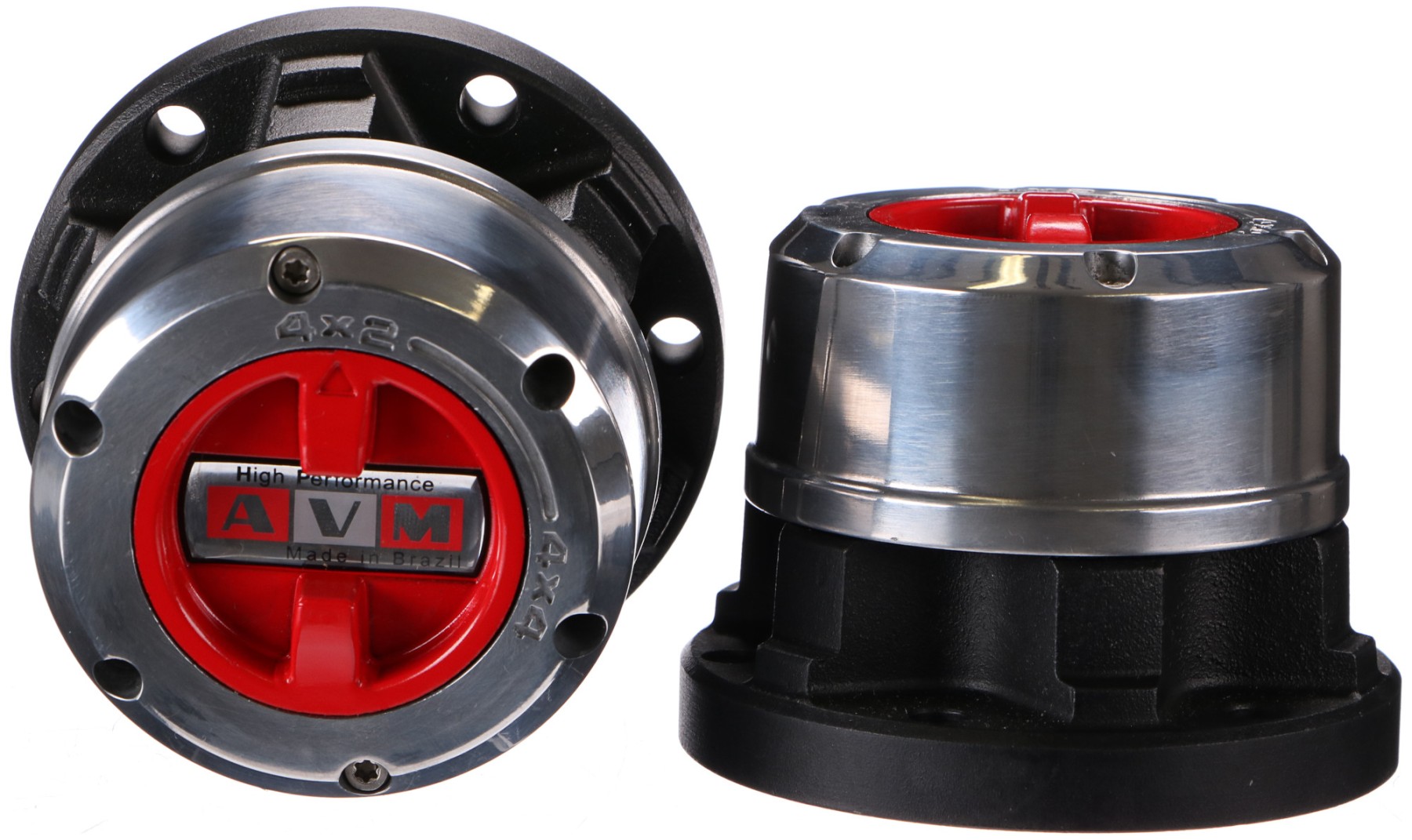

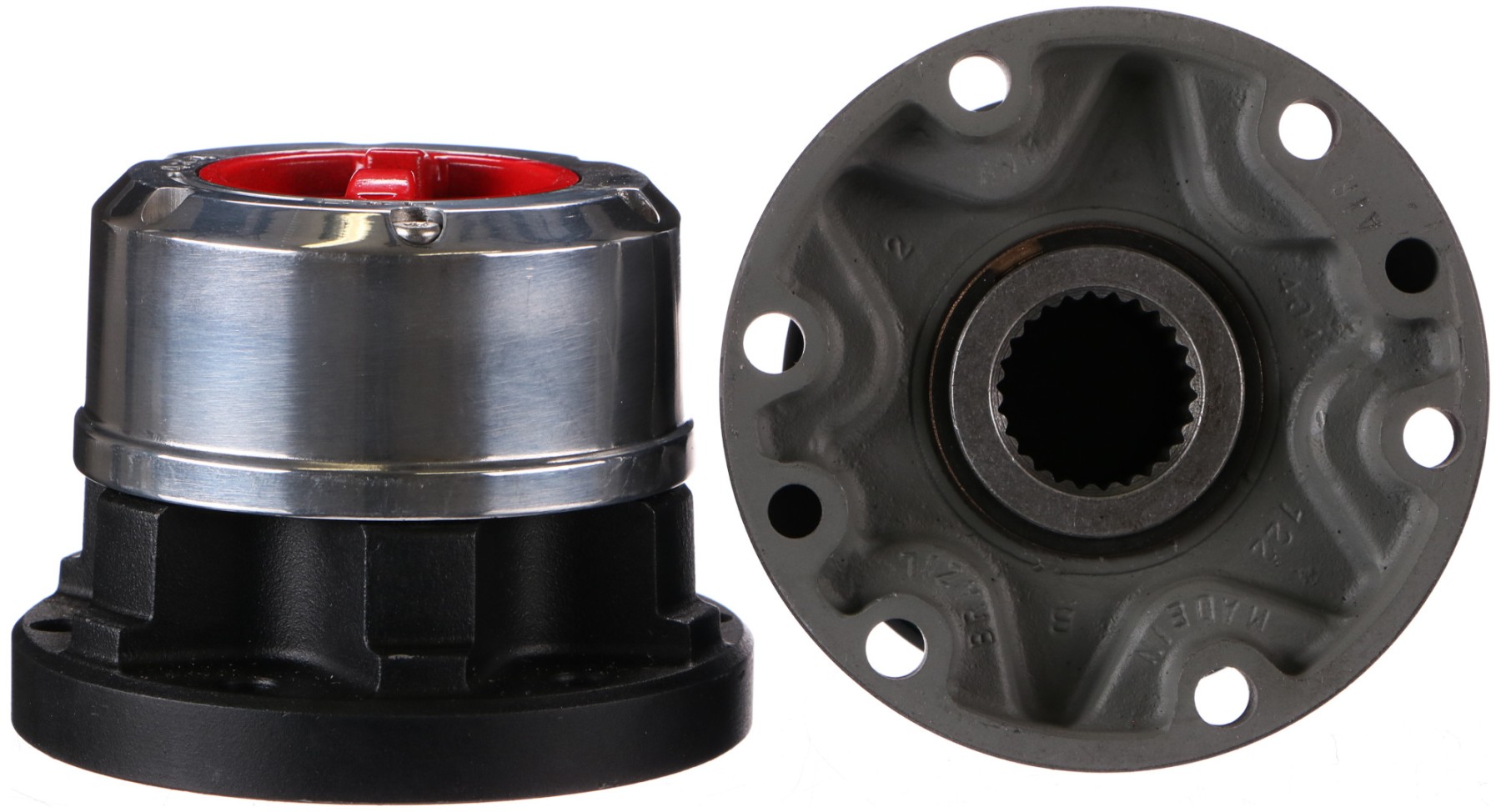

Freewheeling hub AVM 466HP - Daihatsu
A set of 2 manual freewheeling hubs AVM 466HP serves as detachable freewheeling front wheel hubs for selected 4x4 and off-road vehicles. When manually engaged, the hub connects the wheel hub to the front axle half-shaft, so that when four-wheel drive is engaged the driving force can also be transmitted to the front wheels. When disengaged, the front wheels rotate freely during 4x2 driving without unnecessary spinning of front driveline components, which helps reduce mechanical resistance and wear. The freewheeling hubs complement the vehicle's 4x4 control and do not replace its engagement. The HP (High Performance) series is intended for high load and demanding off-road use; the robust steel construction with an epoxy coating is prepared for extreme outdoor conditions, precisely machined internal components emphasize the durable design, and the set can also be used with wheels larger than 33 inches.
Suitable for models:Daihatsu- F 73/78
- Rocky, Foreza (1990-)
Technical specifications:- Number of splines on the half-shaft: 26
- Number of bolts: 6
- Thread of mounting bolts: M8x1,25
- Pitch circle diameter (PCD): 90 mm
- AVM service kit: 4404HP
- Package contents: 2 pcs
- Package dimensions: 11 x 21.5 x 9 cm
- Package weight: 5 kg
