Hydraulic cylinder for MECHANIC CRANE 2T workshop crane - spare part

The MECHANIC CRANE 2T hydraulic cylinder is a robust spare part designed for SIXTOL workshop cranes with a 2-ton load capacity.

Full description

Hydraulic cylinder for MECHANIC CRANE 2T workshop crane - spare part

Description and parameters
Videos and images
Questions

Hydraulic cylinder for workshop crane MECHANIC CRANE 2T - spare part SIXTOL

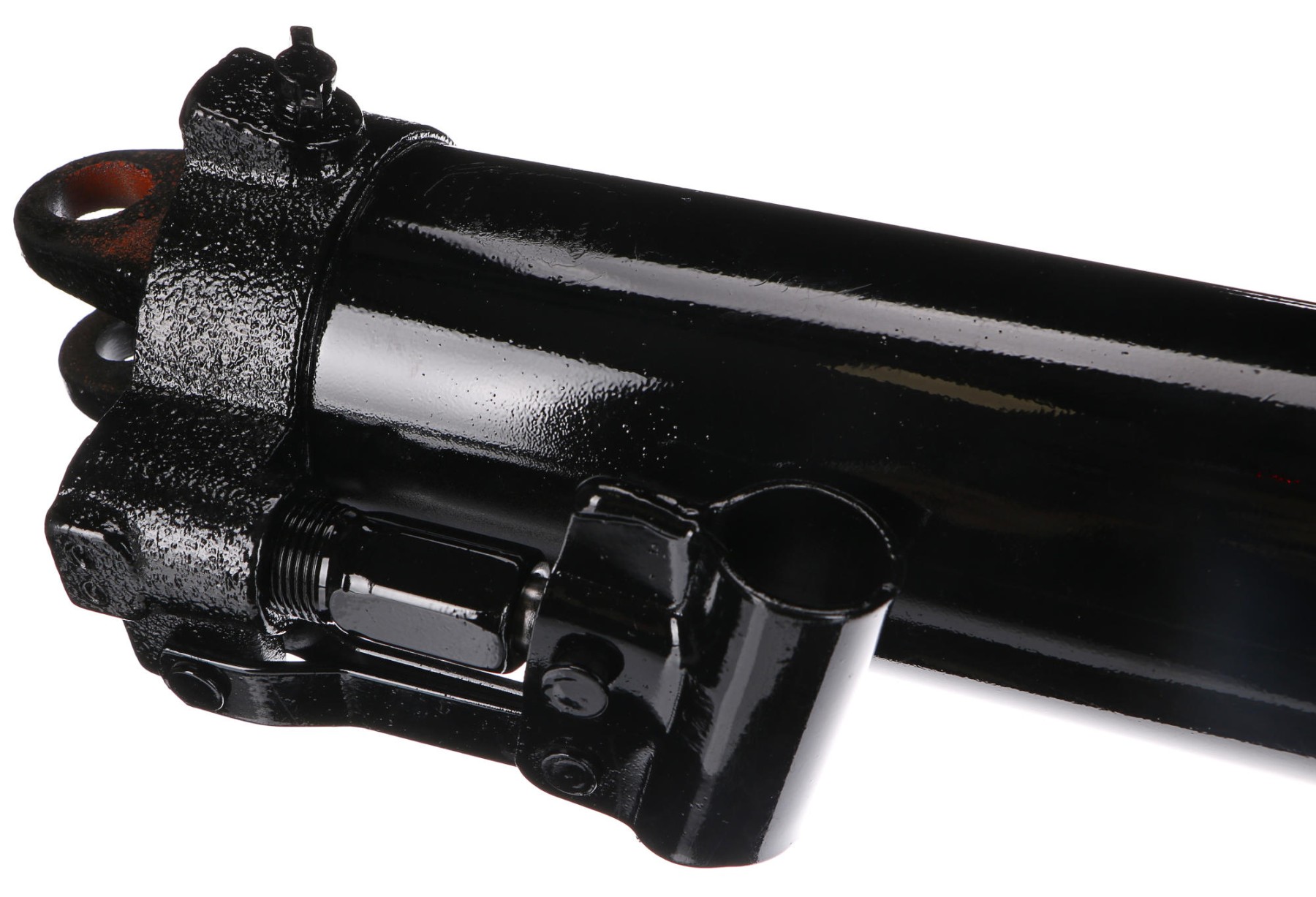

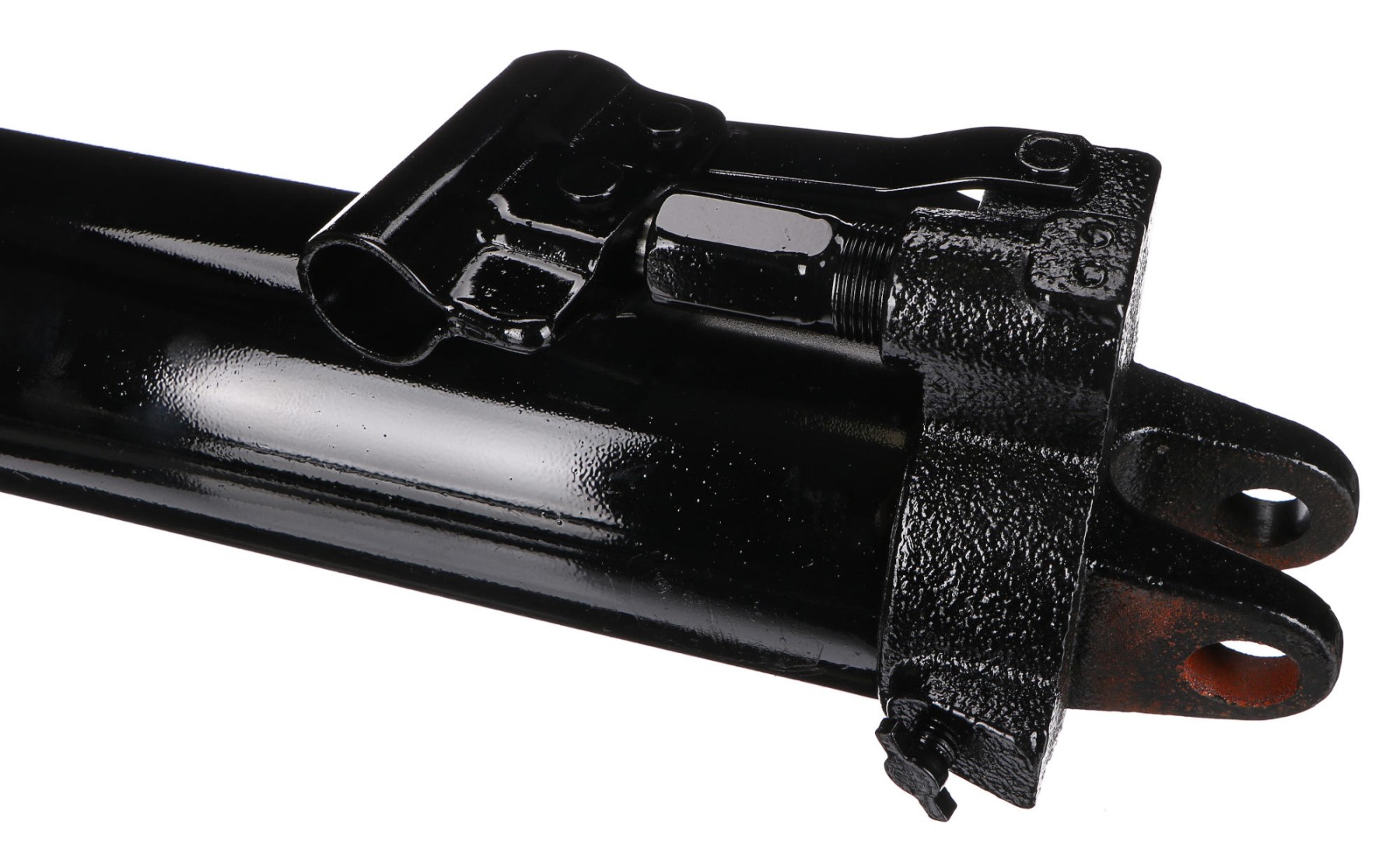

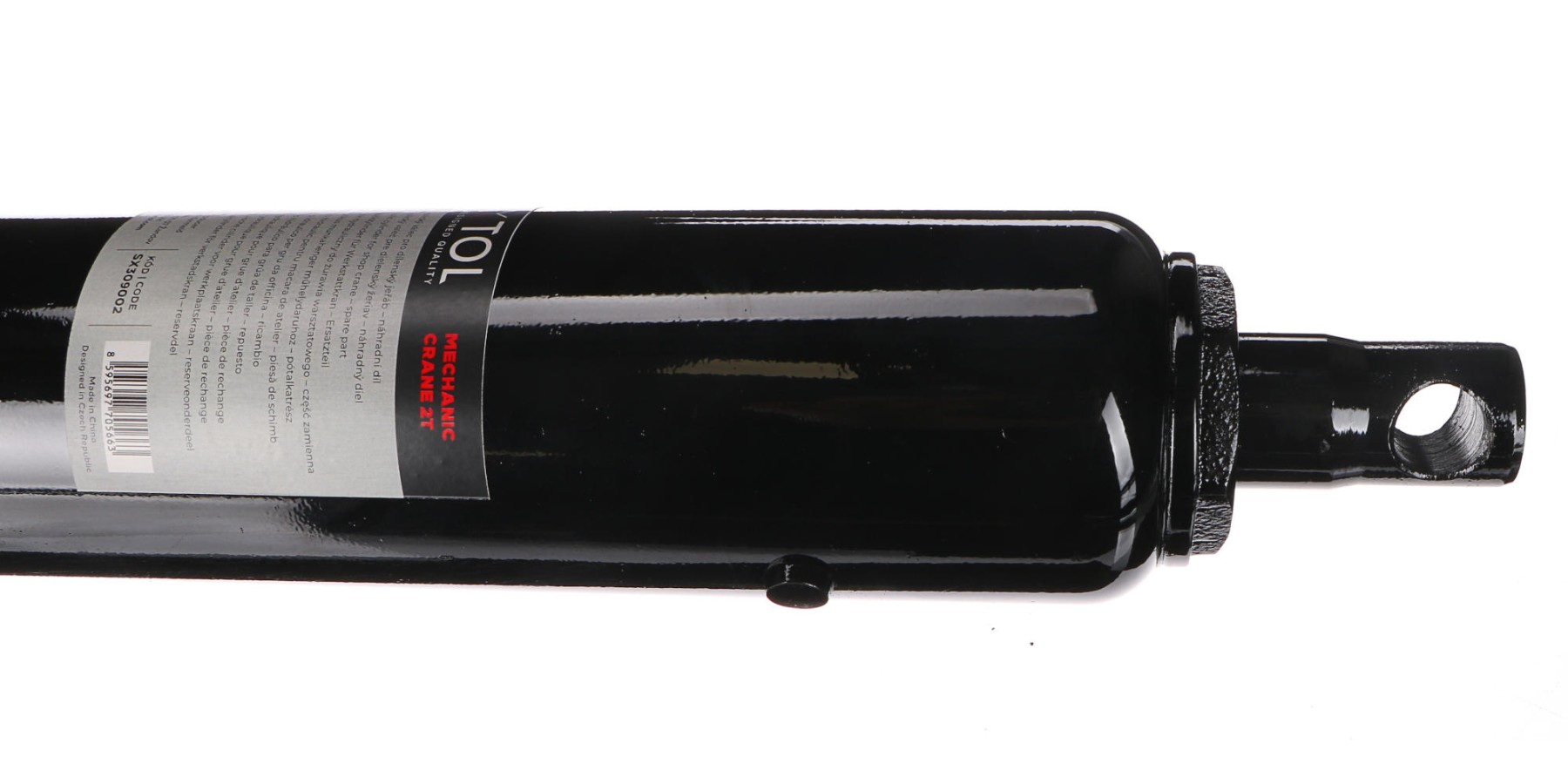

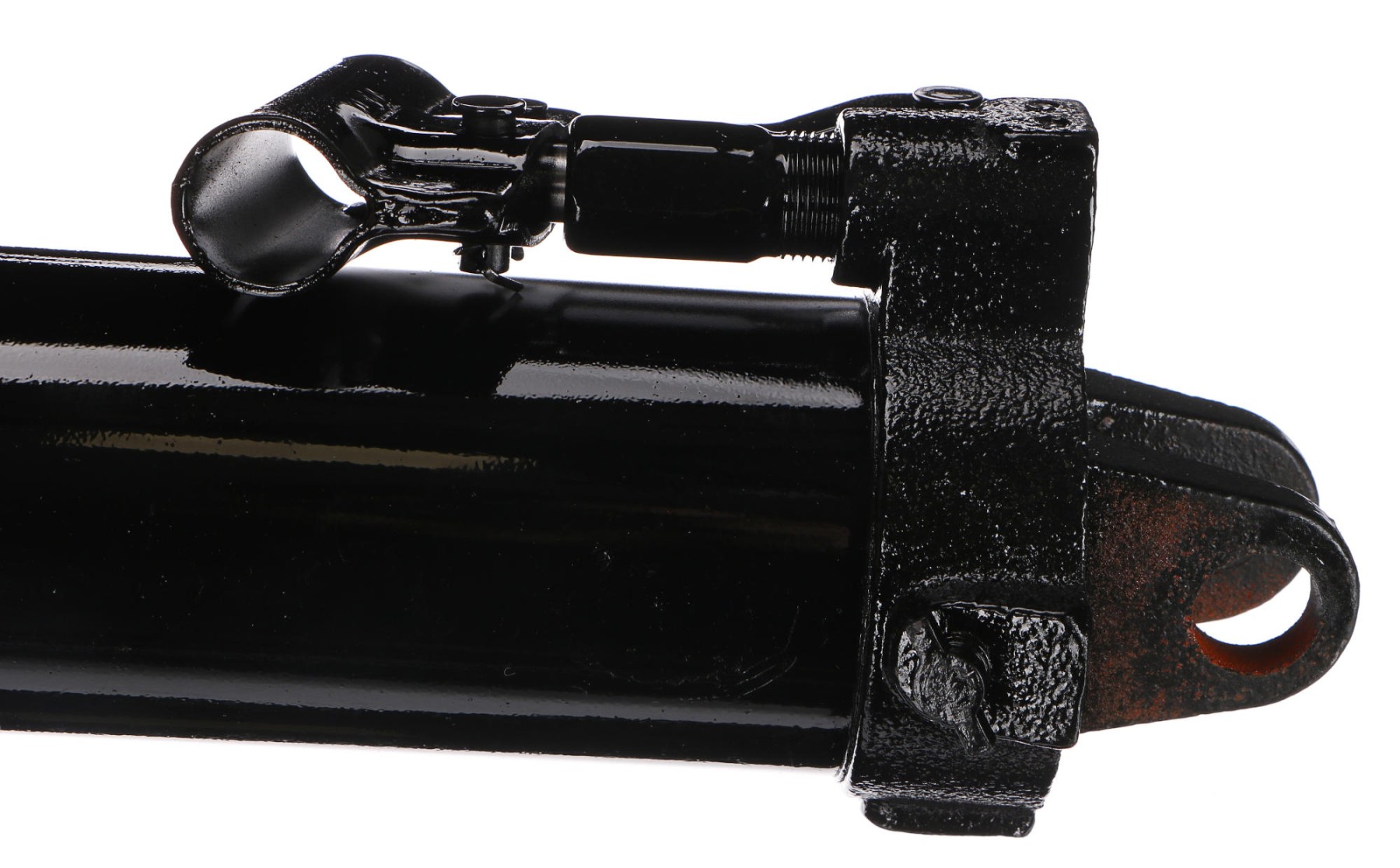

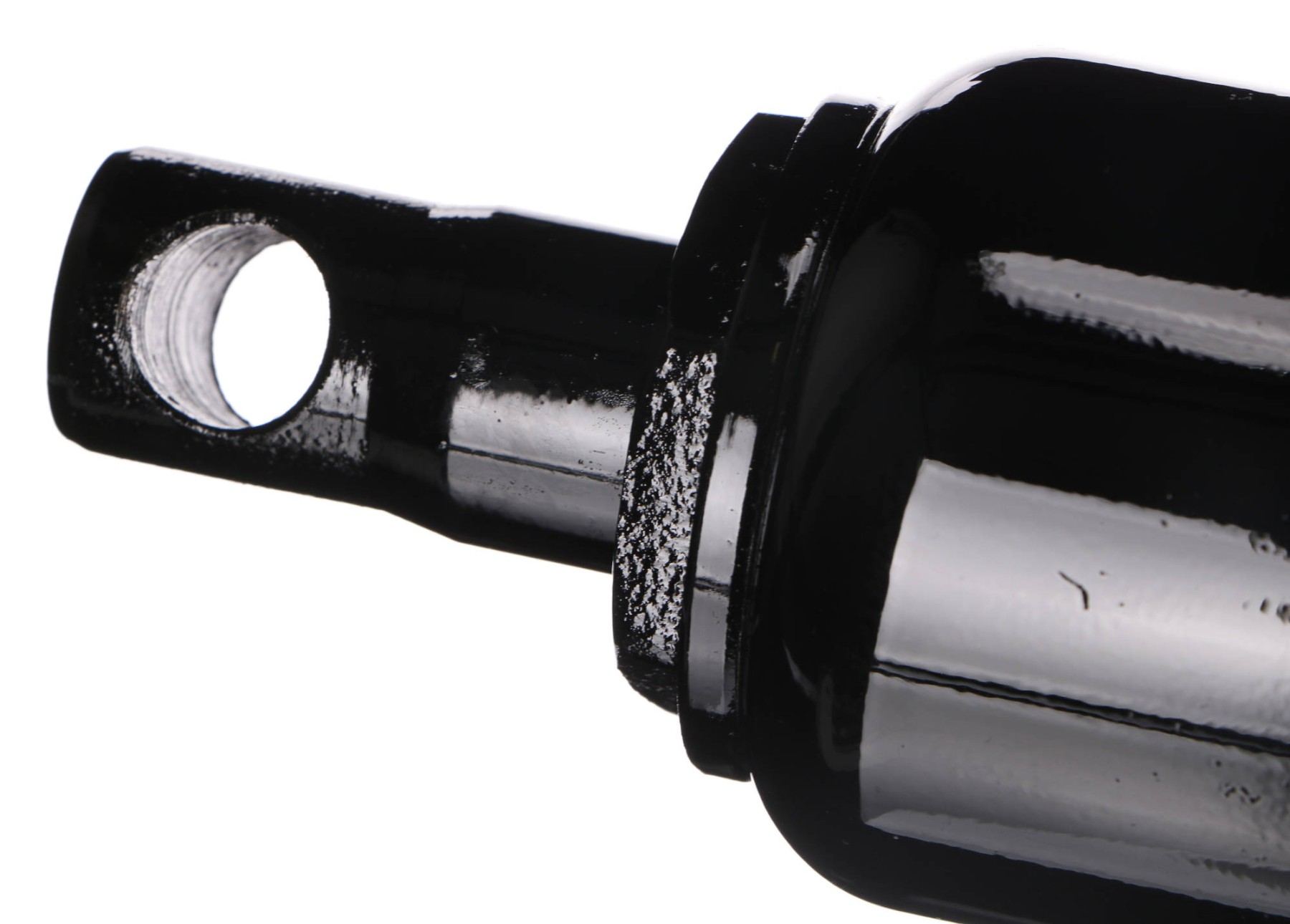

The MECHANIC CRANE 2T hydraulic cylinder is a high-quality, sturdy spare part designed for SIXTOL workshop cranes with a 2-ton capacity, serving as the main lifting component to ensure stable and safe lifting of engines and other heavier components. It is made of durable steel with a black painted finish for increased longevity and protection against corrosion. The cylinder is equipped with heavy-duty mounting eyes, a threaded hydraulic connection and a lever pumping mechanism. Thanks to precise workmanship and compatible dimensions, it easily replaces the original cylinder in your workshop crane. The package also includes a pumping rod, which allows comfortable and efficient lifting without the need for additional tools.

Main advantages:

Robust steel construction with high durability
Reliable lifting performance for 2 t capacity cranes
Protective black paint against corrosion and dirt
Precise fit as a full replacement for the original part
Smooth and efficient hydraulic operation
Easy installation without the need for modifications

Applications:

Replacement hydraulic cylinder for SIXTOL workshop lifting cranes
Ideal for lifting engines, gearboxes and heavy parts
Suitable for service workshops, garages and home use

Package contents:

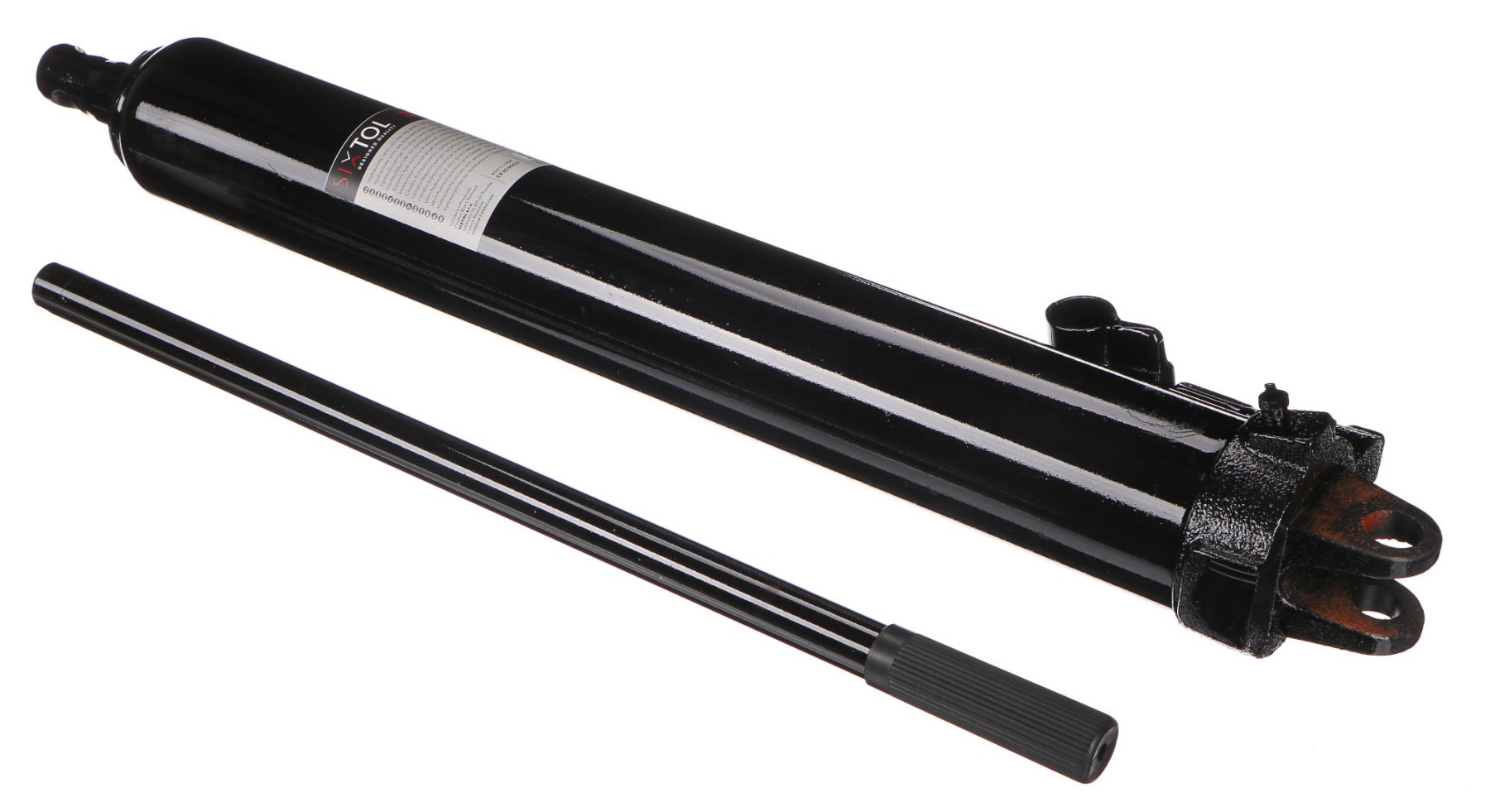

1x Hydraulic cylinder MECHANIC CRANE 2T
1x Pumping rod

Technical specifications:

Maximum crane capacity: 2 tonnes
Material: Steel
Cylinder length: 66 cm
Cylinder diameter: 7.5 cm
Mounting hole diameter: 1.9 cm
Rod diameter / rod hole diameter: 2.1 cm
Rod length: 50 cm
Package dimensions:
Weight: 10 kg

Main parameters

EAN8595697705663
CodeSX309002
Weight10,00 kg

Full description and parameters Hide description and parameters
