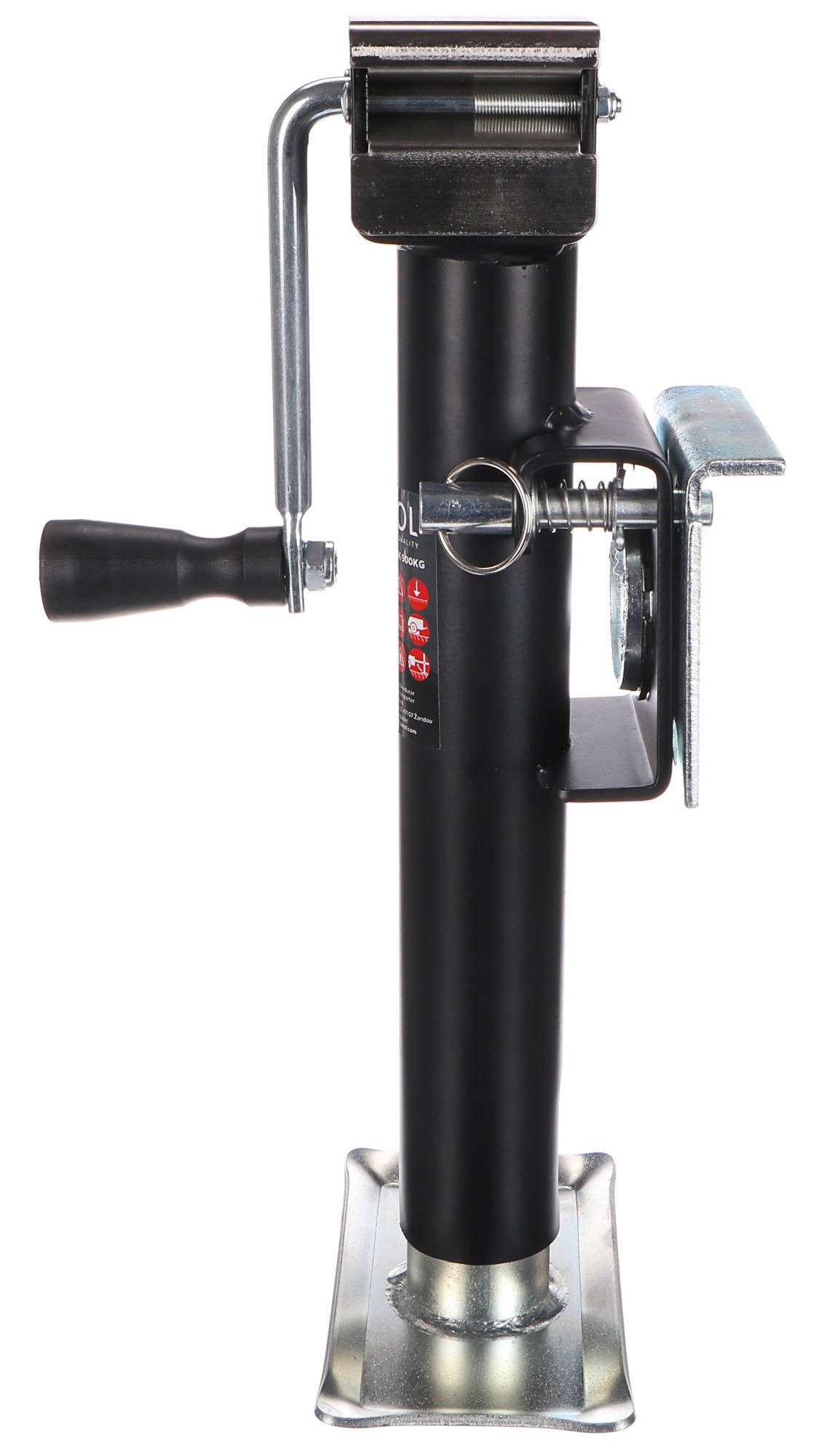

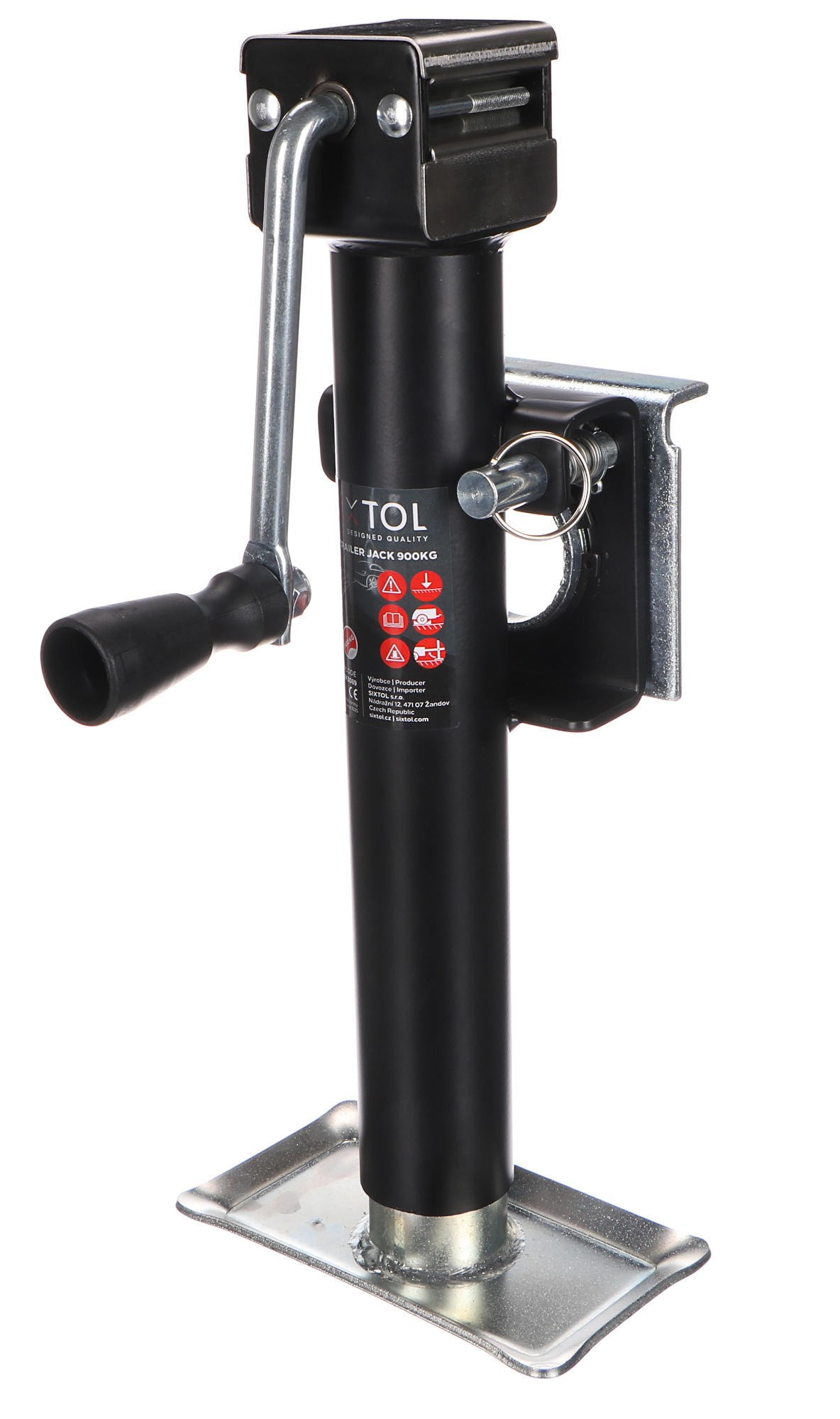

SX TRAILER JACK 900KG trailer jack, welded, flat, SIXTOL
The SIXTOL SX TRAILER JACK 900KG trailer jack is designed for permanent installation on the trailer, cart or caravan frame using a flat flange that is welded directly to the structure. This flat design is ideal for users who require maximum strength and mounting stability without the need for pipe or clamp attachment. The all-metal welded construction ensures long service life and reliability in daily use. The jack allows convenient extension and retraction via an integrated rotary mechanism and is suitable for stabilizing as well as lifting during parking or wheel replacement. Its robust flat base guarantees security even on softer surfaces. With a load capacity of up to 900 kg, it is ideal for most commonly used trailers. It is well suited for car workshops, trailer rental companies, caravan owners and tradespeople.
Main advantages:- Welded flat flange – secure and permanent attachment
- High load capacity up to 900 kg
- Flat stable base for assurance on various types of surfaces

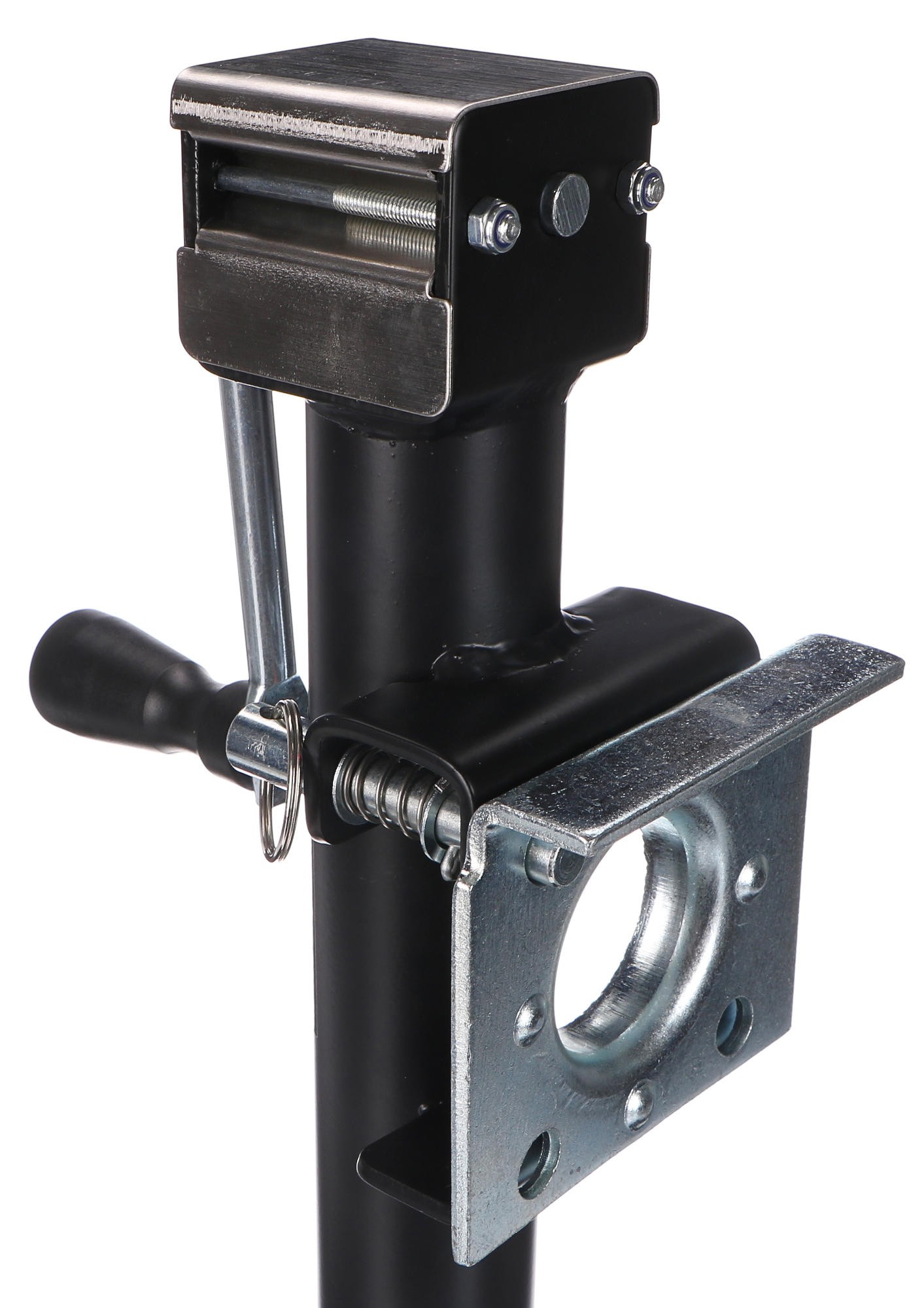

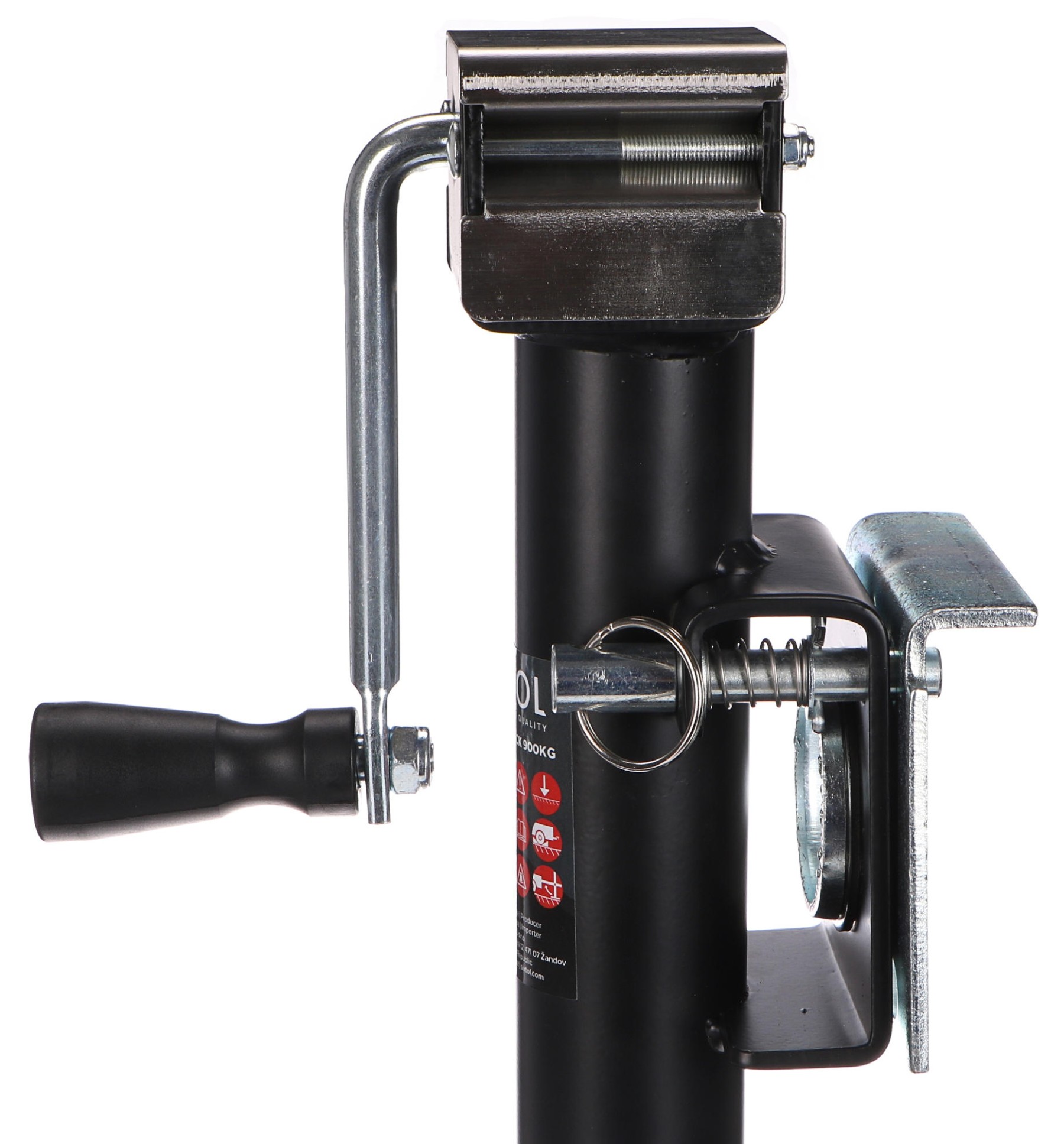

- Rotary mechanism for easy retraction/lifting
- Ideal for trailers, carts and caravans
Usage:- Stabilizing the trailer during parking or loading
- Lifting the trailer when replacing a wheel
- Permanent installation on the trailer frame – fixed mounting
- Home and professional use (car workshops, rental companies)

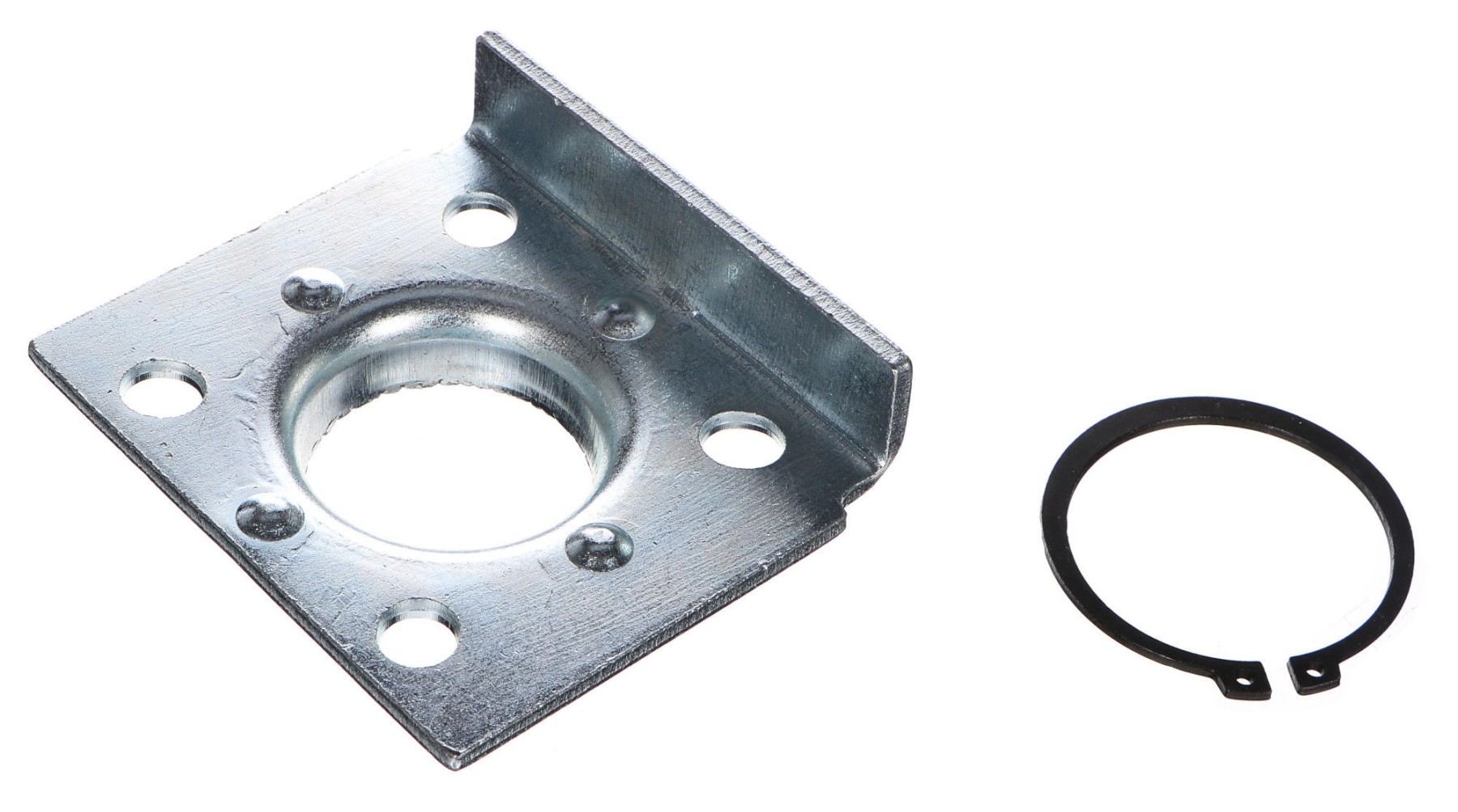

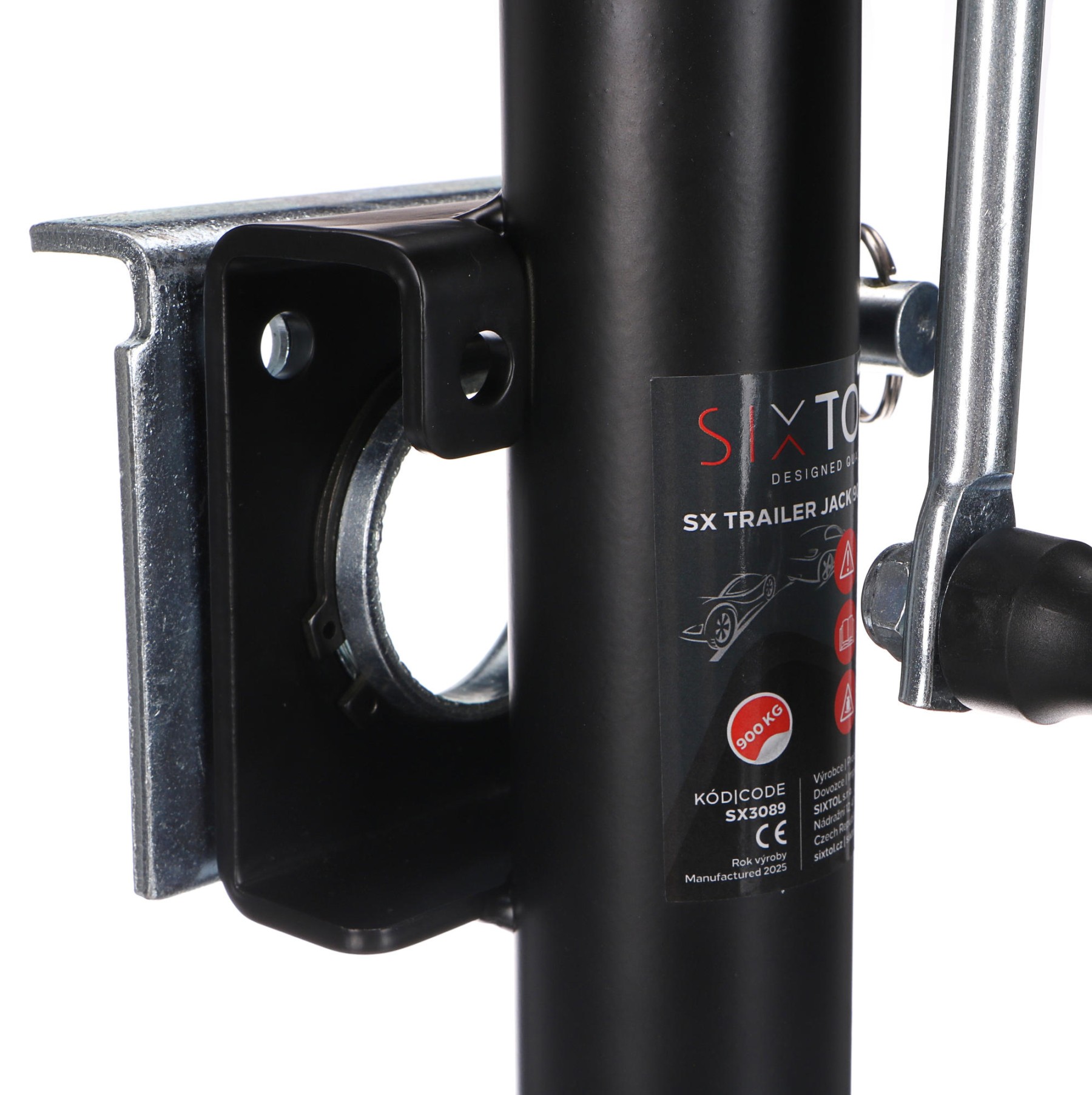

Note:- To remove the flange due to its being welded, bent circlip pliers (seeger) must be used - NOT INCLUDED.

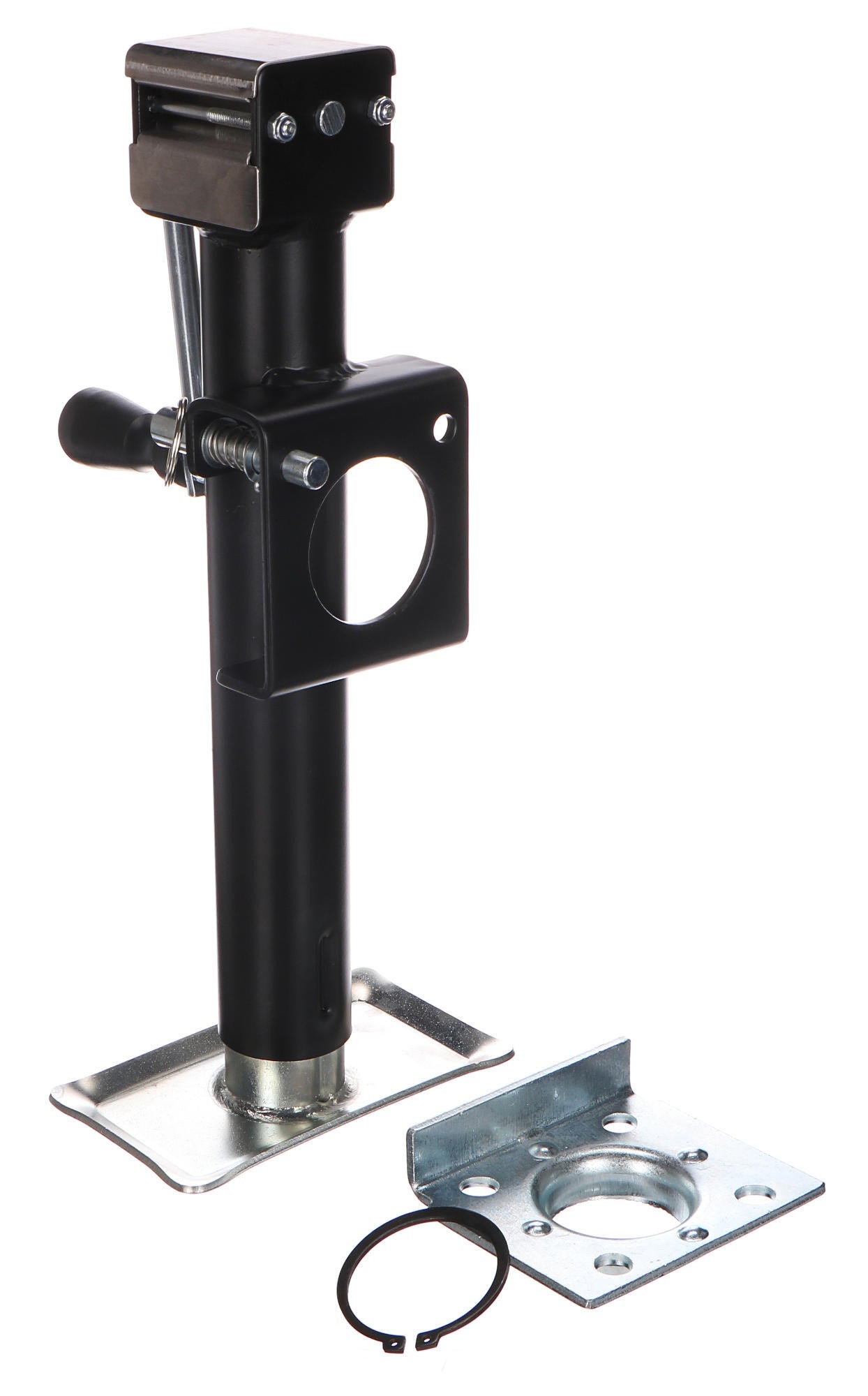

Set contents:- 1× SX TRAILER JACK 900KG trailer jack with flat mounting flange
Technical specifications:- Maximum load capacity: 900 kg
- Height when folded: 44 cm
- Lift range: 210–470 mm
- Lift: 260 mm

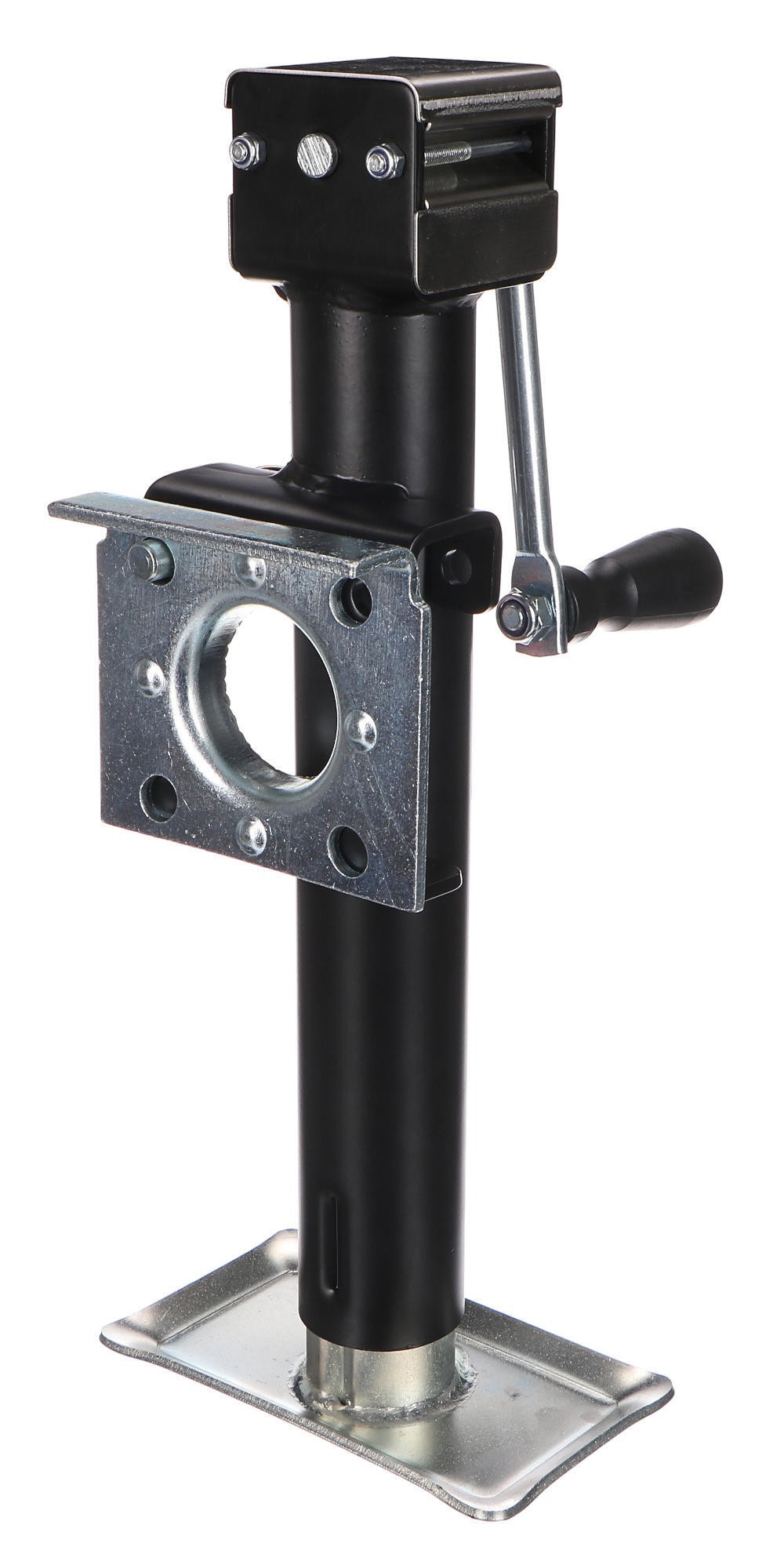

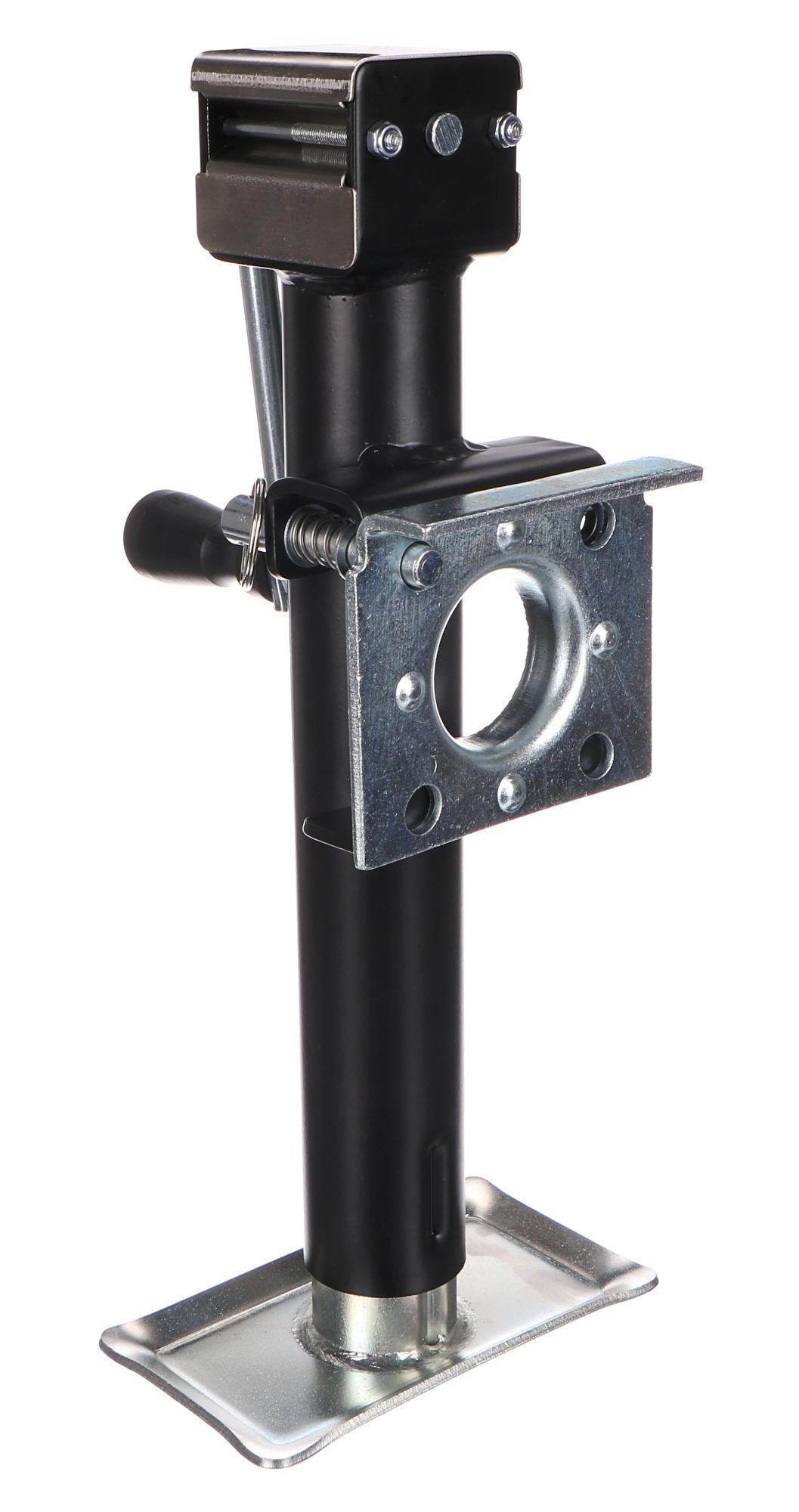

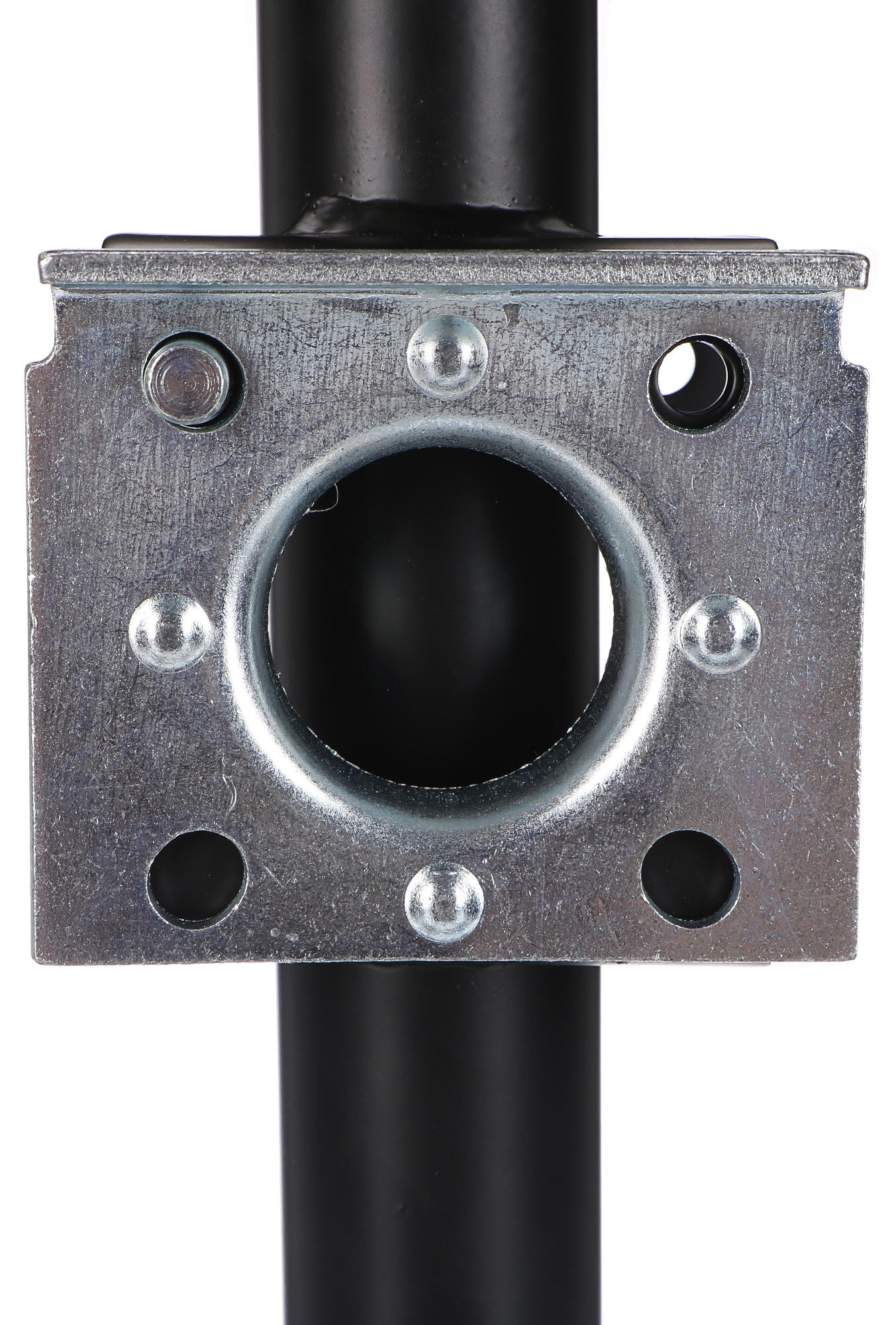

- Mounting type: Flat mounting flange (weldable)
- Flange size: 125 x 106 mm
- Material: steel

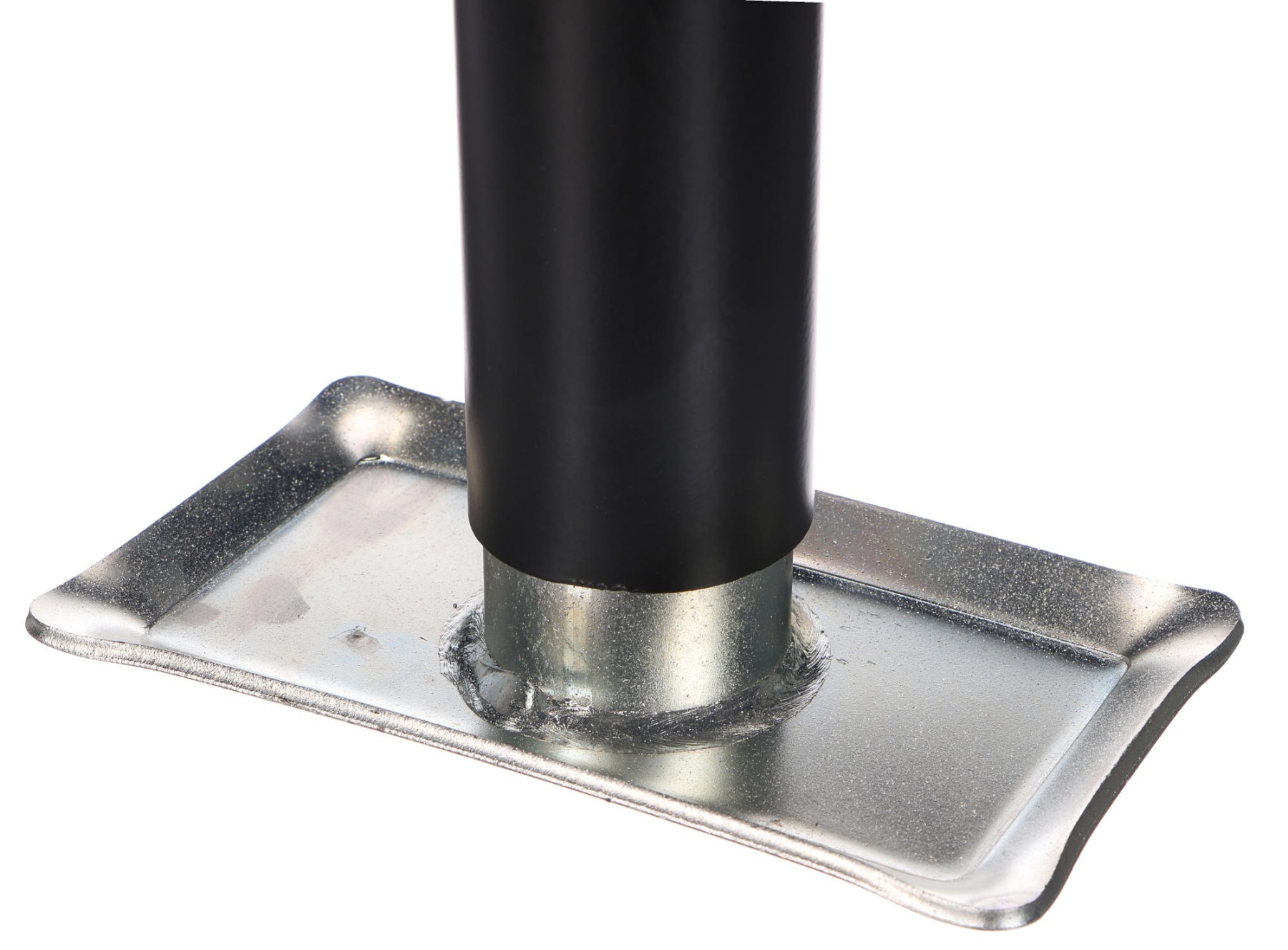

- Base dimension: 100 × 175 mm
- Weight: 5.5 kg
