Vacuum testing kit for brake systems MECHANIC BRAKE TESTER 16

Service 16-piece kit for vacuum testing of brake systems SIXTOL MECHANIC BRAKE TESTER 16 with hand pump, pressure gauge, interchangeable fittings and a portable case.

Full description
  • We recommend
Vacuum testing kit for brake systems MECHANIC BRAKE TESTER 16
  • Code: SX1164
  • EAN: 8595697702723
SixtolYou can purchase the goods from the seller Sixtol
In stock
21,29 Eur including VAT

Vacuum brake system testing kit MECHANIC BRAKE TESTER 16 SIXTOL

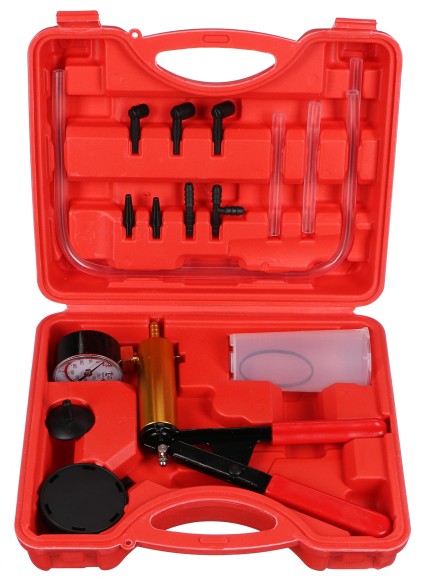

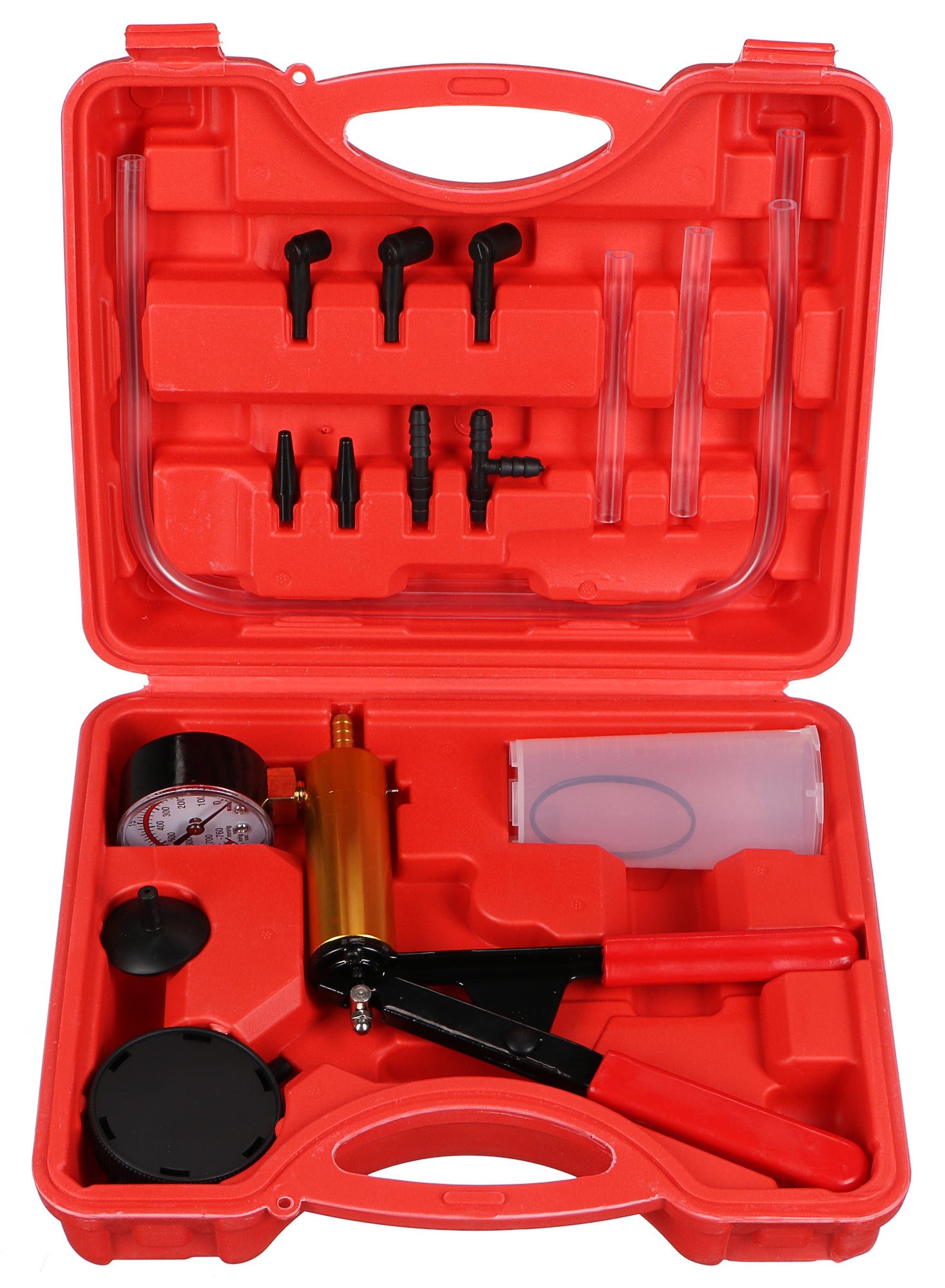

Service 16-piece kit for testing pressure and vacuum of brake systems SIXTOL MECHANIC BRAKE TESTER 16 with an analog gauge with scale 0 to -760 mmHg (0 to -1 bar) / 0 to -30 inHG (0 to -1 bar). The kit includes a metal pump with gauge, two long flexible hoses, two short flexible hoses, a fluid reservoir, two caps and a set of clamps and connectors. This kit is used to test pressure and vacuum at the vacuum solenoid valve, MAP sensors, fuel tank pressure and to bleed brake systems. The tools are stored in a plastic case that facilitates storage and transport.

Main advantages:
  • Easy to use
  • Release valve
  • Wide range of attachments
  • Sturdy case for transport and storage

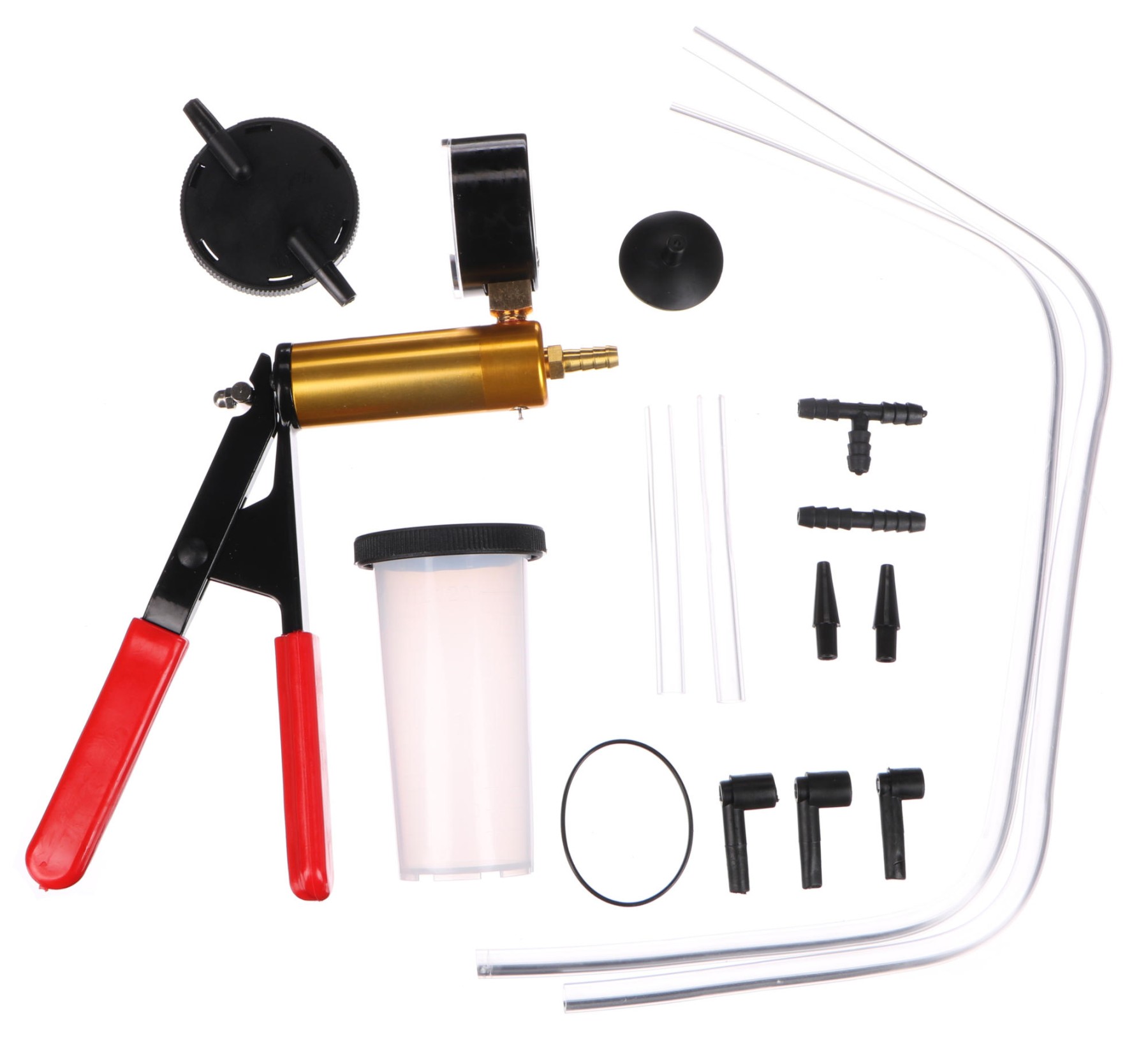

Kit contents:

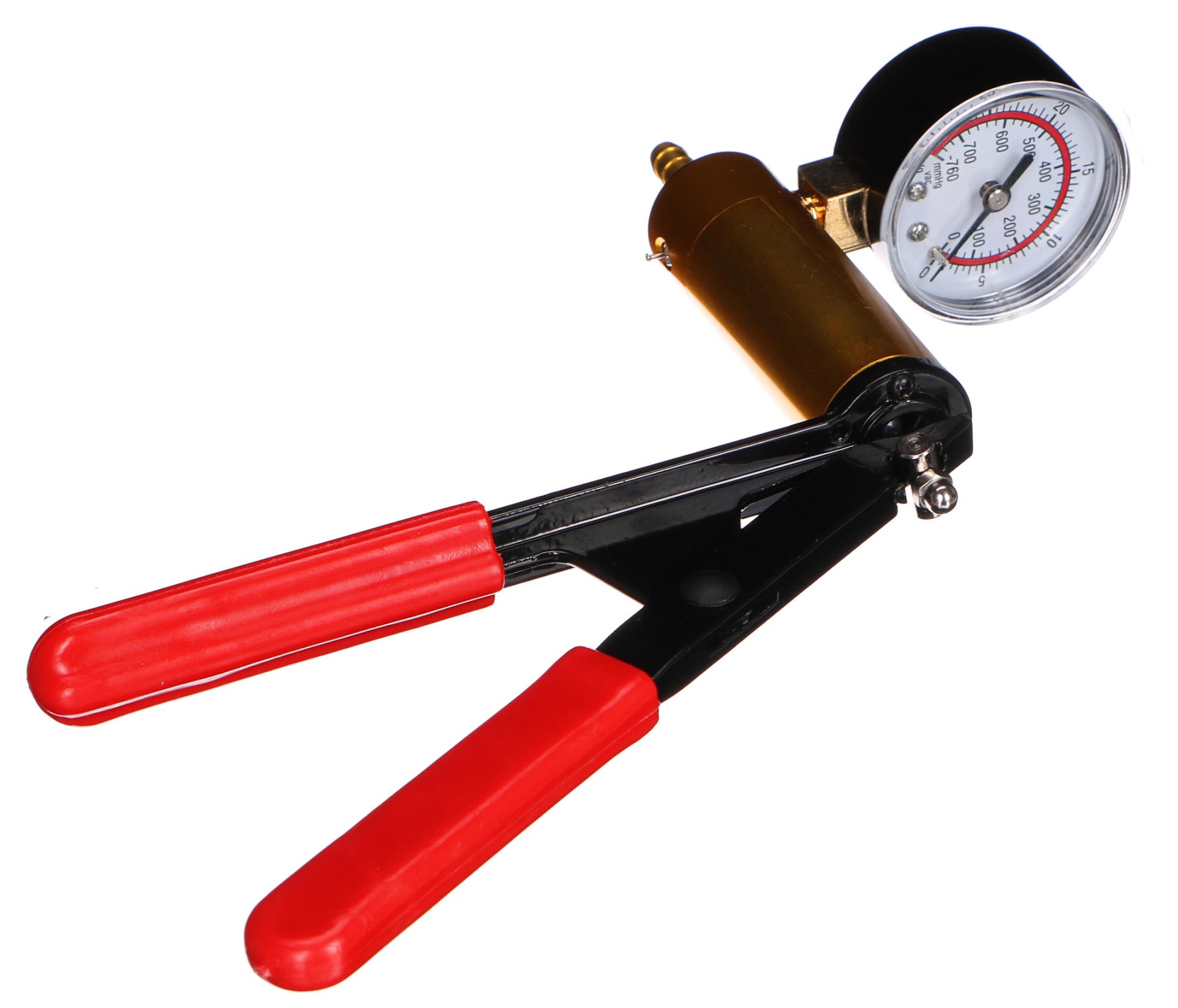

  • 1x Metal pump with gauge 0 to -760 mmHg (0 to -1 bar) / 0 to -30 inHG (0 to -1 bar)
  • 2x Flexible hose, length 530 mm
  • 2x Flexible hose, length 100 mm
  • Set of clamps and connectors
  • 1x Reservoir
  • 2x Cap
  • 1x Plastic case
Usage:
  • Vacuum testing of brake systems
  • Testing the vacuum solenoid valve
  • Testing MAP sensors
  • Testing fuel tank pressure
  • Bleeding brake systems
Technical specifications:
  • Gauge type: analog

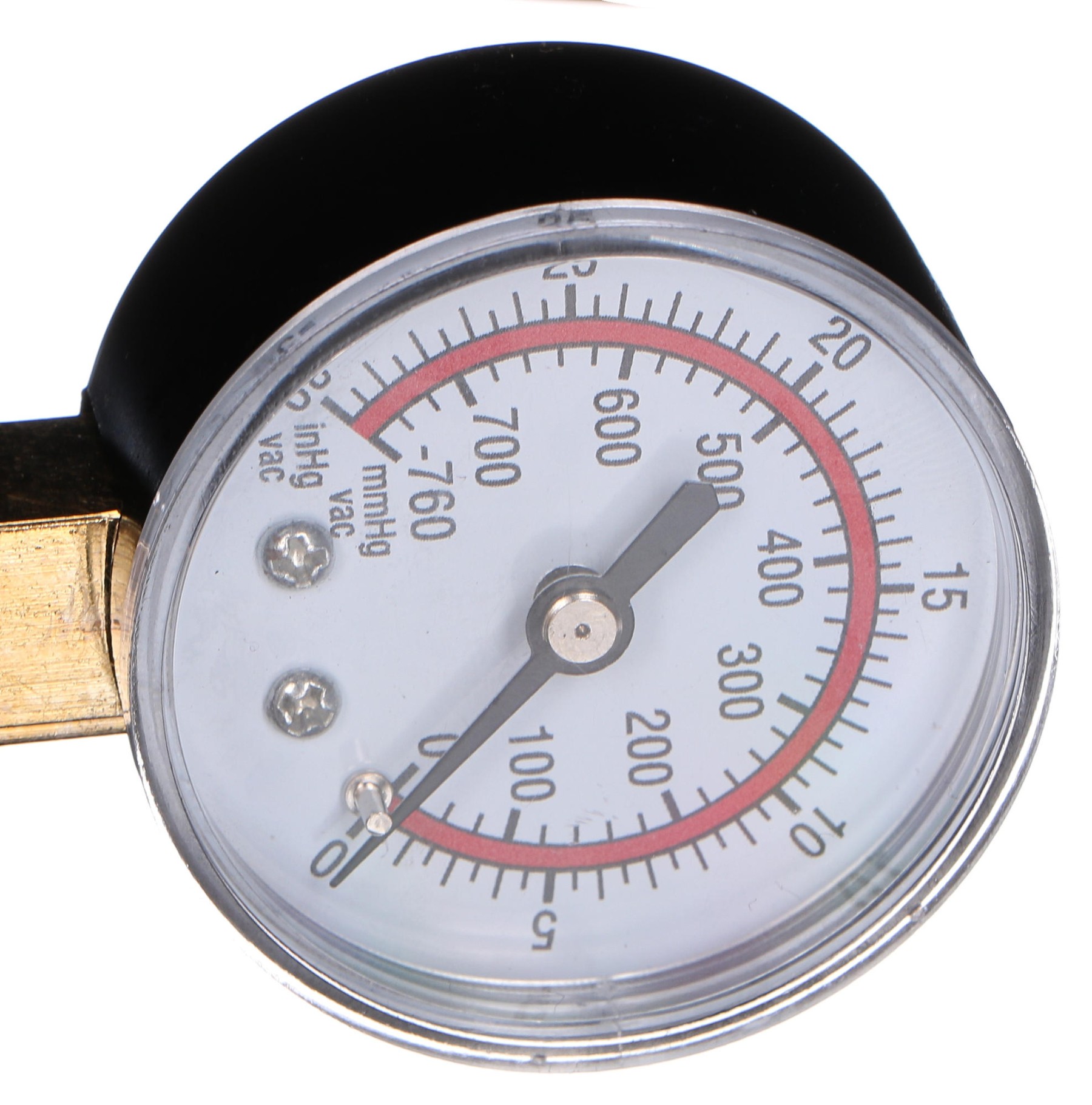

  • Gauge scale: 0 to -760 mmHg (0 to -1 bar) / 0 to -30 inHG (0 to -1 bar)
  • Material: steel, rubber
  • Packing dimensions: 8 x 21 x 26 cm
  • Weight: 0.8 kg

Main parameters

  • EAN8595697702723
  • CodeSX1164
  • Weight0,80 kg
Full description and parameters Hide description and parameters
