Arm / bike frame holder for towbar-mounted bike rack, long, length 24 cm - spare part

Replacement long arm for SIXTOL towbar bike rack, 24 cm long, fitted with a lock, suitable for the BIKE 3 carrier.

Full description
  • We recommend
Arm / bike frame holder for towbar-mounted bike rack, long, length 24 cm - spare part
  • Arm / bike frame holder for towbar-mounted bike rack, long, length 24 cm - spare part
  • Arm / bike frame holder for towbar-mounted bike rack, long, length 24 cm - spare part
  • Arm / bike frame holder for towbar-mounted bike rack, long, length 24 cm - spare part
  • Arm / bike frame holder for towbar-mounted bike rack, long, length 24 cm - spare part
  • Code: SX1012A
  • EAN: 8595697701092
SixtolYou can purchase the goods from the seller Sixtol
In stock
27,49 Eur including VAT

Arm / bike frame holder for towbar-mounted bike carrier, length 24cm - replacement part SIXTOL

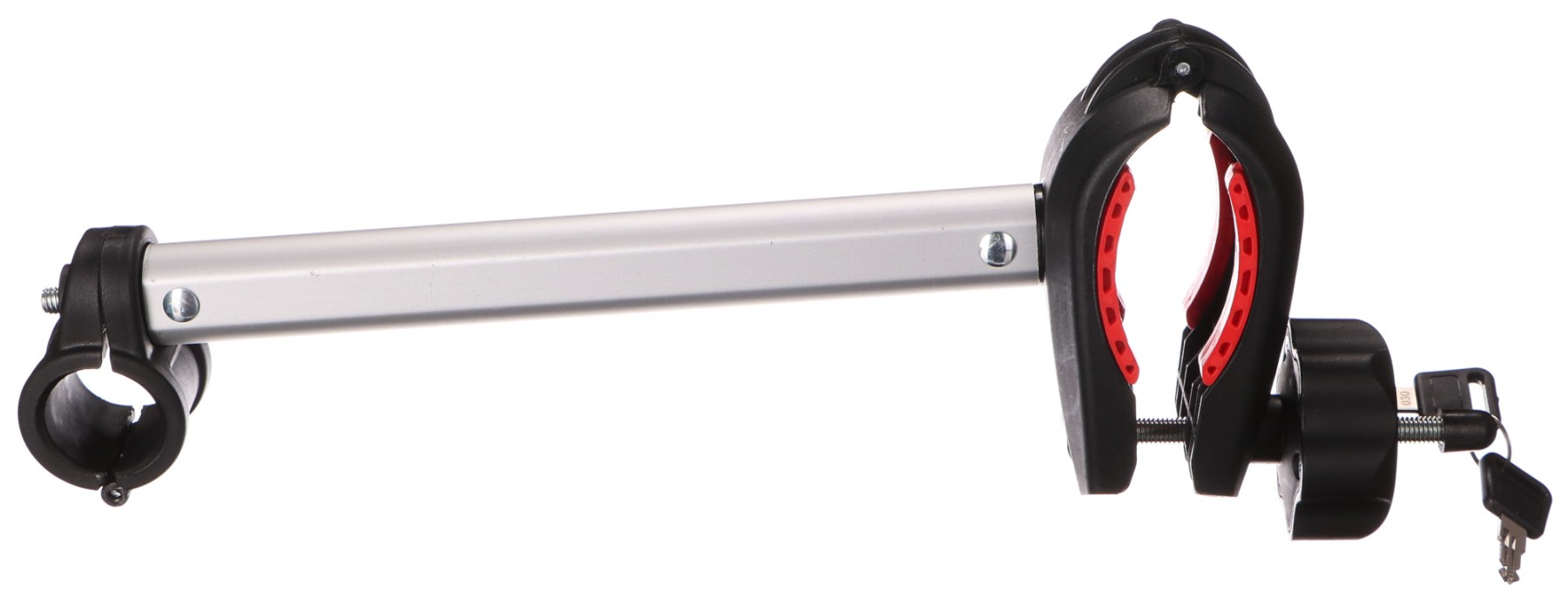

Universal long arm for a towbar-mounted bike carrier used to secure the bicycle frame to the carrier frame at a distance of 24 cm. The clamp for the bike frame can accommodate a frame up to 39 x 50 mm (w x h) and the clamp is internally fitted with a soft rubber insert that protects the bike frame from scratching. The sleeve for the carrier frame has an inner diameter of 30 - 33 mm. The arm is made of aluminium and the clamps are made of durable ABS plastic. The clamp for securing the bike frame is equipped with a lock that protects the bike from theft from the carrier. The arm is suitable for the SIXTOL BIKE 3 carrier SX1012.

Main advantages:
  • Easy mounting on the bike carrier
  • Soft rubber insert protects the bike frame from damage

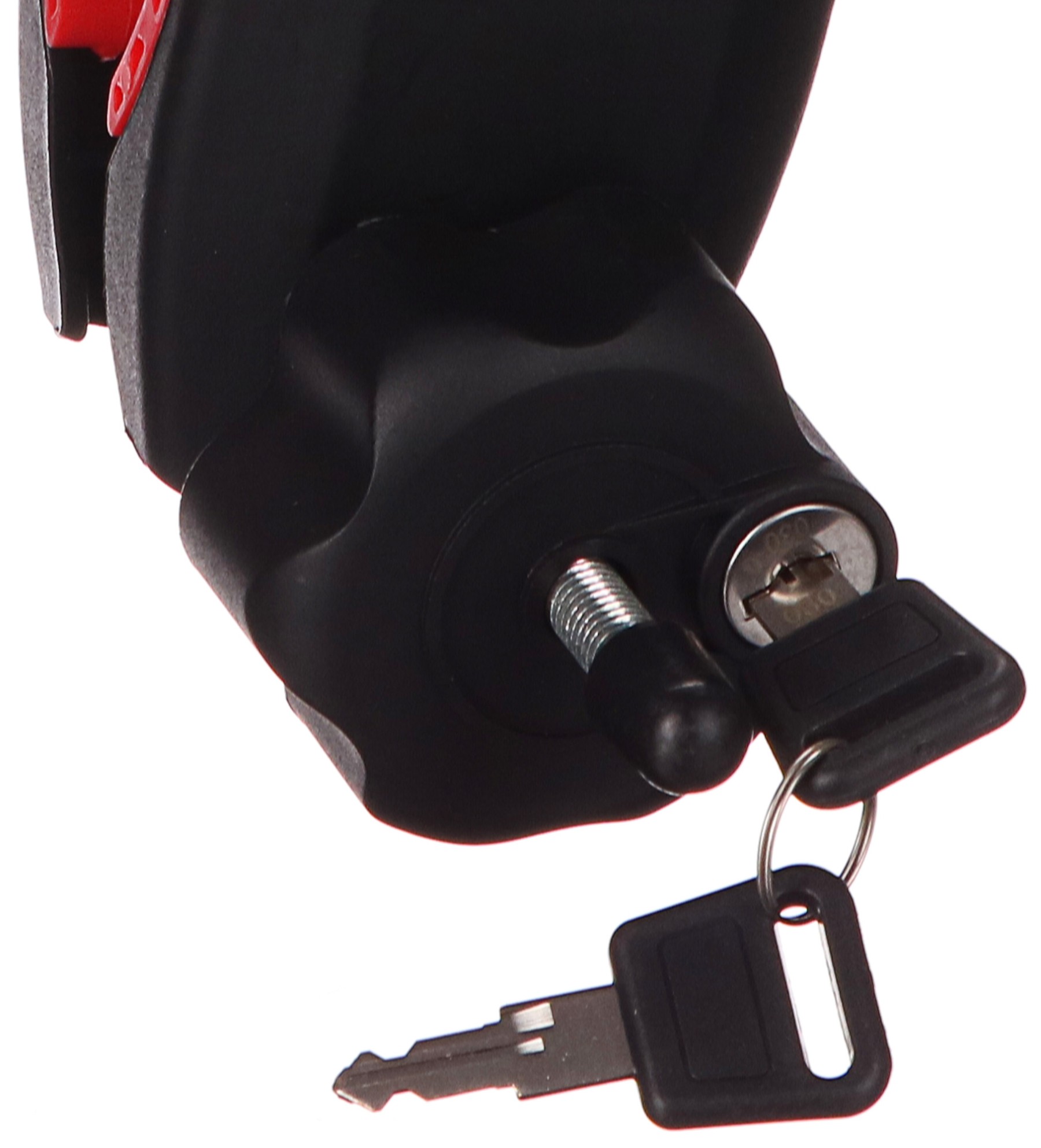

  • Lock on the bike frame - protection against thieves
Package contents:
  • Arm with a length of 24 cm for a towbar-mounted bike carrier
  • 2 x keys for locking the arm to the carrier
Suitable for carrier brands:
  • SIXTOL
  • Compass
  • Multipa

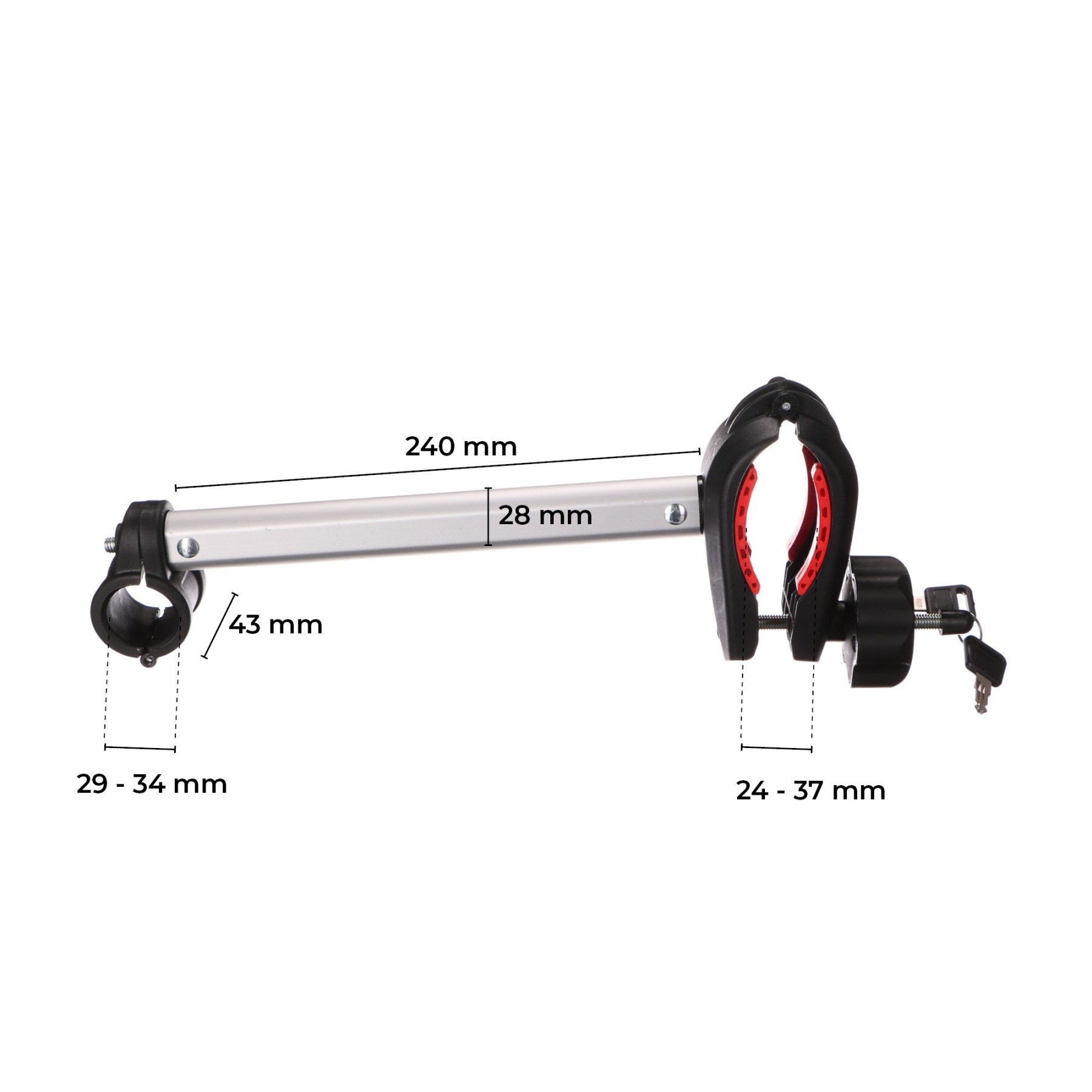

Technical parameters:
  • Replacement part for: SIXTOL BIKE 3 - SX1012
  • Tube length between clamp and sleeve: 24 cm

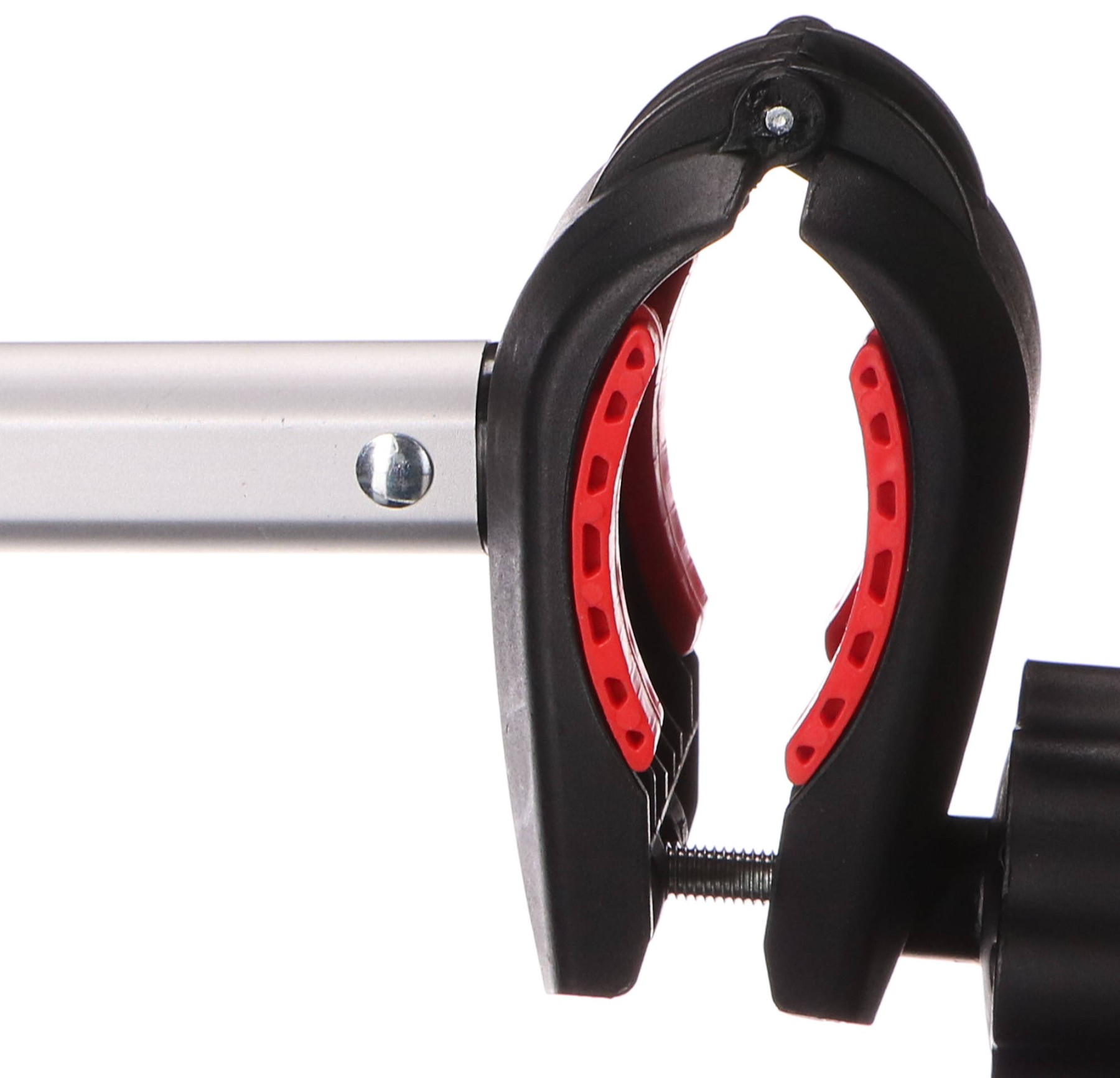

  • For bike frame diameter: up to 39 x 50 mm (w x h)

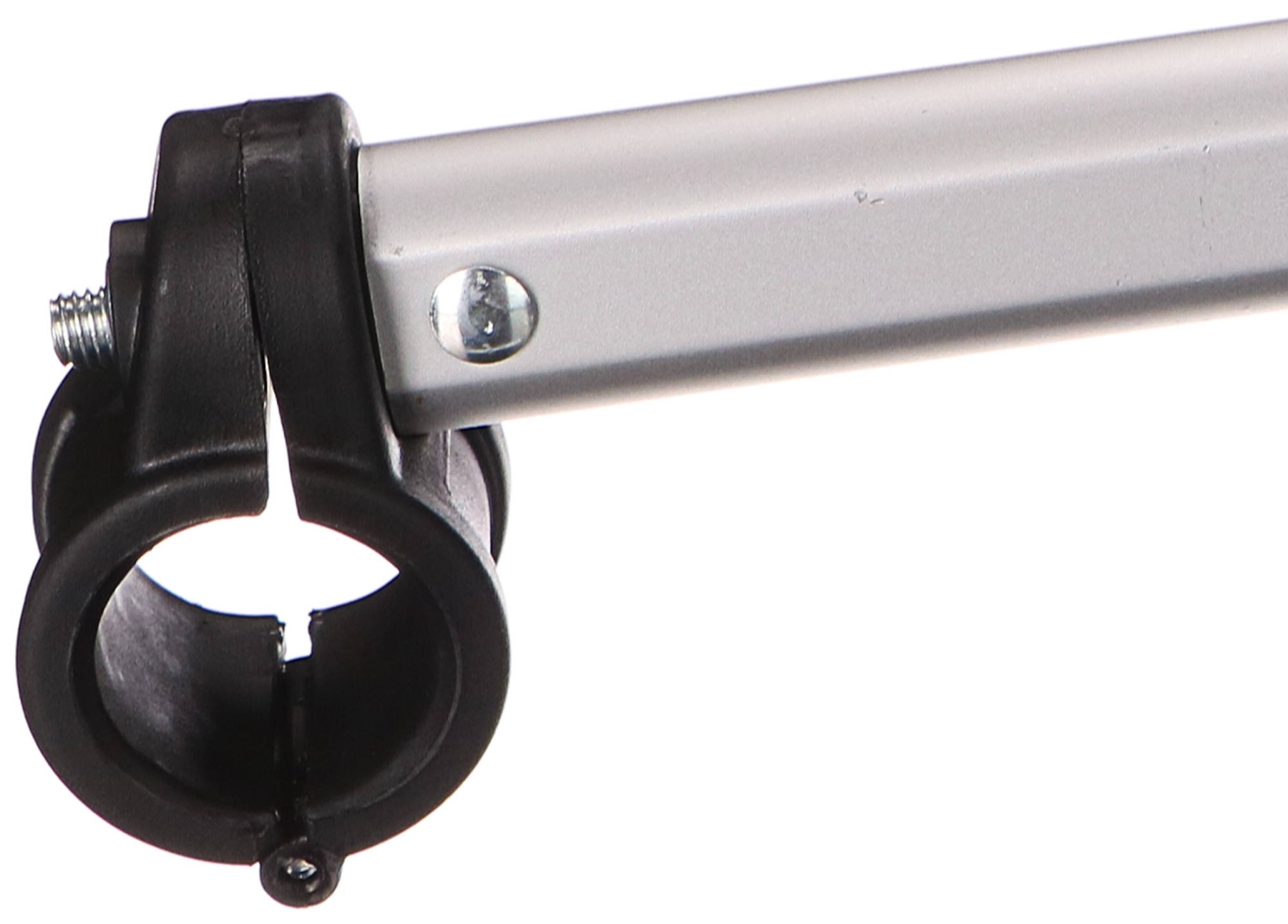

  • For carrier frame diameter: 30 - 33 mm
  • Material: aluminium, ABS plastic

Main parameters

  • EAN8595697701092
  • CodeSX1012A
  • Package weight0,50 kg
  • Package height7 cm
  • Package length42 cm
  • Package width15 cm
Full description and parameters Hide description and parameters
  • Arm / bike frame holder for towbar-mounted bike rack, long, length 24 cm - spare part
  • Arm / bike frame holder for towbar-mounted bike rack, long, length 24 cm - spare part
  • Arm / bike frame holder for towbar-mounted bike rack, long, length 24 cm - spare part
  • Arm / bike frame holder for towbar-mounted bike rack, long, length 24 cm - spare part
  • Arm / bike frame holder for towbar-mounted bike rack, long, length 24 cm - spare part

Your questions

Sehr geehrte Damen und Herren,eine Frage bitte zu Ihrem ArtikelFahrradträgerarm für Anhängerkupplung, lang, 24 cm - ErsatzteilWas sind die 24 cm?Mitte Fahrradrahmenklemme bis Mitte Trägerrahmenklemme?Oder ist das die Länge des Alu-Rohres dieses Armes, also der Abstand zwischen den Klemmen?Herzlichen Dank für Ihre Antwort,

Dear Sir or Madam,I have a question about your item:Bicycle carrier arm for trailer hitch, long, 24 cm - spare partWhat is the 24 cm?Center of the bicycle frame clamp to the center of the carrier frame clamp?Or is that the length of the aluminum tube of this arm, i.e., the distance between the clamps?Thank you very much for your reply,

Werner, 29. 07. 2025
de
Original message inde

Sehr geehrter Herr XXX,vielen Dank für Ihre Anfrage.Die angegebene Länge von 24 cm bezieht sich auf die Länge des Aluminiumrohres zwischen der Klemme und der Schelle.Mit freundlichen Grüßen

Dear Mr. XXX,Thank you for your inquiry.The specified length of 24 cm refers to the length of the aluminum tube between the clamp and the band clamp.Sincerely,

— Team Sixtol, 01. 08. 2025
Original message in

Dobrý den. Lze použít na 4.kolo nosiče Eufab?

Hello. Can it be used for the 4th bike on an Eufab carrier?

K., 15. 08. 2022
cs
Original message incs

Dobrý den, rameno je určené primárně pro nosiče zn. SIXTOL. Funkčnost s jinou značkou nezaručíme.

Hello, the arm is intended primarily for carriers of the brand SIXTOL. We do not guarantee functionality with another brand.

— Team Sixtol, 28. 01. 2026
Original message in
