00,00 Eur

Arm / bike frame holder for towbar-mounted bike rack, short, length 7 cm - spare part

Replacement short arm for SIXTOL towbar bike rack, 7 cm long, fitted with a lock, suitable for the E-BIKE 2 carrier.

Full description
Arm / bike frame holder for towbar-mounted bike rack, short, length 7 cm - spare part
  • Arm / bike frame holder for towbar-mounted bike rack, short, length 7 cm - spare part
  • Arm / bike frame holder for towbar-mounted bike rack, short, length 7 cm - spare part
  • Arm / bike frame holder for towbar-mounted bike rack, short, length 7 cm - spare part
  • Arm / bike frame holder for towbar-mounted bike rack, short, length 7 cm - spare part
  • Code: SX1014B
  • EAN: 8595697701115
SixtolYou can purchase the goods from the seller Sixtol
Out of stock
24,19 Eur including VAT

Arm / bike frame holder for towbar-mounted bike carrier, length 7cm - replacement part SIXTOL

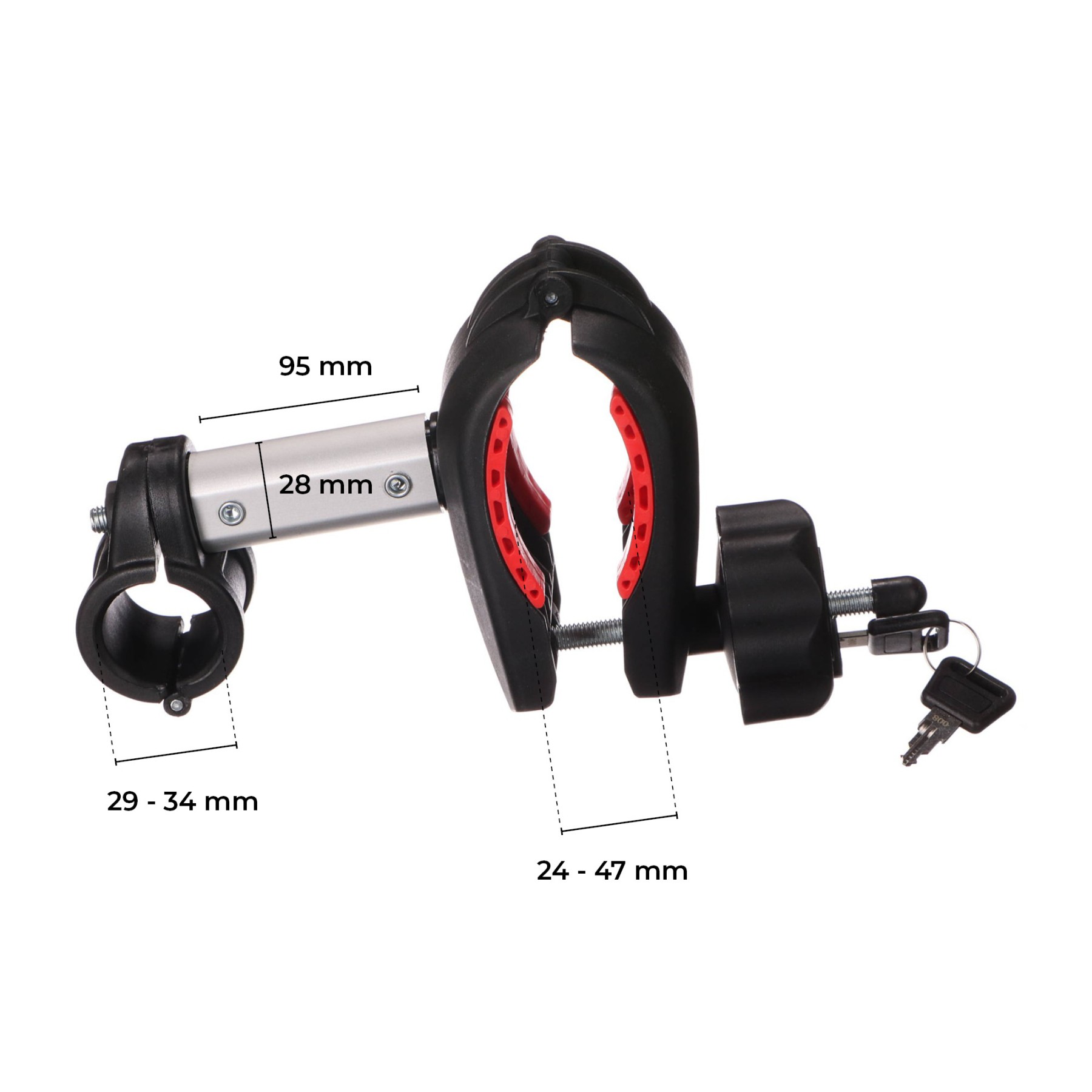

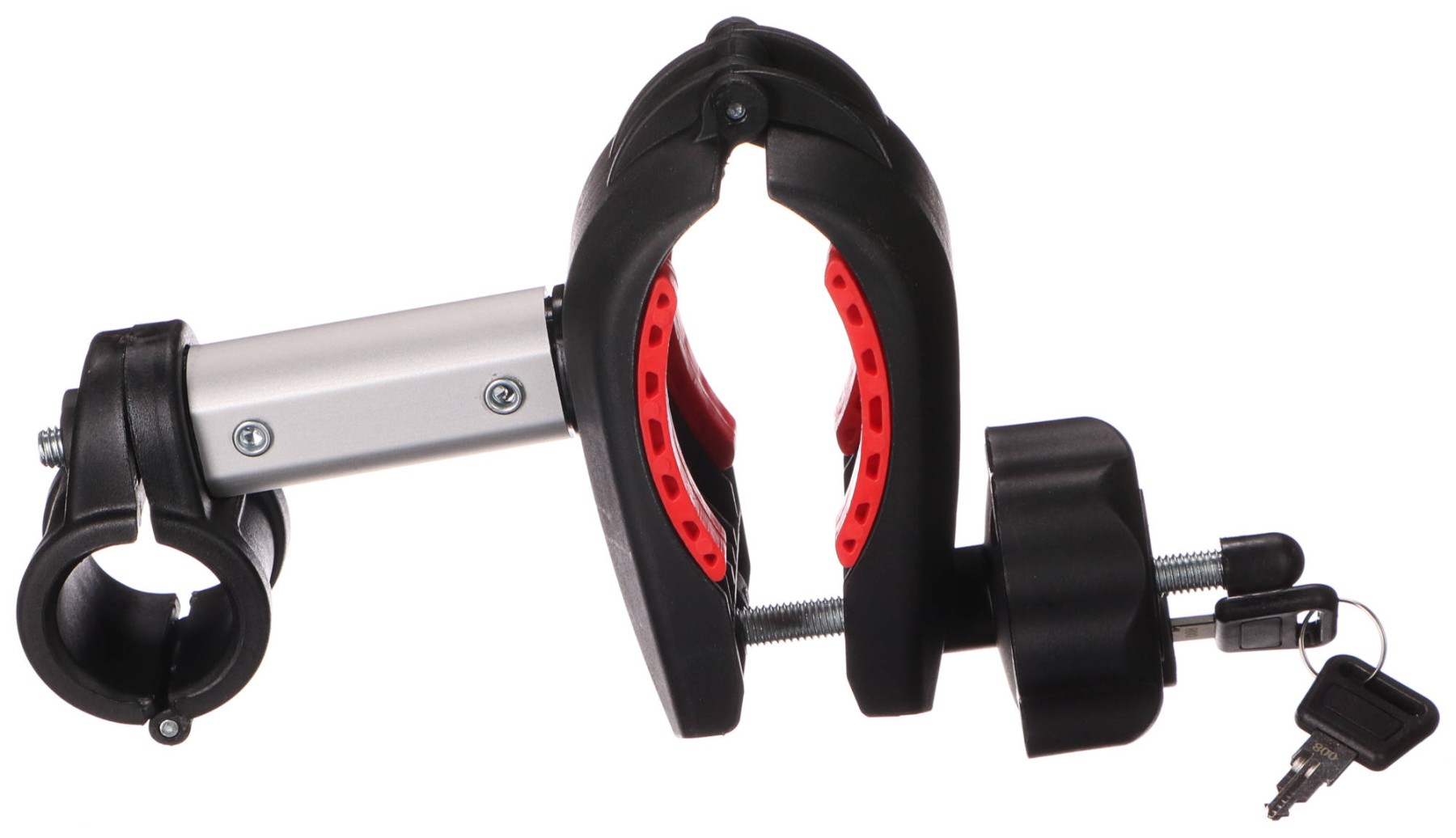

Universal short arm for a towbar-mounted bike carrier used to secure the bicycle frame to the carrier frame at a distance of 7 cm. The clamp for the bike frame can accommodate a frame up to 39 x 50 mm (w x h) and the clamp is internally fitted with a soft rubber insert that protects the bike frame from scratching. The sleeve for the carrier frame has an inner diameter of 30 - 33 mm. The arm is made of aluminium and the clamps are made of durable ABS plastic. The clamp for securing the bike frame is equipped with a lock that protects the bike from theft from the carrier. The arm is suitable for the SIXTOL E-BIKE 2 SX1014 carrier.

Main advantages:
  • Easy mounting on the bike carrier
  • Soft rubber insert protects the bike frame from damage

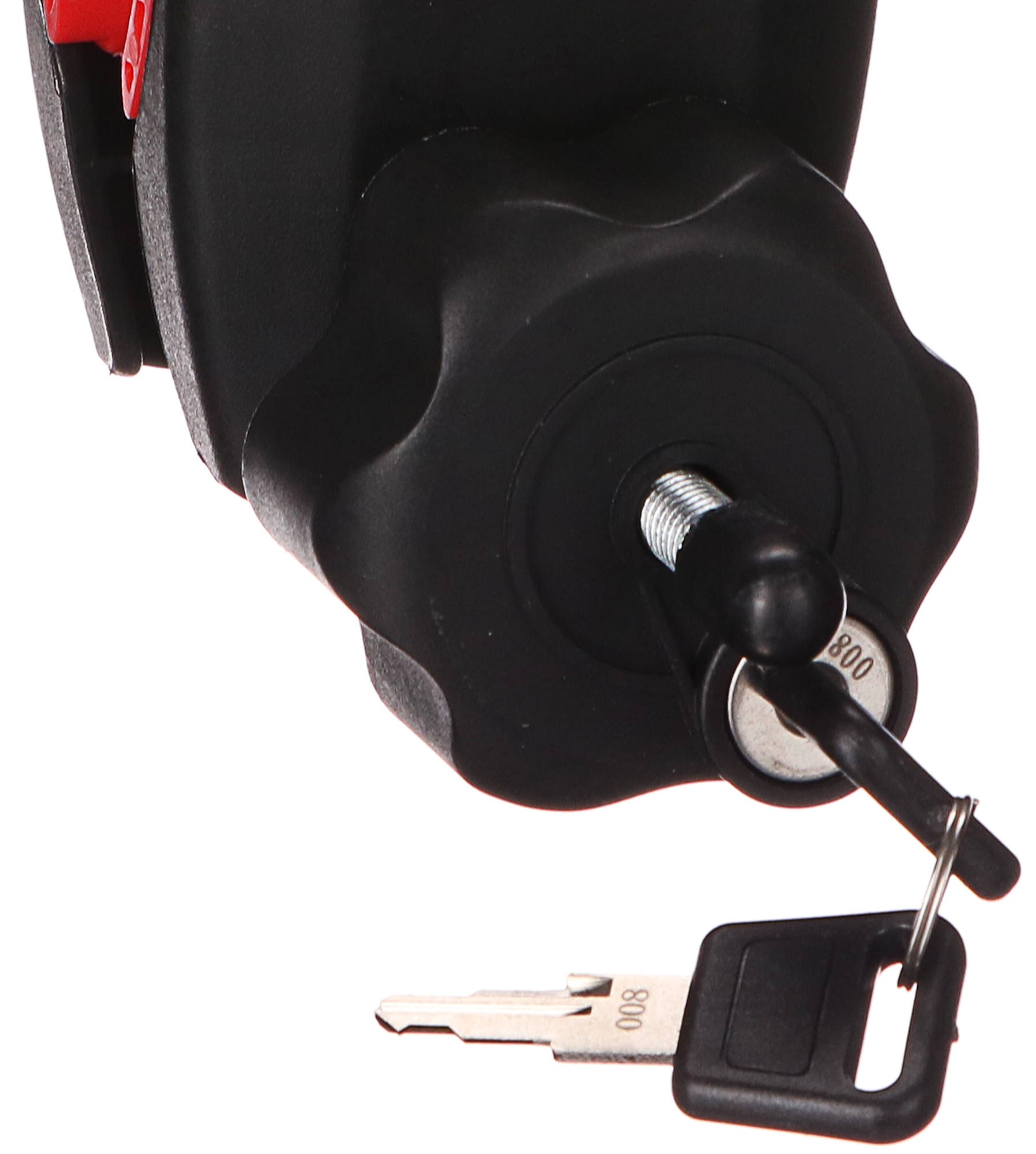

  • Lock on the bike frame - protection against thieves
Package contents:
  • Arm with a length of 7 cm for a towbar-mounted bike carrier
  • 2 x keys for locking the arm to the carrier
Suitable for carrier brands:
  • SIXTOL
  • Compass
  • Multipa
Technical parameters:
  • Replacement part for: SIXTOL E-BIKE 2 - SX1014
  • Tube length between clamp and sleeve: 7 cm

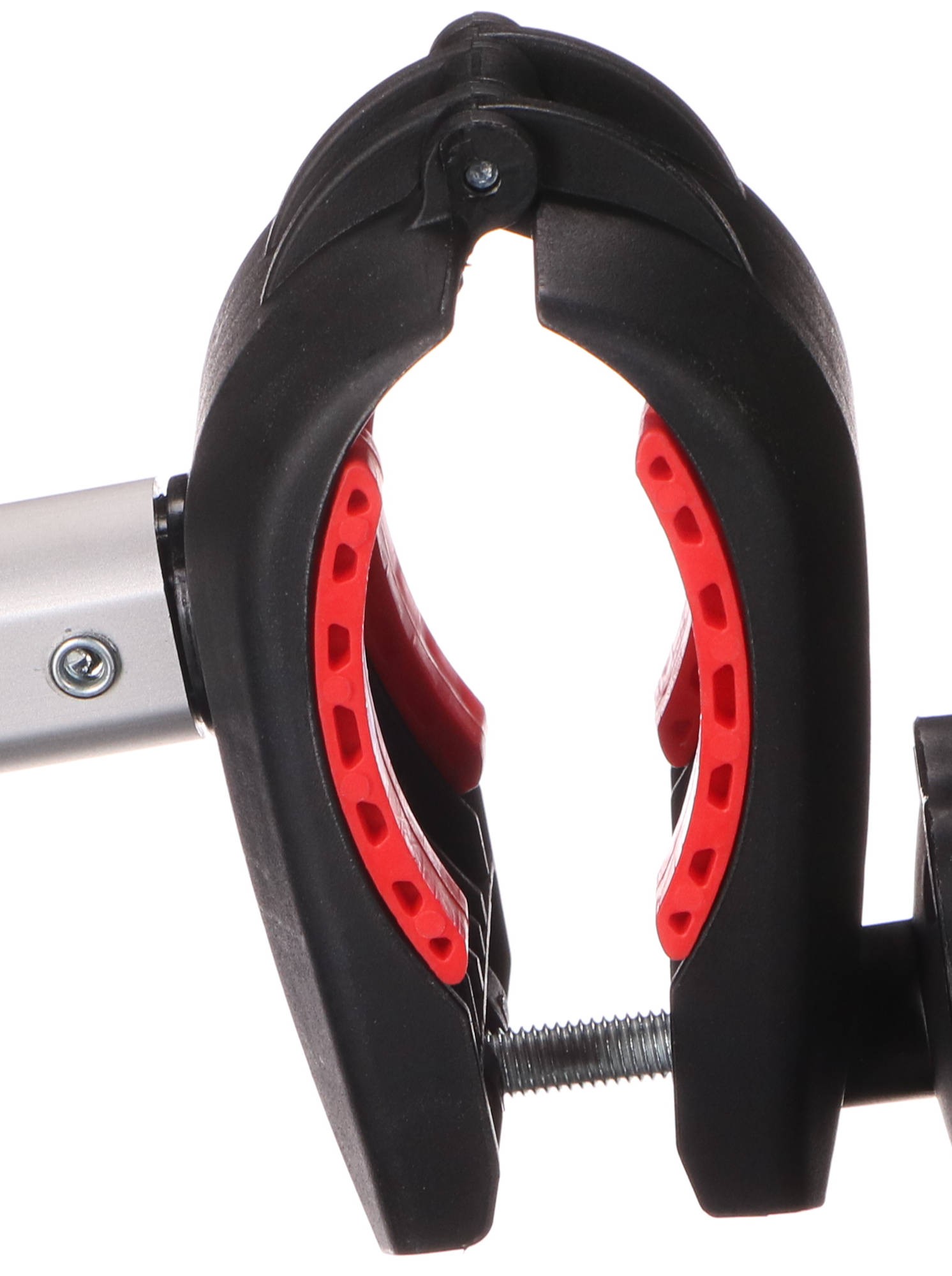

  • For bike frame diameter: up to 39 x 50 mm (w x h)

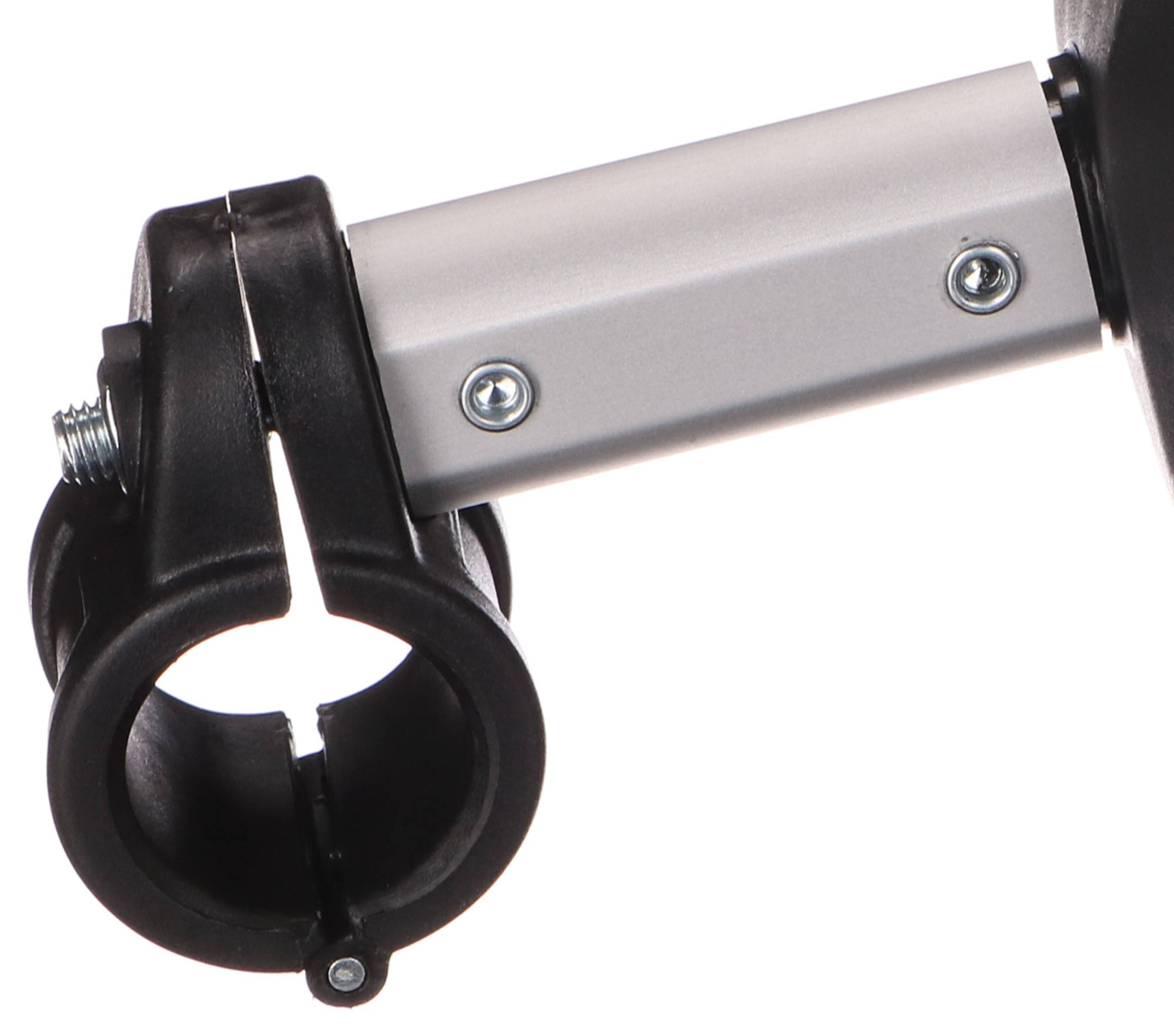

  • For carrier frame diameter: 30 - 33 mm
  • Material: aluminium, ABS plastic

Main parameters

  • EAN8595697701115
  • CodeSX1014B
  • Package weight0,40 kg
  • Package height7 cm
  • Package length25 cm
  • Package width15 cm
Full description and parameters Hide description and parameters
  • Arm / bike frame holder for towbar-mounted bike rack, short, length 7 cm - spare part
  • Arm / bike frame holder for towbar-mounted bike rack, short, length 7 cm - spare part
  • Arm / bike frame holder for towbar-mounted bike rack, short, length 7 cm - spare part
  • Arm / bike frame holder for towbar-mounted bike rack, short, length 7 cm - spare part
  • Arm / bike frame holder for towbar-mounted bike rack, short, length 7 cm - spare part

Your questions

Dobrý den, máte k dispozici k zakoupení i větší průměr ramena - držáku rámu kola? Zakoupil jsem v nedávné době SIXTOL BIKE 2 a zjistil, že horní ani dolní rámovou trubku mého horského kola Superior (karbonový rám) tento držák neobejme. Děkuji za odpověď. S pozdravem Jakub Šnajdr

Hello, do you have a larger-diameter arm/frame holder available for purchase? I recently bought the SIXTOL BIKE 2 and found that neither the upper nor the lower frame tube of my Superior mountain bike (carbon frame) is gripped by this holder. Thank you for your answer. Kind regards Jakub Šnajdr

Jakub, 11. 05. 2023
cs
Original message incs

Dobrý den, bohužel větší průměr ramena nemáme.

Hello, unfortunately we do not have a larger arm diameter.

— Team Sixtol, 28. 01. 2026
