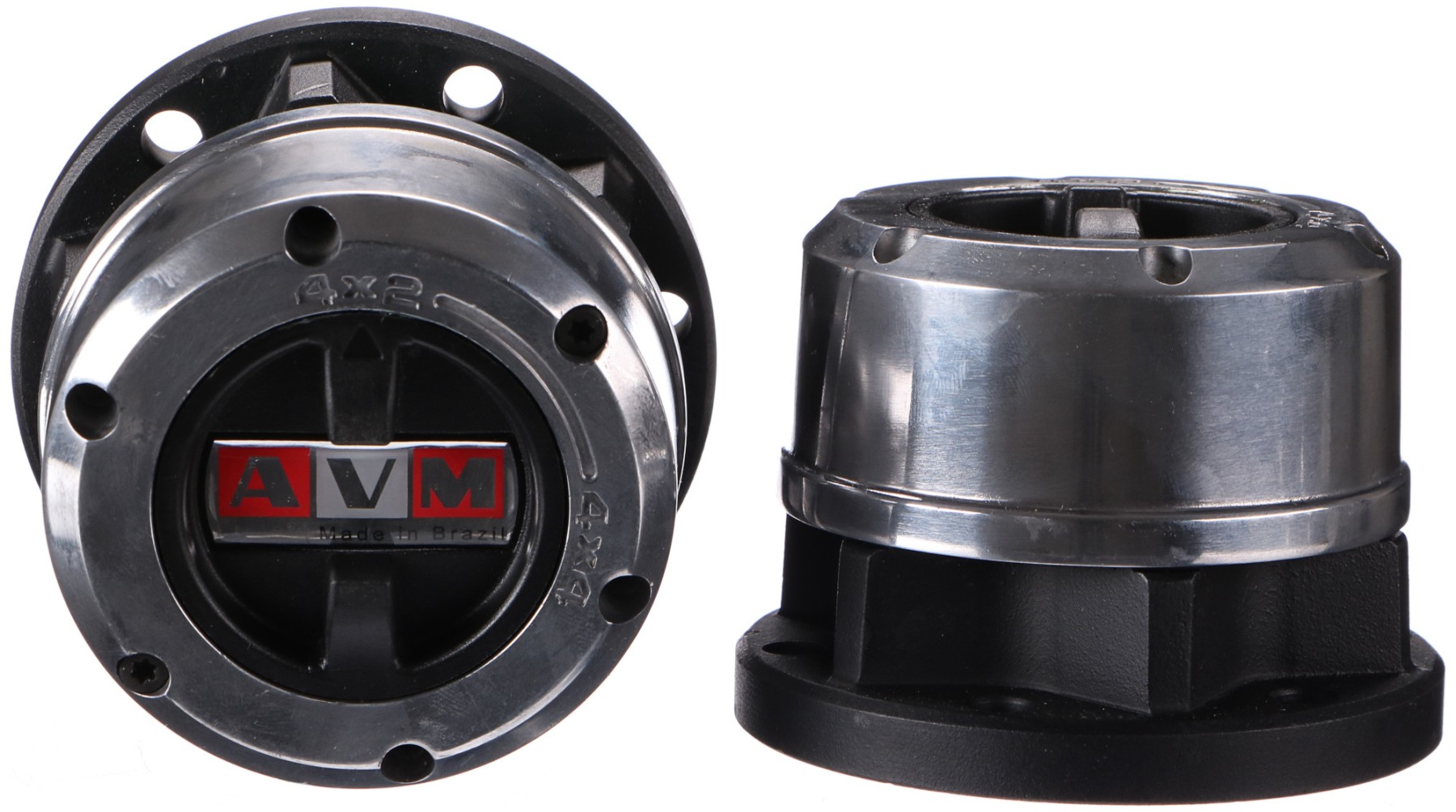

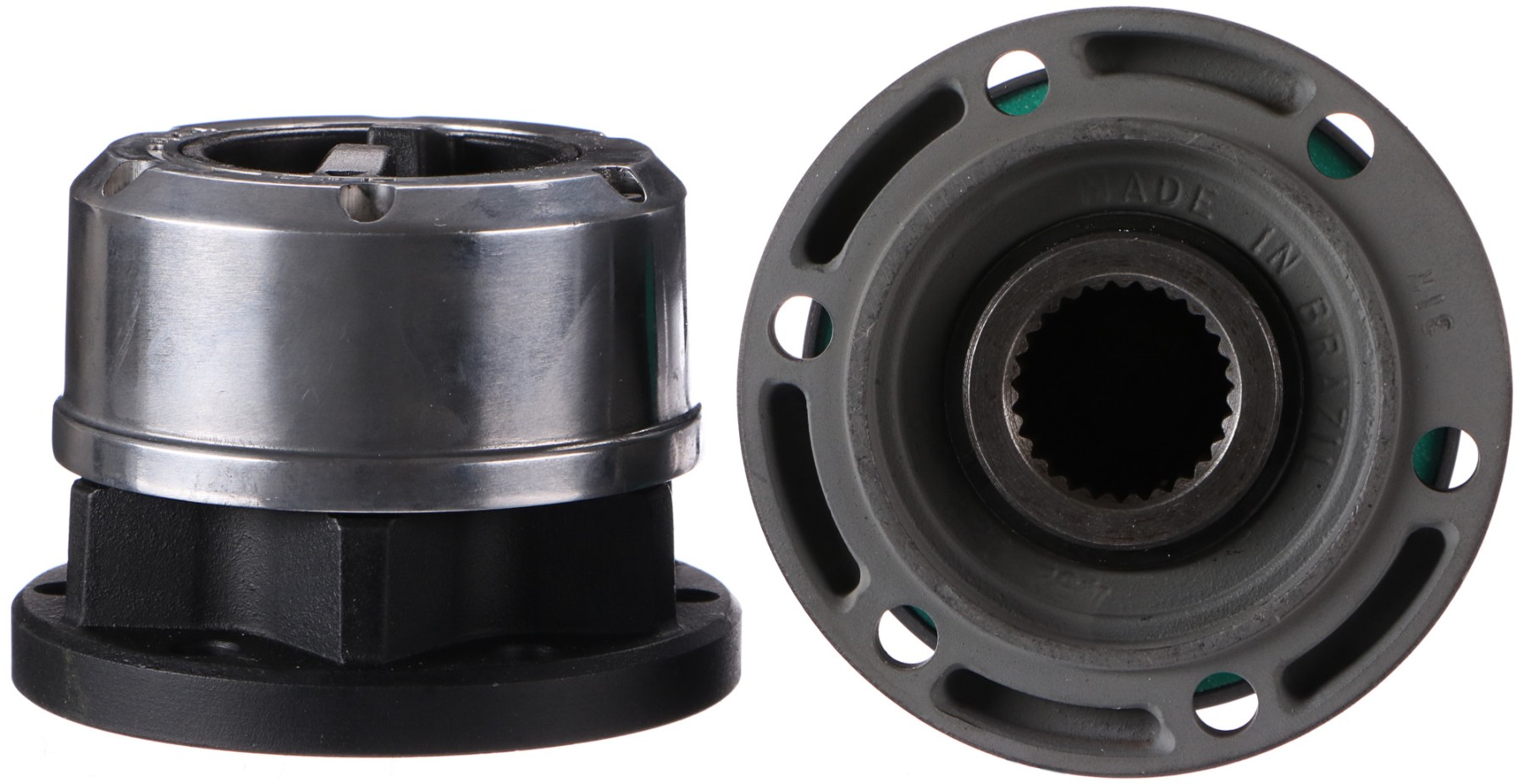

Freewheeling hub AVM 452 - Nissan
Set of 2 manual freewheeling hubs AVM 452 serves as detachable freewheeling wheel hubs for the front wheels on selected 4x4 and off-road vehicles. After manual engagement the hub connects the wheel to the front axle half-shaft so that when four-wheel drive is engaged driving force can also be transmitted to the front wheels. After disengagement the front wheels rotate freely in 4x2 driving without unnecessary spinning of front drive components, which helps reduce mechanical resistance and wear. The freewheeling hubs complement the 4x4 drive control and do not replace its engagement in the vehicle. Robust steel construction protected by an epoxy coating increases resistance to external influences and precisely manufactured internal components support reliable function in normal operation as well as in more demanding off-road conditions.
Suitable for models:Nissan- Mistral
- D21
- Terano II (1991-)
Technical specifications:- Number of splines on the axle shaft: 27
- Number of bolts: 6
- Thread of mounting bolts: M8x1.25
- Bolt circle diameter (PCD): 83 mm
- AVM service kit: 4444
- Package contents: 2 pcs
- Package dimensions: 11 x 22 x 9 cm
- Package weight: 5 kg
