Automotive Air Conditioning Pressure and Leak Testing Kit MECHANIC AC TESTER 1 SIXTOL
The MECHANIC AC TESTER 1 kit is an ideal tool for diagnosing and servicing automotive air conditioning systems. It enables precise pressure measurement and leak testing, helping to detect refrigerant leaks. The gauges feature color-coded scales for easy readability and accurate pressure values. The kit includes three hoses (red, blue, and yellow), each 150 cm long, for easy connection to the AC system. With 1/4" quick couplers, connections are simple and safe. The entire set is stored in a durable plastic case for easy storage and transport.
Main advantages:- Accurate gauges with color-coded scales
- Long hoses (150 cm) for convenient handling
- Compatible with refrigerants R12, R134a, and R22
- Durable metal construction with 1/4" quick couplers
- Stored in a practical plastic case
Use:- Measuring pressure in car air conditioning systems
- Diagnosing and testing for system leaks
- Service work on AC systems

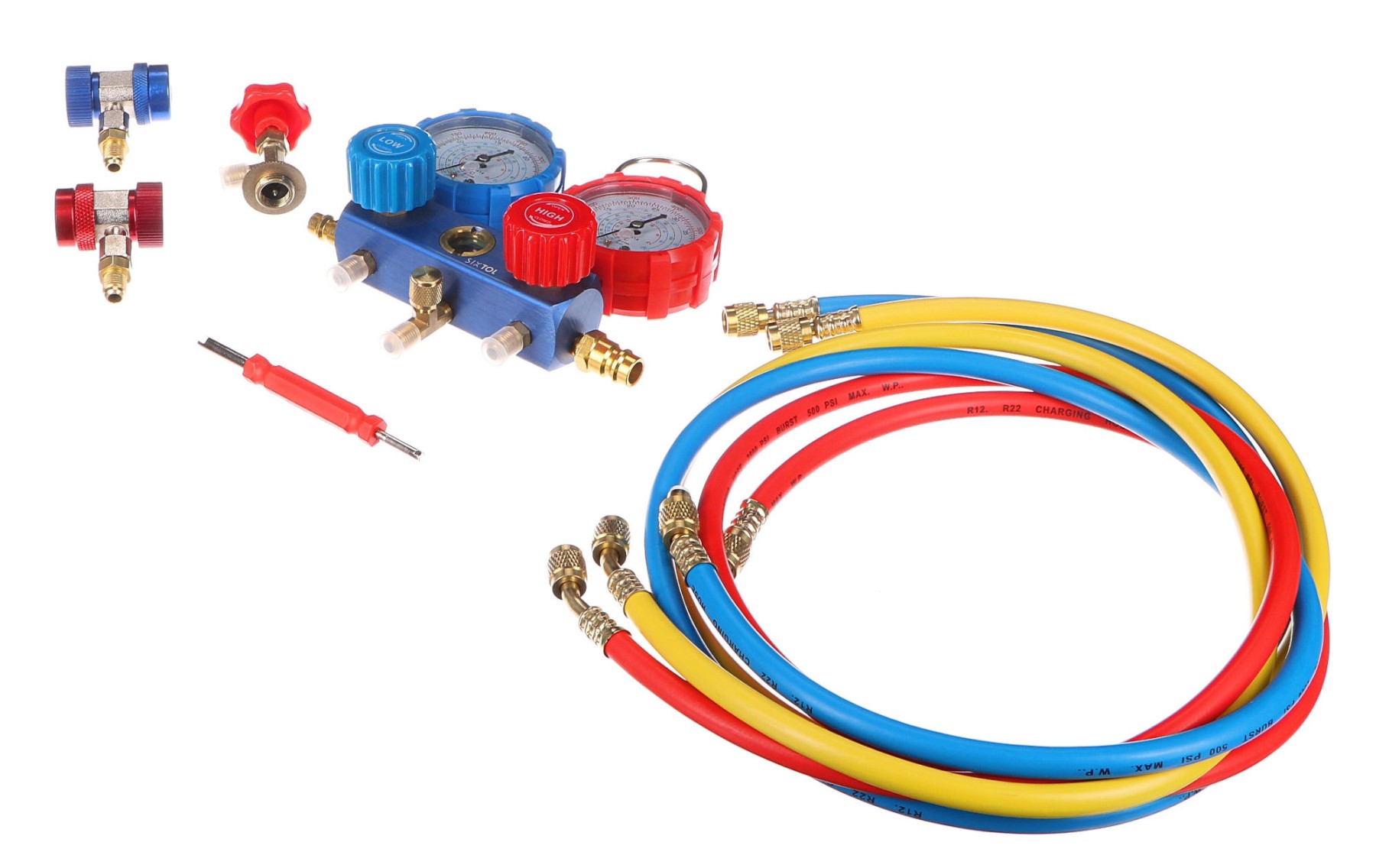

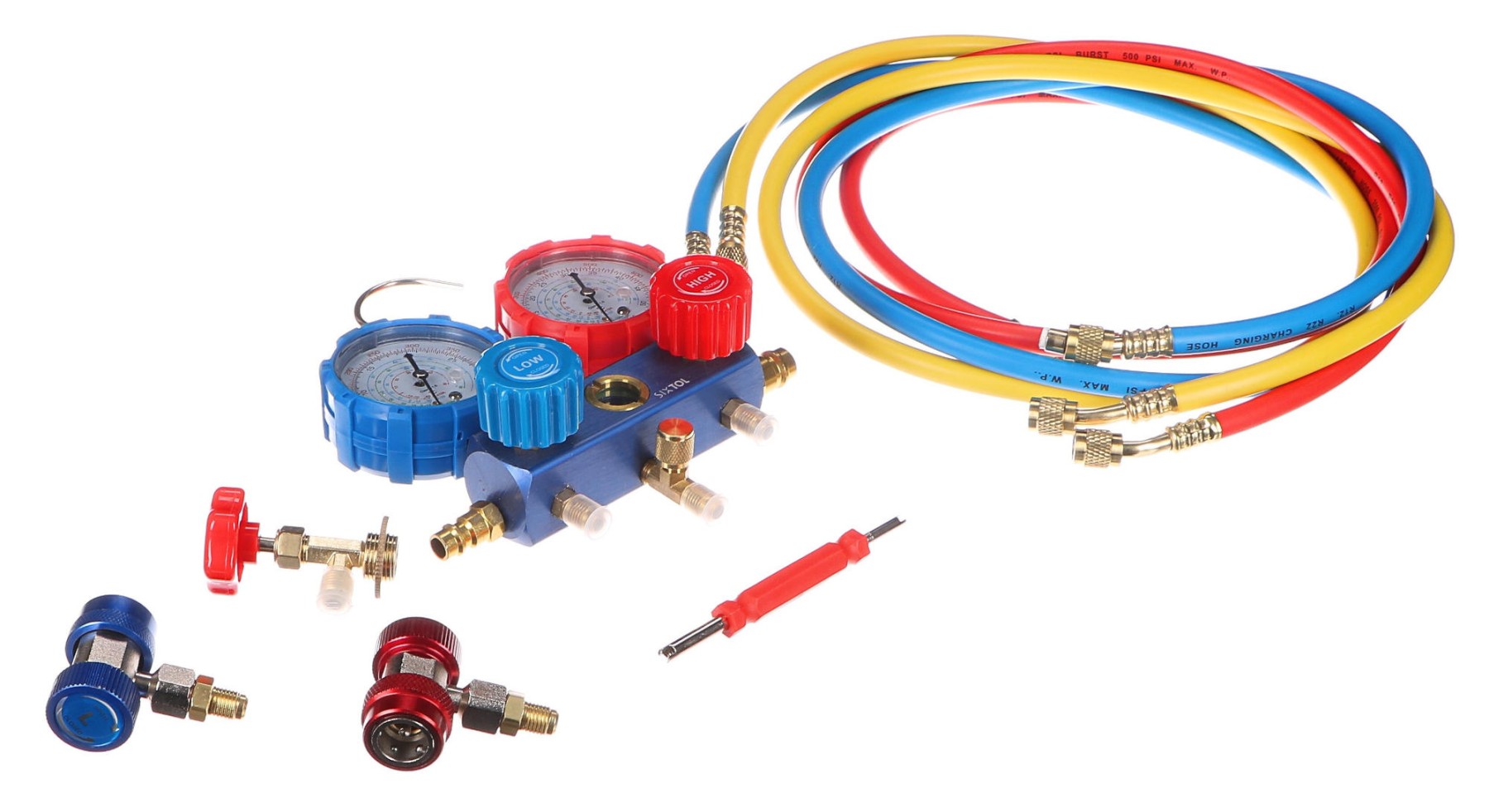

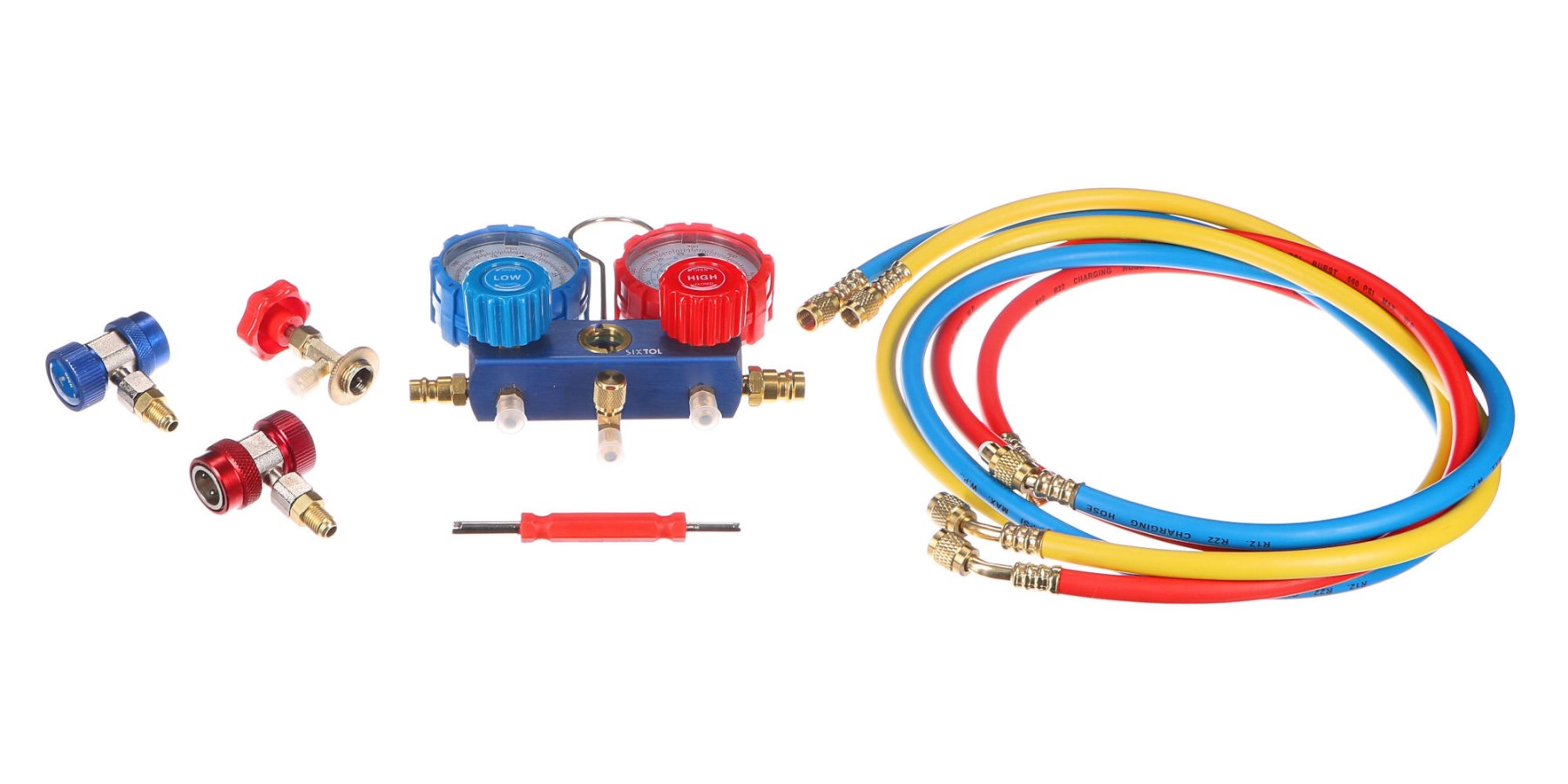

Kit contents:- 1x manifold unit with two pressure gauges
- 1x blue hose (low pressure) – 150 cm
- 1x red hose (high pressure) – 150 cm
- 1x yellow hose (charging) – 150 cm
- 2x 1/4" quick couplers (blue and red)
- 1x refrigerant control valve
- 1x valve core service tool
- 1x plastic case
Technical specifications:- Compatible refrigerants: R12, R134a, R22
- Gauge range - Low pressure: -20 to 55 °C, 0–15.5 bar (0–250 PSI)
- Gauge range - High pressure: -10 to 88 °C, 0–35 bar (0–500 PSI)
- Working pressure: max. 500 PSI
- Burst pressure: 2500 PSI
- Connection: 1/4" quick couplers
- Hose length: 150 cm
- Package dimensions:
- Weight:
