Freewheel AVM 466 - Daihatsu

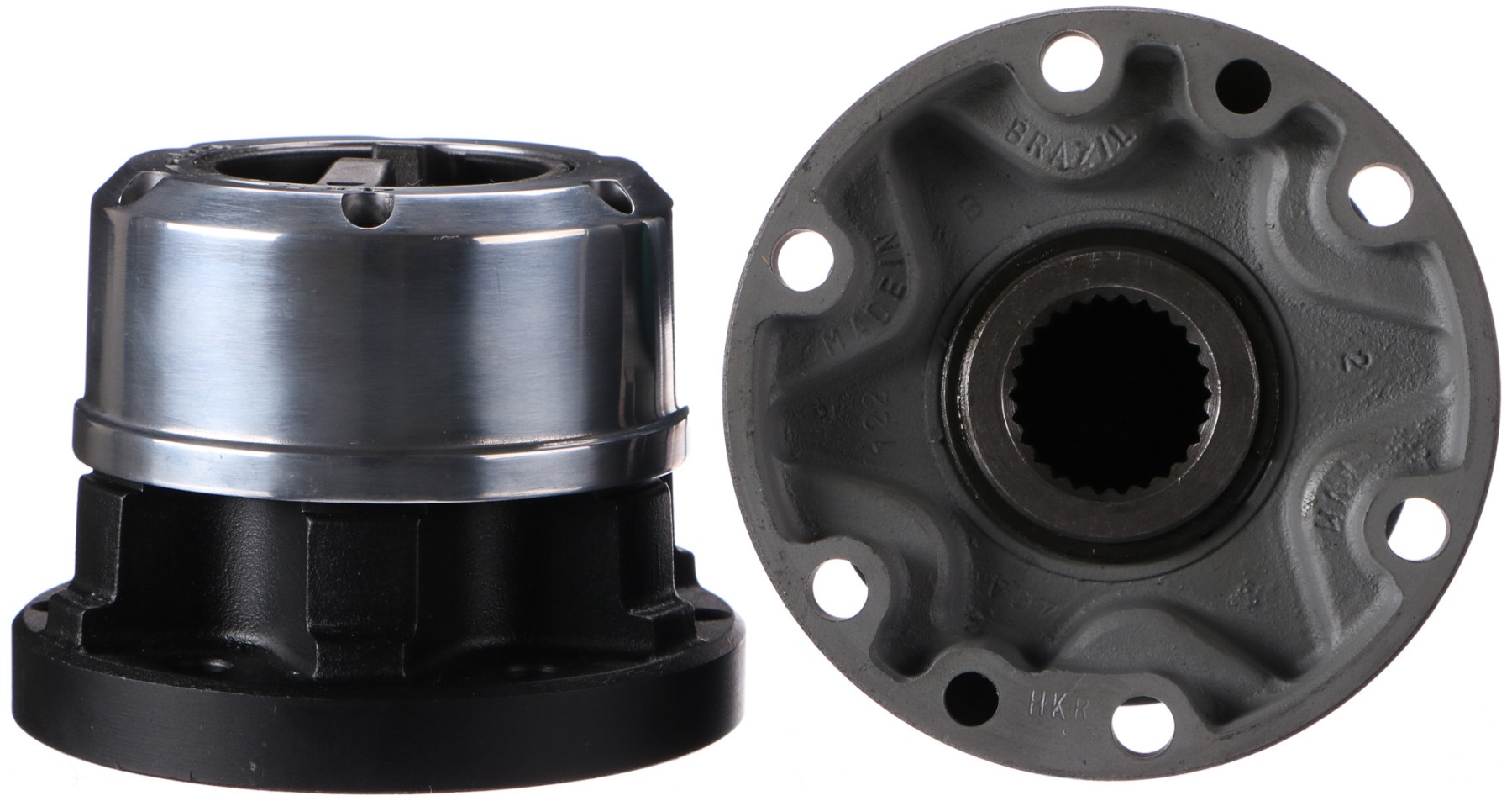

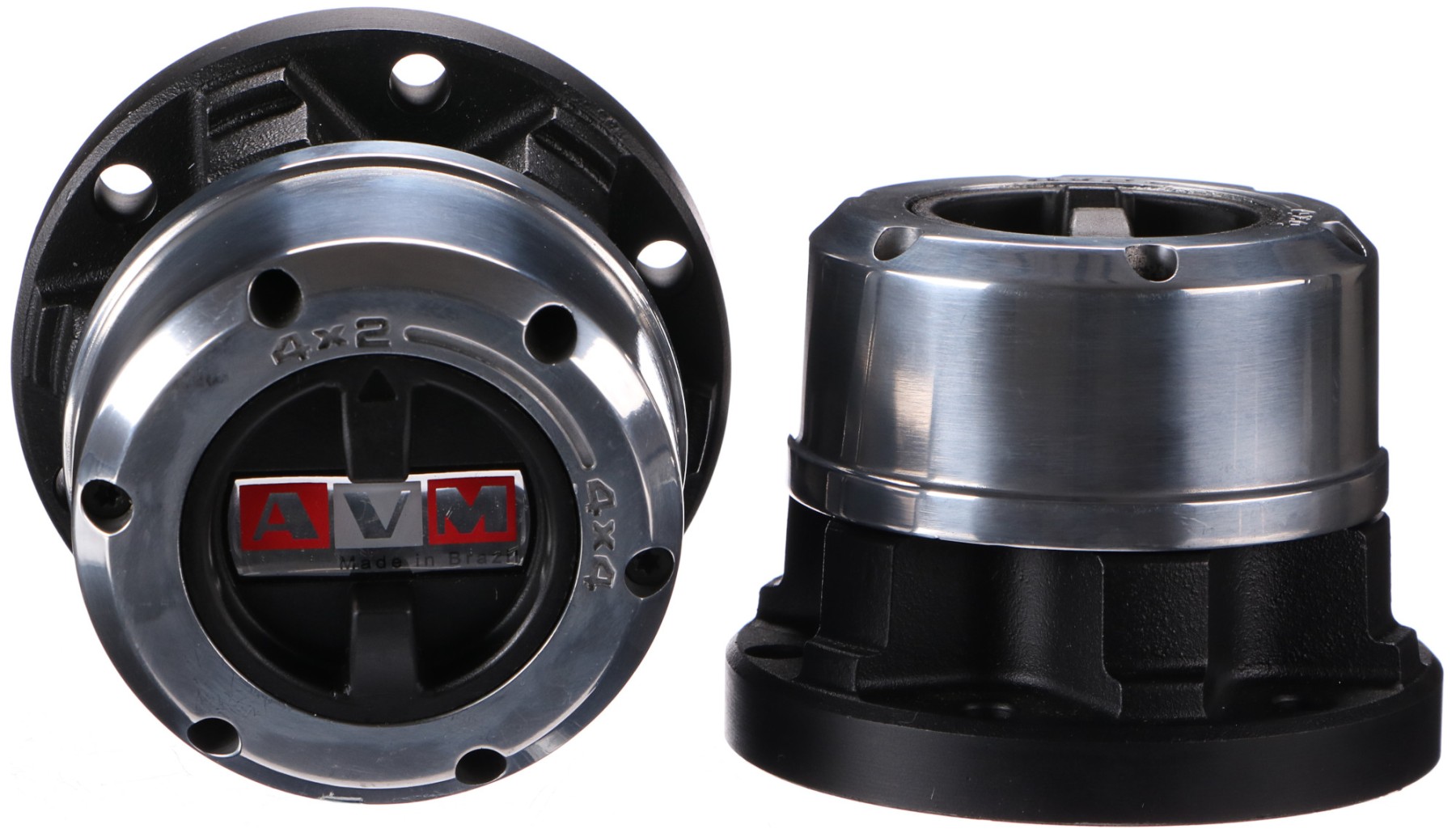

Set of 2 manual freewheel hubs AVM 466 serve as disconnectable freewheel hubs for the front wheels on selected 4x4 and off-road vehicles. When manually engaged, the wheel hub connects to the front axle half-shaft, so with all-wheel drive engaged the driving force can also be transmitted to the front wheels. When disengaged, the front wheels rotate freely when driving in 4x2, preventing unnecessary rotation of front drivetrain components, which helps reduce mechanical drag and wear. The freewheels complement the vehicle's 4x4 control and do not replace its activation. The robust steel construction with epoxy coating increases resistance to external conditions and the precisely manufactured internal components support reliable operation in normal use as well as in demanding off-road conditions.
Suitable for models:Daihatsu- F 73/78
- Rocky, Foreza (1990-)
Technical specifications:- Number of splines on the half-shaft: 26
- Number of bolts: 6
- Thread of mounting bolts: M8x1.25
- Pitch circle diameter (PCD): 90 mm
- AVM service kit: 4404
- Package contents: 2 pcs
- Package dimensions: 11 x 21.5 x 9 cm
- Package weight: 5 kg
