MECHANIC TROLLEY KEVIN 274 workshop trolley with tools, 7 drawers, 274 pcs of tools

MECHANIC TROLLEY KEVIN 274 workshop trolley with tools, 7 drawers, 274 pcs of tools

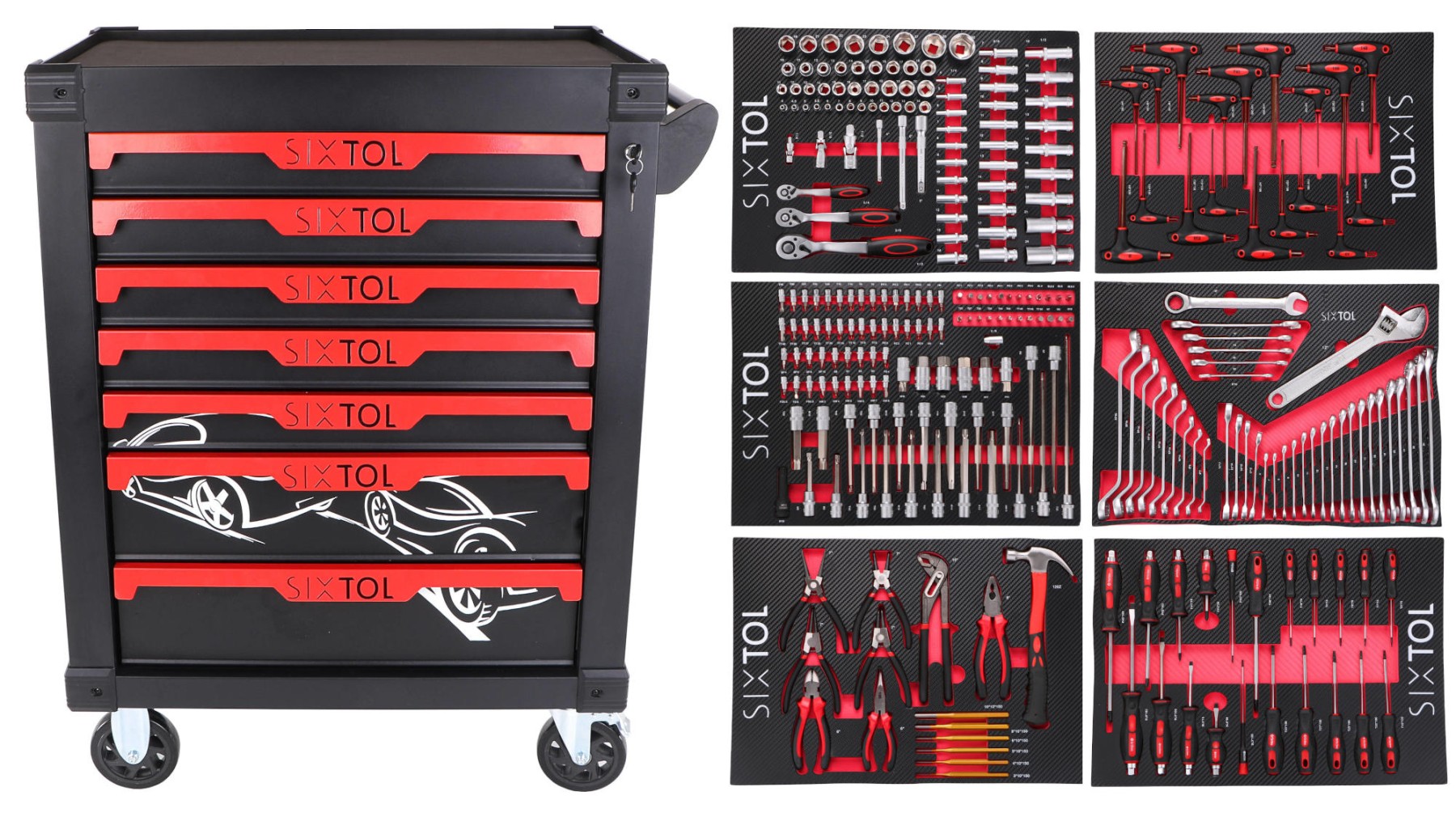

The MECHANIC TROLLEY KEVIN 274 workshop trolley combines a solid SPCC steel sheet body with seven drawers on quiet ball-bearing slides and a rich equipment of 274 pieces of tools stored in precisely shaped EVA modules that provide perfect overview, secure storage and quick orientation during work. The equipment includes a 21-piece screwdriver set for both fine and heavy tasks, an 80-piece set of sockets, ratchets, extensions and universal joints in three square-drive sizes, a 102-piece kit of bits, insert keys, adapters and special adapters, a 15-piece module of pliers, hammer and chisels for gripping, striking and shaping tasks, 17 ergonomic T-handle keys for efficient use in hard-to-reach places and a 39-piece wrench set including combination, open-end, angled and adjustable wrenches. Each module is made of durable EVA foam that protects the tools and prevents movement. The trolley features central locking of all drawers, four swivel wheels of 12.7 cm diameter (two with brakes) for stable handling and a top work surface with a rubber mat. Thanks to its construction and complete equipment, it is an ideal mobile station for auto repair shops, workshops and home garages, providing durability, order and comfortable access to all tools.

Main advantages:

• Complete set of 274 pcs of tools in precisely shaped EVA modules.

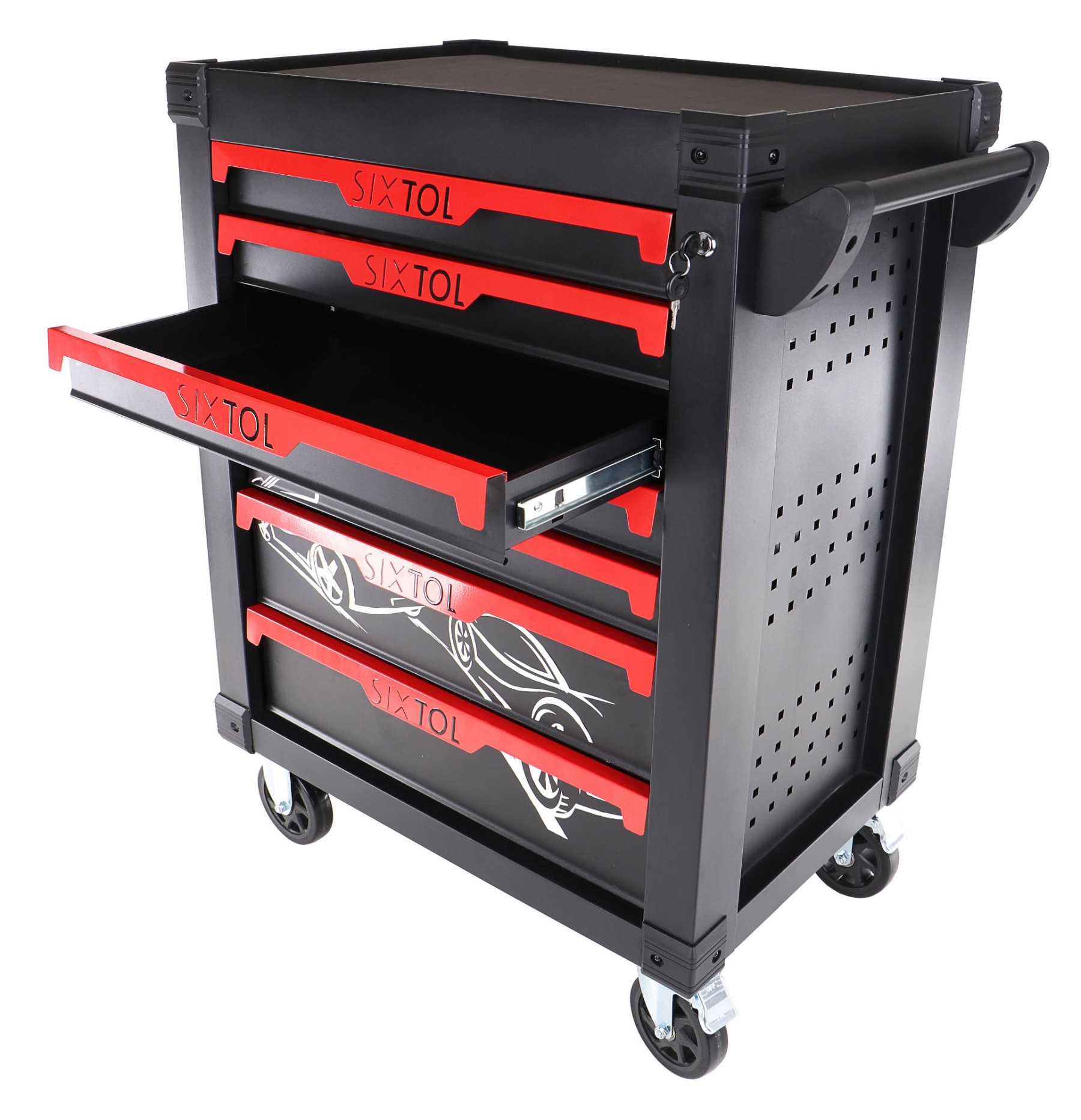

• Seven drawers with smooth and quiet ball-bearing slides.
• Robust body and drawer construction from SPCC steel sheet.
• Central locking of all drawers for secure tool storage.
• Wide range of tools: screwdrivers, sockets, bits, wrenches, pliers, T-handle keys and more.
• Swivel wheels of 12.7 cm diameter, two with brakes, for easy handling.
• EVA modules protect tools, provide clarity and speed up work.

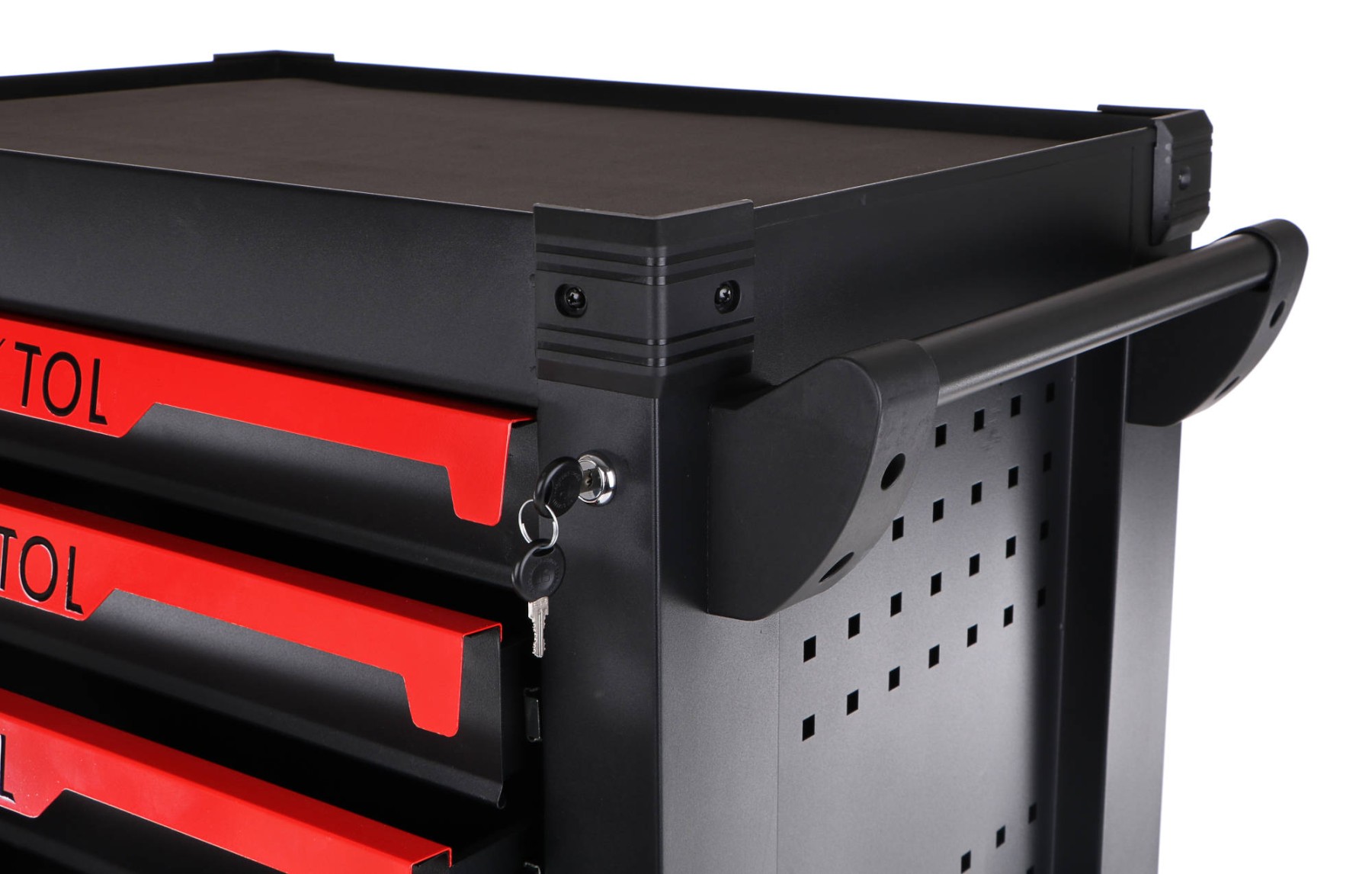

• Top work surface with rubber mat for placing and small tasks.

Usage:

• Service, assembly and disassembly tasks in auto repair shops, workshops and industrial operations.
• Maintenance and repair of cars, machines and equipment.
• Tool organization in professional workshops and demanding home garages.
• Fine and heavy tasks thanks to the set of screwdrivers, wrenches, T-handle keys and striking tools.
• Precise work with sockets, bits and adapters across a wide range of service tasks.

Tool contents:

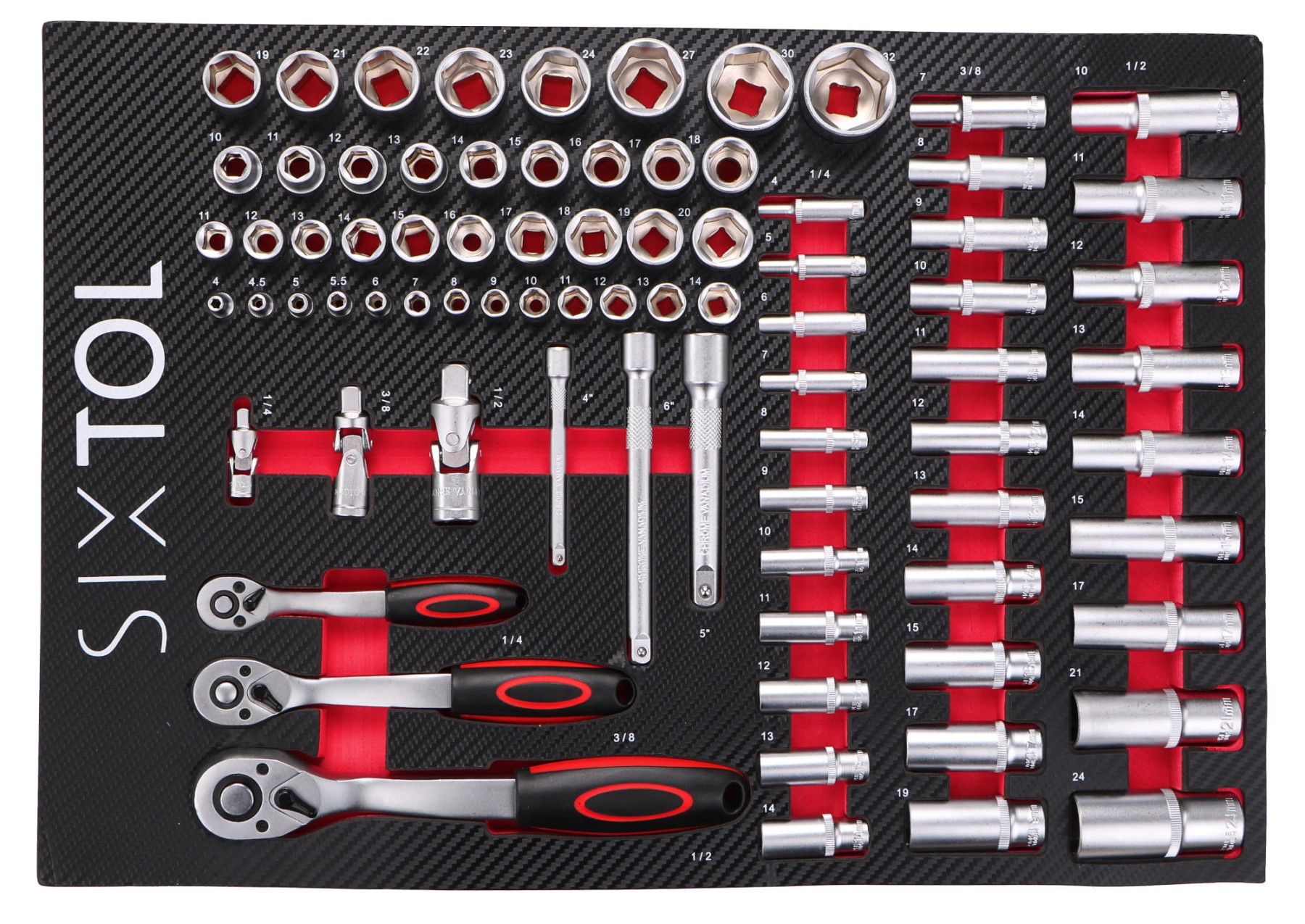

• 1. Drawer - 80× sockets, ratchets and accessories
• 8× 1/2" sockets (short)
- 19; 21; 22; 23; 24; 27; 30; 32 mm
• 13× 1/4" sockets (short – small)
- 4; 4.5; 5; 5.5; 6; 7; 8; 9; 10; 11; 12; 13; 14 mm
• 9× 1/4" sockets (short – standard)
- 10; 11; 12; 13; 14; 15; 16; 17; 18 mm
• 10× 3/8" sockets (short)
- 11; 12; 13; 14; 15; 16; 17; 18; 19; 20 mm
• 11× 1/4" sockets (long)
- 4; 5; 6; 7; 8; 9; 10; 11; 12; 13; 14 mm
• 11× 3/8" sockets (long)
- 7; 8; 9; 10; 11; 12; 13; 14; 15; 17; 19 mm
• 9× 1/2" sockets (long)
- 10; 11; 12; 13; 14; 15; 17; 21; 24 mm
• 3× Universal joints (universal)
- 1/4"; 3/8"; 1/2"
• 3× Adapters / extensions
- extension 1/4", length 10.2 cm (4"); extension 3/8", length 15.2 cm (6"); extension 1/2", length 12.7 cm (5")
• 3× Ratchets
- 1/4"; 3/8"; 1/2"

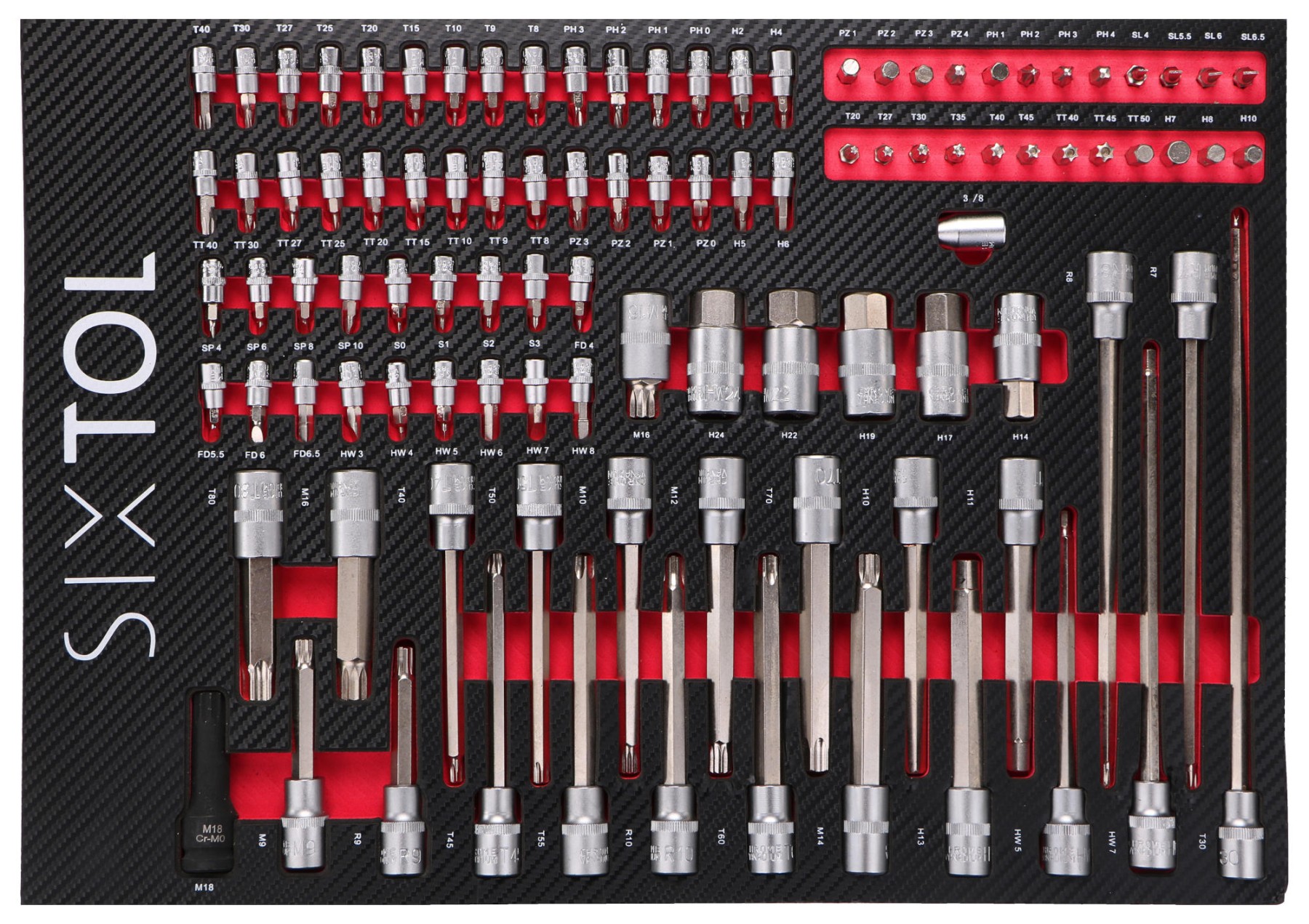

• 2. Drawer - 102× bits and adapters
• 48× Short bits in 1/4" bit holders - S2 steel
- Torx: T8, T9, T10, T15, T20, T25, T27, T30, T40
- Torx with hole: TT8, TT9, TT10, TT15, TT20, TT25, TT27, TT30, TT40
- Hex (Allen): H2, H4, H5, H6
- Phillips: PH0, PH1, PH2, PH3
- Pozidriv: PZ0, PZ1, PZ2, PZ3
- Flat: FD4, FD5.5, FD6, FD6.5
- "Security"/special: SP4, SP6, SP8, SP10
- Square/Robertson: S0, S1, S2, S3
- Insert hex (HW): HW3, HW4, HW5, HW6, HW7, HW8
• 24× Individual long bits 8×30 mm
- Top row: PZ1, PZ2, PZ3, PZ4, PH1, PH2, PH3, PH4, SL4, SL5.5, SL6, SL6.5
- Bottom row: T20, T27, T30, T35, T40, T45, TT40, TT45, TT50, H7, H8, H10
• 6× Short insert bits 1/2"
- M16 (XZN / triple square)
- H14, H17, H19, H22, H24 (Allen)
• 22× Long insert bits 1/2"
- T80, M9, M16, R9
- T40, T45, T50, T55, T60, T70, M10, M12, M14, H10, H13, H11, R10
- HW5
- R7, R8, HW7, T30
• 1× Impact insert bit 1/2" M18, material Cr-Mo
• 1× Coupling / adapter 3/8"

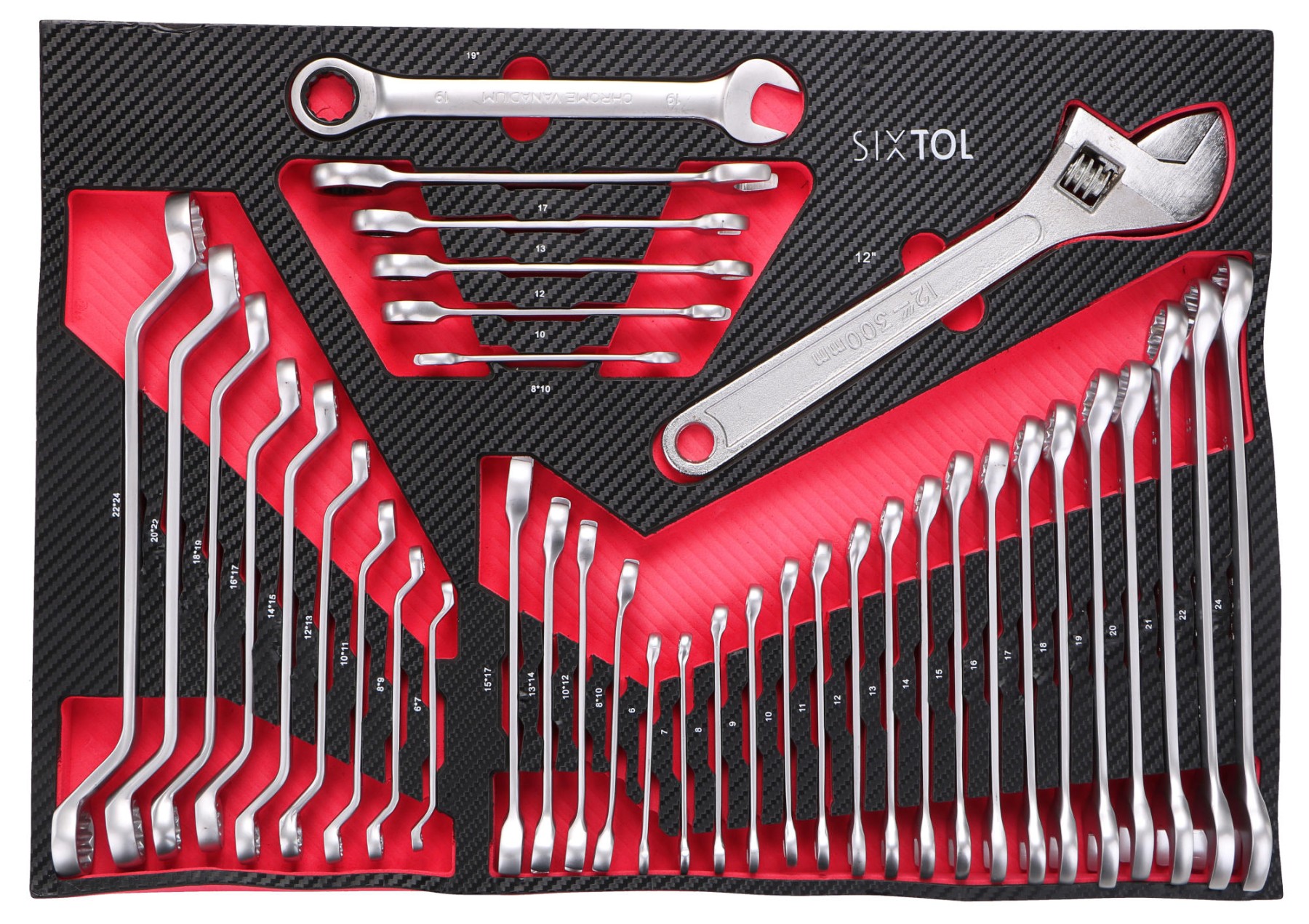

• 3. Drawer - 39× Combination wrenches
- 18× Torx combination wrenches: 6; 7; 8; 9; 10; 11; 12; 13; 14; 15; 16; 17; 18; 19; 20; 21; 22; 24 mm
- 9× Double-ended Torx combination wrenches: 6×7 mm, 8×9 mm, 10×11 mm, 12×13 mm, 14×15 mm, 16×17 mm, 18×19 mm, 20×22 mm, 22×24 mm
- 5× Ratcheting offset wrenches: 10; 12; 13; 17; 19 mm
- 1× Double open-end wrench: 8×10 mm
- 4× Flare nut (tube) wrenches: 8×10 mm, 10×12 mm, 13×14 mm, 15×17 mm
- 1× Adjustable wrench 30.48 cm (12")
- 1× EVA foam tool insert

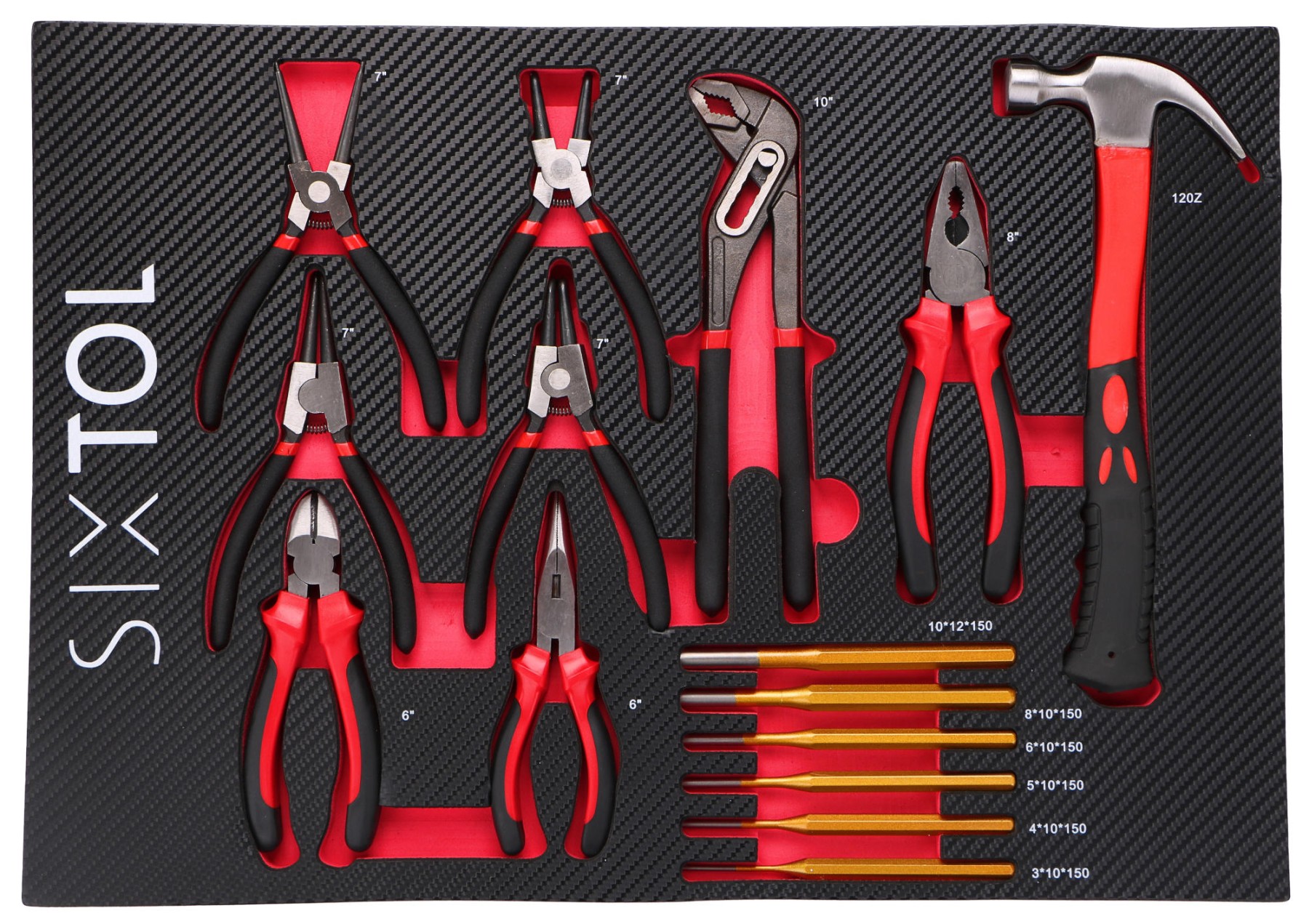

• 4. Drawer - 15× pliers and other tools
- 1× Hammer 340 g
- 1× Snipe pliers – 25.4 cm (10")
- 1× Cutting pliers - 15.24 cm (6")
- 1× Combination pliers - 15.24 cm (6")
- 1× Needle-nose pliers straight - 15.24 cm (6")
- 4× Snap ring pliers - 17.78 cm (7") - internal / external, straight / angled
- 6× Punches – center punches: Diameters: 3; 4; 5; 6; 8; 10 mm

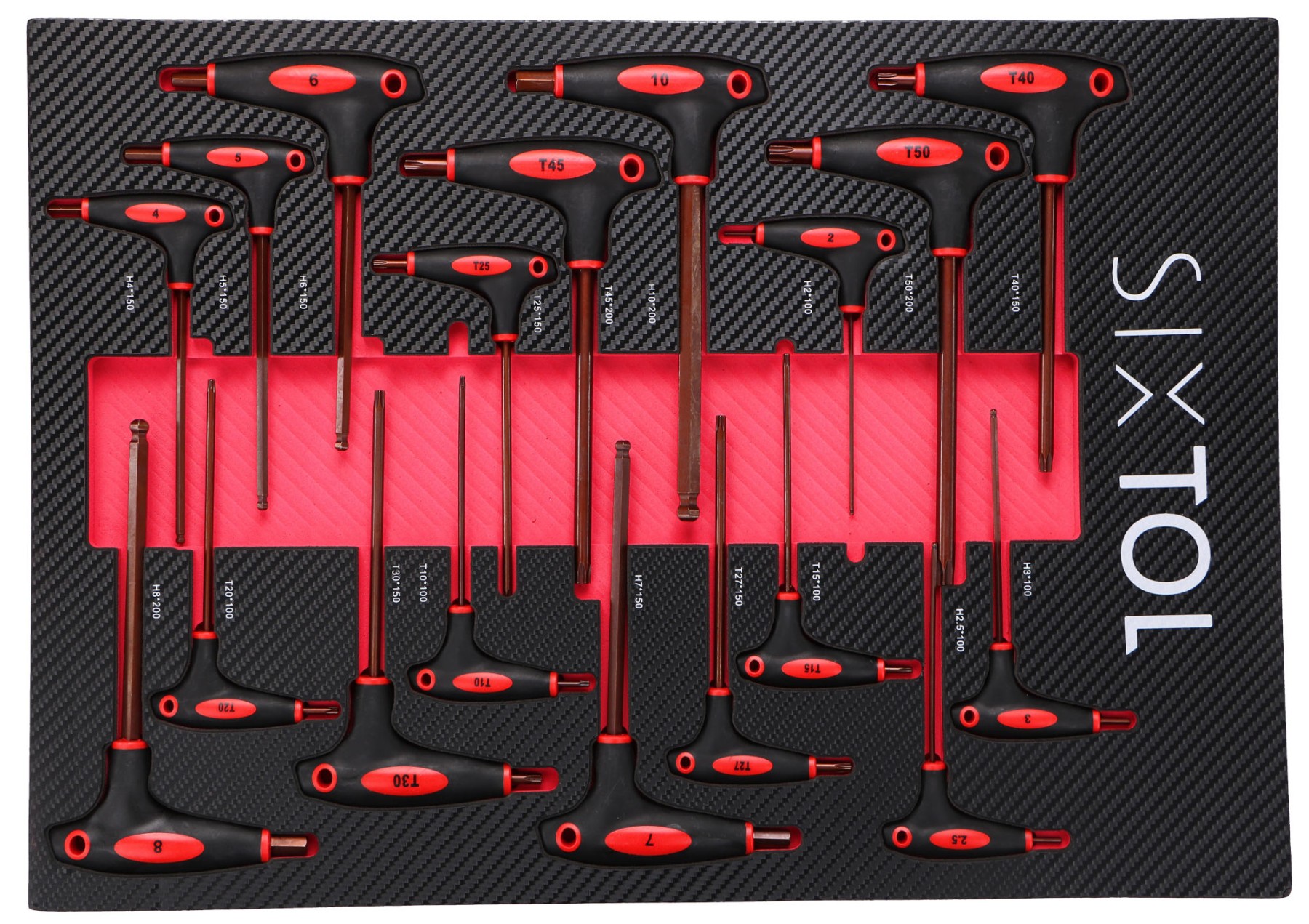

• 5. Drawer - 18× T-handle keys (material S2)
- TORX T-handle wrenches: T40 × 150 mm; T45 × 200 mm; T30 × 150 mm; T50 × 200 mm; T10 × 100 mm; T27 × 150 mm; T15 × 100 mm; T20 × 100 mm; T25 × 150 mm
- HEX T-handle wrenches (Allen): H2 × 100 mm; H2.5 × 100 mm; H3 × 100 mm; H4 × 150 mm; H5 × 150 mm; H6 × 150 mm; H7 × 150 mm; H8 × 200 mm; H10 × 200 mm

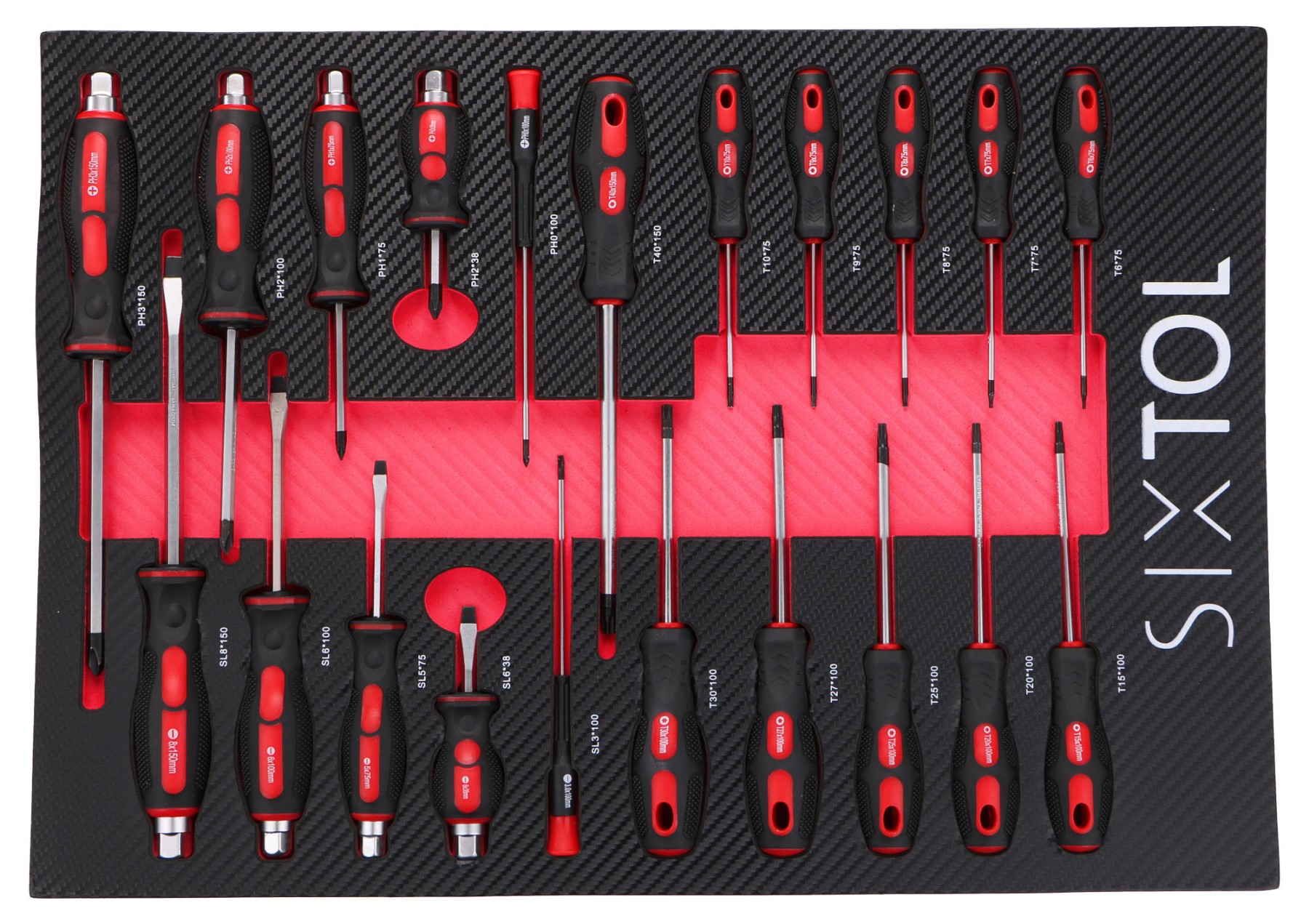

• 6. Drawer - 21× Through-handle screwdrivers (material 40Cr)
- 4× Phillips (+): PH2 × 38 mm; PH1 × 75 mm; PH2 × 100 mm; PH3 × 150 mm
- 4× Flat (–): SL6 × 38 mm; SL5 × 75 mm; SL6 × 100 mm; SL8 × 150 mm
- 11× Classic screwdrivers: T6 × 75 mm; T7 × 75 mm; T8 × 75 mm; T9 × 75 mm; T10 × 75 mm; T15 × 100 mm; T20 × 100 mm; T25 × 100 mm; T27 × 100 mm; T30 × 100 mm; T40 × 150 mm
- 2× Precision screwdrivers: SL3 × 100 mm (flat); PH0 × 100 mm (Phillips)

Package contents:

• 1× SX8001 - MECHANIC TROLLEY KEVIN workshop trolley with tools, 7 drawers
• 1× SX8101 - Tool module for workshop trolley MECHANIC TOOL TRAY 1, 80 pcs
• 1× SX8102 - Tool module for workshop trolley MECHANIC TOOL TRAY 2, 102 pcs
• 1× SX8111 - Tool module for workshop trolley MECHANIC TOOL TRAY 11, 39 pcs
• 1× SX8104 - Tool module for workshop trolley MECHANIC TOOL TRAY 4, 15 pcs
• 1× SX8105 - Tool module for workshop trolley MECHANIC TOOL TRAY 5, 18 pcs
• 1× SX8108 - Tool module for workshop trolley MECHANIC TOOL TRAY 8, 21 pcs

Technical specifications:

• Tool modules:
• Dimensions: 59.5 × 39.5 cm
• Material: EVA foam, steel
• Module weights: 1.9 kg; 5.7 kg; 5.7 kg; 3 kg; 1.9 kg; 5.3 kg

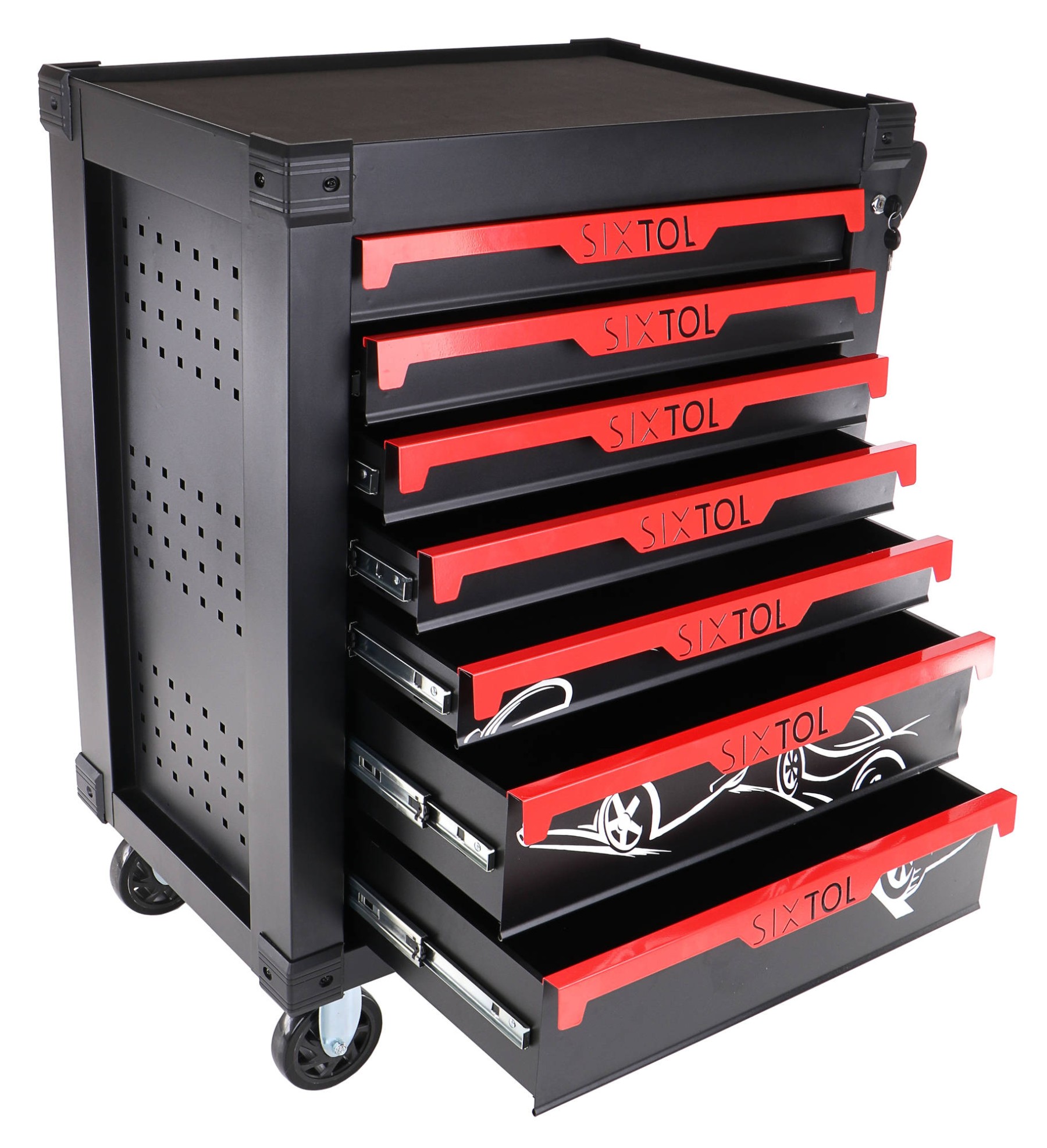

• Workshop trolley:
• Body material: SPCC steel, thickness 0.8 mm
• Drawer material: SPCC steel, thickness 0.6 mm
• Number of drawers: 7
• Drawer dimensions:
• 5× 600 × 410 × 75 mm (25 kg)
• 2× 600 × 410 × 135 mm (35 kg)
• Total load capacity of the trolley: 250 kg

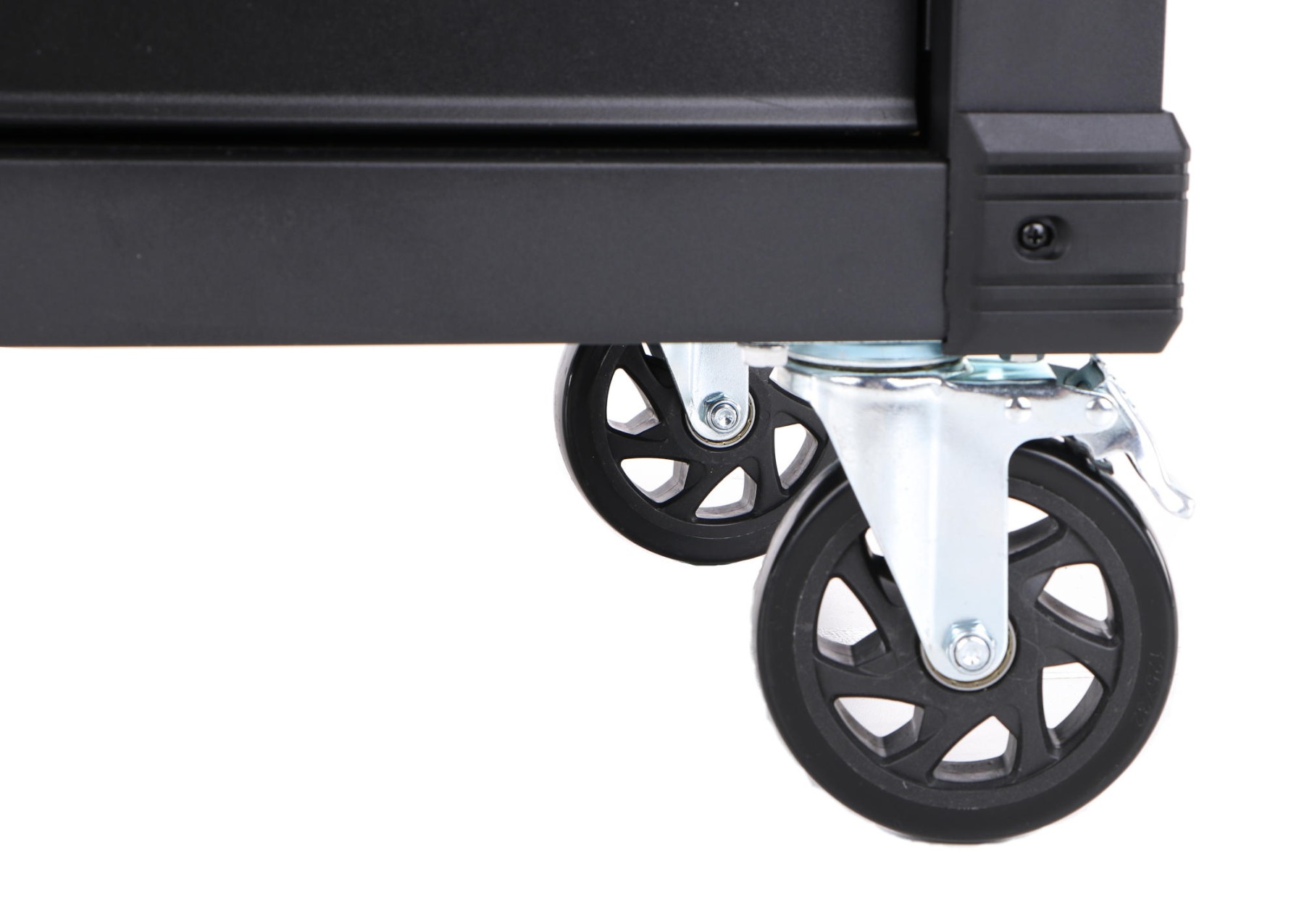

• Wheel diameter: 5" (12.7 cm)
• External dimensions: 81.5 × 50 × 100 cm
• Packaging dimensions: 77.5 × 53 × 89 cm
• Empty trolley weight: 80 kg
