Workshop tool trolley MECHANIC TROLLEY KEVIN 182, 7 drawers, 182 pcs of tools

Workshop tool trolley MECHANIC TROLLEY KEVIN 182, 7 drawers, 182 pcs tools SIXTOL

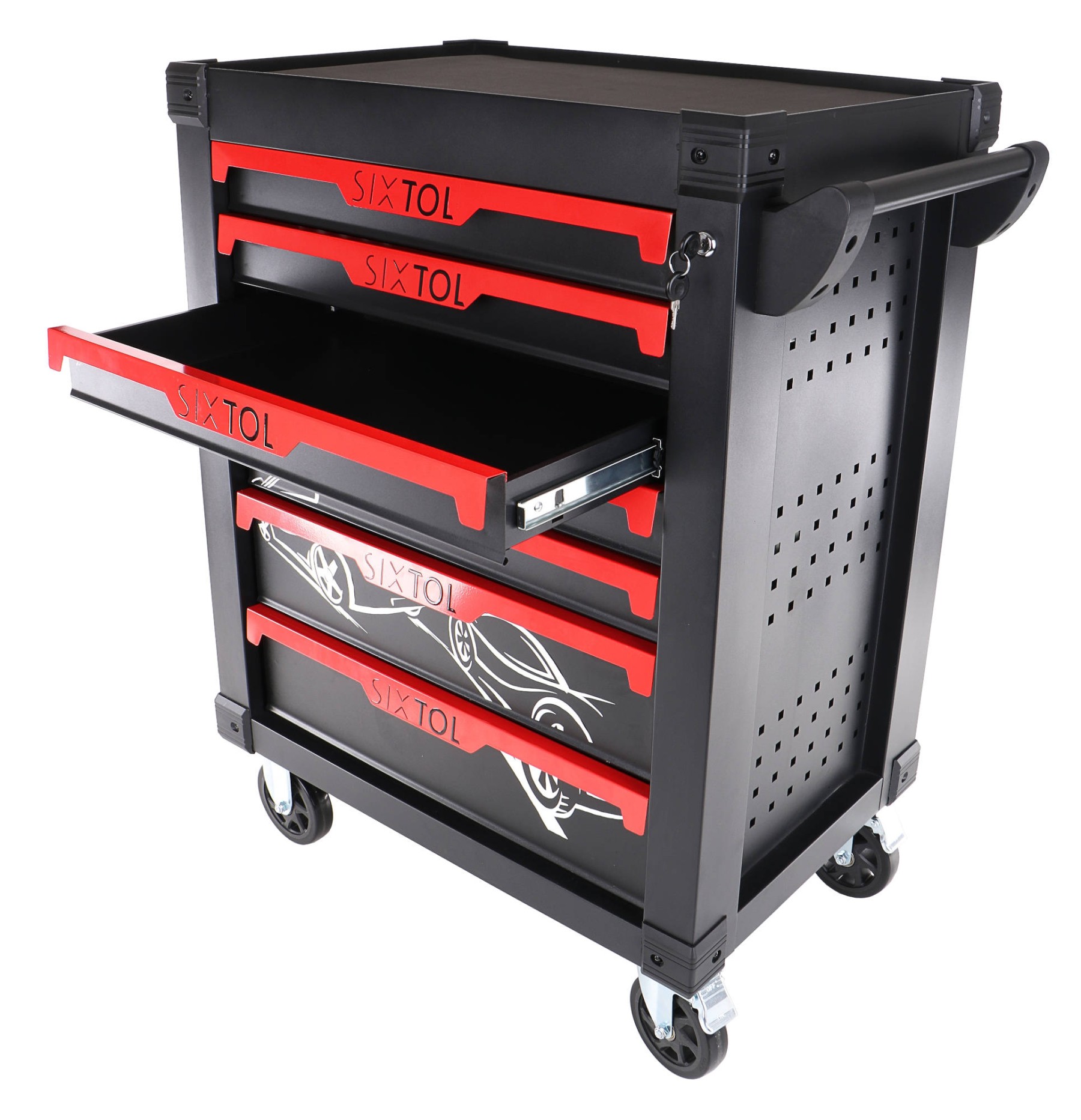

The MECHANIC TROLLEY KEVIN 182 workshop trolley combines a sturdy SPCC sheet steel body with a thickness of 0.8 mm and seven drawers with smooth ball-bearing slides and two large EVA modules containing a total of 182 pieces of tools for a wide range of service, assembly and maintenance tasks. The first module offers an 80-piece set of ratchets, sockets, extensions and universal joints in three square-drive sizes for common screwing tasks. The second module adds an extensive 102-piece set of bits, bit-sockets, adapters and special heads for precise and demanding tasks in auto workshops, garages and home workshops. The trolley is equipped with central locking for all drawers, four swivel castors with a diameter of 5" including two with brakes, and a top work surface with a durable rubber mat. Side perforations allow expansion of storage space using holders or hooks. This set represents a comprehensive mobile workstation that provides immediately available tools, high stability and efficient organization for everyday use.

Main advantages:

• A total of 182 pcs of tools in precise EVA modules.
• Complete range of sockets, ratchets, bits, adapters and bit-sockets.

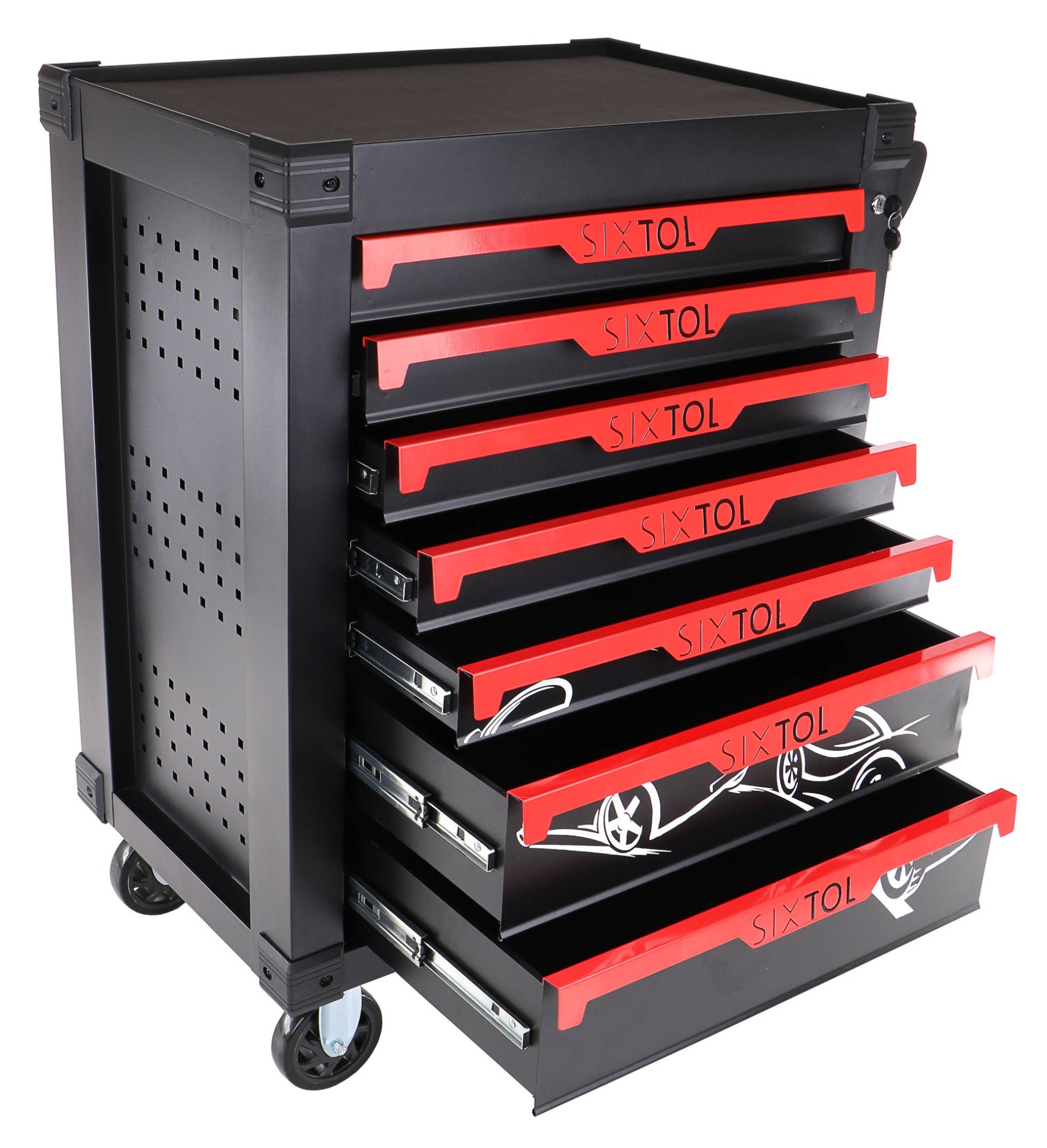

• 7 drawers with smooth ball-bearing slides.

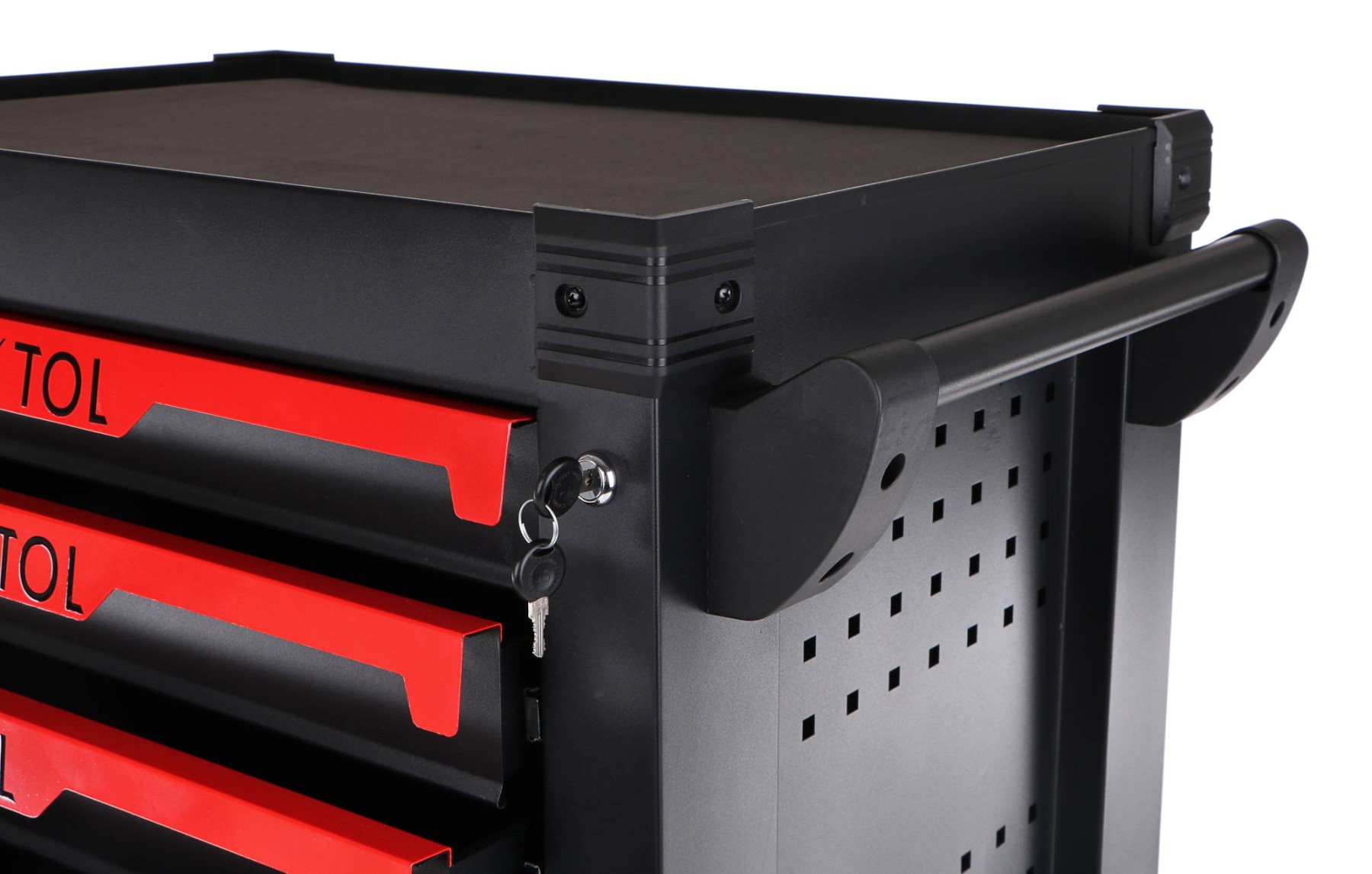

• Central locking of all drawers for secure tool storage.
• Robust construction from SPCC steel (0.8 mm body, 0.6 mm drawers).
• Top work surface with a rubber mat.

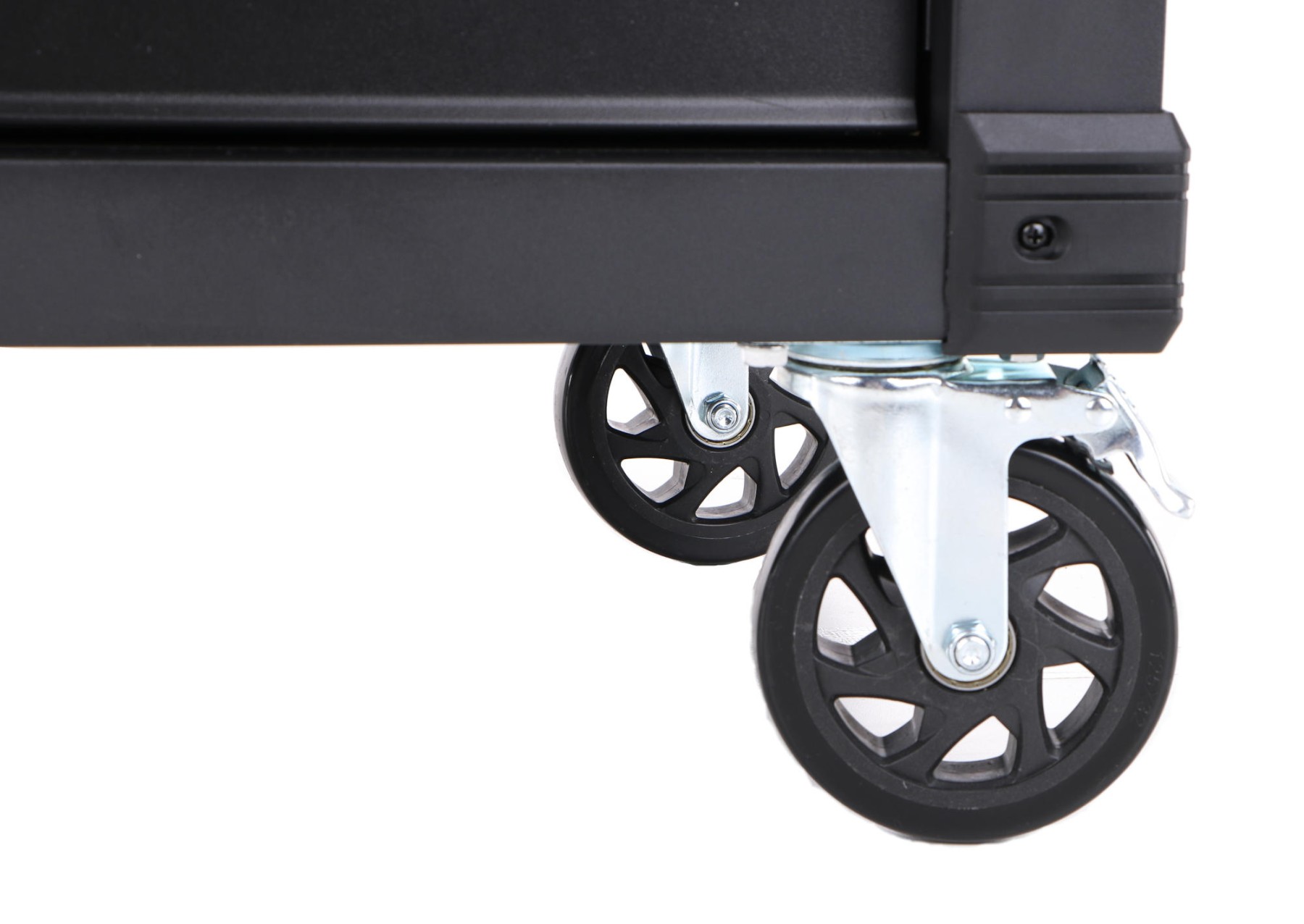

• 4 swivel castors (5"), two with brakes.
• Side perforation for optional storage expansion.
• High total load capacity 250 kg.

Applications:

• Repair and maintenance of cars and motorcycles.
• Service work in auto repair shops and workshop centers.
• Assembly and disassembly operations.
• Organization and secure storage of tools.
• Work in home garages as well as professional operations.
• Ideal as a comprehensive mobile workstation.

Tool contents:

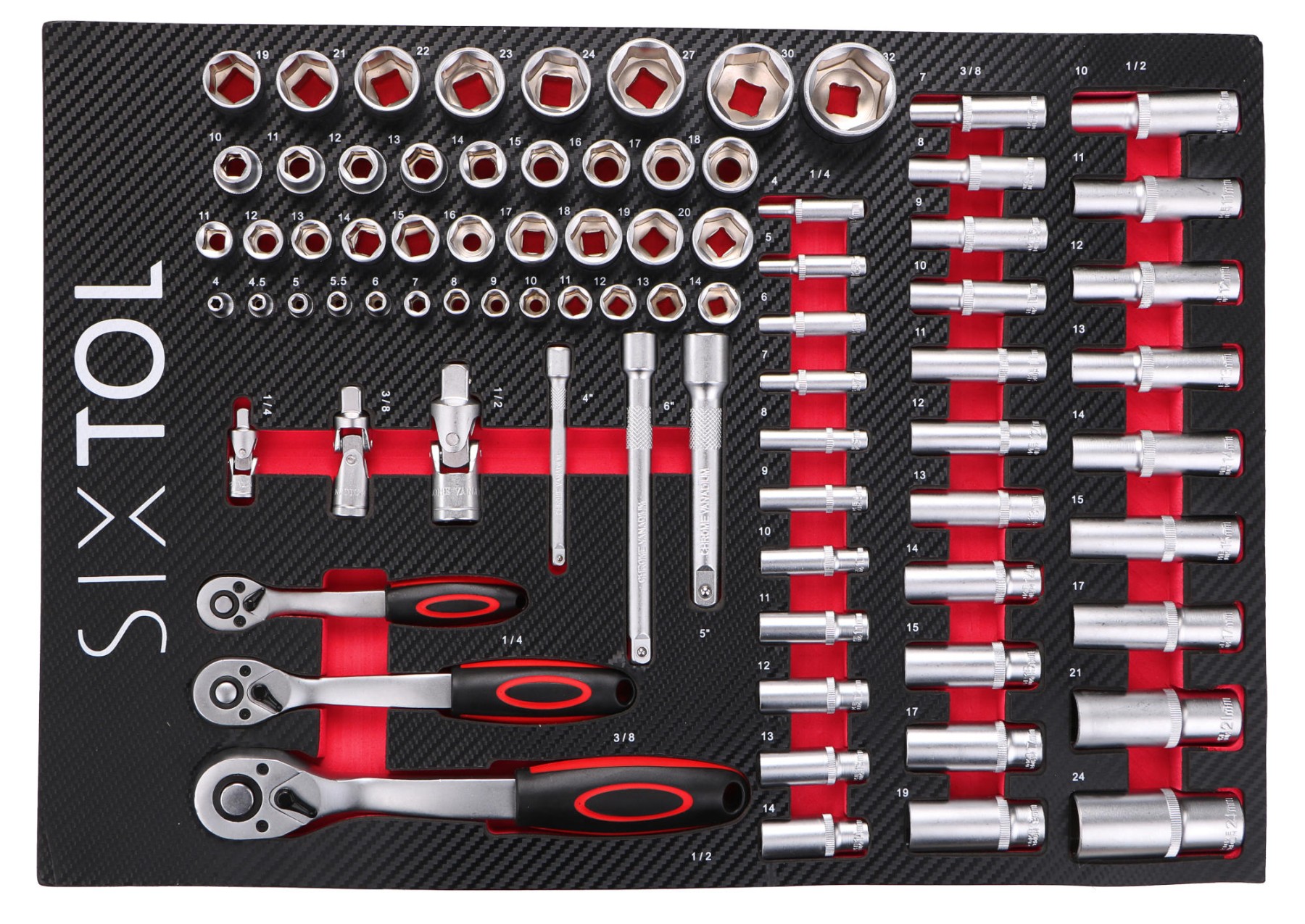

• 1. Drawer - 80x sockets, ratchets and accessories
• 8x 1/2" sockets (short)
- 19; 21; 22; 23; 24; 27; 30; 32 mm
• 13x 1/4" sockets (short – small)
- 4; 4.5; 5; 5.5; 6; 7; 8; 9; 10; 11; 12; 13; 14 mm
• 9x 1/4" sockets (short – standard)
- 10; 11; 12; 13; 14; 15; 16; 17; 18 mm
• 10x 3/8" sockets (short)
- 11; 12; 13; 14; 15; 16; 17; 18; 19; 20 mm
• 11x 1/4" sockets (long)
- 4; 5; 6; 7; 8; 9; 10; 11; 12; 13; 14 mm
• 11x 3/8" sockets (long)
- 7; 8; 9; 10; 11; 12; 13; 14; 15; 17; 19 mm
• 9x 1/2" sockets (long)
- 10; 11; 12; 13; 14; 15; 17; 21; 24 mm
• 3x Universal joints
- 1/4"; 3/8"; 1/2"
• 3x Extensions
- extension 1/4", length 10.2 cm (4"); extension 3/8", length 15.2 cm (6"); extension 1/2", length 12.7 cm (5")
• 3x Ratchets
- 1/4"; 3/8"; 1/2"

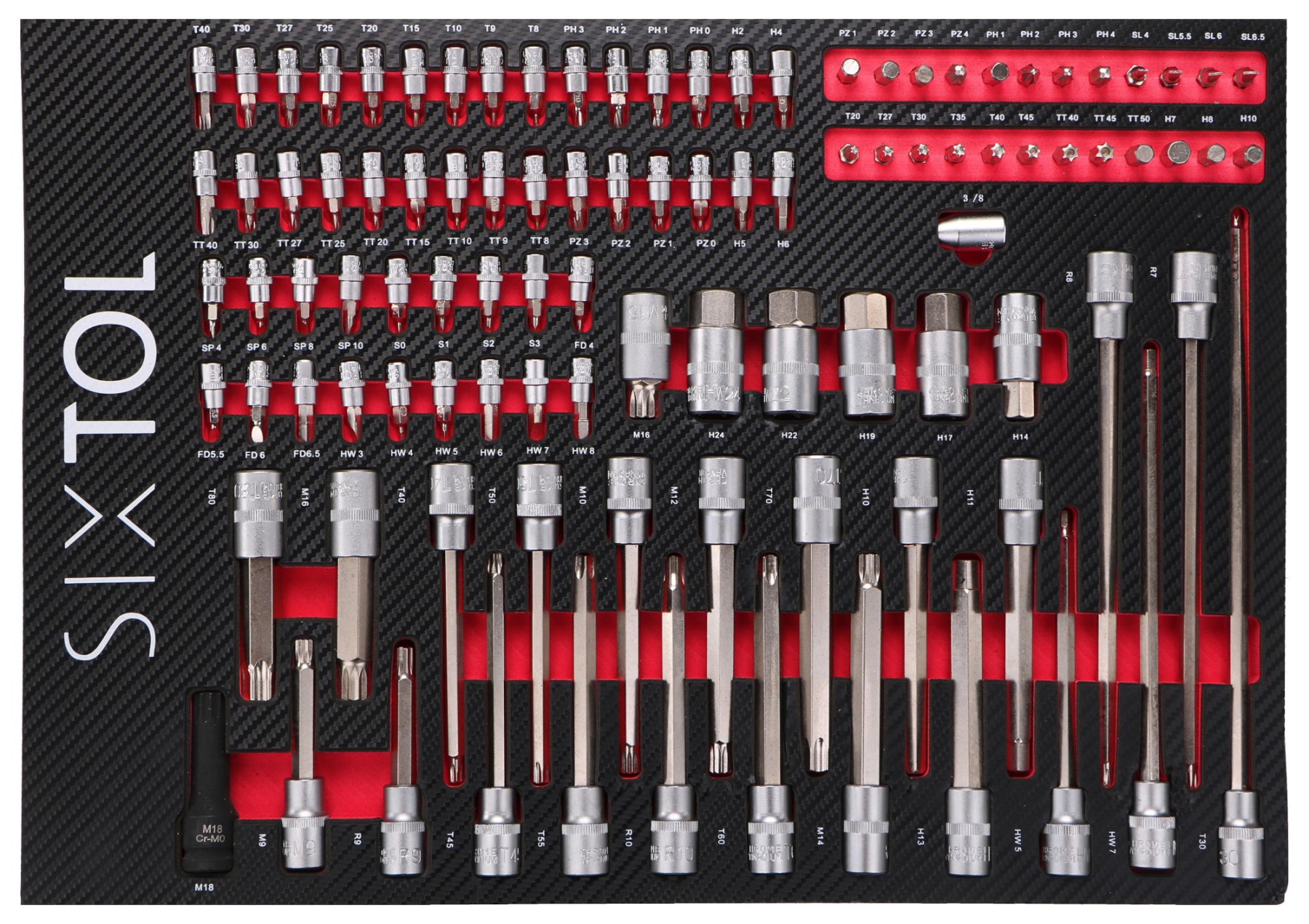

• 2. Drawer - 102x bits and adapters
• 48x Short bits in 1/4" bit holders - S2 steel
- Torx: T8, T9, T10, T15, T20, T25, T27, T30, T40
- Torx with hole: TT8, TT9, TT10, TT15, TT20, TT25, TT27, TT30, TT40
- Hex (Allen): H2, H4, H5, H6
- Phillips: PH0, PH1, PH2, PH3
- Pozidriv: PZ0, PZ1, PZ2, PZ3
- Flat: FD4, FD5.5, FD6, FD6.5
- "Security"/special: SP4, SP6, SP8, SP10
- Square/Robertson: S0, S1, S2, S3
- Allen bit (HW): HW3, HW4, HW5, HW6, HW7, HW8
• 24x Individual long bits 8×30 mm
- Upper row: PZ1, PZ2, PZ3, PZ4, PH1, PH2, PH3, PH4, SL4, SL5.5, SL6, SL6.5
- Lower row: T20, T27, T30, T35, T40, T45, TT40, TT45, TT50, H7, H8, H10
• 6x Short 1/2" bit sockets
- M16 (XZN / triple-square)
- H14, H17, H19, H22, H24 (hex)
• 22x Long 1/2" bit sockets
- T80, M9, M16, R9
- T40, T45, T50, T55, T60, T70, M10, M12, M14, H10, H13, H11, R10
- HW5
- R7, R8, HW7, T30
• 1x 1/2" impact socket bit M18, material Cr-Mo
• 1x 3/8" coupling / adapter

Package contents:

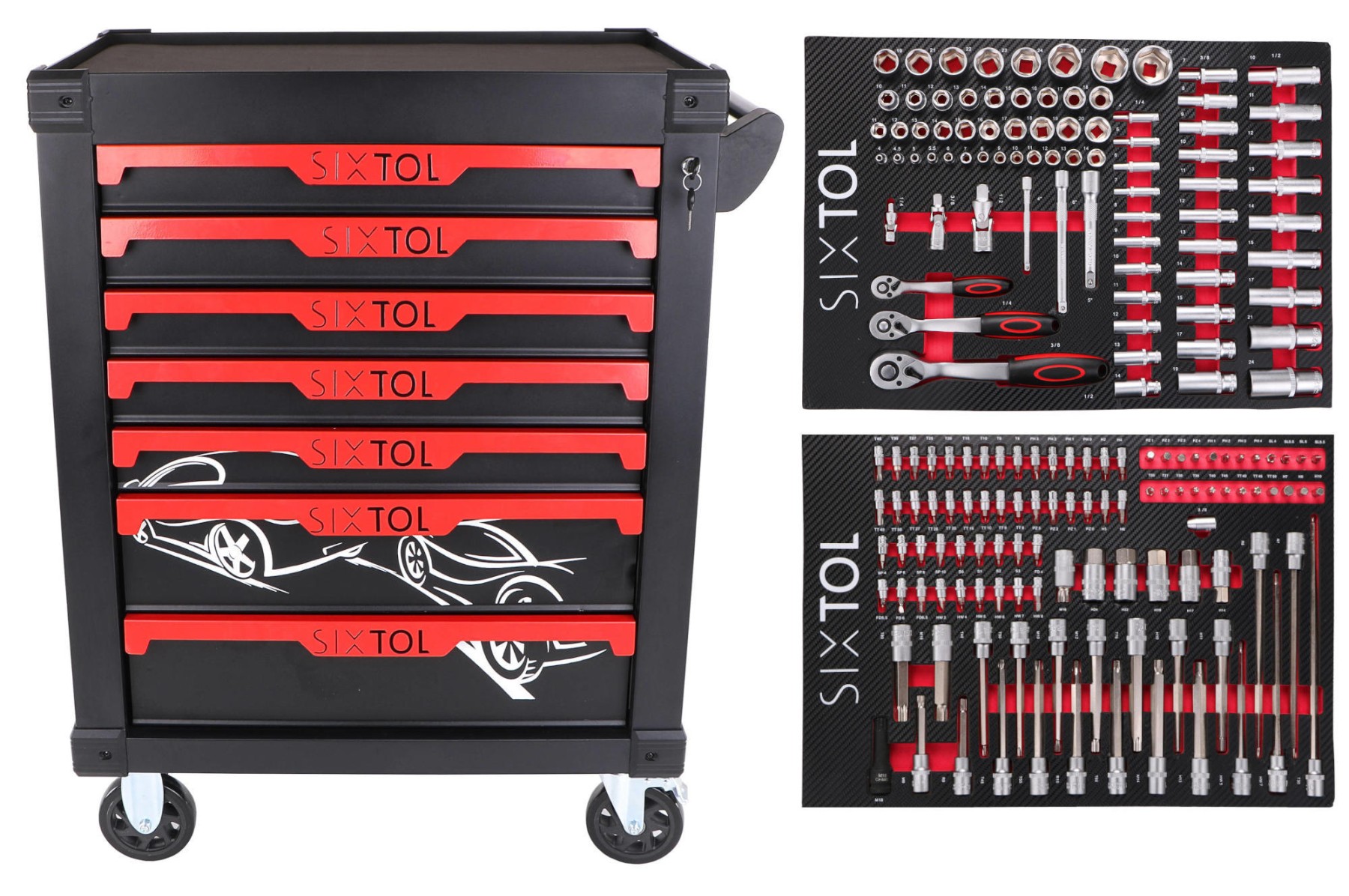

• 1x SX8001 - MECHANIC TROLLEY KEVIN workshop tool trolley, 7 drawers
• 1x SX8101 - Tool module for workshop trolley MECHANIC TOOL TRAY 1, 80 pcs
• 1x SX8102 - Tool module for workshop trolley MECHANIC TOOL TRAY 2, 102 pcs

Technical specifications:

• Tool modules:
• Dimensions: 59.5 × 39.5 cm
• Material: EVA foam, steel
• Weight: 5.7 kg; 5.7 kg
• Workshop trolley:
• Body material: SPCC steel, thickness 0.8 mm
• Drawer material: SPCC steel, thickness 0.6 mm
• Number of drawers: 7
• Drawer dimensions:
• 5× 600 × 410 × 75 mm (25 kg)
• 2× 600 × 410 × 135 mm (35 kg)
• Total load capacity of the trolley: 250 kg
• Wheel diameter: 5" (12.7 cm)
• External dimensions: 81.5 × 50 × 100 cm
• Packaging dimensions: 77.5 × 53 × 89 cm
• Weight of empty trolley: 80 kg
