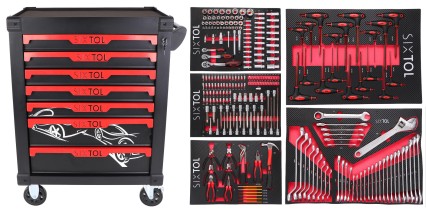

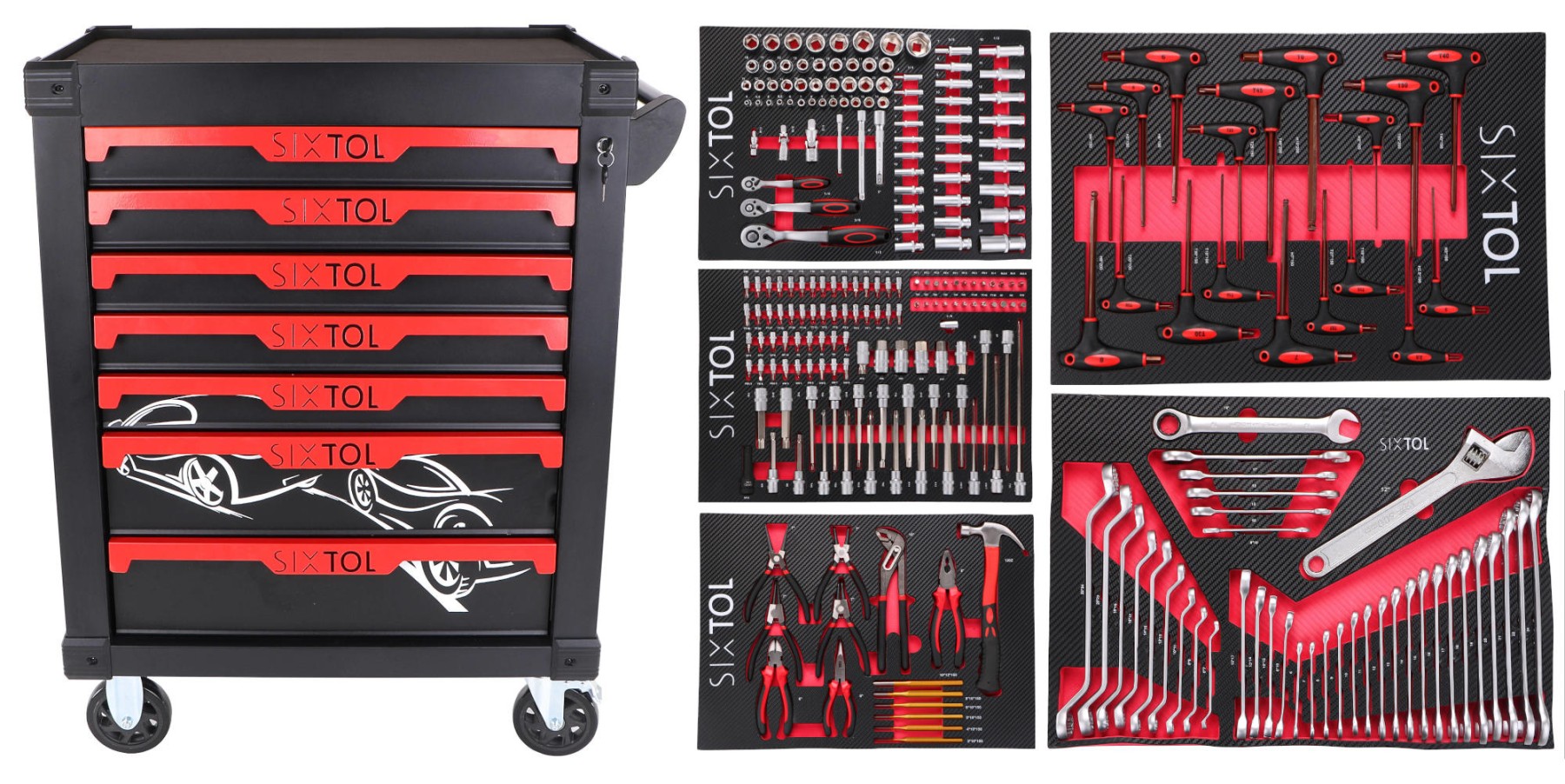

Workshop tool trolley MECHANIC TROLLEY KEVIN 253, 7 drawers, 253 pcs of tools

Workshop tool trolley MECHANIC TROLLEY KEVIN 253, 7 drawers, 253 pcs tools SIXTOL

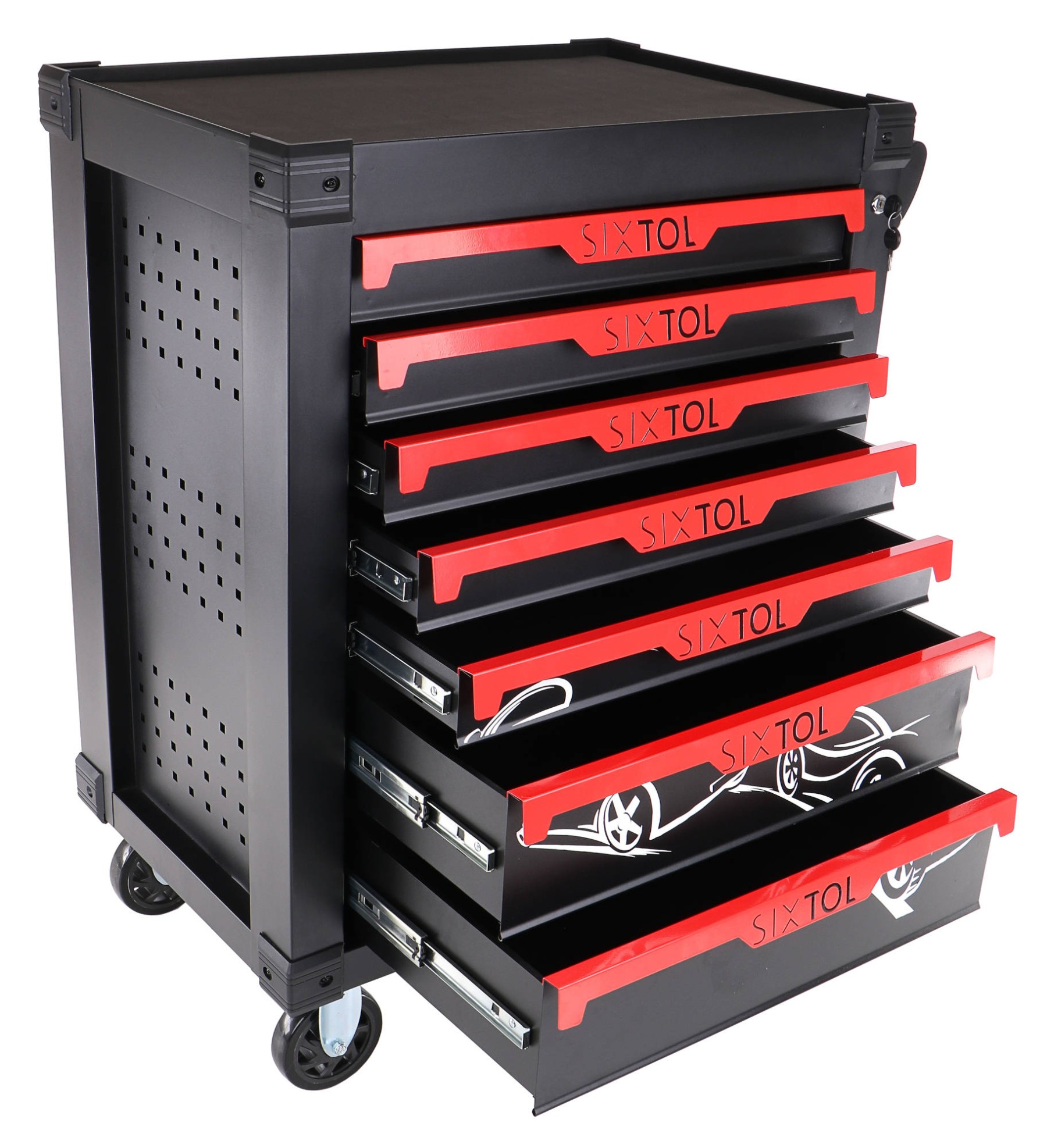

The MECHANIC TROLLEY KEVIN 253 workshop trolley combines a robust SPCC sheet steel body with a thickness of 0.8 mm, seven spacious drawers on quiet ball-bearing slides and an extensive equipment of 253 pieces of tools stored in precisely shaped EVA modules that ensure perfect clarity, tool protection and quick accessibility for any job. The trolley includes an 80-piece set of sockets, ratchets, extensions and universal joints in three square-drive sizes for common service operations, a 102-piece module of bits, bit-sockets, adapters and special adapters for precise screwing, a 15-piece module of pliers, hammer and chisels for gripping and striking tasks, 17 T-handle keys with ergonomic handles for working in confined spaces and a 39-piece set of wrenches including combination, open-ended and adjustable wrenches including angled variants. Everything is neatly stored in firm EVA inserts that hold each tool securely in place. The trolley is equipped with central locking of drawers, four swivel wheels with a diameter of 12.7 cm (two with brakes) and a top work surface with a protective mat, making it ideal as a mobile workstation for auto repair shops, workshops and demanding home garages where it provides durability, stability, maximum organization and quick access to full equipment.

Main advantages:

• Complete set of 253 pcs of tools in clear EVA modules.

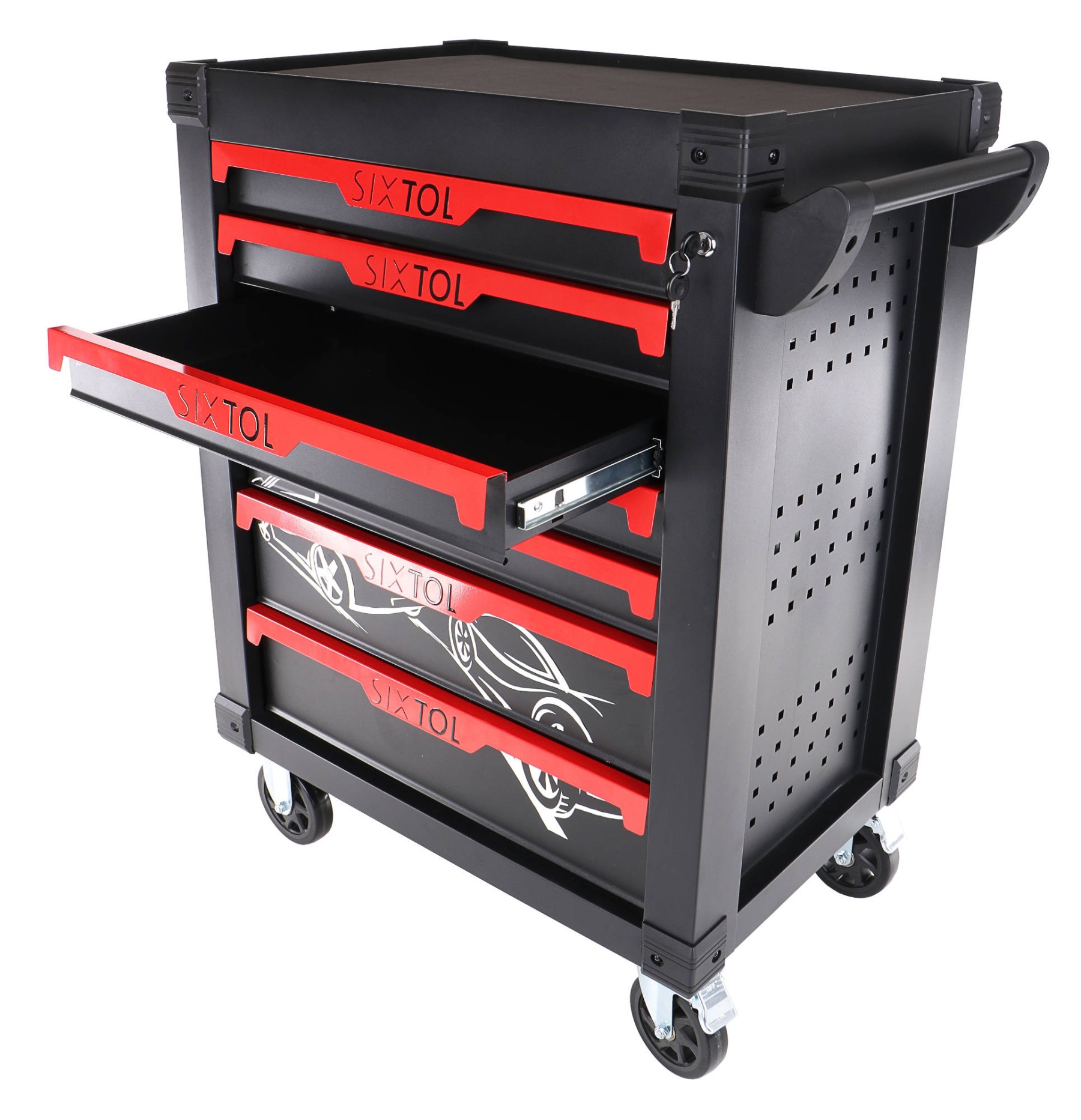

• Seven drawers with smooth ball-bearing slides.
• Robust body and drawer construction from SPCC sheet steel.

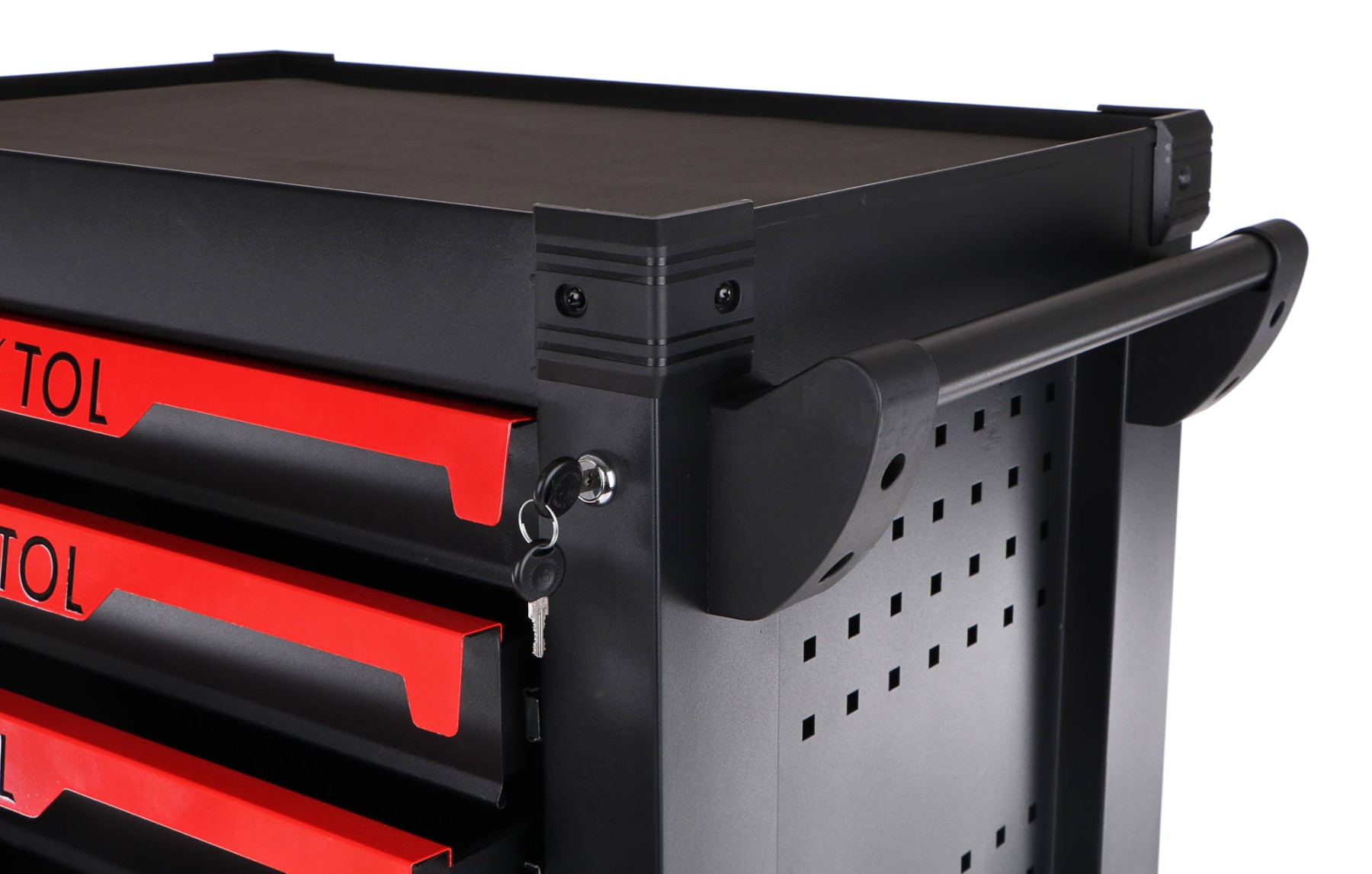

• Central locking of all drawers for secure tool storage.
• Wide versatility thanks to a broad spectrum of sockets, bits, wrenches, pliers and T-handle keys.

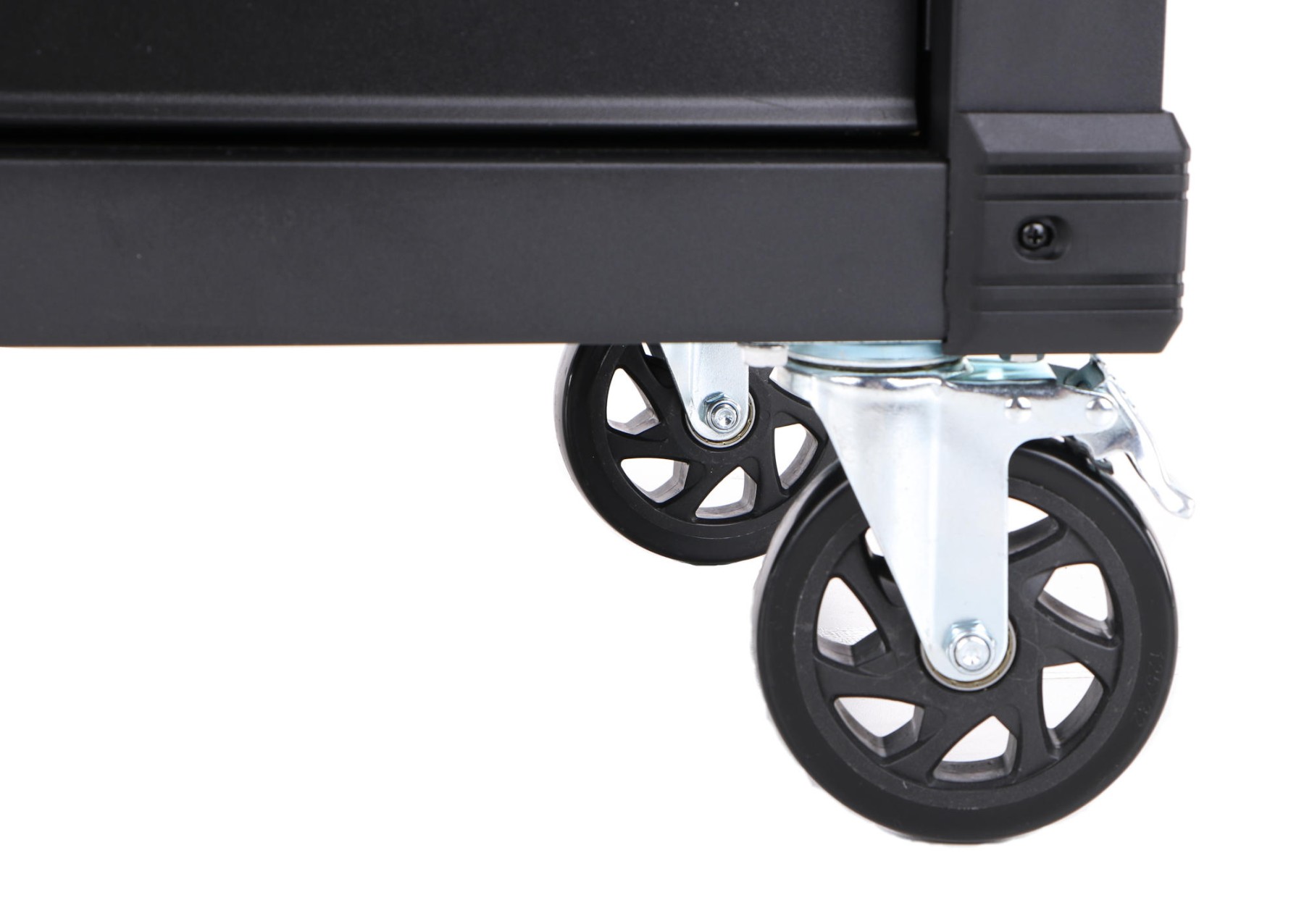

• Swivel wheels with a diameter of 12.7 cm, two with brakes, for easy handling.
• EVA modules provide tool protection, clarity and quick orientation.
• Top work surface with rubber mat as a practical resting place.

Applications:

• Service, assembly and disassembly work in auto repair shops, workshops and operations.
• Maintenance and repairs of cars, machines and equipment.
• Tool organization in professional workshops and demanding home garages.
• Precise tightening, loosening and work with threaded joints of all types.
• Work in narrow or hard-to-reach places thanks to T-handle keys and long extensions.
• Gripping and striking tasks thanks to pliers, hammer and chisels.

Tool contents:

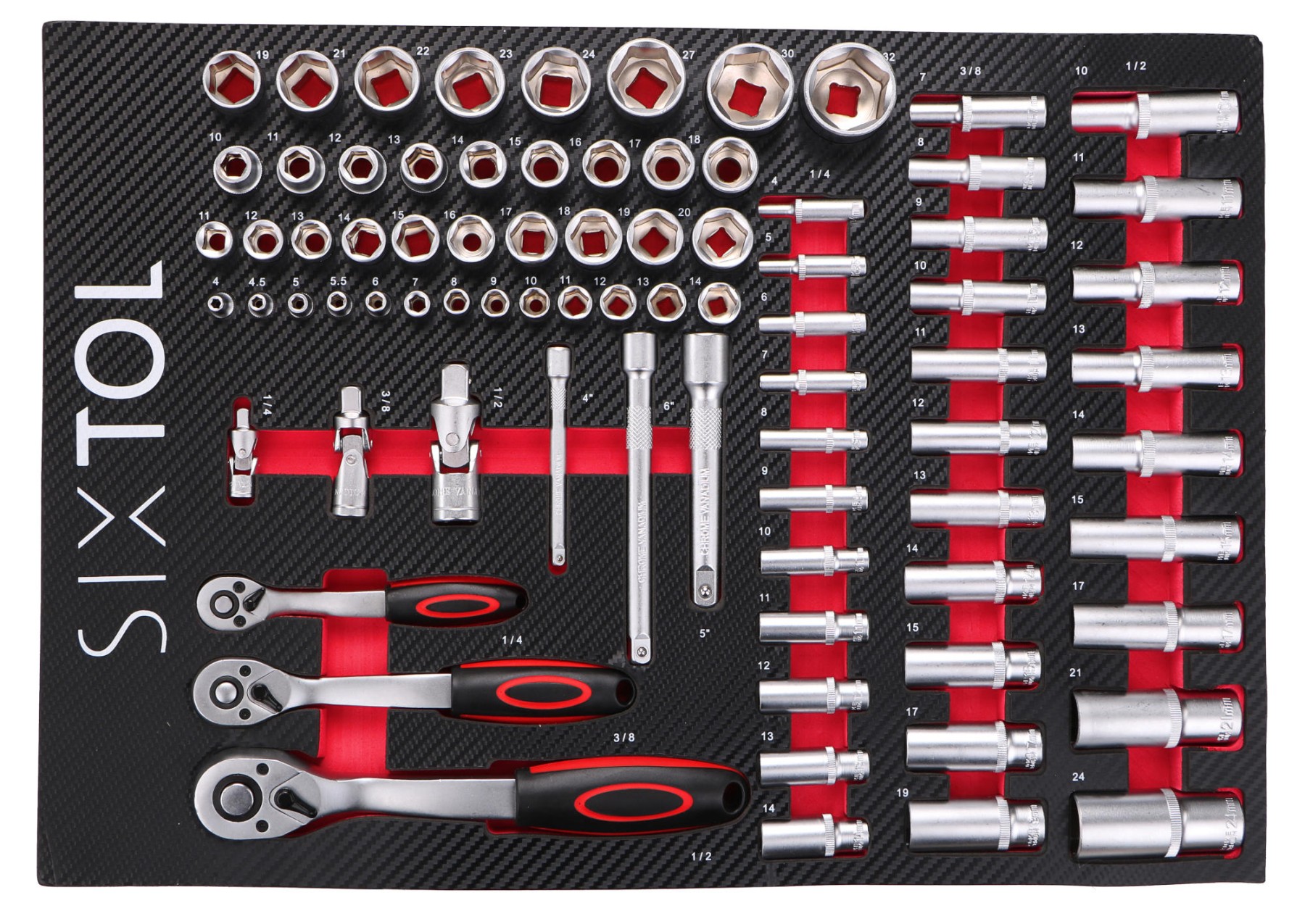

• 1. Drawer - 80x sockets, ratchets and accessories
• 8x 1/2" sockets (short)
- 19; 21; 22; 23; 24; 27; 30; 32 mm
• 13x 1/4" sockets (short – small)
- 4; 4.5; 5; 5.5; 6; 7; 8; 9; 10; 11; 12; 13; 14 mm
• 9x 1/4" sockets (short – standard)
- 10; 11; 12; 13; 14; 15; 16; 17; 18 mm
• 10x 3/8" sockets (short)
- 11; 12; 13; 14; 15; 16; 17; 18; 19; 20 mm
• 11x 1/4" sockets (long)
- 4; 5; 6; 7; 8; 9; 10; 11; 12; 13; 14 mm
• 11x 3/8" sockets (long)
- 7; 8; 9; 10; 11; 12; 13; 14; 15; 17; 19 mm
• 9x 1/2" sockets (long)
- 10; 11; 12; 13; 14; 15; 17; 21; 24 mm
• 3x Universal joints
- 1/4"; 3/8"; 1/2"
• 3x Extensions
- extension 1/4", length 10.2 cm (4"); extension 3/8", length 15.2 cm (6"); extension 1/2", length 12.7 cm (5")
• 3x Ratchets
- 1/4"; 3/8"; 1/2"

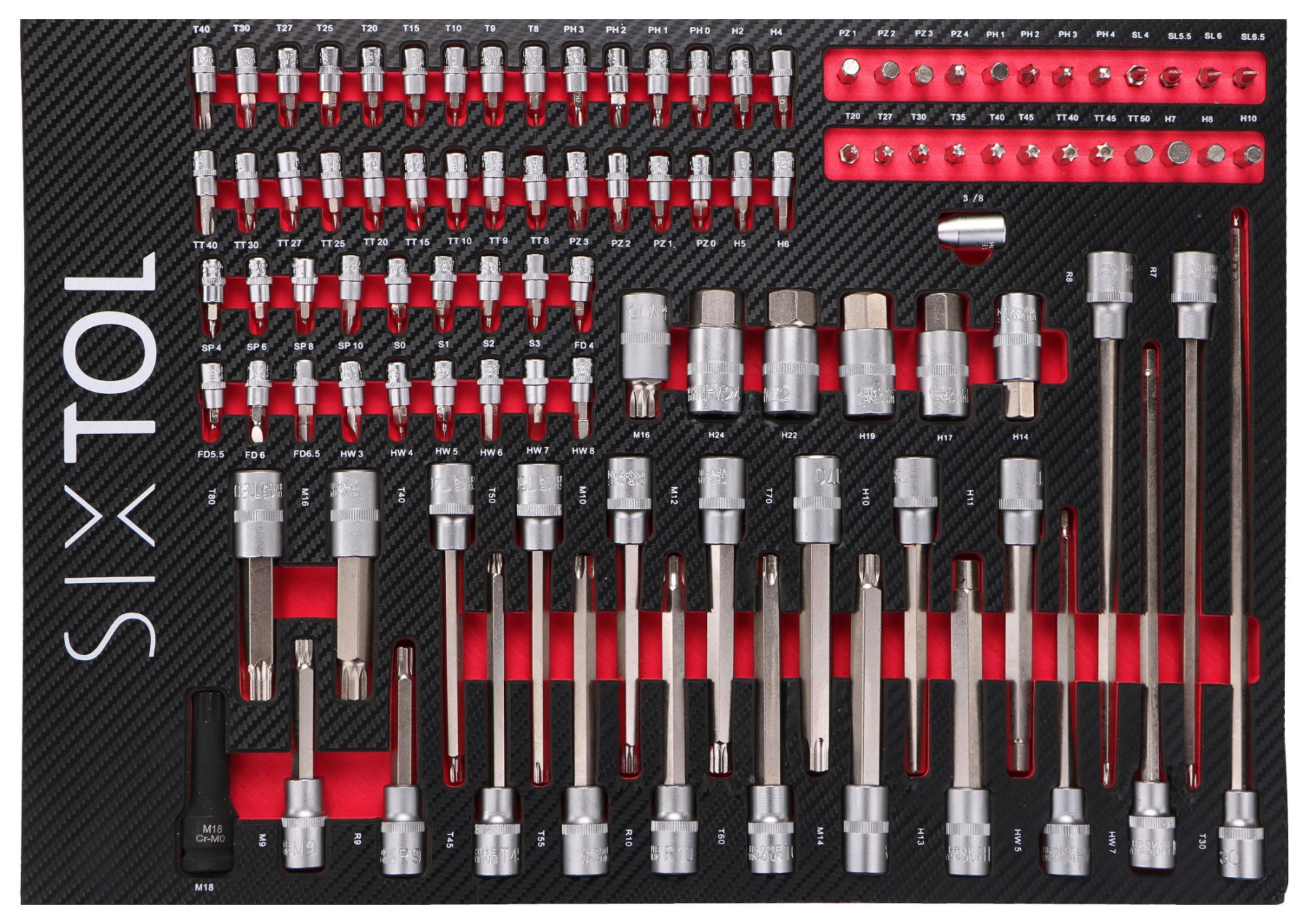

• 2. Drawer - 102x bits and adapters
• 48x Short bits in 1/4" bit holders - S2 steel
- Torx: T8, T9, T10, T15, T20, T25, T27, T30, T40
- Torx with hole: TT8, TT9, TT10, TT15, TT20, TT25, TT27, TT30, TT40
- Hex (Allen): H2, H4, H5, H6
- Phillips: PH0, PH1, PH2, PH3
- Pozidriv: PZ0, PZ1, PZ2, PZ3
- Flat: FD4, FD5.5, FD6, FD6.5
- "Security"/special: SP4, SP6, SP8, SP10
- Square/Robertson: S0, S1, S2, S3
- Allen bit (HW): HW3, HW4, HW5, HW6, HW7, HW8
• 24x Individual long bits 8×30 mm
- Upper row: PZ1, PZ2, PZ3, PZ4, PH1, PH2, PH3, PH4, SL4, SL5.5, SL6, SL6.5
- Lower row: T20, T27, T30, T35, T40, T45, TT40, TT45, TT50, H7, H8, H10
• 6x Short 1/2" bit sockets
- M16 (XZN / triple-square)
- H14, H17, H19, H22, H24 (hex)
• 22x Long 1/2" bit sockets
- T80, M9, M16, R9
- T40, T45, T50, T55, T60, T70, M10, M12, M14, H10, H13, H11, R10
- HW5
- R7, R8, HW7, T30
• 1x 1/2" impact socket bit M18, material Cr-Mo
• 1x 3/8" coupling / adapter

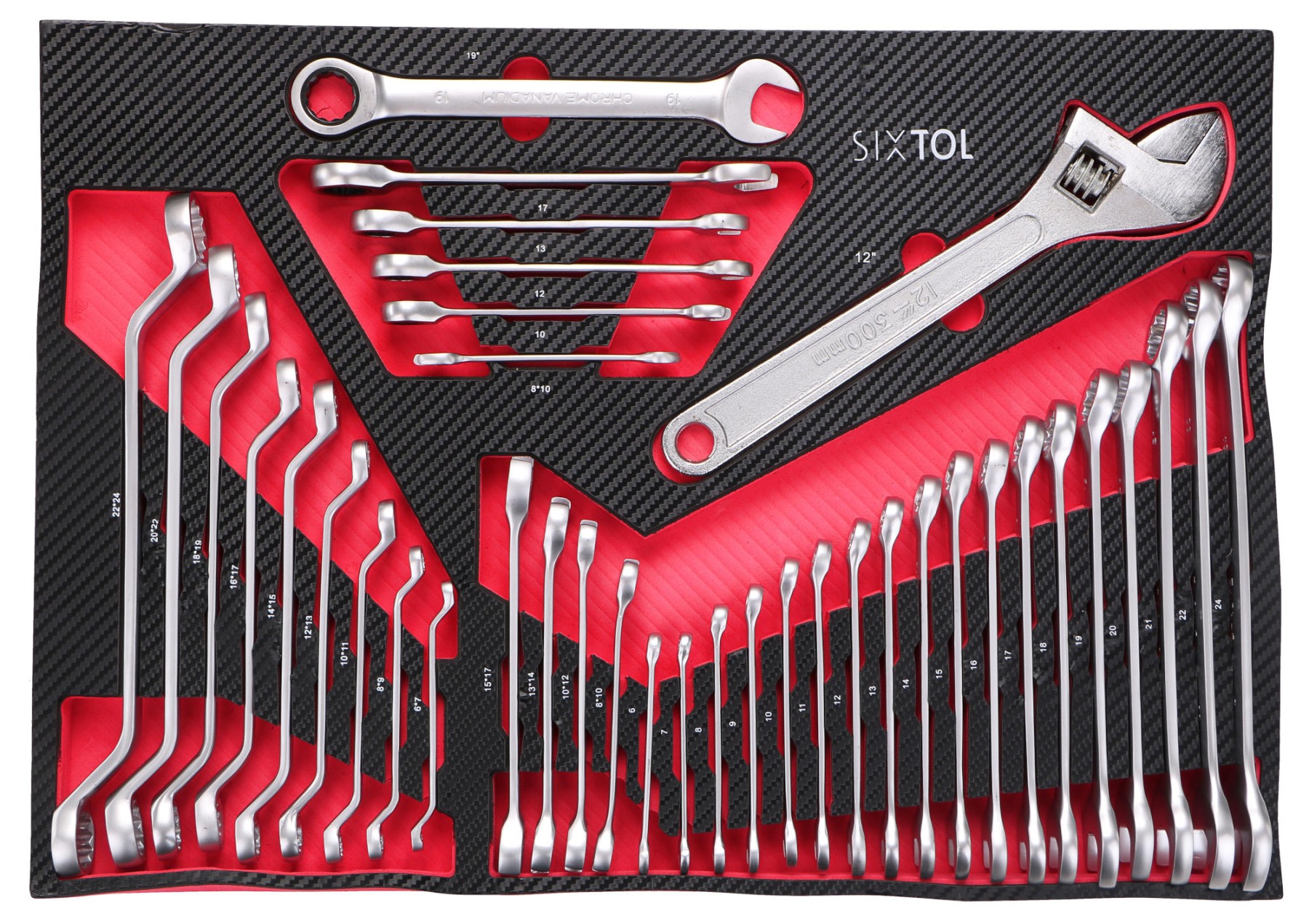

• 3. Drawer - 39x Combination wrenches
- 18x Torx combination wrenches: 6; 7; 8; 9; 10; 11; 12; 13; 14; 15; 16; 17; 18; 19; 20; 21; 22; 24 mm
- 9x Double-ended Torx combination wrenches: 6×7 mm, 8×9 mm, 10×11 mm, 12×13 mm, 14×15 mm, 16×17 mm, 18×19 mm, 20×22 mm, 22×24 mm
- 5x Ratchet offset wrenches: 10; 12; 13; 17; 19 mm
- 1x Double open-ended wrench: 8×10 mm
- 4x Flare nut (tube) wrenches: 8×10 mm, 10×12 mm, 13×14 mm, 15×17 mm
- 1x Adjustable wrench 30.48 cm (12")
- 1x EVA foam tool insert

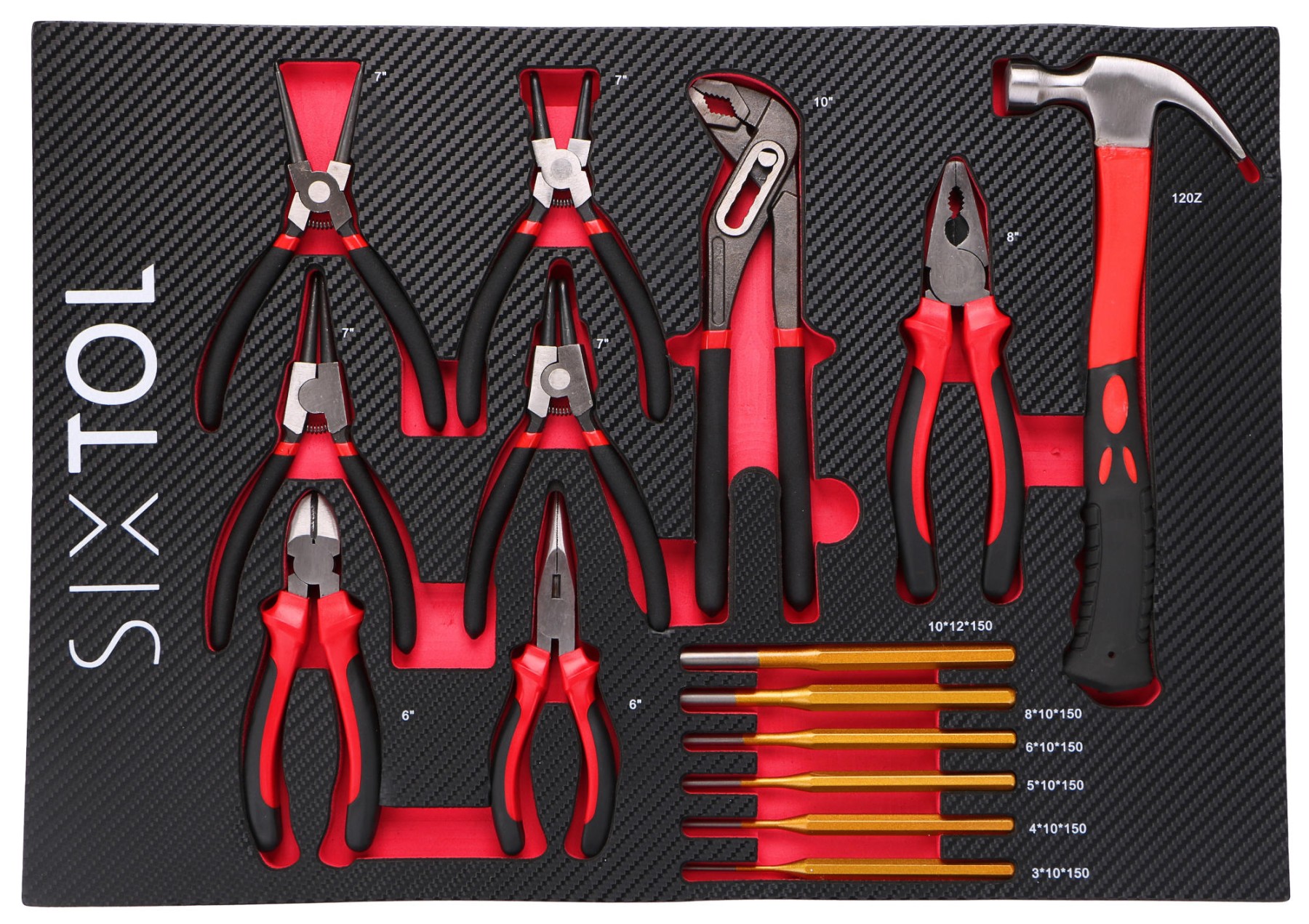

• 4. Drawer - 15x pliers and other tools
- 1x Hammer 340 g
- 1x Slip-joint pliers – 25.4 cm (10")
- 1x Cutting pliers - 15.24 cm (6")
- 1x Combination pliers - 15.24 cm (6")
- 1x Long-nose pliers straight - 15.24 cm (6")
- 4x Circlip pliers - 17.78 cm (7") - internal / external, straight / bent
- 6x Punches – diameters: 3; 4; 5; 6; 8; 10 mm

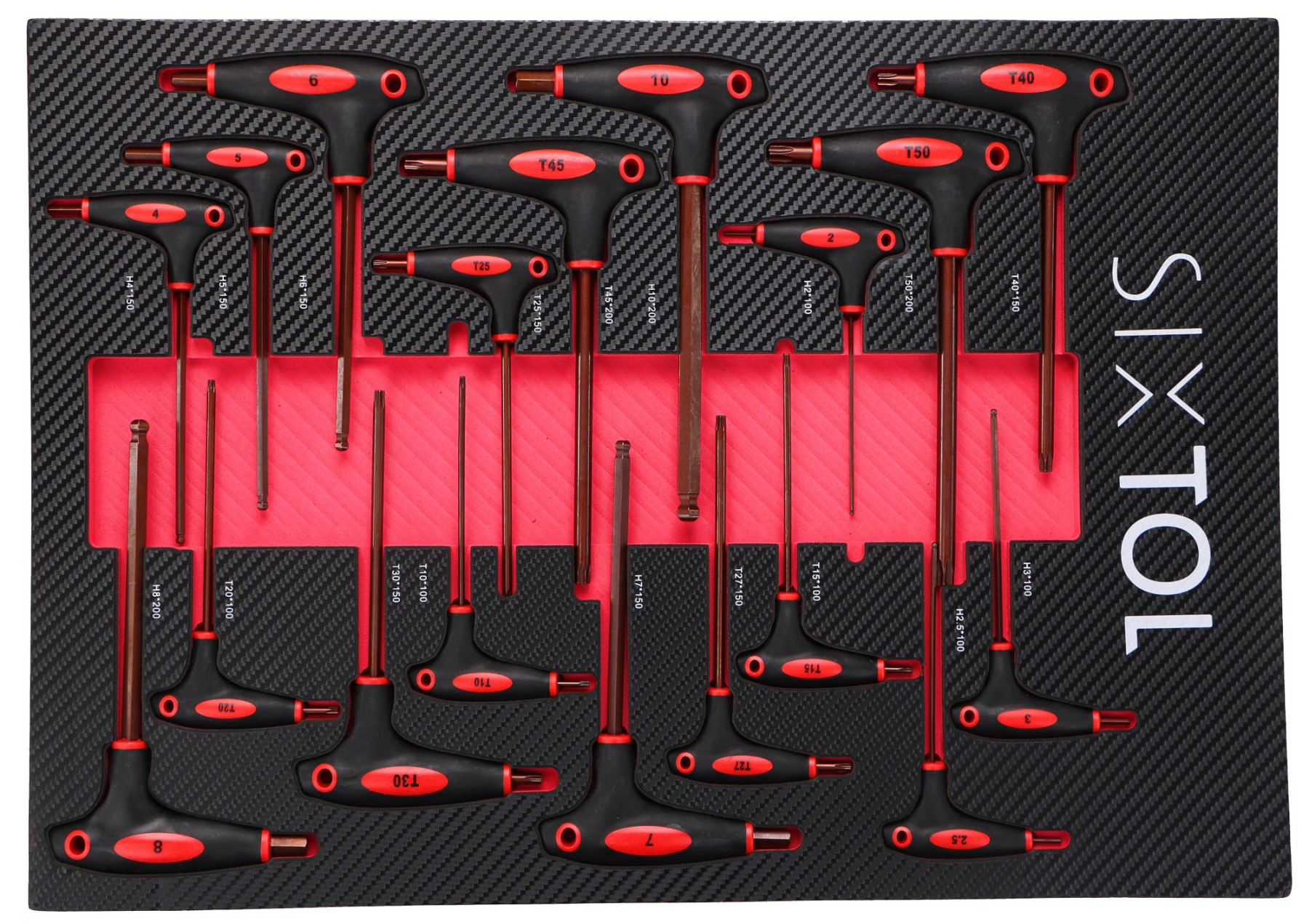

• 5. Drawer - 18x T-handle keys (material S2)
- TORX T-handle keys: T40 × 150 mm; T45 × 200 mm; T30 × 150 mm; T50 × 200 mm; T10 × 100 mm; T27 × 150 mm; T15 × 100 mm; T20 × 100 mm; T25 × 150 mm
- HEX T-handle keys (Allen): H2 × 100 mm; H2.5 × 100 mm; H3 × 100 mm; H4 × 150 mm; H5 × 150 mm; H6 × 150 mm; H7 × 150 mm; H8 × 200 mm; H10 × 200 mm

Package contents:

• 1x SX8001 - MECHANIC TROLLEY KEVIN workshop tool trolley, 7 drawers
• 1x SX8101 - Tool module for workshop trolley MECHANIC TOOL TRAY 1, 80 pcs
• 1x SX8102 - Tool module for workshop trolley MECHANIC TOOL TRAY 2, 102 pcs
• 1x SX8111 - Tool module for workshop trolley MECHANIC TOOL TRAY 11, 39 pcs
• 1x SX8104 - Tool module for workshop trolley MECHANIC TOOL TRAY 4, 15 pcs
• 1x SX8105 - Tool module for workshop trolley MECHANIC TOOL TRAY 5, 18 pcs

Technical specifications:

• Tool modules:
• Dimensions: 59.5 × 39.5 cm
• Material: EVA foam, steel
• Module weights: 5.7 kg; 5.7 kg; 3 kg; 1.9 kg; 5.3 kg
• Workshop trolley:
• Body material: SPCC steel, thickness 0.8 mm
• Drawer material: SPCC steel, thickness 0.6 mm
• Number of drawers: 7
• Drawer dimensions:
• 5× 600 × 410 × 75 mm (25 kg)
• 2× 600 × 410 × 135 mm (35 kg)
• Total load capacity of the trolley: 250 kg
• Wheel diameter: 5" (12.7 cm)
• External dimensions: 81.5 × 50 × 100 cm
• Packaging dimensions: 77.5 × 53 × 89 cm
• Weight of empty trolley: 80 kg
