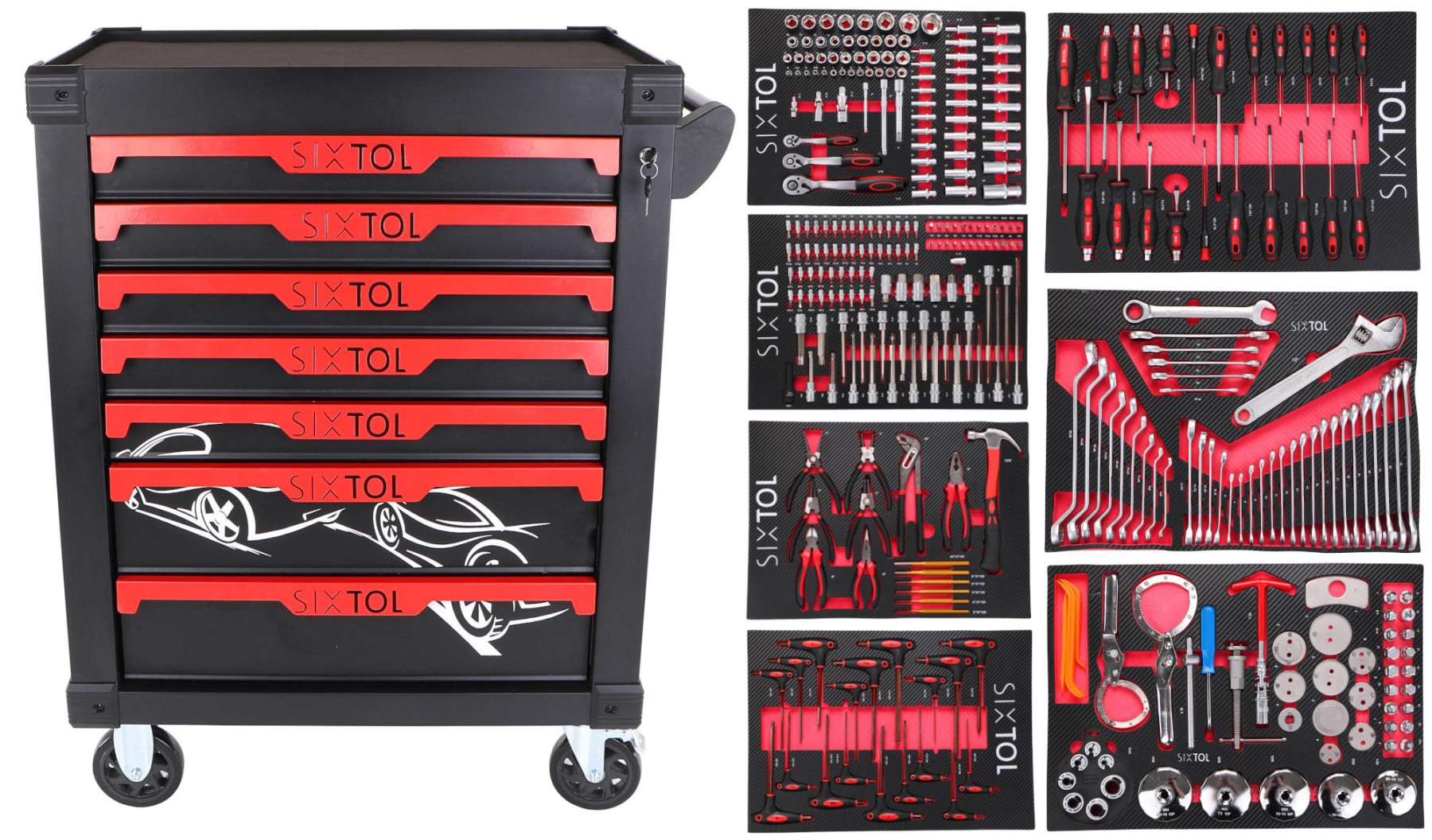

Workshop tool trolley MECHANIC TROLLEY KEVIN 326, 7 drawers, 326 pcs of tools

Workshop tool trolley MECHANIC TROLLEY KEVIN 326, 7 drawers, 326 pcs of tools

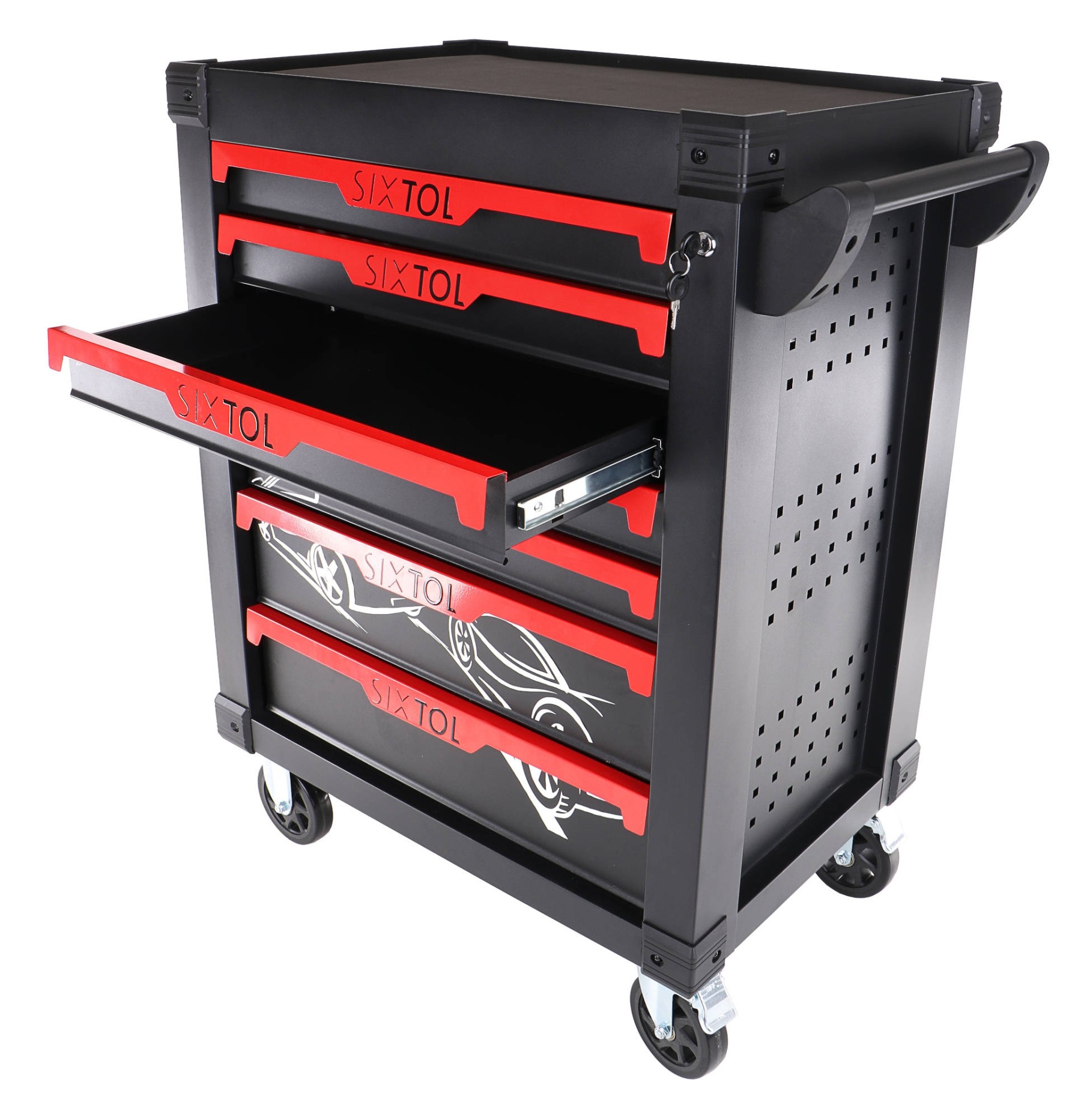

The workshop tool trolley MECHANIC TROLLEY KEVIN 326 brings complete equipment to any workshop in the form of a robust trolley with seven spacious drawers and a carefully assembled 326-piece tool set stored in precise EVA inserts that ensure perfect organization and long tool life. The trolley is made from durable SPCC steel sheet, equipped with silent ball-bearing slides, central locking and four swivel casters that allow easy and stable handling even when fully loaded. The set includes a wide selection of sockets, ratchets, bits, extensions, screwdrivers, T-wrenches, pliers, chisels and specialized tools for servicing brakes, filters or fuel lines, providing a comprehensive solution for both basic and more advanced service work on vehicles or machines. The whole kit creates an organized, safe and highly functional workspace, suitable for workshops, car repair shops and demanding home users.

Main advantages:

• Complete 326-piece tool set for a wide range of service tasks.
• Organized EVA inserts keep tools firmly in place.
• 7 drawers with smooth ball-bearing slides for easy access.
• Durable SPCC steel construction with long service life.

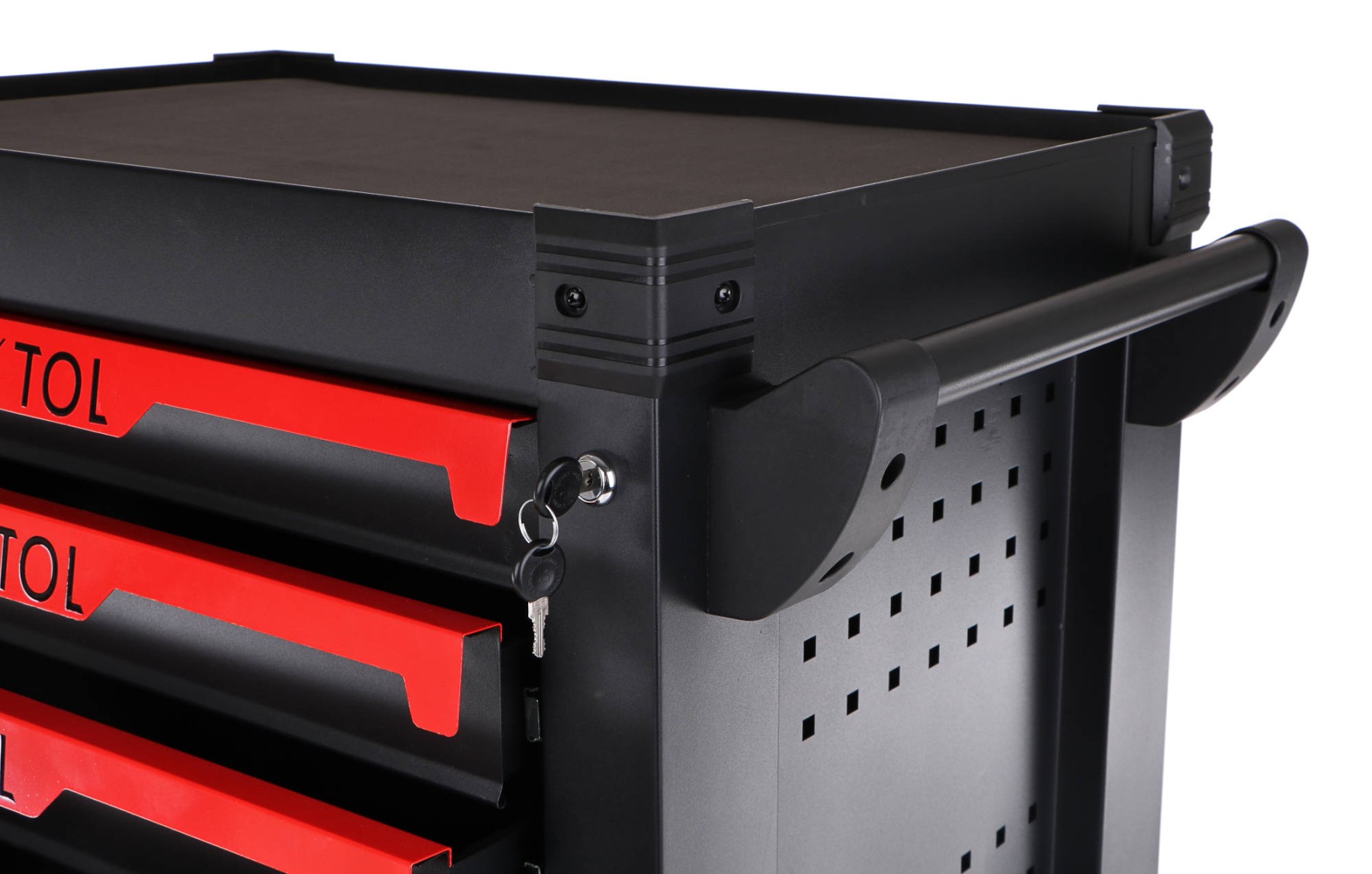

• Central locking of drawers for secure storage.

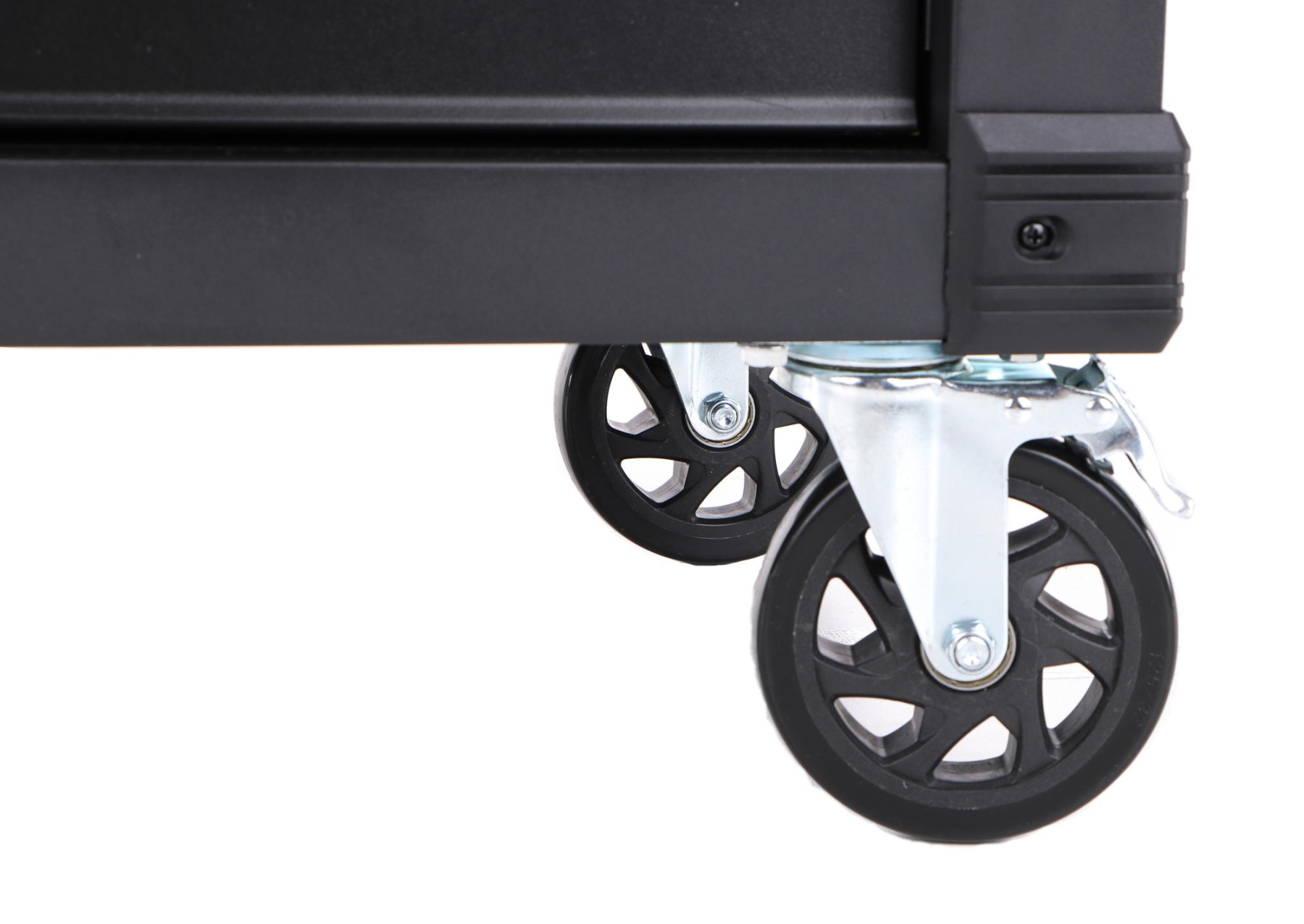

• Four swivel casters, two with brake, for good mobility.
• Modern and attractive black-and-red design.

Applications:

• Repair and maintenance of cars and motorcycles
• Service and assembly work in garages and industry
• Organization and neat storage of tools
• Ordinary and advanced service tasks in a home garage
• Work on brake systems, filters, fuel and air conditioning lines

Tool contents:

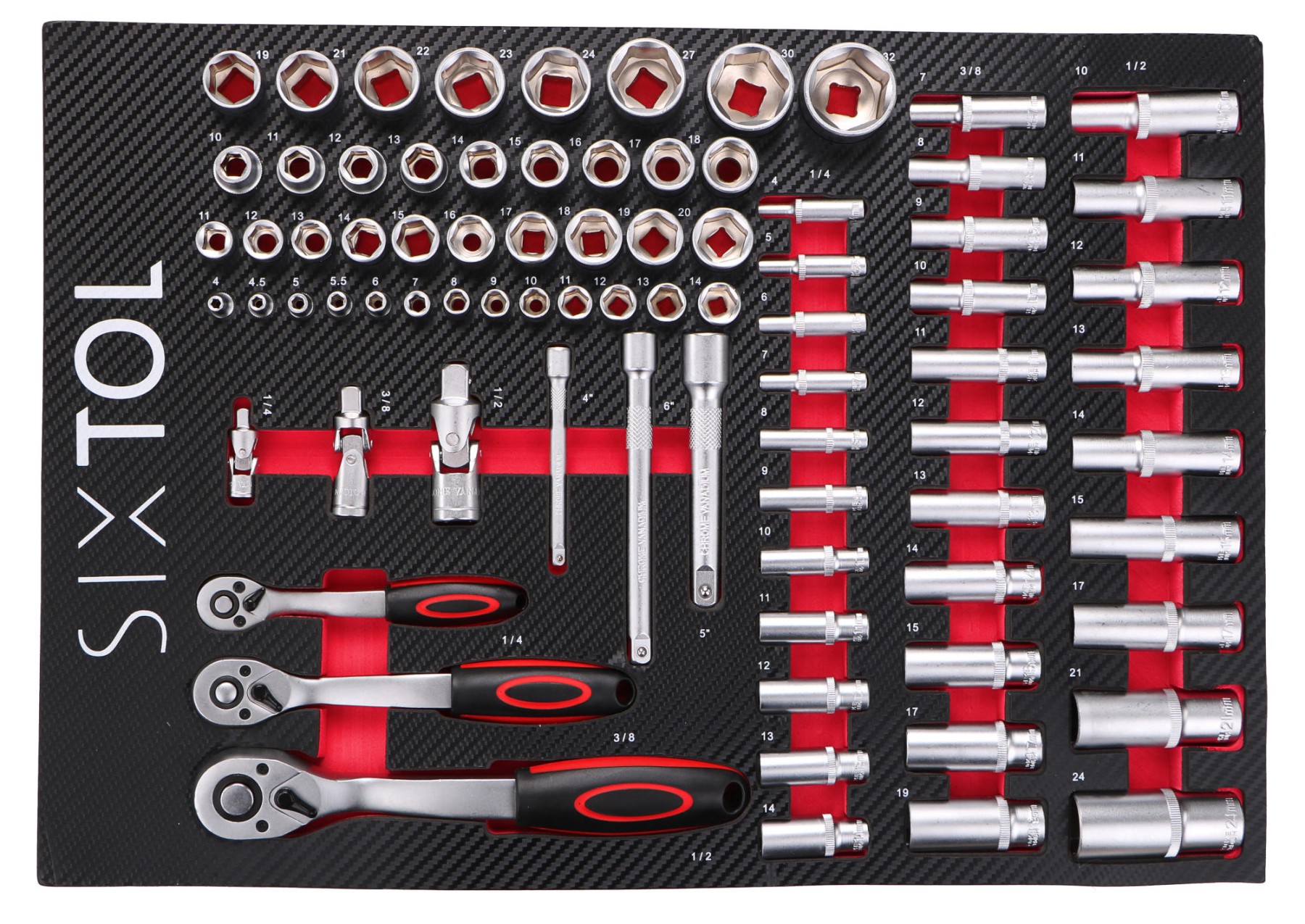

• 1st Drawer - 80x sockets, ratchets and accessories
• 8x 1/2" short sockets
- 19; 21; 22; 23; 24; 27; 30; 32 mm
• 13x 1/4" short sockets (small)
- 4; 4.5; 5; 5.5; 6; 7; 8; 9; 10; 11; 12; 13; 14 mm
• 9x 1/4" short sockets (standard)
- 10; 11; 12; 13; 14; 15; 16; 17; 18 mm
• 10x 3/8" short sockets
- 11; 12; 13; 14; 15; 16; 17; 18; 19; 20 mm
• 11x 1/4" long sockets
- 4; 5; 6; 7; 8; 9; 10; 11; 12; 13; 14 mm
• 11x 3/8" long sockets
- 7; 8; 9; 10; 11; 12; 13; 14; 15; 17; 19 mm
• 9x 1/2" long sockets
- 10; 11; 12; 13; 14; 15; 17; 21; 24 mm
• 3x Universal joints (cardan)
- 1/4"; 3/8"; 1/2"
• 3x Extensions
- extension 1/4", length 10.2 cm (4"); extension 3/8", length 15.2 cm (6"); extension 1/2", length 12.7 cm (5")
• 3x Ratchets
- 1/4"; 3/8"; 1/2"

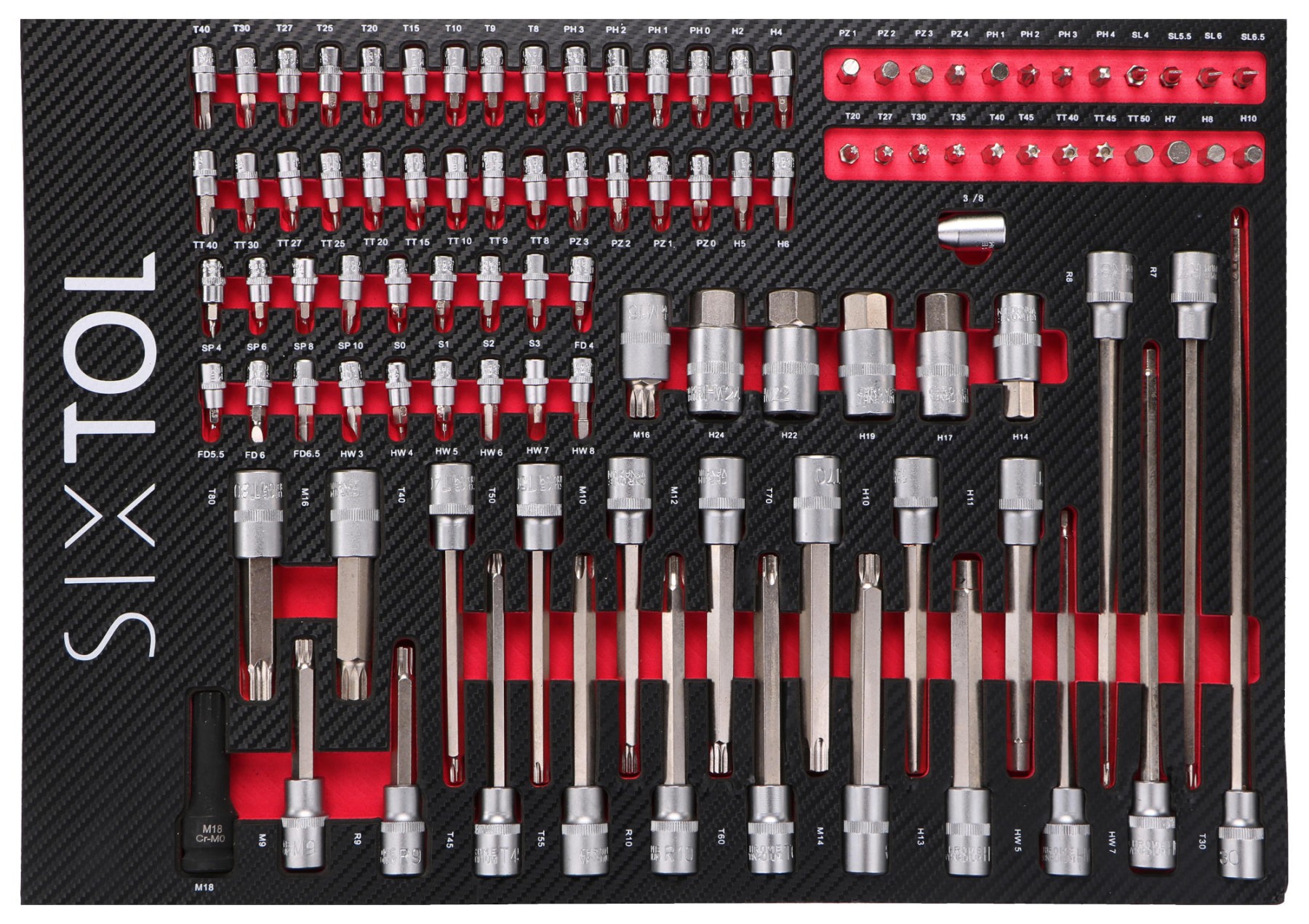

• 2nd Drawer - 102x bits and bit adapters
• 48x Short bits in 1/4" bit holders - S2 steel
- Torx: T8, T9, T10, T15, T20, T25, T27, T30, T40
- Torx with hole: TT8, TT9, TT10, TT15, TT20, TT25, TT27, TT30, TT40
- Allen (hex): H2, H4, H5, H6
- Phillips: PH0, PH1, PH2, PH3
- Pozidriv: PZ0, PZ1, PZ2, PZ3
- Flat: FD4, FD5.5, FD6, FD6.5
- "Security"/special: SP4, SP6, SP8, SP10
- Square/Robertson: S0, S1, S2, S3
- Inbus-bit (HW): HW3, HW4, HW5, HW6, HW7, HW8
• 24x Long individual bits 8×30 mm
- Top row: PZ1, PZ2, PZ3, PZ4, PH1, PH2, PH3, PH4, SL4, SL5.5, SL6, SL6.5
- Bottom row: T20, T27, T30, T35, T40, T45, TT40, TT45, TT50, H7, H8, H10
• 6x Short 1/2" bit adapters
- M16 (XZN / triple square)
- H14, H17, H19, H22, H24 (Allen)
• 22x Long 1/2" bit adapters
- T80, M9, M16, R9
- T40, T45, T50, T55, T60, T70, M10, M12, M14, H10, H13, H11, R10
- HW5
- R7, R8, HW7, T30
• 1x Impact 1/2" bit M18, material Cr-Mo
• 1x Coupler / 3/8" adapter

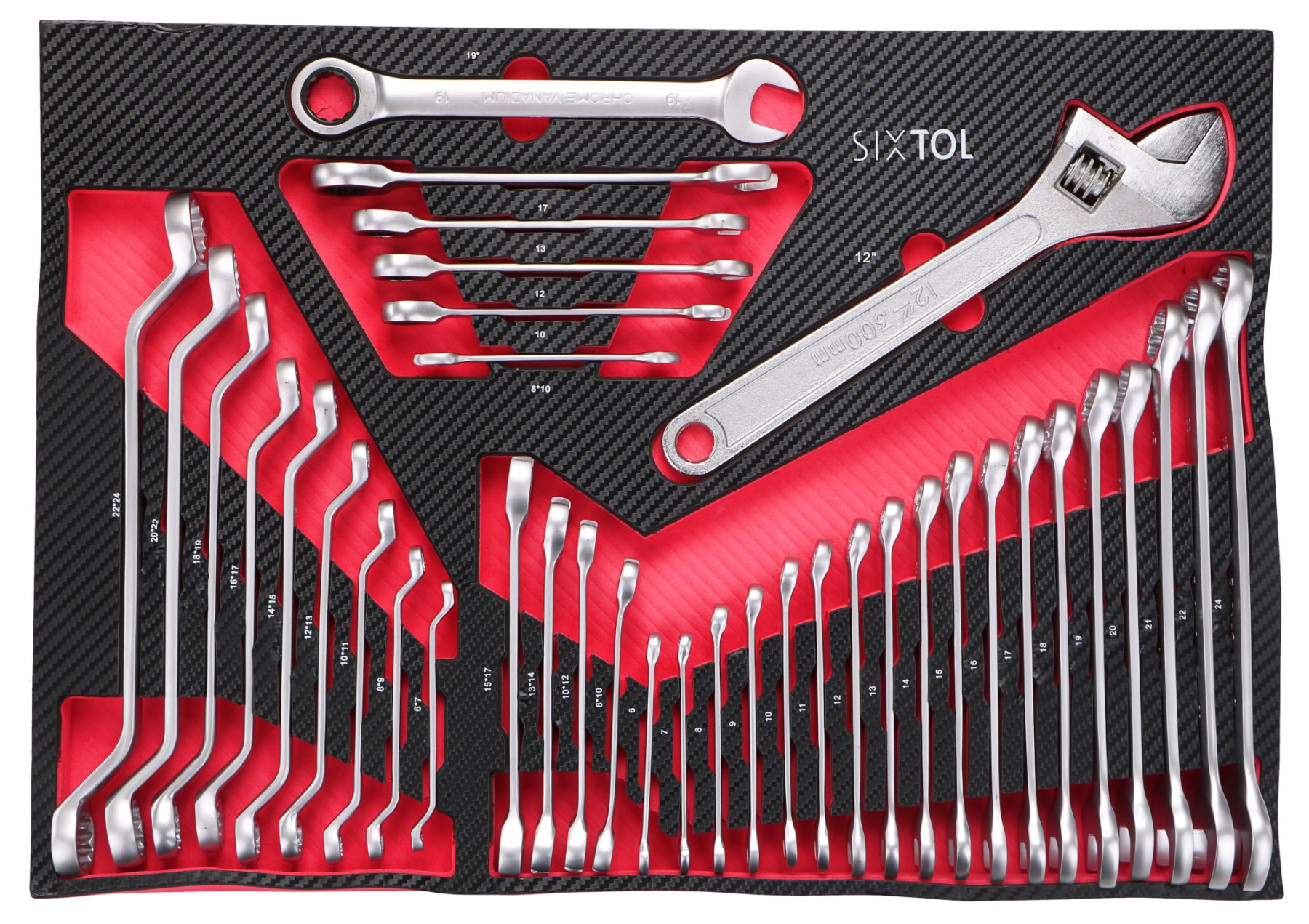

• 3rd Drawer - 39x Combination wrenches
- 18x Torx combination wrenches: 6; 7; 8; 9; 10; 11; 12; 13; 14; 15; 16; 17; 18; 19; 20; 21; 22; 24 mm
- 9x Double-ended Torx combination wrenches: 6×7 mm, 8×9 mm, 10×11 mm, 12×13 mm, 14×15 mm, 16×17 mm, 18×19 mm, 20×22 mm, 22×24 mm
- 5x Ratcheting box-end wrenches: 10; 12; 13; 17; 19 mm
- 1x Double open-end wrench: 8×10 mm
- 4x Flare nut (tube) wrenches: 8×10 mm, 10×12 mm, 13×14 mm, 15×17 mm
- 1x Adjustable wrench 30.48 cm (12")
- 1x EVA foam tool insert

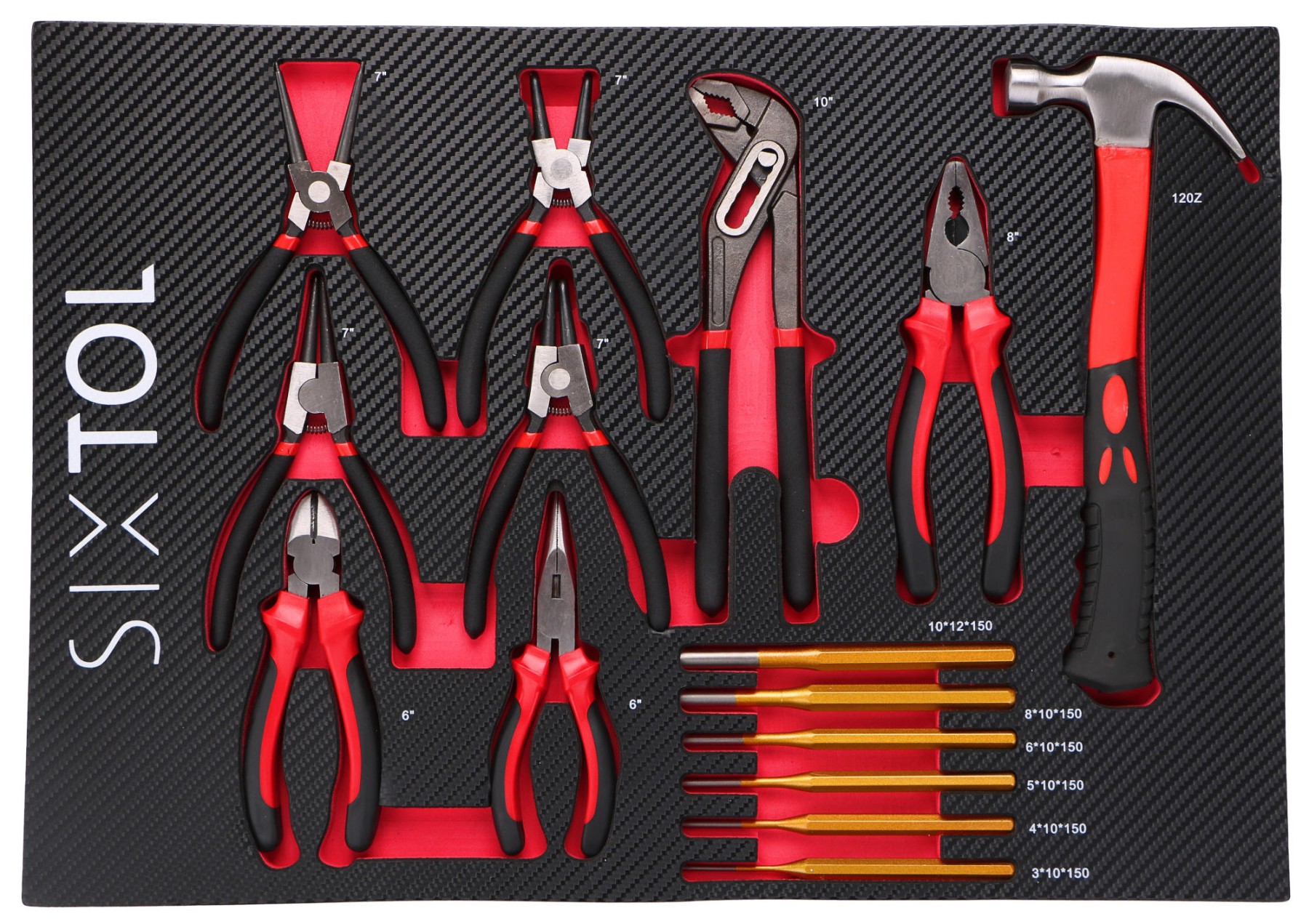

• 4th Drawer - 15x pliers and other tools
- 1x Hammer 340 g
- 1x Sika pliers – 25.4 cm (10")
- 1x Diagonal cutting pliers - 15.24 cm (6")
- 1x Combination pliers - 15.24 cm (6")
- 1x Straight needle-nose pliers - 15.24 cm (6")
- 4x Circlip pliers - 17.78 cm (7") - internal / external, straight / angled
- 6x Punches – diameters: 3; 4; 5; 6; 8; 10 mm

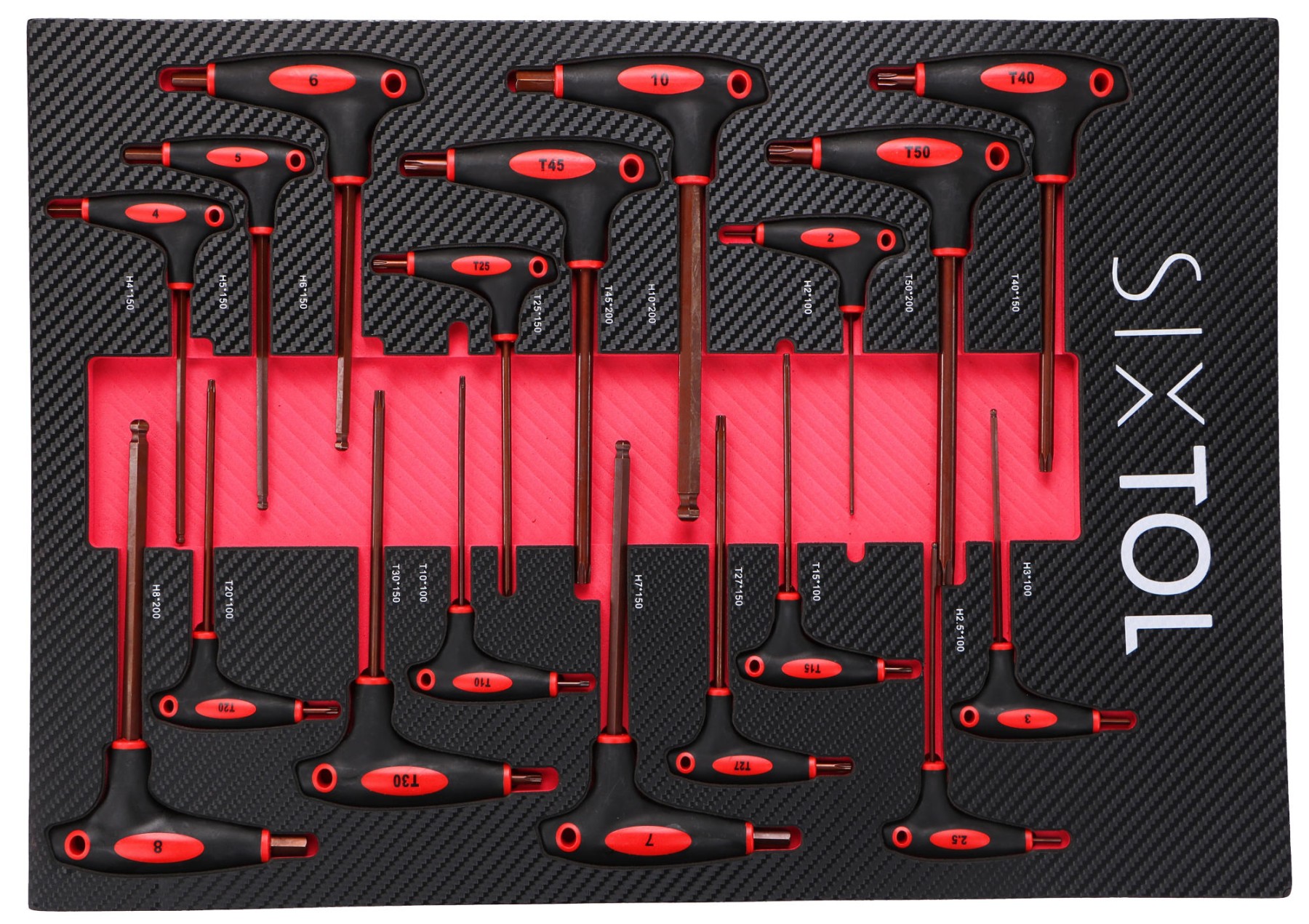

• 5th Drawer - 18x T-handle wrenches (S2 material)
- TORX T-handle wrenches: T40 × 150 mm; T45 × 200 mm; T30 × 150 mm; T50 × 200 mm; T10 × 100 mm; T27 × 150 mm; T15 × 100 mm; T20 × 100 mm; T25 × 150 mm
- HEX (Allen) T-handle wrenches: H2 × 100 mm; H2.5 × 100 mm; H3 × 100 mm; H4 × 150 mm; H5 × 150 mm; H6 × 150 mm; H7 × 150 mm; H8 × 200 mm; H10 × 200 mm

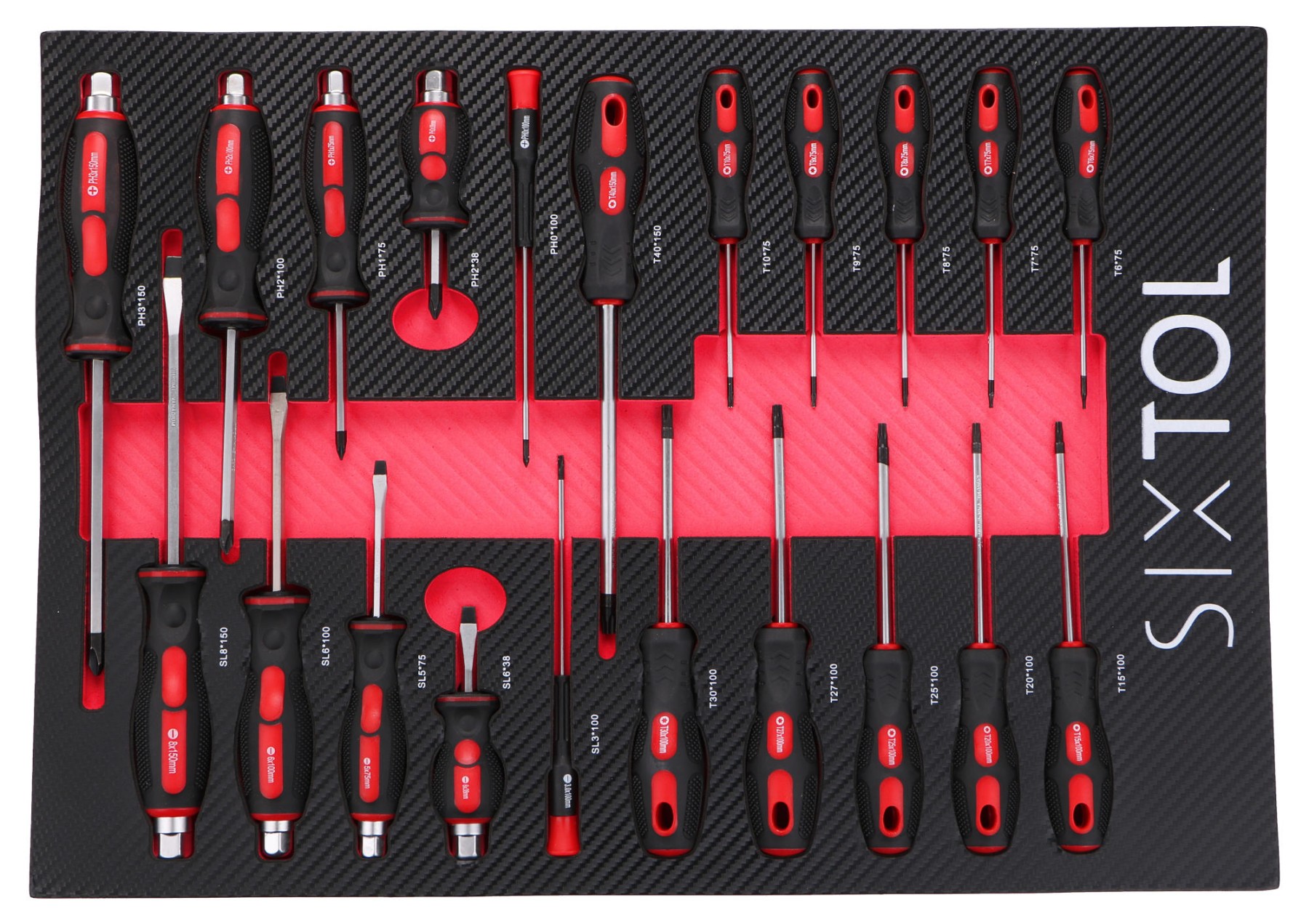

• 6th Drawer - 21x Through screwdrivers (material 40Cr)
- 4x Phillips (+): PH2 × 38 mm; PH1 × 75 mm; PH2 × 100 mm; PH3 × 150 mm
- 4x Flat (–): SL6 × 38 mm; SL5 × 75 mm; SL6 × 100 mm; SL8 × 150 mm
- 11x Classic screwdrivers: T6 × 75 mm; T7 × 75 mm; T8 × 75 mm; T9 × 75 mm; T10 × 75 mm; T15 × 100 mm; T20 × 100 mm; T25 × 100 mm; T27 × 100 mm; T30 × 100 mm; T40 × 150 mm
- 2x Precision screwdrivers: SL3 × 100 mm (flat); PH0 × 100 mm (Phillips)

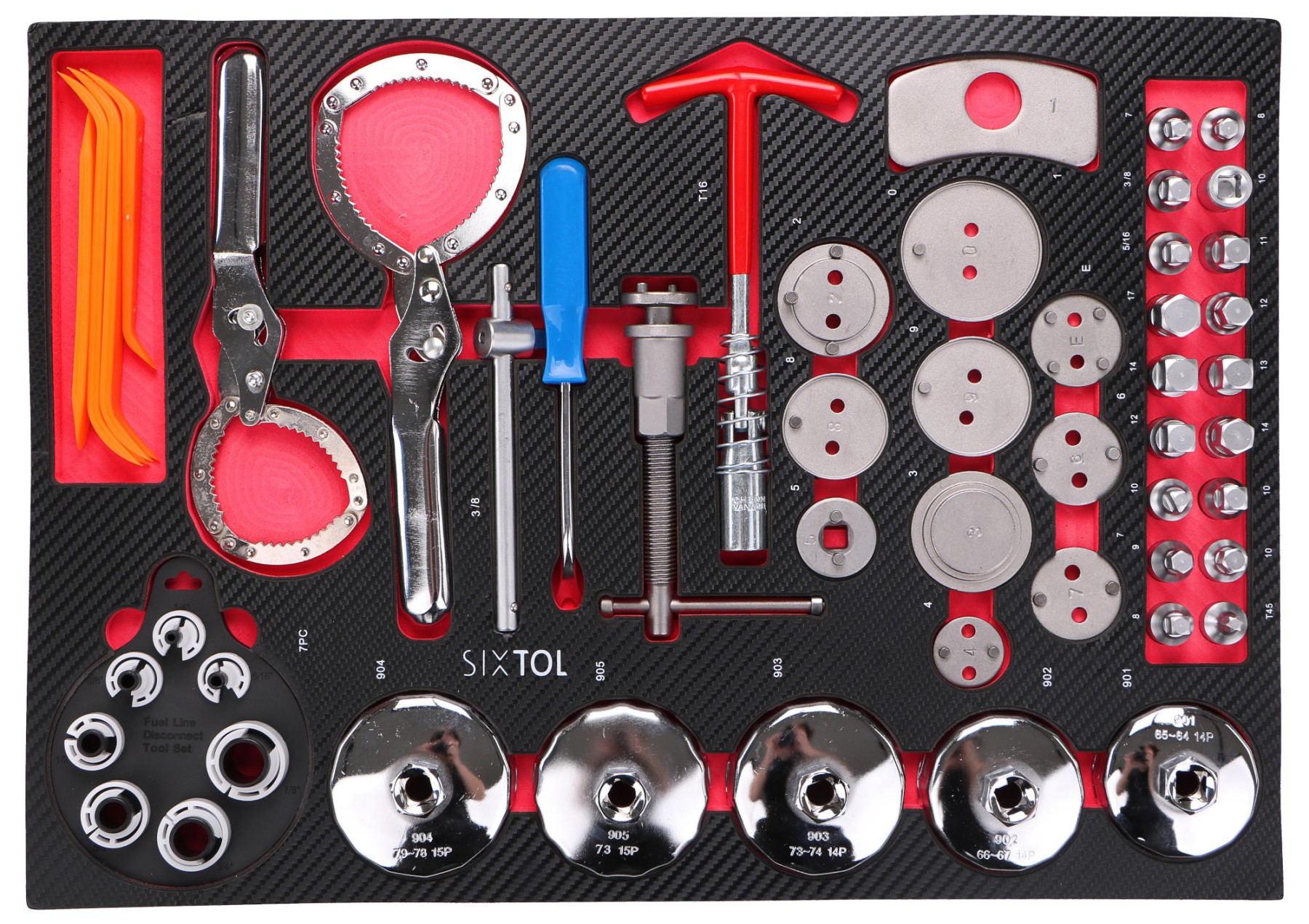

• 7th Drawer - 52x Special automotive tools
• 5x Oil filter socket wrenches:
- 1x type 901 – 14-point: 65-64 mm (Compatible with: Toyota, Nissan, Daihatsu)
- 1x type 902 – 14-point: 66-67 mm (Compatible with: Daihatsu, Toyota)
- 1x type 903 – 14-point: 73-74 mm (Compatible with: Škoda, Volkswagen, Mercedes, BMW, Opel, Audi, Seat, KIA, Hyundai)
- 1x type 904 – 15-point: 79-78 mm (Compatible with: Nissan, Ford)
- 1x type 905 - 15-point: 73 mm (Compatible with: GM, Chrysler)
• 7x fuel/AC line disconnectors: 1/4", 5/16", 7/8", 3/4", 5/8", 1/2", 3/8"
• 1x 3/8" sliding T-handle breaker bar for socket use
• 6x 3/8" hex adapters for oil drain plugs: 8, 9, 10, 12, 14, 17 mm
• 9x 3/8" square adapters for oil drain plugs: 5/16", 3/8", 7, 8, 10, 11, 12, 13, 14 mm
• 1x 3/8" triangular adapter for oil drain plugs: 10 mm
• 2x 3/8" adapters for oil drain plugs – T45; inner square: 10 mm
• 1x Gear-style oil filter wrench 55-75 mm
• 1x Gear-style oil filter wrench 75-95 mm
• 1x Metal pry tool for removing clips and upholstery fasteners
• 4x Set of plastic trim removal pry tools for upholstery/interior
• 1x Spark plug wrench 21 mm with handle and joint
• 12x Brake caliper piston compressors:
- #R - Right-hand threaded compressor
- #1 - Stopper
- Adapter #0 - 2-1/2" General Motors, Cadillac Seville, Eldorado
- Adapter #2 - 2-1/64" Citroen / XM, Xantia (P / Z)
- Adapter #3 - 2-5/32" Audi (P), Fiat / Alfa Romeo (P), Ford Fiesta (P), Isuzu (P), Honda Concerto (P), Jaguar XJ6, XJ40 (P / Z), BMW 318is, 320i, 325TD, 518i, 525i, 1x, 740i, 850ci, M5 (P), Mercedes Benz 190, 200, 300, 420, 560 series (P), Mitsubishi Colt (P), Nissan Micra, Stanza, Sunny (P), Range Rover Austin, Metro 200 and 400 Series, Maestro, Montego (P), Škoda, Toyota Camry (P), Volvo (P), VW Passat, Golf GTI (P)
- Adapter #4 - 1-1/4" Ford Australia / NZ Telstar, Laser (Z), Mazda (Z), Saab 9000 (Z), Fiat / Alfa Romeo 1642 (Z), Honda Prelude, CRS, 16i, GM Saturn, Grand Prix, Lumina (Z)
- Adapter #5 - 3/8" ratchet adapter
- Adapter #6 - 1-21/32" Nissan Primera, Škoda, VW Golf IV
- Adapter #7 - 1-21/32" Audi 80, 90, V8 100, Coupe E (Z), Range Rover 800, Subaru L, Z (Z), Ford Sierra, Granada, Scorpio (Z), Nissan Bluebird, Silvia, Primera 2.0i LS / GS / GSX (Z), Peugeot 405, 1.9Gi, Gro, Sri, Gtxi, MI, 605, 2.0 Sri (Z), Škoda, Toyota Celica Corolla, GT, MR2 (Z), VW Golf GTI, Jetta Syncro, Passat CL, GL, GT & GT 16V, Corrado 16V, Scirocco, GTX 16V (Z)
- Adapter #8 - 1-7/8" General Motors
- Adapter #9 - 2-1/8" General Motors, Cadillac Seville, Eldorado
- Adapter #E - 1-21/32" Nissan Cefiro, Maxima
- 1x EVA foam tool insert

Package contents:

• 1x SX8001 - Workshop tool trolley MECHANIC TROLLEY KEVIN, 7 drawers
• 1x SX8101 - Tool module for workshop trolley MECHANIC TOOL TRAY 1, 80 pcs
• 1x SX8102 - Tool module for workshop trolley MECHANIC TOOL TRAY 2, 102 pcs
• 1x SX8111 - Tool module for workshop trolley MECHANIC TOOL TRAY 11, 39 pcs
• 1x SX8104 - Tool module for workshop trolley MECHANIC TOOL TRAY 4, 15 pcs
• 1x SX8105 - Tool module for workshop trolley MECHANIC TOOL TRAY 5, 18 pcs
• 1x SX8108 - Tool module for workshop trolley MECHANIC TOOL TRAY 8, 21 pcs
• 1x SX8110 - Tool module for workshop trolley MECHANIC TOOL TRAY 10, 52 pcs

Technical specifications:

• Tool modules:
• Dimensions: 59.5 × 39.5 cm
• Material: EVA foam, steel
• Module weights: 1.9 kg; 5.7 kg; 5.7 kg; 3 kg; 1.9 kg; 5.3 kg; kg
• Workshop trolley:
• Body material: SPCC steel, thickness 0.8 mm
• Drawer material: SPCC steel, thickness 0.6 mm

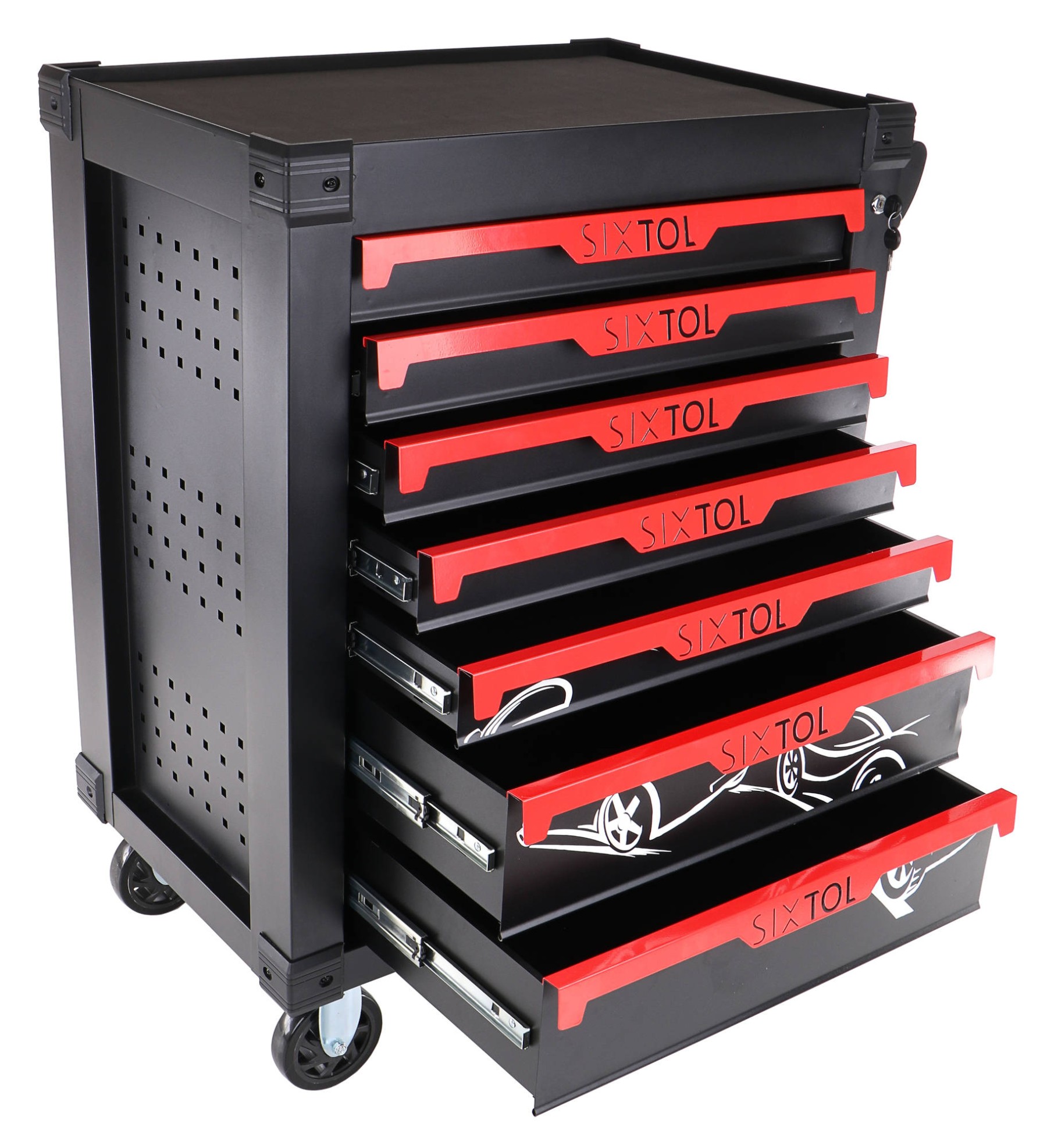

• Number of drawers: 7
• Drawer dimensions:
• 5× 600 × 410 × 75 mm (25 kg)
• 2× 600 × 410 × 135 mm (35 kg)
• Total trolley load capacity: 250 kg
• Caster diameter: 5" (12.7 cm)
• External dimensions: 81.5 × 50 × 100 cm
• Packaging dimensions: 77.5 × 53 × 89 cm
• Weight of empty trolley: 80 kg
