Workshop tool trolley MECHANIC TROLLEY KEVIN RED 274, 7 drawers, 274 pcs of tools

Workshop tool trolley MECHANIC TROLLEY KEVIN RED 274, 7 drawers, 274 pcs of tools SIXTOL

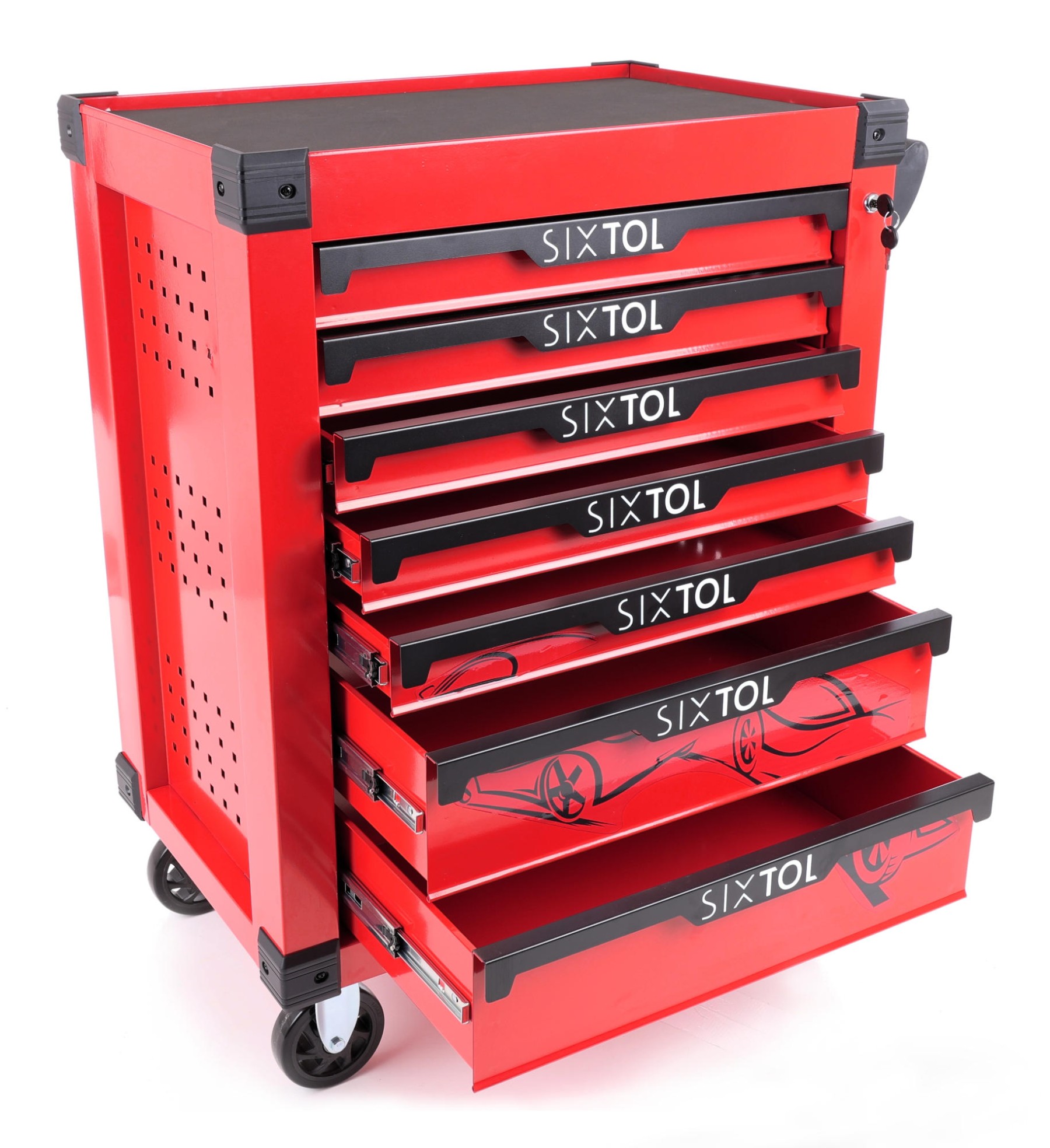

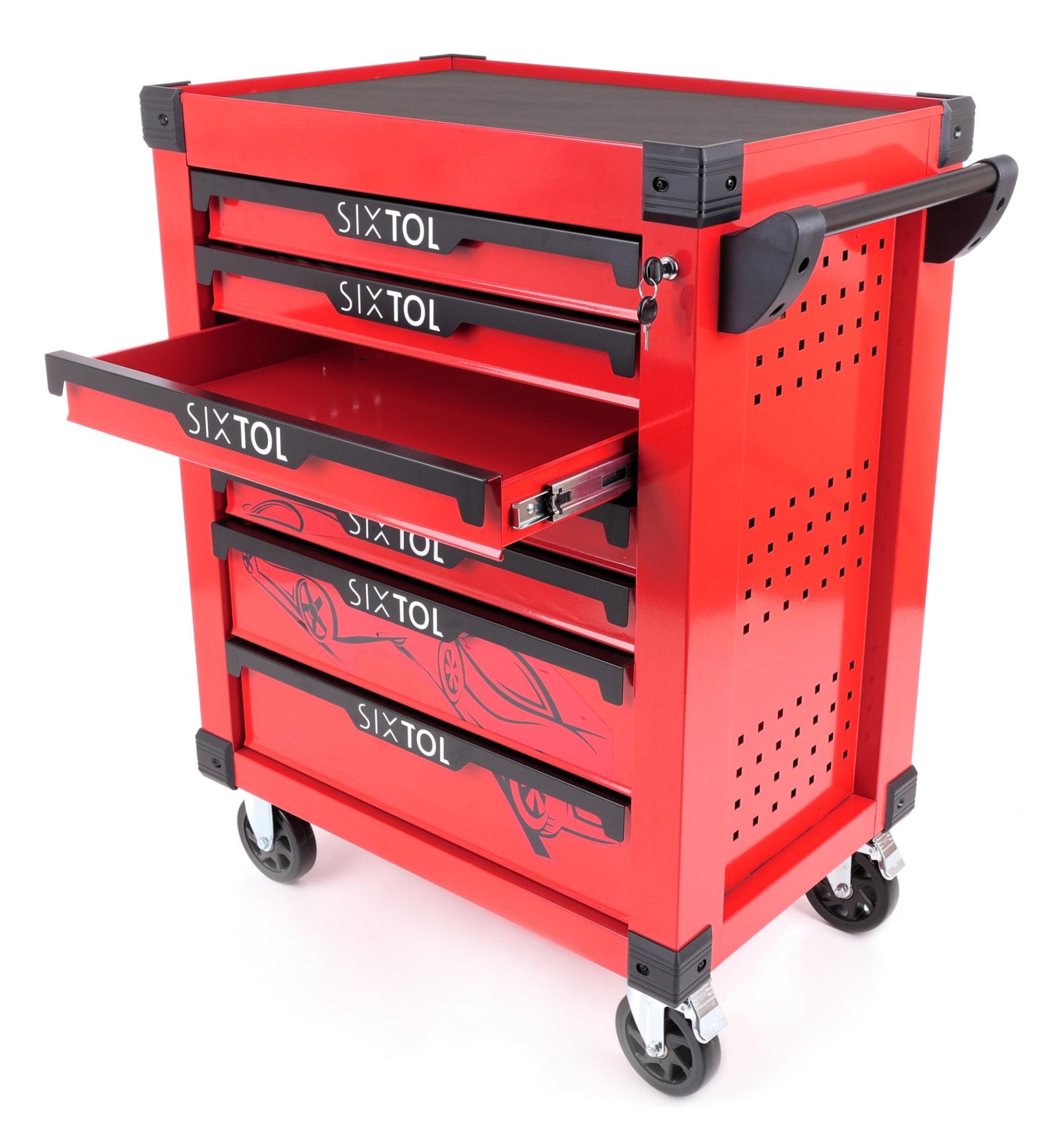

The workshop tool trolley MECHANIC TROLLEY KEVIN RED 274 combines a solid SPCC steel body with seven drawers on quiet ball-bearing slides and a rich equipment set of 274 tools stored in precisely shaped EVA modules that ensure excellent organization, secure storage and quick orientation during work. The set includes a 21-piece screwdriver set for fine and heavy-duty work, an 80-piece set of sockets, ratchets, extensions and universal joints in three square-drive sizes, a 102-piece kit of bits, insert keys, extensions and special adapters, a 15-piece module of pliers, a hammer and chisels for gripping, striking and shaping tasks, 17 ergonomic T-handle wrenches for effective use in hard-to-reach places and a 39-piece wrench set including combination, open-end, offset and an adjustable wrench. Each module is made of rigid EVA foam that protects the tools and prevents movement. The trolley offers central locking of all drawers, four wheels with a diameter of 12.7 cm (two swivel and two fixed) for easy handling, and a top work surface with a rubber mat. Thanks to its construction and complete equipment, it represents an ideal mobile station for car repair shops, workshops and home garages where it provides durability, order and convenient access to all tools.

Main advantages:

• Complete 274-piece tool set in precisely shaped EVA modules.
• Seven drawers with smooth and quiet ball-bearing slides.
• Robust body and drawer construction from SPCC steel sheet.

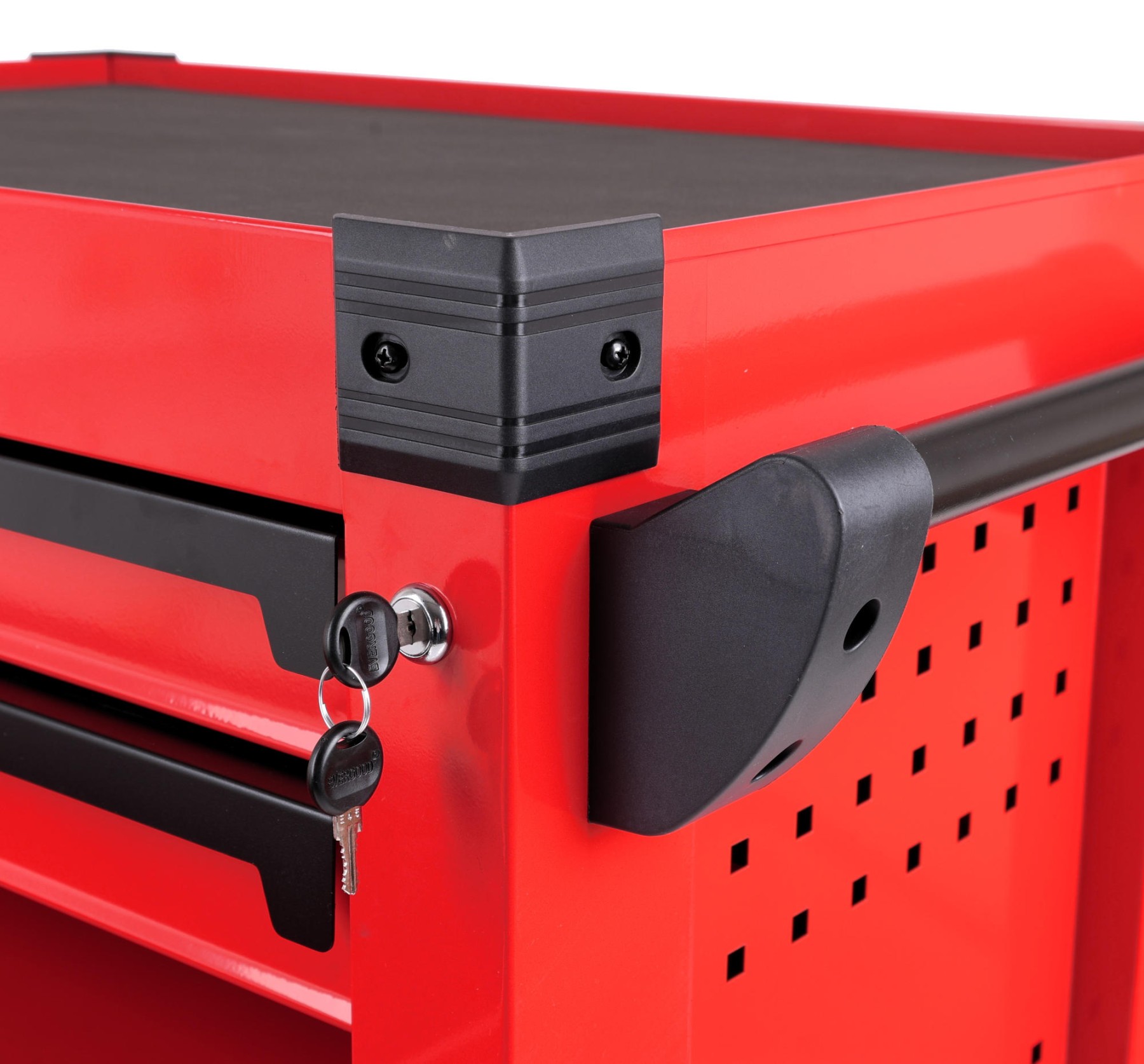

• Central locking of all drawers for secure storage of tools.
• Wide range of tools: screwdrivers, sockets, bits, wrenches, pliers, T-handle wrenches and more.

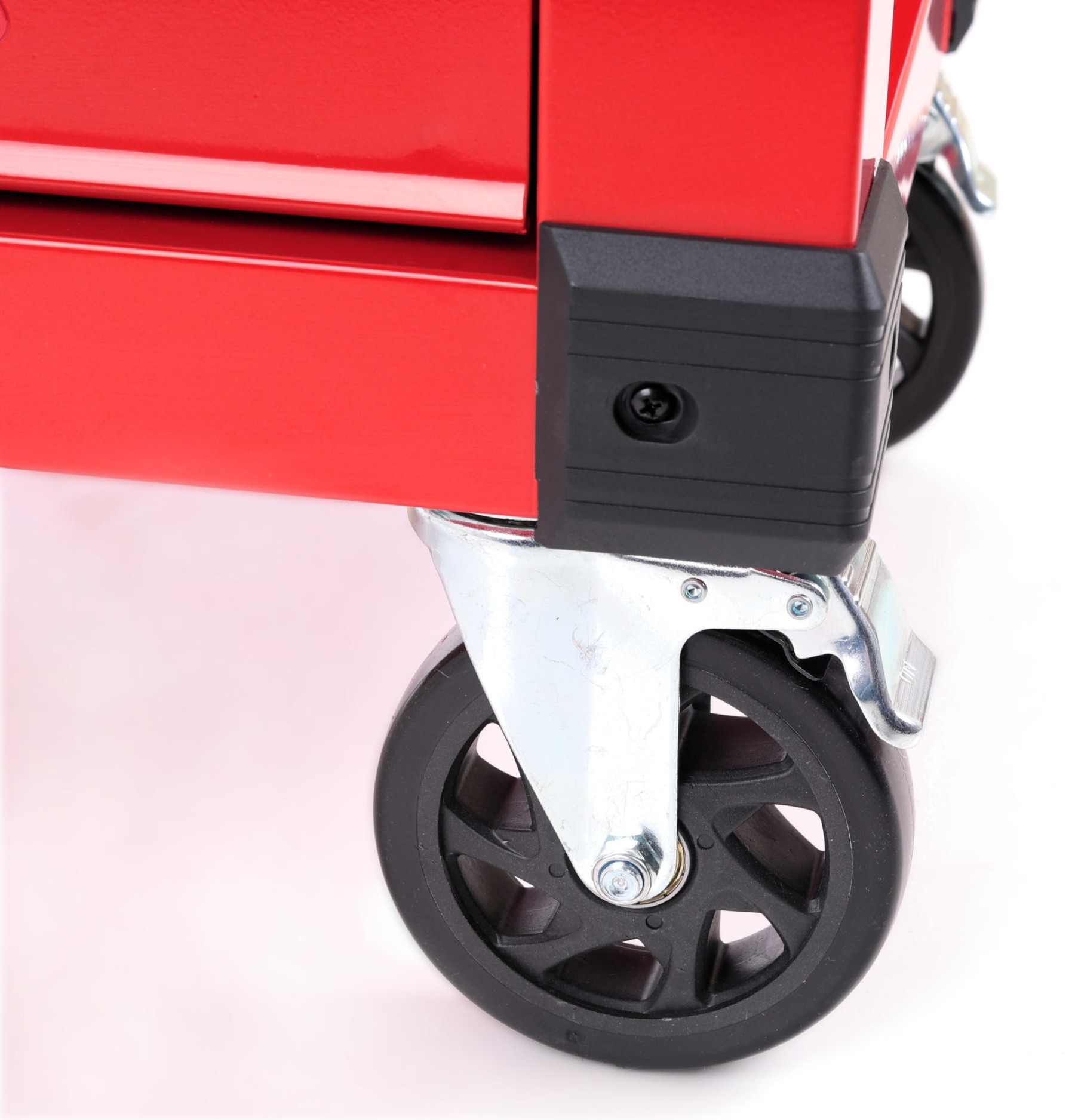

• 4 casters with a diameter of 12.7 cm – 2 swivel and 2 fixed.
• EVA modules protect tools, provide organization and speed up work.
• Top work surface with a rubber mat for storage and small tasks.

Applications:

• Service, assembly and disassembly work in car repair shops, workshops and industrial operations.
• Maintenance and repair of cars, machines and equipment.
• Tool organization in professional workshops and demanding home garages.
• Fine and heavy-duty tasks thanks to the screwdriver set, wrenches, T-handle wrenches and striking tools.
• Precise work with sockets, bits and extensions across a wide range of service tasks.

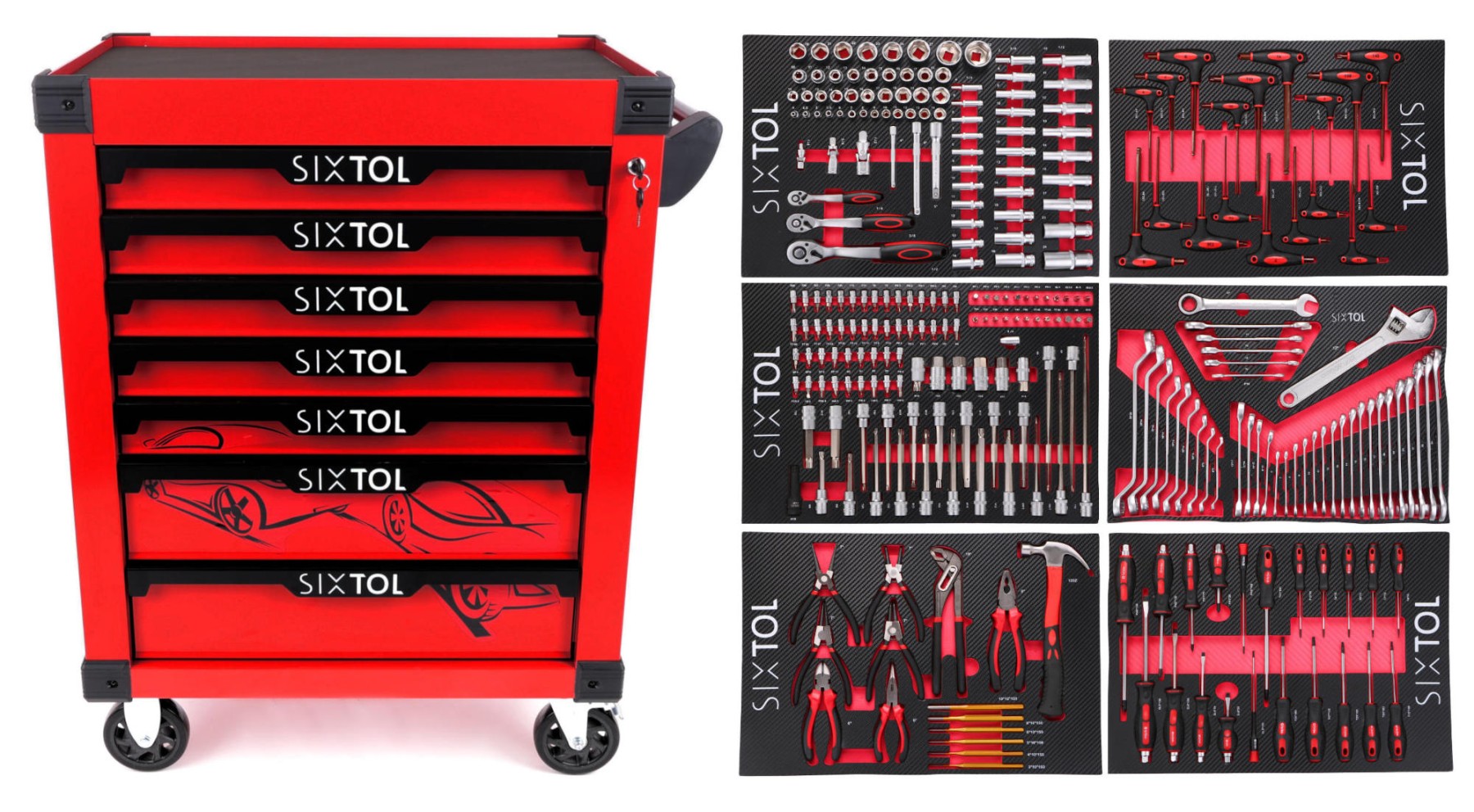

Tool contents:

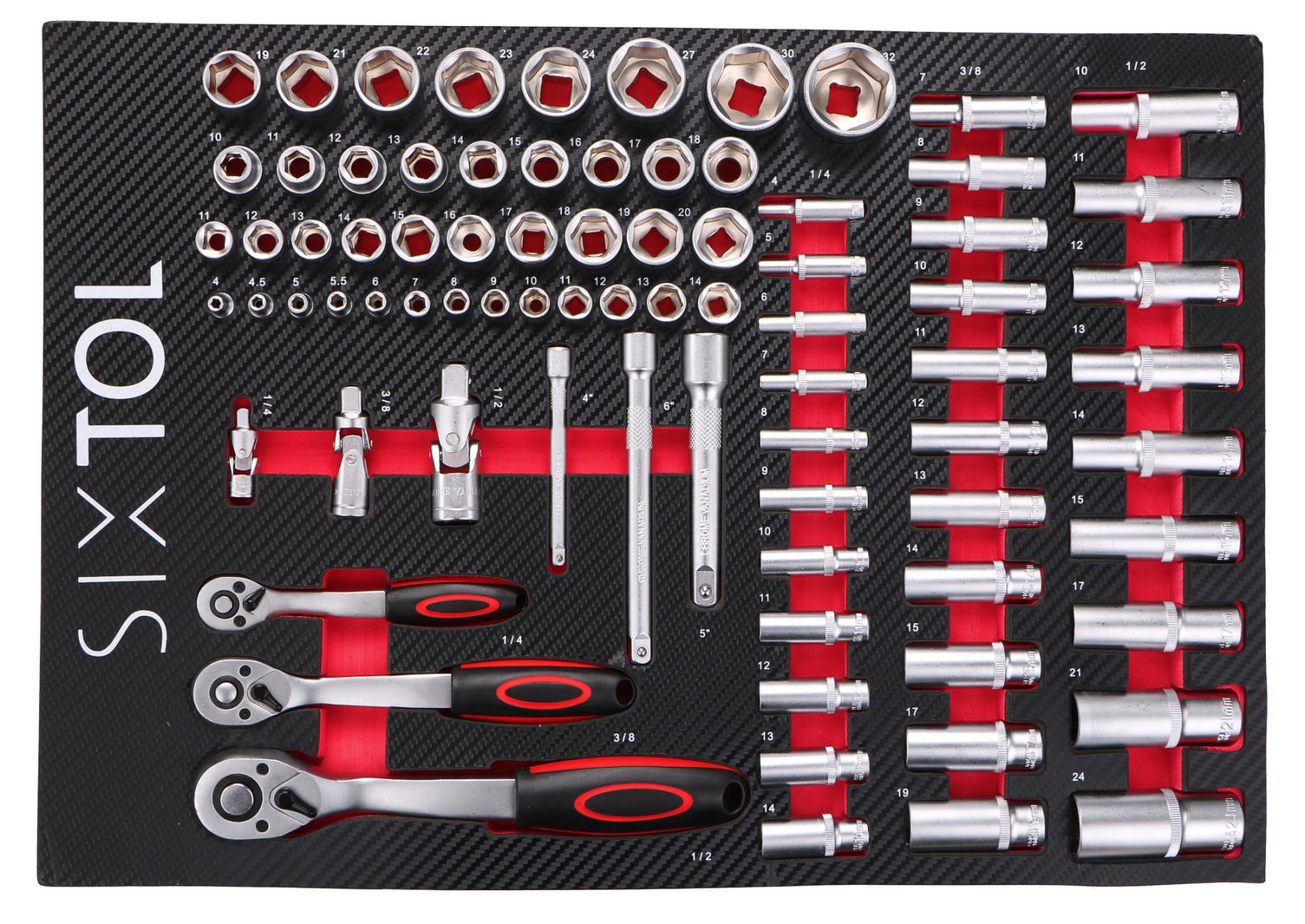

• 1. Drawer - 80x sockets, ratchets and accessories
• 8x 1/2" short sockets
- 19; 21; 22; 23; 24; 27; 30; 32 mm
• 13x 1/4" short (small) sockets
- 4; 4.5; 5; 5.5; 6; 7; 8; 9; 10; 11; 12; 13; 14 mm
• 9x 1/4" short (standard) sockets
- 10; 11; 12; 13; 14; 15; 16; 17; 18 mm
• 10x 3/8" short sockets
- 11; 12; 13; 14; 15; 16; 17; 18; 19; 20 mm
• 11x 1/4" long sockets
- 4; 5; 6; 7; 8; 9; 10; 11; 12; 13; 14 mm
• 11x 3/8" long sockets
- 7; 8; 9; 10; 11; 12; 13; 14; 15; 17; 19 mm
• 9x 1/2" long sockets
- 10; 11; 12; 13; 14; 15; 17; 21; 24 mm
• 3x Universal joints
- 1/4"; 3/8"; 1/2"
• 3x Extensions
- 1/4" extension, length 10.2 cm (4"); 3/8" extension, length 15.2 cm (6"); 1/2" extension, length 12.7 cm (5")
• 3x Ratchets
- 1/4"; 3/8"; 1/2"

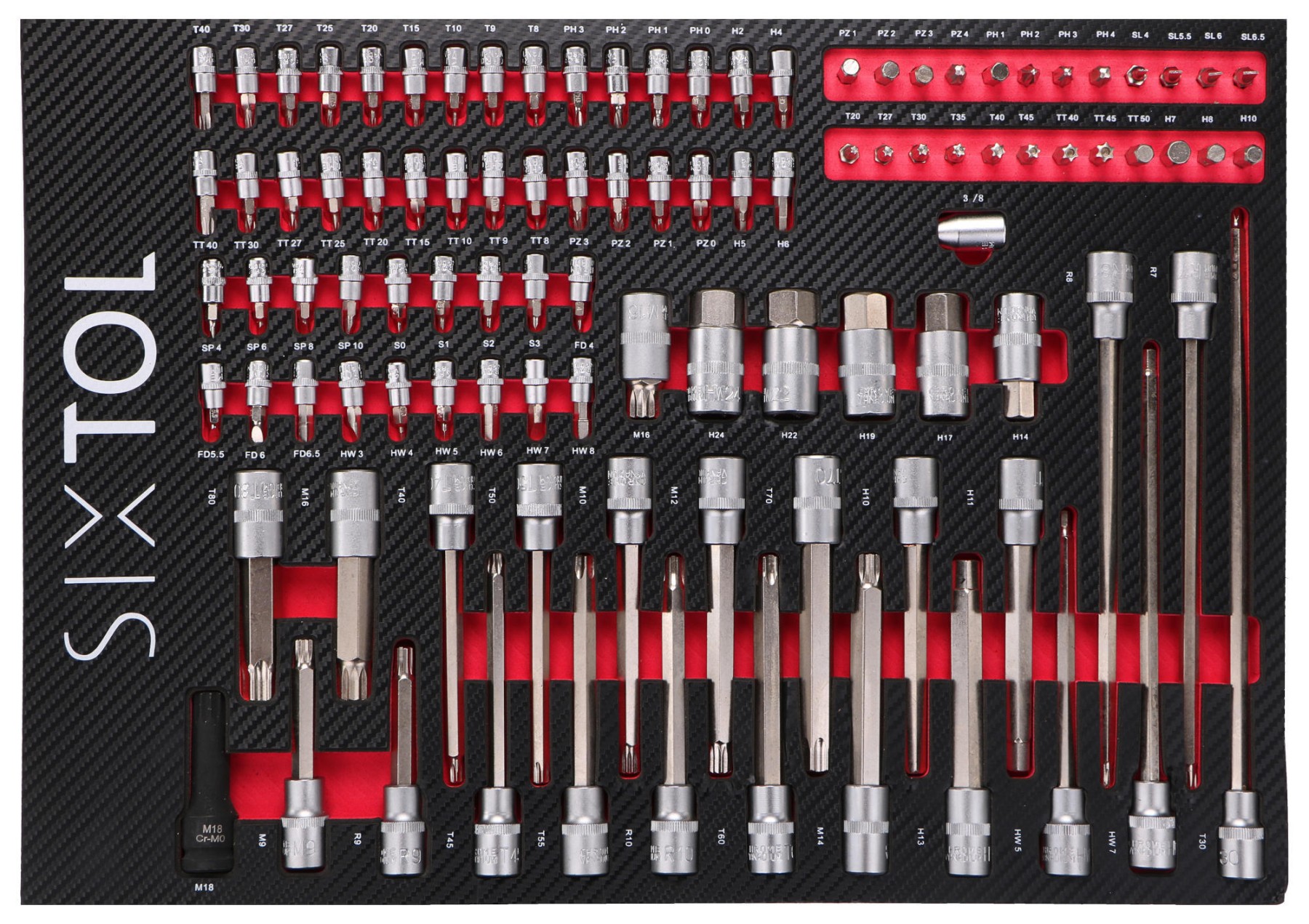

• 2. Drawer - 102x bits and attachments
• 48x Short bits in 1/4" bit holders - S2 steel
- Torx: T8, T9, T10, T15, T20, T25, T27, T30, T40
- Torx with hole: TT8, TT9, TT10, TT15, TT20, TT25, TT27, TT30, TT40
- Allen (hex): H2, H4, H5, H6
- Phillips: PH0, PH1, PH2, PH3
- Pozidriv: PZ0, PZ1, PZ2, PZ3
- Flat: FD4, FD5.5, FD6, FD6.5
- 'Security'/special: SP4, SP6, SP8, SP10
- Robertson/square: S0, S1, S2, S3
- Inbus-insert (HW): HW3, HW4, HW5, HW6, HW7, HW8
• 24x Separate long bits 8×30 mm
- Top row: PZ1, PZ2, PZ3, PZ4, PH1, PH2, PH3, PH4, SL4, SL5.5, SL6, SL6.5
- Bottom row: T20, T27, T30, T35, T40, T45, TT40, TT45, TT50, H7, H8, H10
• 6x Short 1/2" bit sockets
- M16 (XZN / triple square)
- H14, H17, H19, H22, H24 (Allen)
• 22x Long 1/2" bit sockets
- T80, M9, M16, R9
- T40, T45, T50, T55, T60, T70, M10, M12, M14, H10, H13, H11, R10
- HW5
- R7, R8, HW7, T30
• 1x Impact 1/2" bit M18, material Cr-Mo
• 1x Coupling / adapter 3/8"

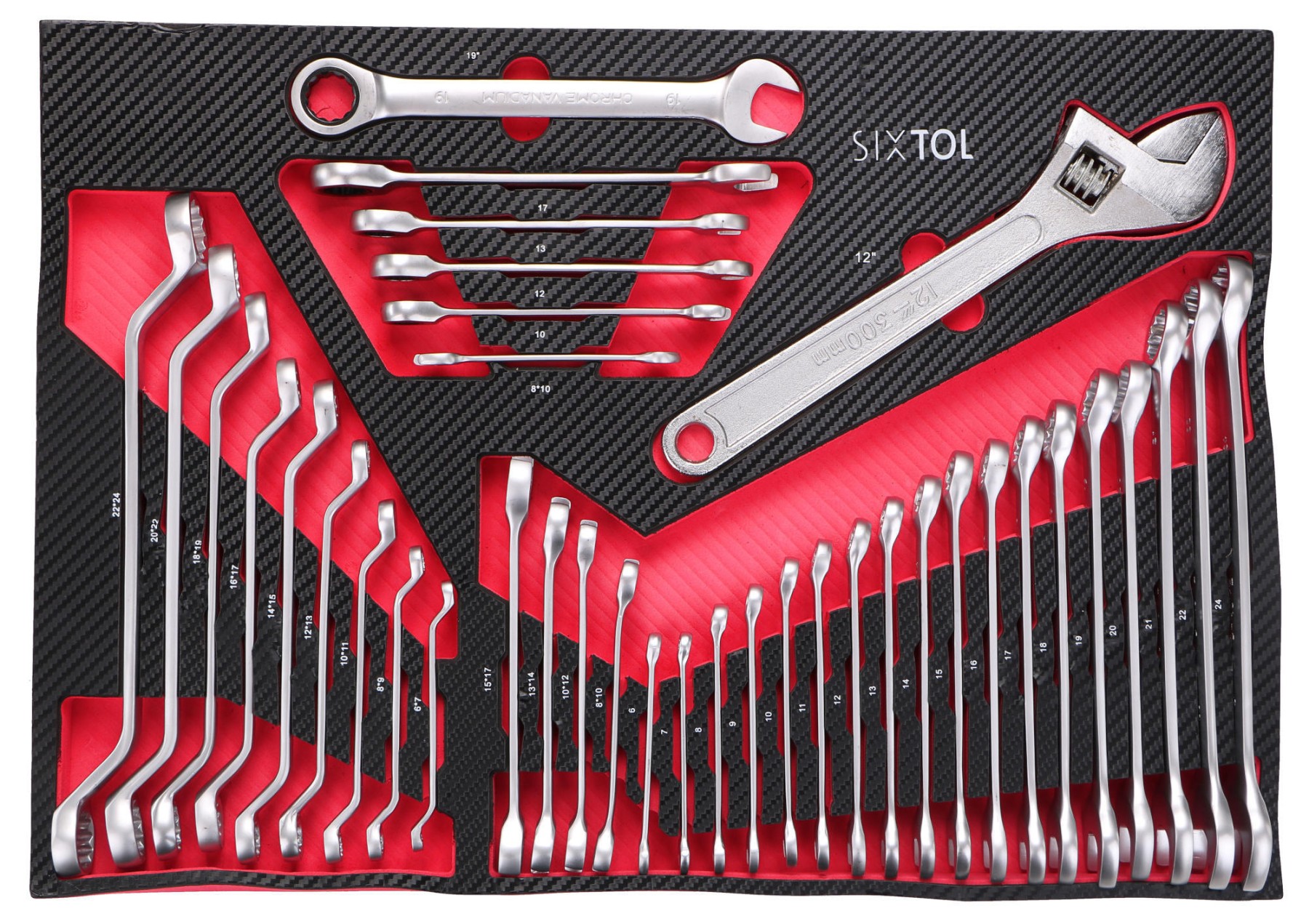

• 3. Drawer - 39x Combination wrenches
- 18x Torx combination wrenches: 6; 7; 8; 9; 10; 11; 12; 13; 14; 15; 16; 17; 18; 19; 20; 21; 22; 24 mm
- 9x Double-ended Torx combination wrenches: 6×7 mm, 8×9 mm, 10×11 mm, 12×13 mm, 14×15 mm, 16×17 mm, 18×19 mm, 20×22 mm, 22×24 mm
- 5x Ratcheting offset wrenches: 10; 12; 13; 17; 19 mm
- 1x Double open-ended wrench: 8×10 mm
- 4x Flare nut (tube) wrenches: 8×10 mm, 10×12 mm, 13×14 mm, 15×17 mm
- 1x Adjustable wrench 30.48 cm (12")
- 1x EVA foam tool insert

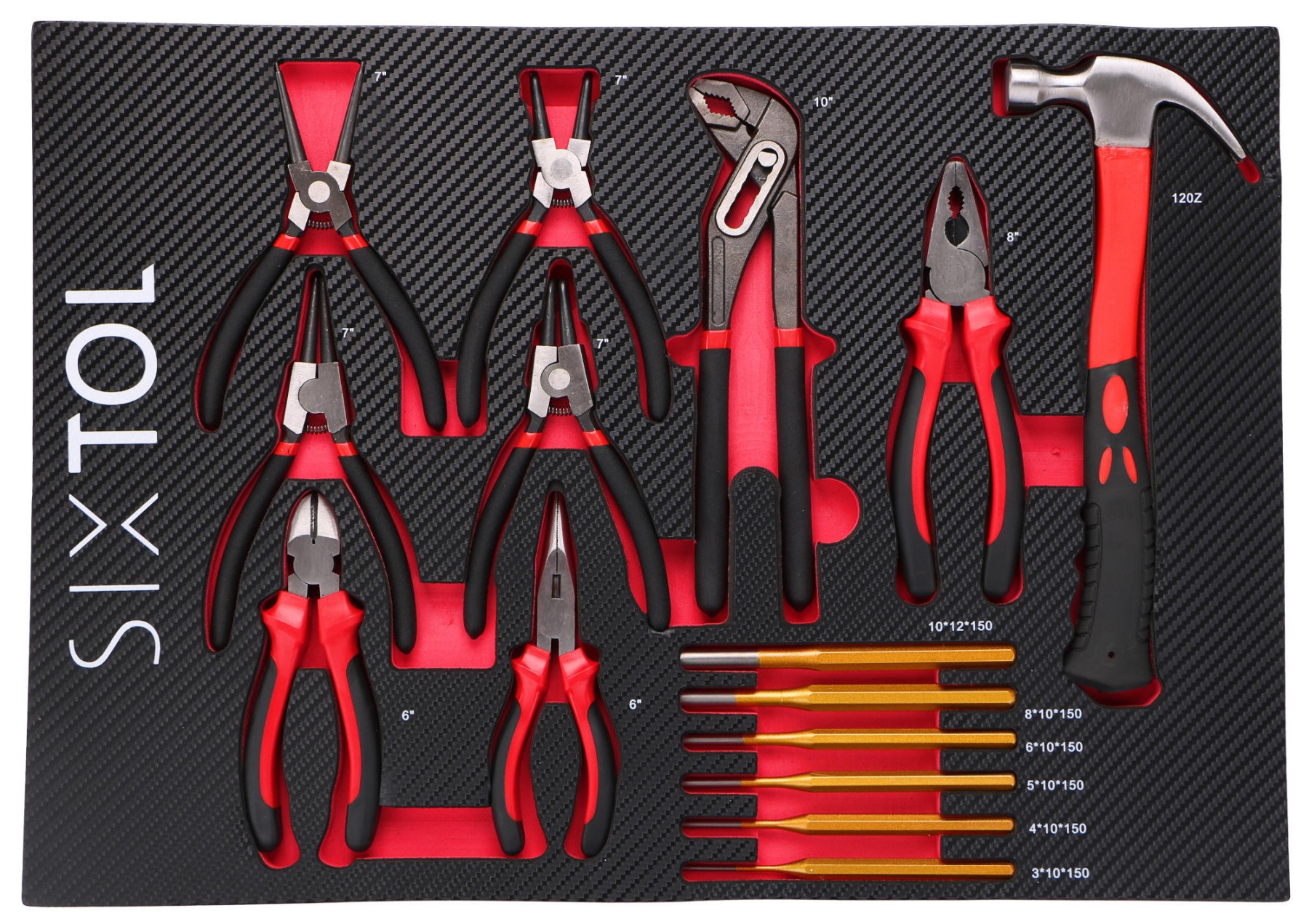

• 4. Drawer - 15x pliers and other tools
- 1x Hammer 340 g
- 1x Sika pliers – 25.4 cm (10")
- 1x Cutting pliers - 15.24 cm (6")
- 1x Combination pliers - 15.24 cm (6")
- 1x Straight needle-nose pliers - 15.24 cm (6")
- 4x Circlip pliers - 17.78 cm (7") - internal / external, straight / bent
- 6x Punches: diameters: 3; 4; 5; 6; 8; 10 mm

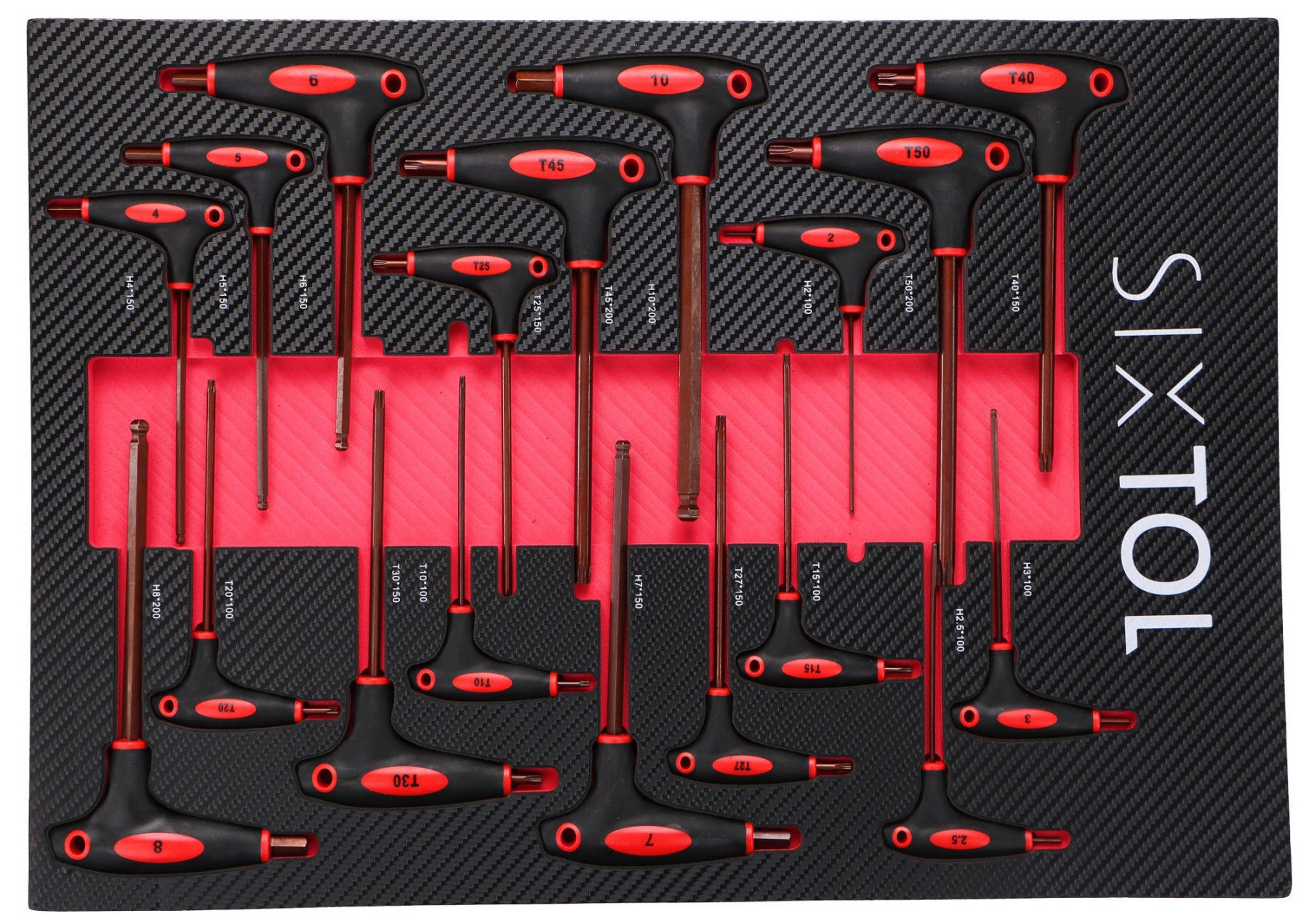

• 5. Drawer - 18x T-handle wrenches (S2 material)
- TORX T-handle wrenches: T40 × 150 mm; T45 × 200 mm; T30 × 150 mm; T50 × 200 mm; T10 × 100 mm; T27 × 150 mm; T15 × 100 mm; T20 × 100 mm; T25 × 150 mm
- HEX T-handle wrenches (Allen): H2 × 100 mm; H2.5 × 100 mm; H3 × 100 mm; H4 × 150 mm; H5 × 150 mm; H6 × 150 mm; H7 × 150 mm; H8 × 200 mm; H10 × 200 mm

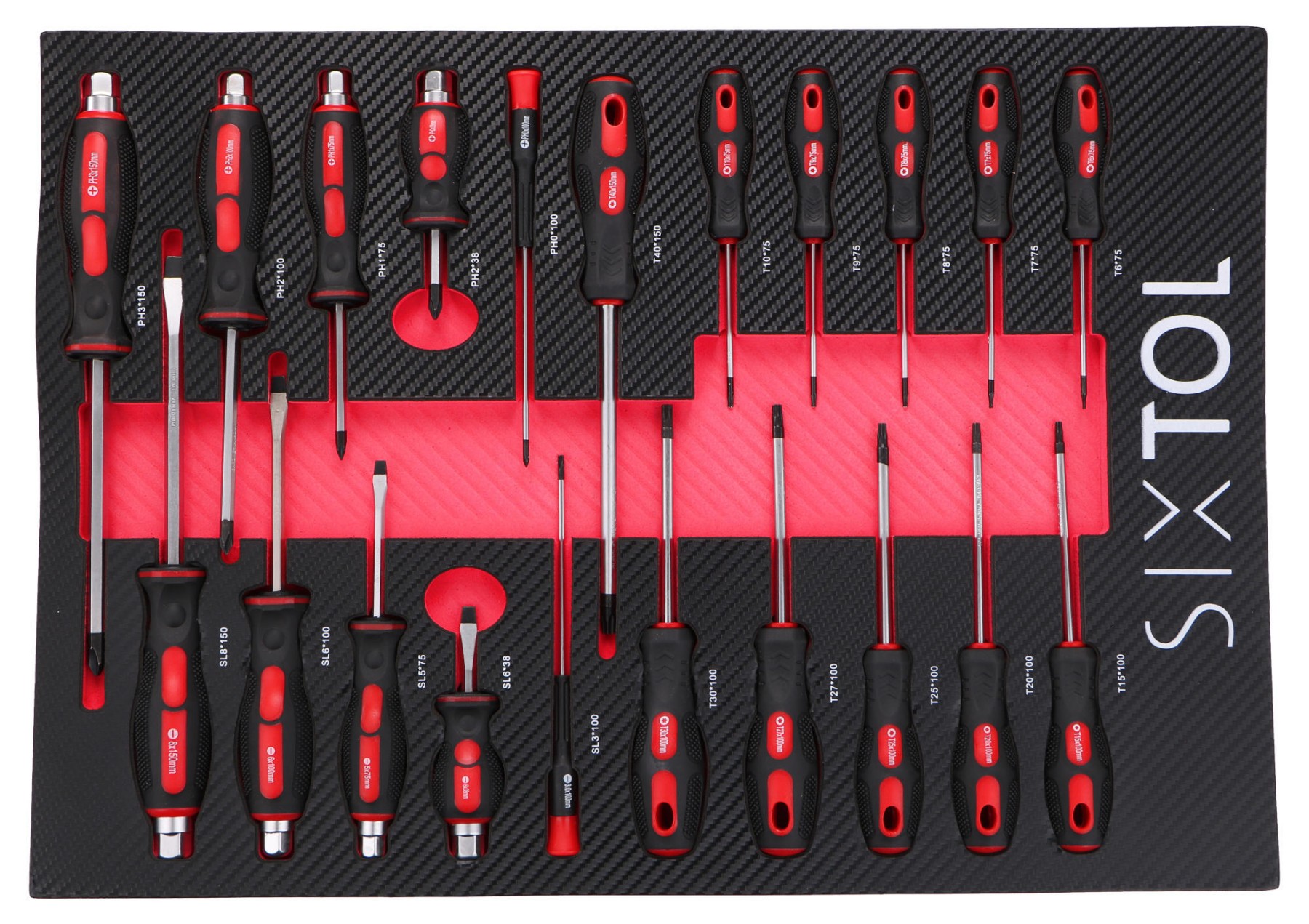

• 6. Drawer - 21x Through screwdrivers (material 40Cr)
- 4x Phillips (+): PH2 × 38 mm; PH1 × 75 mm; PH2 × 100 mm; PH3 × 150 mm
- 4x Flat (–): SL6 × 38 mm; SL5 × 75 mm; SL6 × 100 mm; SL8 × 150 mm
- 11x Classic screwdrivers: T6 × 75 mm; T7 × 75 mm; T8 × 75 mm; T9 × 75 mm; T10 × 75 mm; T15 × 100 mm; T20 × 100 mm; T25 × 100 mm; T27 × 100 mm; T30 × 100 mm; T40 × 150 mm
- 2x Precision screwdrivers: SL3 × 100 mm (flat); PH0 × 100 mm (Phillips)

Package contents:

• 1x SX8005 - Workshop tool trolley MECHANIC TROLLEY KEVIN RED, 7 drawers
• 1x SX8101 - Tool module for trolley MECHANIC TOOL TRAY 1, 80 pcs
• 1x SX8102 - Tool module for trolley MECHANIC TOOL TRAY 2, 102 pcs
• 1x SX8111 - Tool module for trolley MECHANIC TOOL TRAY 11, 39 pcs
• 1x SX8104 - Tool module for trolley MECHANIC TOOL TRAY 4, 15 pcs
• 1x SX8105 - Tool module for trolley MECHANIC TOOL TRAY 5, 18 pcs
• 1x SX8108 - Tool module for trolley MECHANIC TOOL TRAY 8, 21 pcs

Technical specifications:

• Tool modules:
• Dimensions: 59.5 × 39.5 cm
• Material: EVA foam, steel
• Module weights: 1.9 kg; 5.7 kg; 5.7 kg; 3 kg; 1.9 kg; 5.3 kg
• Workshop trolley:
• Body material: SPCC steel, thickness 0.8 mm
• Drawer material: SPCC steel, thickness 0.6 mm
• Number of drawers: 7
• Drawer dimensions:
• 5× 600 × 410 × 75 mm (25 kg)
• 2× 600 × 410 × 135 mm (35 kg)
• Total load capacity of the trolley: 250 kg
• Wheel diameter: 5" (12.7 cm)
• External dimensions: 81.5 × 50 × 100 cm
• Packaging dimensions: 77.5 × 53 × 89 cm
• Empty trolley weight: 80 kg
