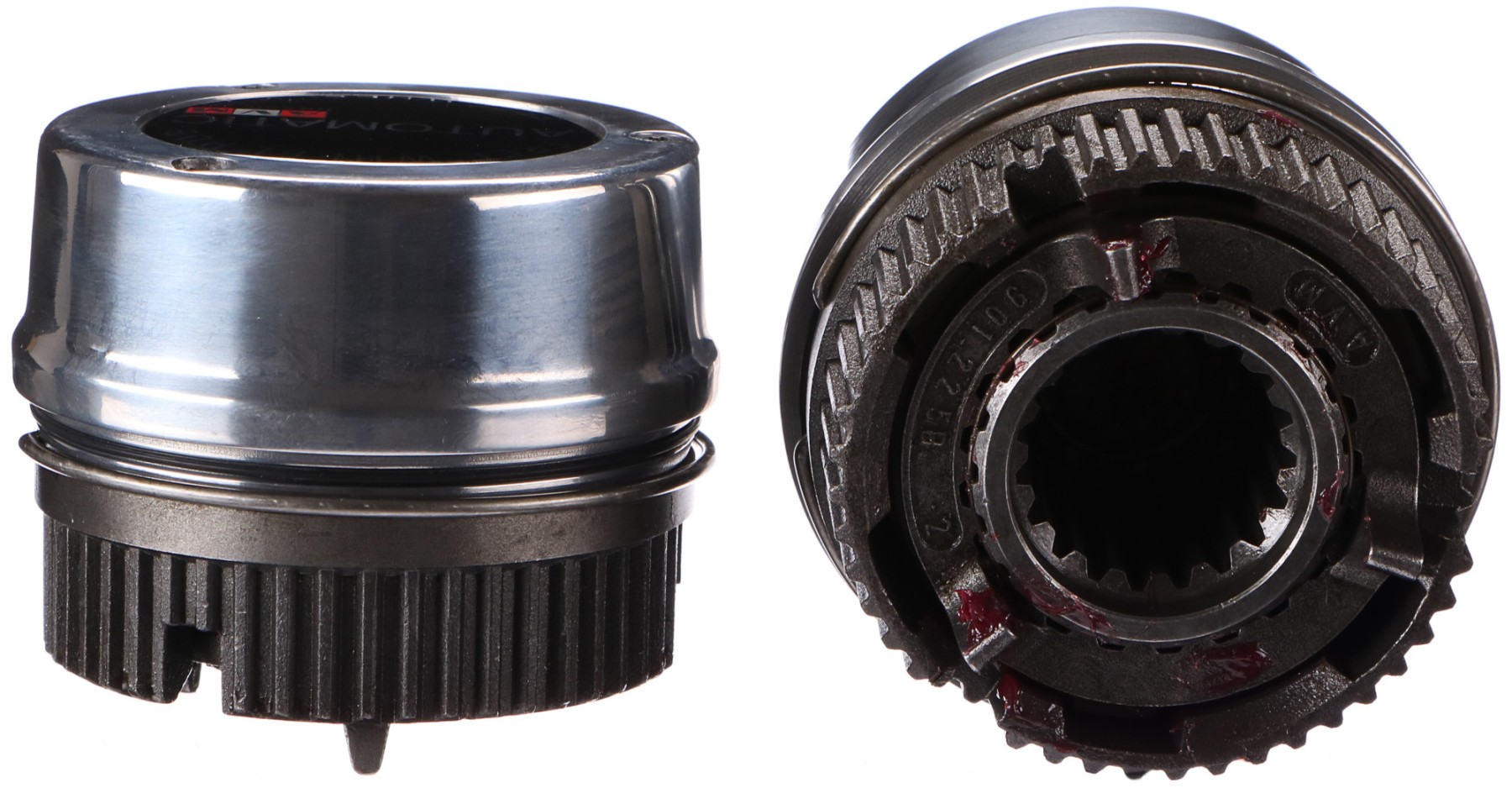

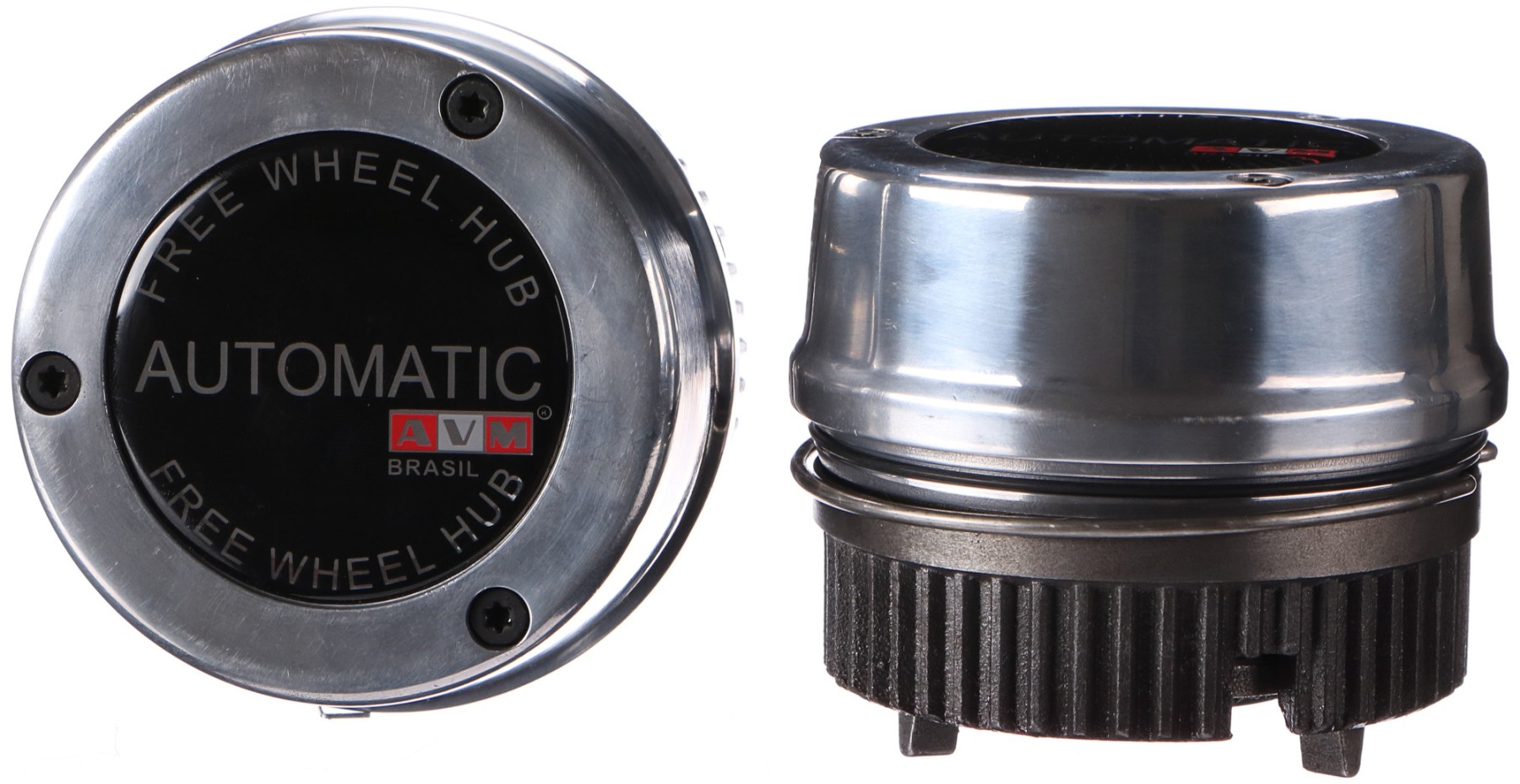

Freewheeling hub AVM 918D - Chevrolet / Chrysler / Ford / Jeep
Set of 2 automatic freewheeling hubs AVM 918D serves as automatic disconnecting hubs for the front wheels on selected 4x4 and off-road vehicles. When four-wheel drive is used they ensure connection of the wheel hub to the front axle half-shaft so that driving force can also be transmitted to the front wheels; after disengagement they allow the front wheels free rotation when the front axle is not driven. The automatic design simplifies operation because it is not necessary to manually operate a control directly on the hub; the specific procedure for engagement and disengagement is governed by the design and manual of the given vehicle. Robust steel construction protected by an epoxy coating increases resistance to external influences and precisely manufactured internal components support reliable function in normal operation as well as in more demanding off-road conditions.
Suitable for models:Chevrolet / GMC- Blazer, Jimmy, Suburban (1969-1991)
- Pick Up (1/2-ton) (K10) (1969-1987)
- Pick Up (3/4-ton) (1977-1987)
Chrysler / Dodge- Pick Up (1/2-ton), Ramcharger (1969-1974)
- Pick Up (1/2-ton, 3/4-ton), Ramcharger (1980-1993)
- Cherokee (Dana 44) (-1975)
- Trailduster (1981-1984)
Ford- Bronco (all) (1966-1996)
- Pickup F100 (1/2-ton) (1959-1986)
- Pickup F150 (1/2-ton) (1976-1990)
- F250 (3/4-ton) - multiple model series (1959-1990)
- Crew Cab (1978-1990)
- F350 (weight - 1000 kg) (1976-1990)
- F-1000 Pick Up 4x4 (1991-)
Jeep- Commander, J10 Pick Up (1974-1991)
- J20 Pick Up (1977-1987)
- Harvester (1/2-ton pick up), Traveller (1968-1975)
Technical specifications:- Number of splines on the axle shaft: 19
- Mounting type: internal mounting (Dana 44)
- AVM service kit: 4918
- Package contents: 2 pcs
- Package dimensions: 12 x 24 x 10 cm
- Package weight: 5 kg
