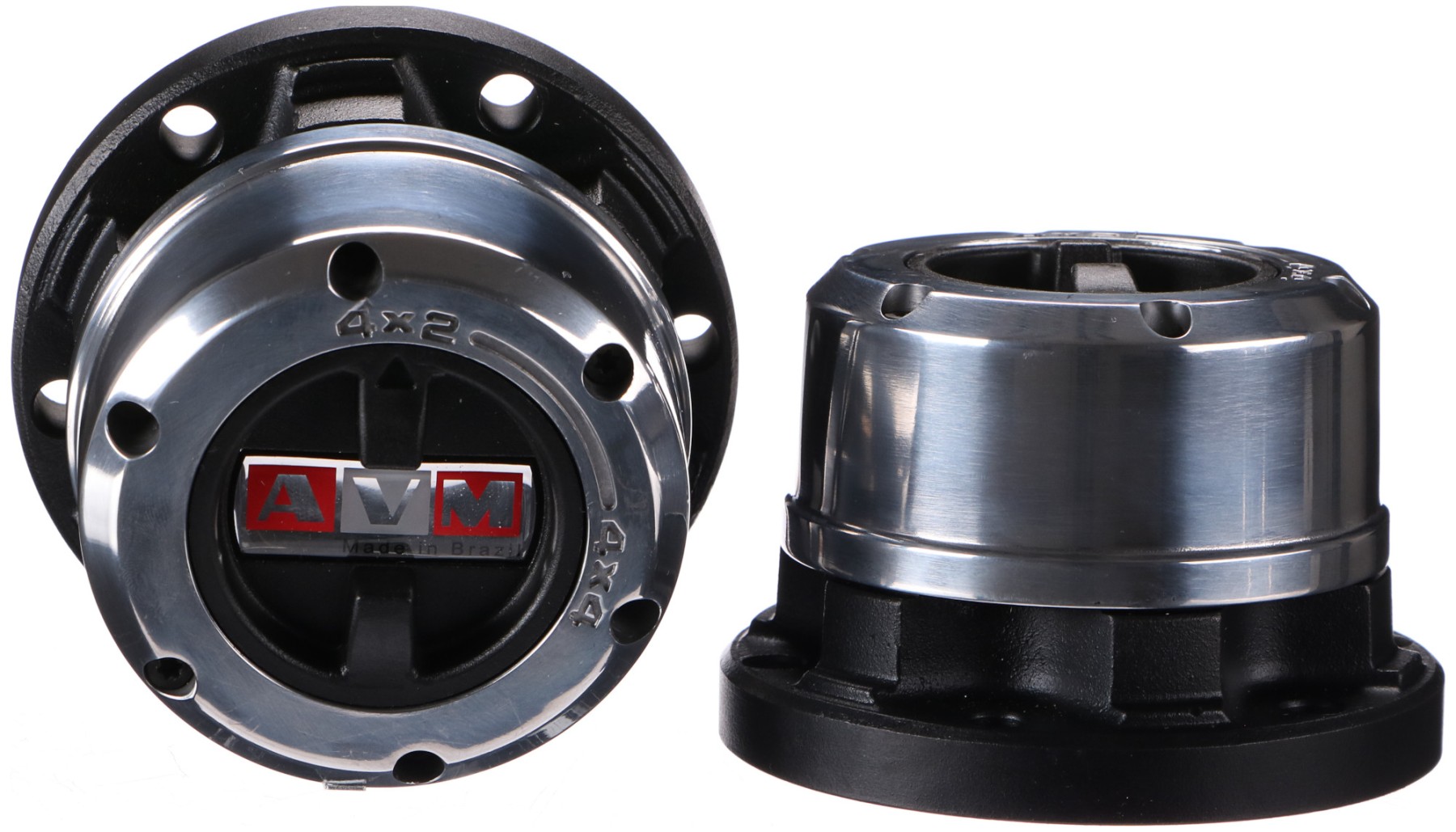

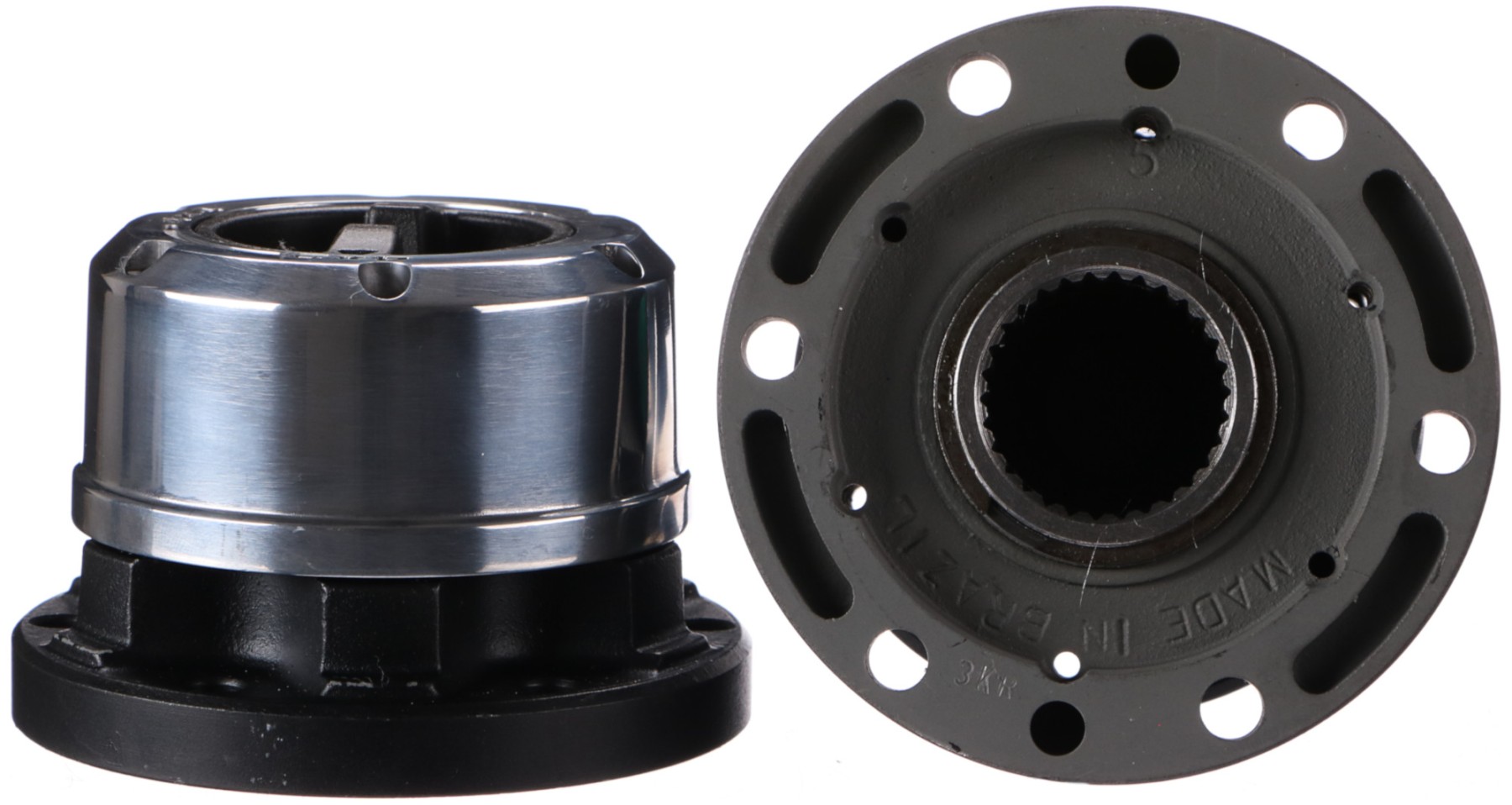

Freewheeling hub AVM 421 - Toyota / Troller
A set of 2 manual freewheeling hubs AVM 421 serves as detachable freewheeling front wheel hubs for selected 4x4 and off-road vehicles. When manually engaged, the hub connects the wheel hub to the front axle half-shaft, so that when four-wheel drive is engaged the driving force can also be transmitted to the front wheels. When disengaged, the front wheels rotate freely during 4x2 driving without unnecessary spinning of front driveline components, which helps reduce mechanical resistance and wear. The freewheeling hubs complement the vehicle's 4x4 control and do not replace its engagement. The robust steel construction protected by an epoxy coating increases resistance to external influences, and precisely machined internal components support reliable operation in regular use as well as in more demanding off-road conditions.
Suitable for models:Toyota- Land Cruiser (1976-1987)
- Hilux (all except ADD), Pick Up (1976-1985)
- Bandeirantes (1983-2001)
- Land Cruiser HZJ80, FZJ 70/75 (1989-1998)
- 4 Runner (– June 1985)
TrollerTechnical specifications:- Number of splines on the half-shaft: 30
- Number of bolts: 6
- Thread of mounting bolts: M8x1,25
- Pitch circle diameter (PCD): 90 mm
- AVM service kit: 4404
- Package contents: 2 pcs
- Package dimensions: 11 x 22 x 9 cm
- Package weight: 5 kg
